Briggs & Stratton 30210 Manual de usuario

LE GENERATOR

IENERADOR PORTAT|L

CAUTION

Before using this product, read this manual

and follow all Safety Rules and

Operating Instructions.

PRECAUCION

Antes de utilizar el producto, lea este manual y

siga todas las Reghs de Seguridad e

Instrucciones de Uso.

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator bielpline =I=800=743-4115 M-F 8-5 CT

Llamada:Generador bie[piine =I=800=743=41I S M-F 8-5 CT

Web: www.briggsand stratton.com

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

6JEFFERSON,WISCONSIN, U.S.A.

WERPRODUCTS

SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS

Safety Rules .................................... 2-4

Know Your Generator ............................. S

Assembly ...................................... 6=8

Operation .................................... 9-14

Specifications ................................... 5

Maintenance .................................... 5

Storage ........................................ 6

Troubleshooting ................................. 7

Notes ......................................... 8

Warranty ...................................... 9

EQUIPMENT

DESCRiPTiON

_Read this manual carefully and become

............................... familiar with your generator Know its

applications, its limitations and any hazards

involved

The generators are an engine-driven, revolving field,

alternating current (AC) generator. It was designed to

supply electrical power for operating compatible electrical

lighting, appliances, tools and motor loads.The generator's

revolving field is driven at about 3,600 rpm by a single-

cylinder engine.

CAUTION! DO NOT exceed the generator's

wattage/amperage capacity. See "Don't Overload

Generator".

Every effort has been made to ensure that information in

this manual is accurate and current. However, we reserve

the right to change, alter or otherwise improve the product

and this document at any time without prior notice.

The Emission Control System for this generator is

warranted for standards set by the Environmental

Protection Agency. For warranty information refer to the

engine owner's manual.

SAFETY RULES

_l_ This is the safety alert symbol. It is used to

alert you to potential personal injury hazards.

Obey all safety messages that follow this

symbol to avoid possible injury or death.

The safety alert symbol (_) is used with a signal word

(DANGER, CAUTION,WARNING), a pictorial and/or a

safety message to alert you to hazards. DANGER indicates

a hazard which, if not avoided, will result in death or serious

injury. WARNING indicates a hazard which, if not avoided,

could result in death or serious injury. CAUTION

indicates a hazard which, if not avoided, might result in

minor or moderate injury. CAUTION, when used

without the alert symbol, indicates a situation that could

result in equipment damage. Follow safety messages to

avoid or reduce the risk of injury or death.

[ AwAR-,-G

The engine exhaust from this product contains

[chemicals known to the State of California to cause

[cancer, birth defects, or other reproductive harm.

HazardSymbolsand Meanings

Electrocution Electrical Shock Electrical Shock

Explosion

Toxic Fumes Kickback

Fire

Hot Surface

may be reproduced or transmitted in any form by any

means without the express written permission of Briggs &

Stratton Power Products Group, LLC.

WARNING

.Operate generator ONLY outdoors.

.Keep exhaust gas from entering a confined area through

windows, doors, ventilation intakes or other openings.

.DO NOT operate generator inside any building or enclosure,

including the generator compartment of a recreational vehicle (RV).

WARNING

.When using generator for backup power, notify utility

company. Use approved transfer equipment to isolate

generator from electric utility.

. Use a ground circuit fault interrupter (GFCI) in any damp or

highly conductive area, such as metal decking or steel work.

. DO NOT touch bare wires or receptacles.

. DO NOT use generator with electrical cords which are worn,

frayed, bare or otherwise damaged.

. DO NOT operate generator in the rain.

. DO NOT handle generator or electrical cords while standing

in water, while barefoot, or while hands or feet are wet.

. DO NOT allow unqualified persons or children to operate or

service generator.

I|WARNING

. When starting engine, pull cord slowly until resistance is felt

and then pull rapidly to avoid kickback.

. NEVER start or stop engine with electrical devices plugged in

and turned on.

|WARNING

WHEN ADDING OR DRAiNiNG FUEL

Turn generator OFF and let it cool at least 2 minutes before

removing fuel cap. Loosen cap slowly to relieve pressure in

tank.

Fill or drain fuel tank outdoors.

DO NOT overfill tank.Allow space for fuel expansion.

Keep fuel away from sparks, open flames, pilot lights, heat, and

other ignition sources.

DO NOT light a cigarette or smoke.

IVHEN STARTING EQUIPMENT

Ensure spark plug, muffler, fuel cap and air cleaner are in place.

DO NOT crank engine with spark plug removed.

If fuel spills, wait until it evaporates before starting engine.

IVHEN OPERATING EQUIPMENT

Do not tip engine or equipment at angle which causes fuel to

spill.

This generator is not for use in mobile equipment or marine

applications.

/VHEN TRANSPORTING OR REPAIRING

EQUIPHENT

.Transport/repair with fuel tank EMPTY or with fuel shutoff

valve OFF.

.Disconnect spark plug wire.

WHEN STORING FUEL OR EQUIPMENT WiTH FUEL

iN TANK

Store away from furnaces, stoves, water heaters, clothes

dryers or other appliances that have pilot light or other

ignition source because they can ignite fuel vapors.

|WARNING

This generator does not meet U. S. Coast Guard Regulation

33CFR-183 and should not be used on marine applications.

Failure to use the appropriate U. S. Coast Guard approved

generator could result in bodily injury and/or property

damage.

WERPRODUCTS

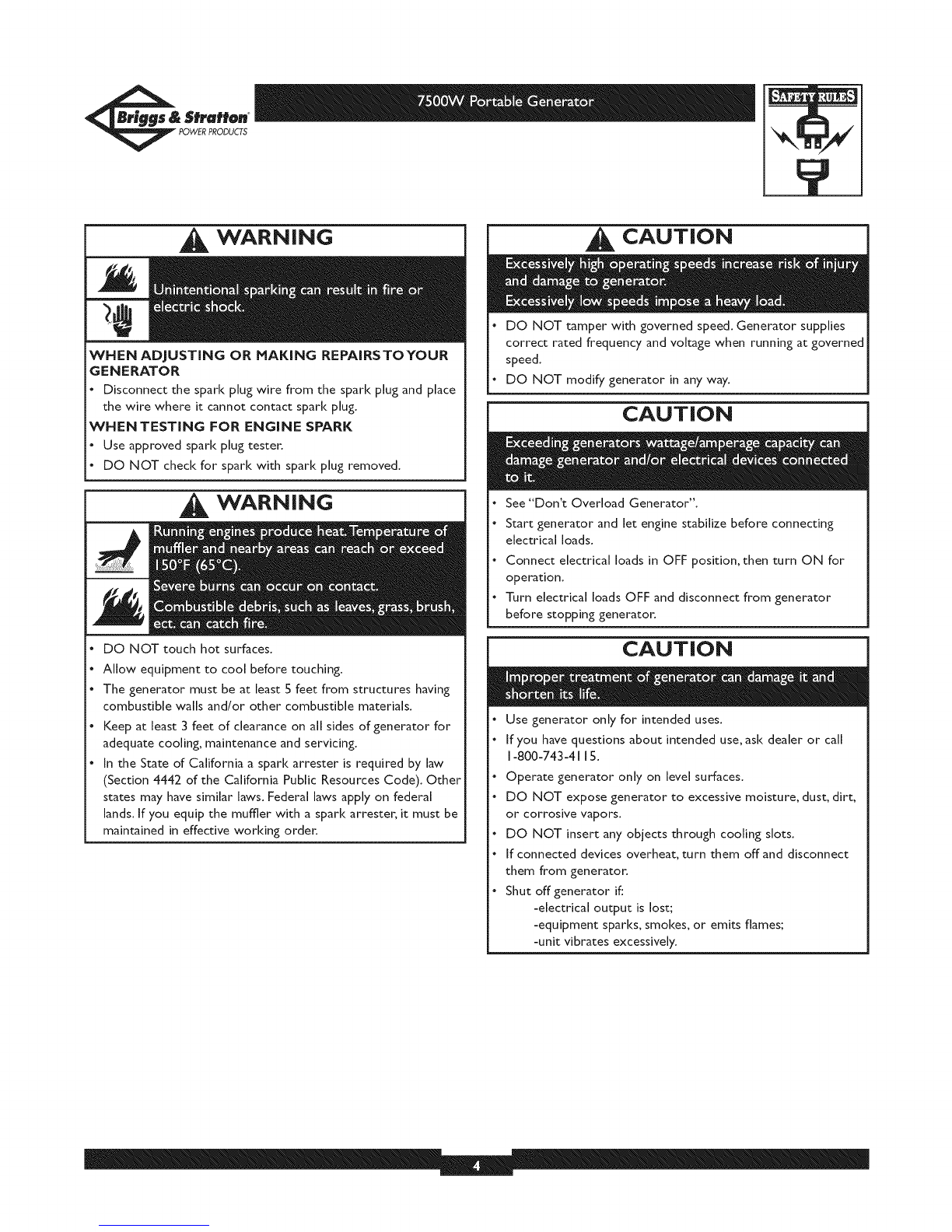

WARNING

WHEN ADJUSTING OR NAKING REPAIRSTOYOUR

GENERATOR

. Disconnect the spark plug wire from the spark plug and place

the wire where it cannot contact spark plug.

WHEN TESTING FOR ENGINE SPARK

.Use approved spark plug tester.

. DO NOT check for spark with spark plug removed.

| WARNING

. DO NOT touch hot surfaces.

. Allow equipment to cool before touching.

. The generator must be at least 5 feet from structures having

combustible walls and/or other combustible materials.

. Keep at least 3 feet of clearance on all sides of generator for

adequate cooling, maintenance and servicing.

. In the State of California a spark arrester is required by law

(Section 4442 of the California Public Resources Code). Other

states may have similar laws. Federal laws apply on federal

lands. If you equip the muffler with a spark arrester, it must be

maintained in effective working order.

DO NOT tamper with governed speed. Generator supplies

correct rated frequency and voltage when running at governed

speed.

DO NOT modify generator in any way.

CAUTION

See "Don't Overload Generator".

Start generator and let engine stabilize before connecting

electrical loads.

Connect electrical loads in OFF position, then turn ON for

operation.

Turn electrical loads OFF and disconnect from generator

before stopping generator.

CAUTION

Use generator only for intended uses.

If you have questions about intended use, ask dealer or call

1-800-743-4115.

Operate generator only on level surfaces.

DO NOT expose generator to excessive moisture, dust, dirt,

or corrosive vapors.

DO NOT insert any obiects through cooling slots.

If connected devices overheat, turn them off and disconnect

them from generator.

Shut off generator if:

-electrical output is lost;

-equipment sparks, smokes, or emits flames;

-unit vibrates excessively.

KNOWYOUR GENERATOR

Read this owner's manual and safety rules before operating your generator.

Compare this illustration with your generator to familiarize yourself with the locations of various controls and

adjustments. Save this manual for future reference.

Fuel Tank Rocker Switch Recoil Starter

Oil Fill Cap/Dipstick

Air Cleaner

Choke Lever

120Volt AC, 20 Amp

Duplex Receptacles

Circuit Breakers

120/240 Volt AC,

30 Amp Receptacle

Grounding Fastener

120 Volt AC, 20 Amp, Duplex Receptacles -- May be

used to supply electrical power for the operation of

120Volt AC, 20 Amp, single phase, 60 Hz electrical, lighting,

appliance, tool and motor loads.

120/240Volt AC, 30 Amp Locking Receptacle -- Play

be used to supply electrical power for the operation of

120 and/or 240Volt AC, 30Amp, single phase, 60 Hz

electrical, lighting, appliance, tool and motor loads.

Air Cleaner -- Protects engine by filtering dust and

debris out of intake air.

Choice Lever -- Used when starting a cold engine.

Circuit Breakers (AC) -- Push to reset circuit breakers are

provided to protect the generator against electrical overload.

Data Tag

Data Tag -- Provides model, revision and serial number of

generator. Please have these readily available when calling

for assistance.

Fuel Tank -- Capacity of seven (7) U.S. gallons.

Grounding Fastener -- If required, please consult a

qualified electrician, electrical inspector, or local agency

having jurisdiction.

Oil Fill Cap/Dipstick -- Check and fill engine with oil

here.

Recoil starter -- Used to start the engine.

Rocker Switch -- Set this switch to "On" before using

recoil starter. Set switch to "Off" to switch off engine.

WERPRODUCTS

ASSEMBLY

Your generator requires some assembly and is ready for

use after it has been properly serviced with the

recommended oil and fuel.

If you have any problems with the assembly of your

generator, please call the generator heIpline at

1-800-743-4115. If calling for assistance, please have the

model, revision, and serial number from the data tag available.

Remove Generator From Carton

I. Set the carton on a rigid flat surface with "This Side

Up" arrows pointing upward.

2. Carefully open the top flaps of the shipping carton.

3. Cut down corners at one end of carton from top to

bottom and lay that side of carton down flat.

4. Remove all packing material, carton fillers, etc.

5. Remove the generator from the shipping carton.

Carton Contents

Check all contents against those listed below:

• Main unit

• Engine oil

•Owner's manual

• Engine manual

• Battery float charger

• Wheel kit

If any parts are missing or damaged, call the generator

helpline at 1-800-743-4115.

ELECTRIC START

Your unit is equipped with electric start capability but can

be started manually. If you choose not to use the electric

start feature, you do not need to connect the negative

battery cable.

Check Battery /Attach Negative

Battery Wire

The sealed battery on the generator is fully charged and

pro-installed except for the negative (black) battery cable.

To install:

I. Cut off tie wrap securing loose end of negative (black)

cable.

2. Remove nut and washer on negative battery terminal.

3. Slide negative battery cable over screw on negative

terminal (Figure I).

4. Reattach washer and nut and tighten.

5. Verify that connections to battery and generator are

tight and secure.

iNSTALL WHEEL KIT

The wheel kit is designed to greatly improve the portability

of your generator.

NOTE: Wheel kit is not intended for over-the-road use.

You will need a I/2" or 13mm socket wrench, a I/2" or

13mm open end wrench, a 7/I 6" socket wrench, 7/I 6" open

end wrench and a needle-nose pliers to install this kit.

NOTE: Adjustable wrenches may be substituted for open

end wrenches.

Refer to Figure 2and install the wheel kit as follows:

I. Race the bottom of the generator frame on a flat, even

surface.Temporarily place unit on blocks to ease assembly.

2. SINe axle through both axle mounting brackets on

cradle frame, as shown in Figure 2.

3. Slide a wheel over the axle.

NOTE: Be sure to install both wheels with the air

pressure valve on the outboard side.

4. Slide a flat washer over the axle and place the e-ring

onto the groove in the axle.

5. Place one end of the needle nose pliers on the bottom

of the axle and the other end of the pliers on top of

the e-ring. Seat the e-ring by pressing the pliers closed.

6. Repeat step 3 through 5 to secure second wheel.

7. Remove the temporary blocks.

8. Attach vibration mounts to support leg with M6-1.0 x

16 capscrew and M6 lock nut.

9. With wheels on, secure support leg assembly to cradle

with M8 x 20 mm long capscrews, flat washers, and

lock washers.

IO. Check that all fasteners are tight and the tires are inflated

to the value marked on the tire or within I5 and 40 psi.

Axle

Vibration Mount ..... -_:

Cap .......

/Screw

FlatWasher

Hex Nut

Support Leg

-Flat Washer

_ ................ LockWasher

i........ Cap Screw

E-Ring

WERPRODUCTS

BEFORE STARTING THE

ENGINE

Add Engine Oil

* Place generator on a level surface.

CAUTION

, Refer to engine manual for oil fill information.

, Damage to equipment resulting from failure to follow this

instruction will void warranty.

• Refer to engine owner's manual and follow oil

recommendations and instructions.

NOTE: Check oil often during engine break-in. Refer to

engine owner's manual for recommendations.

NOTE: The generator assembly rotates on a prelubricated

and sealed ball bearing that requires no additional

lubrication for the life of the bearing.

Add Fuel

NOTE: This gasoline engine is certified to operate on

gasoline. Exhaust Emission Control System: EM (Engine

Modifications).

WARNING

WHEN ADDING FUEL

Turn generator OFF and let it cool at least 2 minutes before

removing fuel cap. Loosen cap slowly to relieve pressure in

tank.

Fill fuel tank outdoors.

DO NOT overfill tank.Allow space for fuel expansion.

Keep fuel away from sparks, open flames, pilot lights, heat, and

other ignition sources.

DO NOT light a cigarette or smoke.

Use clean, fresh, regular UNLEADED fuel with a

minimum of 85 octane. DO NOT use fuel which

contains Methanol. DO NOT mix oil with fuel.

2. Clean area around fuel fill cap, remove cap.

3. Slowly add regular unleaded fuel to fuel tank. Be careful

not to overfill.Allow about 1.5" of tank space for fuel

expansion (Figure 3).

JN NNNNF"-._'Z--'-._'f_----JN,'--"-.._NNF"-._'NN,

-"...--J,'*_NNNNNNNNNNNN._*_'F"

JNNf-_.Jf-_.._NNNNNNNNNNZ--"_-_,

4. Install fuel cap and wipe up any spilled fuel.

USING THE GENERATOR

System Ground

The generator has a system ground that connects the

generator frame components to the ground terminals on

the AC output receptacles.The system ground is connected

to the AC neutral wire (the neutral is bonded to the

generator frame).

Special Requirements

There may be Federal or State Occupational Safety and

Health Administration (OSHA) regulations, local codes, or

ordinances that apply to the intended use of the generator.

Please consult a qualified electrician, electrical inspector, or

the local agency having jurisdiction.

• In some areas, generators are required to be registered

with local utility companies.

• If the generator is used at a construction site, there may

be additional regulations which must be observed.

Connecting to a Building's Electrical

System

Connections for standby power to a building's electrical

system must be made by a qualified electrician.The

connection must isolate the generator power from utility

power, and must comply with all applicable laws and

electrical codes.

WARNING

. When using generator for backup power, notify utility

company. Use approved transfer equipment to isolate

generator from electric utility.

. Use a ground fault circuit interrupter (GFCI) in any damp or

highly conductive area, such as metal decking or steel work.

.DO NOT touch bare wires or receptacles.

.DO NOT use generator with electrical cords which are worn,

frayed, bare or otherwise damaged.

. DO NOT operate generator in the rain.

. DO NOT handle generator or electrical cords while standing

in water, while barefoot, or while hands or feet are wet.

. DO NOT allow unqualified persons or children to operate or

service generator.

Generator Location

Generator Clearance

WARNING

Operate generator ONLY outdoors.

Keep exhaust gas from entering a confined area through

windows, doors, ventilation intakes or other openings.

DO NOT operate generator inside any building or enclosure,

including the generator compartment of a recreational vehicle (RV).

The generator must be at least S ft. (I 52 cm) from

structures having combustible walls and/or other

combustible materials. Leave at beast 3 ft. (92 cm) all around

generator including overhead, for adequate cooling,

maintenance and servicing.

Place generator in a well ventilated area, which will allow

for removal of deadly exhaust gas. DO NOT place

generator where exhaust gas could accumulate and enter

inside or be drawn into a potentially occupied building.

Ensure exhaust gas is kept away from any windows, doors,

ventilation intakes or other openings that can allow exhaust

gas to collect in a confined area (Figure 4). Prevailing winds

and air currents should be taken into consideration when

positioning generator.

Typical Generator Shown

Exhaust Port

WERPRODUCTS

OPERATING THE

GENERATOR

CAUTION

. See"Don't Overload Generator".

. Start generator and let engine stabilize before connecting

electrical loads.

. Connect electrical loads in OFF position, then turn ON for

operation.

. Turn electrical loads OFF and disconnect from generator

before stopping generator.

IMPORTANT: Always unplug the batter), float charger

before starting the generator.

Starting the Engine

Disconnect all electrical loads from the generator. Use the

following start instructions:

1. Make sure unit is on a [eve[ surface.

iMPORTANT: Failure to start and operate unit on a level

surface wii[ cause the unit not to start or shut down during

operation.

2. Turn the fuel valve to the"On" position (Figure 5).The

fuel valve handle should be vertical (pointing toward

the ground) for fuel to flow.

FuelValve is shown

in the On position

3. Start engine according to instructions given in the

engine owner's manual.

NOTE: [f engine starts after 3 pulls but fails to run, or if

unit shuts down during operation, make sure unit is on a

level surface and check for proper oil level in crankcase.

This unit may be equipped with a low oil protection device.

See engine manual.

WARNING

When starting engine, pull cord slowly until resistance is felt

and then pull rapidly to avoid kickback.

NEVER start or stop engine with electrical devices plugged in

and turned on.

WARNING

DO NOT touch hot surfaces.

Allow equipment to cool before touching.

The generator must be at least 5 feet from structures having

combustible walls and/or other combustible materials.

Keep at least 3feet of clearance on all sides of generator for

adequate cooling, maintenance and servicing.

[n the State of California a spark attester is required by law

(Section 4442 of the California Public Resources Code). Other

states may havesimilar laws. Federal laws apply on federal

lands.[f you equip the muffler with a spar[<attester, it must be

maintained in effective working order.

Connecting Electrical Loads

• Let engine stabilize and warm up for a few minutes after

starting.

• Plug in and turn on the desired 120 and/or 240 Volt AC,

single phase, 60 Hz electrical loads.

• DO NOT connect 240Volt loads to the [20Volt duplex

receptacles.

• DO NOT connect 3-phase loads to the generator.

• DO NOT connect 50 Hz loads to the generator.

• DO NOT OVERLOAD THE GENERATOR. See

"Don't Overload Generator".

Otros manuales para 30210

Tabla de contenidos

Idiomas:

Otros manuales de Generador portátil de Briggs & Stratton

Briggs & Stratton

Briggs & Stratton 30470 Manual de usuario

Briggs & Stratton

Briggs & Stratton Home Generator Manual de usuario

Briggs & Stratton

Briggs & Stratton 30348 Manual de usuario

Briggs & Stratton

Briggs & Stratton 8kVA Generating Set Manual de usuario

Briggs & Stratton

Briggs & Stratton 030208-2 Guía de configuración

Briggs & Stratton

Briggs & Stratton Portable Generator Manual de usuario

Briggs & Stratton

Briggs & Stratton 5000 Watt Manual de usuario

Briggs & Stratton

Briggs & Stratton PRO8000 01934 Manual de usuario

Briggs & Stratton

Briggs & Stratton 30213 Manual de usuario

Briggs & Stratton

Briggs & Stratton Elite 030210-2 Manual de usuario

Briggs & Stratton

Briggs & Stratton 206405GS Manual de usuario

Briggs & Stratton

Briggs & Stratton 206494GS Manual de usuario

Briggs & Stratton

Briggs & Stratton PRO8000 Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard 580000 Manual de usuario

Briggs & Stratton

Briggs & Stratton Portable Generator Manual de usuario

Briggs & Stratton

Briggs & Stratton 030679-00 Manual de usuario

Briggs & Stratton

Briggs & Stratton PRO8000 Guía de configuración

Briggs & Stratton

Briggs & Stratton 30372 Guía de configuración

Briggs & Stratton

Briggs & Stratton GS2200 Manual de usuario

Briggs & Stratton

Briggs & Stratton Elite 09801 Manual de usuario

Briggs & Stratton

Briggs & Stratton 8000 Watt Portable Generator Manual de usuario

Briggs & Stratton

Briggs & Stratton 45000 series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 030592C-00 Guía de inicio rápido

Briggs & Stratton

Briggs & Stratton 40275 Guía de configuración

Manuales populares de Generador portátil de otras marcas

Kohler

Kohler 20EORZ Manual de instrucciones

Powerhorse

Powerhorse 83171 Manual de usuario

HURST

HURST ML-630-SI Manual de usuario

ETQ

ETQ TG4000 Manual de usuario

ConMed

ConMed 7550 Manual de usuario

Owon

Owon Waveform Generator Manual de usuario

evertz

evertz 7700 Series Manual de usuario

Power Stroke

Power Stroke PS906025 Manual de usuario

Firefly

Firefly Cygnus CYG2400/460/24 Manual de usuario

Draper

Draper PG950S Actualización de firmware

PowerBoss

PowerBoss PowerBoss Manual de usuario

SDMO

SDMO SH 4000 Manual de usuario

EINHELL

EINHELL STE 5500 Manual de usuario

Wanco

Wanco WI3000P Manual de usuario

Full Boar

Full Boar FBT-3300 Manual de usuario

Dwyer Instruments

Dwyer Instruments ASG Manual de usuario

Westinghouse

Westinghouse WH1000i Series Manual de usuario

Wallenstein

Wallenstein GF5000A Manual de usuario
