One Blue Hill Plaza, 16th Floor, PO Box 1546

Pearl River, NY 10965

1-800-PC-AMERICA, 1-800-722-6374

(Voice) 845-920-0800 (Fax) 845-920-0880

Brecknell Scales Configuration Steps

Power on scale by pressing the Red Zero On/Off button.

After scale boots press and hold the [Hold] and [Zero On/off] buttons for 3 seconds.

Next, Confg will show on the screen.

Use the Unit button to cycle to User.

Select User menu using the Tare button.

Cycle by pressing the Unit (3 times) to show Con2.

Select Con2 option using Tare.

Cycle using Unit (3 times) to show Lyout.

Select Lyout option using Tare.

Now use the HOLD/PRINT button to configure (the text on the display will start blinking).

Cycle through using the Unit button to show SCP02.

When showing and blinking on the screen select the option using Tare.

Now you are brought back to the Lyout option, use the Red Zero/On/Off button (4 times) to Exit.

Again press Zero/On/Off to Exit and restart the scale.

Brecknell Scales Configuration Steps to Lock Unit Type

*This configuration is optional to prevent cycling through other Units(KG,Lbs,G,etc.) of measure.

Power on scale by pressing the Red Zero On/Off button

After it boots press and hold the [Hold] and [Zero On/off] buttons for 3 seconds

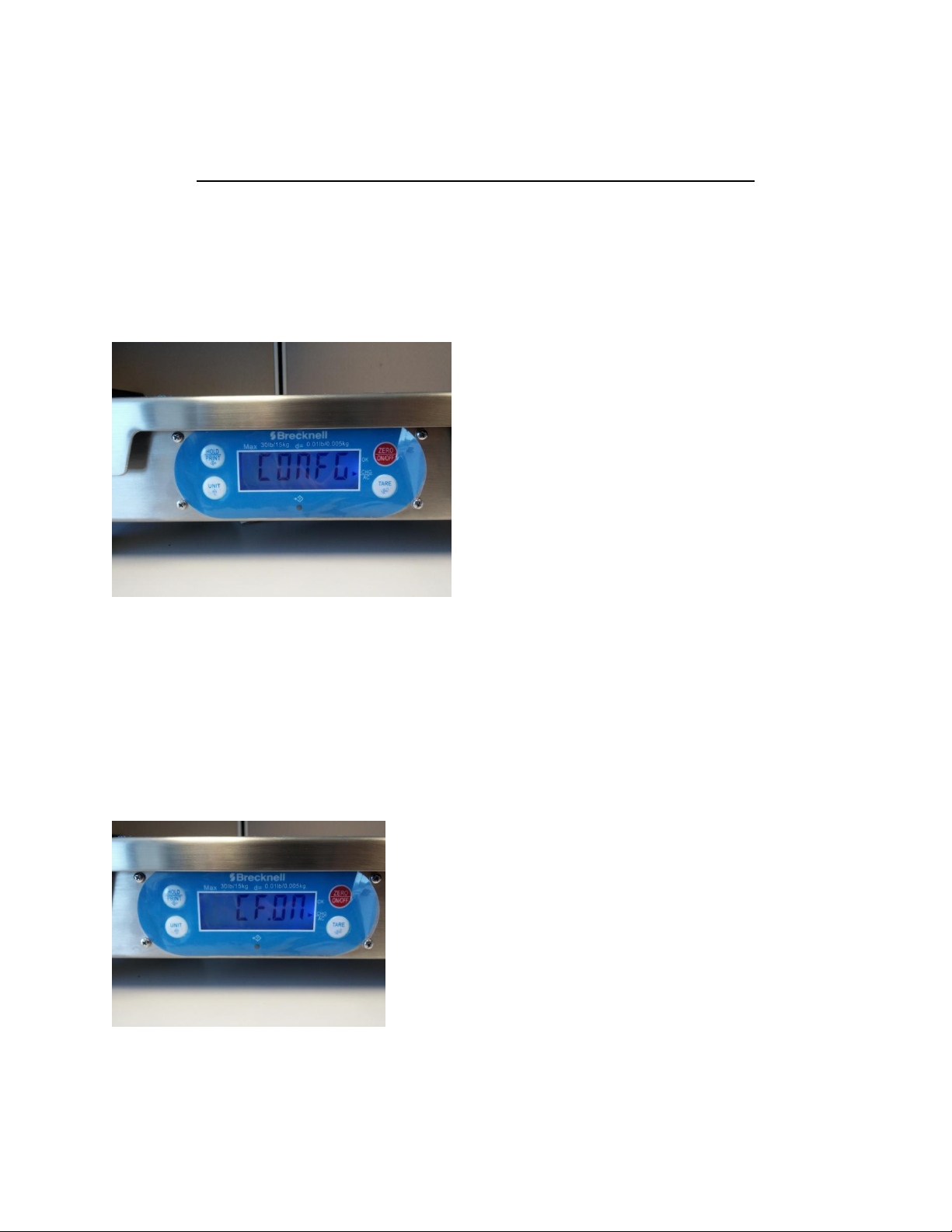

Next, Confg will show on the screen

Confg

Press the Unit key this will enter you into the configuration menu.

Now you will scroll through these options using the Unit key. Keep pressing the unit key until you reach

the Units screen this is where you will turn On or Off each unit. Press the Unit button 12 times to reach

Units, if you go too far you can use the Hold/Print button to go back a screen.

Press Unit

CF .ON

Press unit

Reset

Press Unit

Regul

Press Unit

PriM.N

Press Unit

PriM.D

Press Unit

Pri.Ut

Press Unit

Secd.N

Press Unit

10N.DSP

Press Unit

Motion

Press Unit

Over.D

Press Unit

Units

Now Press Tare to display the units you would like to turn on or off, all units are on by default. Press

Unit to skip to the next unit of measure.

KG

Press Tare again to select the unit displayed and turn off.

Yes

*Pres unit to toggle between Yes or No ( No will Blink Until you save it by pressing Tare again.) Follow

this process to configure each unit of measure.

Press Tare to go back to KG and save either Yes or No selection.

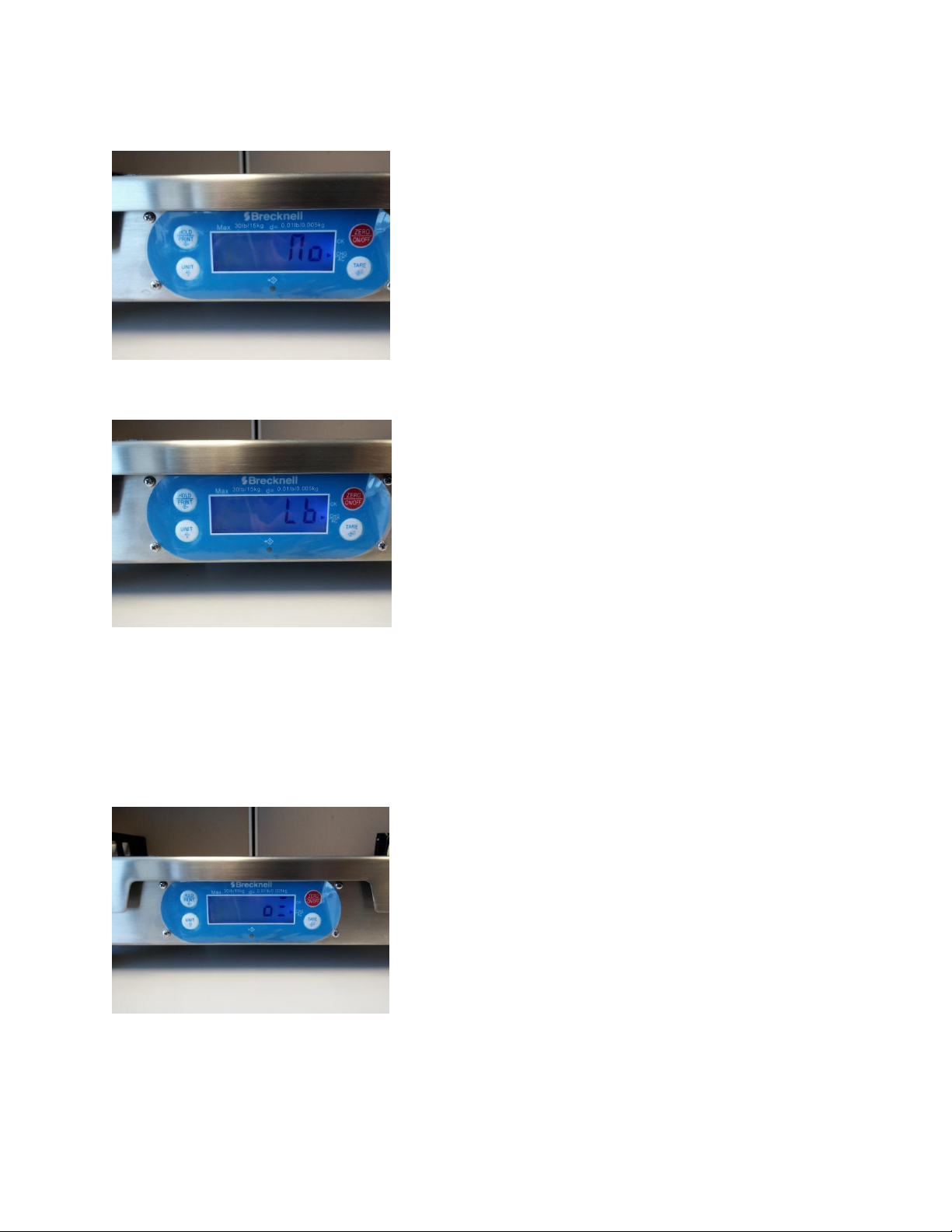

Press Unit, Press Tare if you would like to configure

LB

Press Unit, Press Tare if you would like to configure

OZ

Press unit, Press Tare if you would like to configure (Not Supported)

LB:Oz

Press unit, Press Tare if you would like to configure (Not Supported)

G

Press Zero On/OFF (this takes you back up to Units selection)

Units

Press Unit

13 zro/PT

Press Unit

FLter

Press Unit

Func

Press Zero On/Off to go back to the Confg Menu

Press and hold Zero On/Off to save configuration.

The Screen will flash off on the screen and then the backlight will turn off.

Turn the scale back on ensuring the only weight on the scale is the platter.

You have successfully programmed the scale to lock unit/s of measure.

*You can lock a single unit or specific multiple units to scroll through. If you chose multiple units, when

the scale is powered off it will turn on to the first unit in the configuration menu.

Setting up the Brecknell scales in CRE/RPE
