INSTALLATION!INSTRUCTIONS!
Page 1 of 5 GS
Toyota 24-pin Dual Camera Blind Spot
Monitoring System (Kit # 9002-2911)
Please read thoroughly before starting installation and check that kit contents are complete.

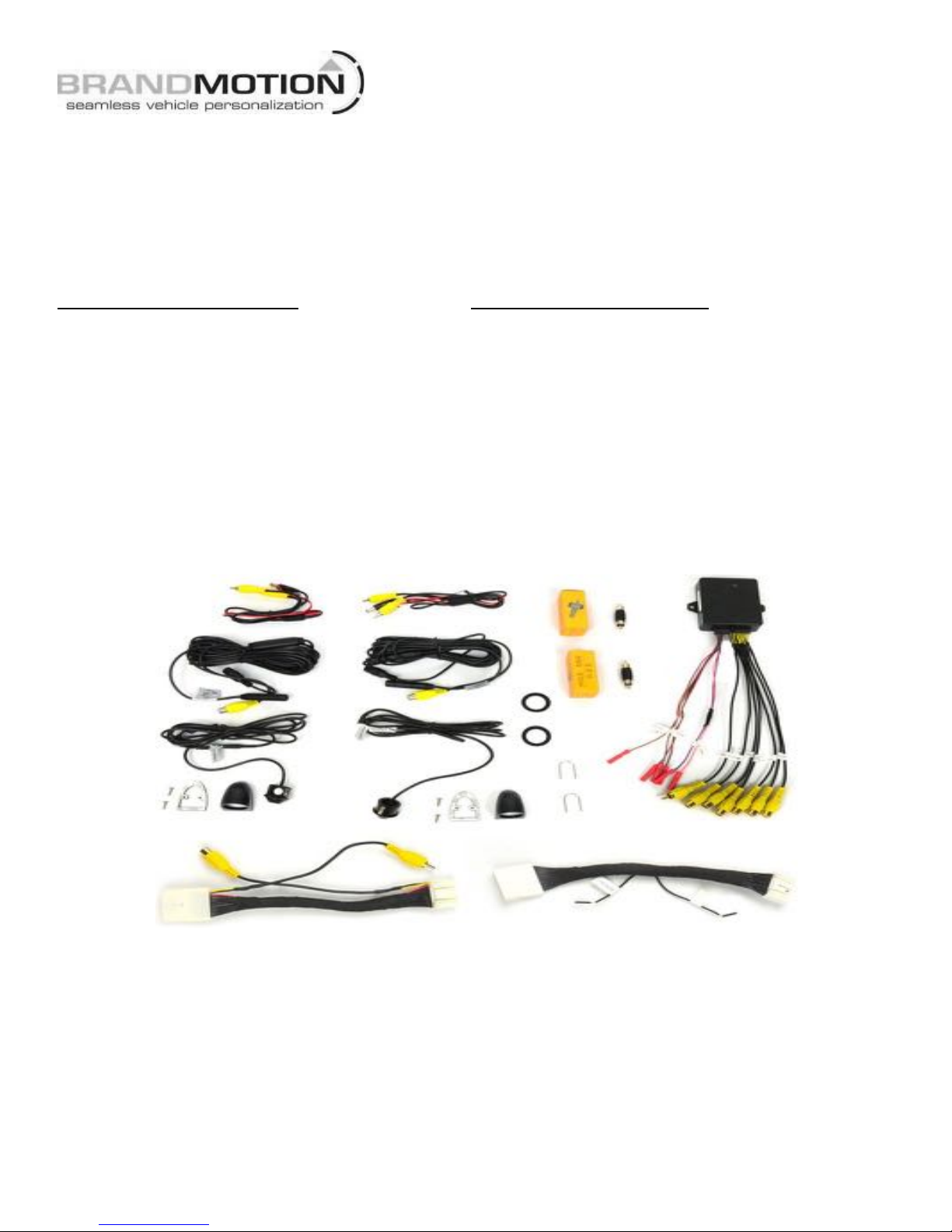

Items Included in the Kit:
Tools & Supplies Needed:
2 Adjustable angle cameras
2 Camera pods
2 Chassis harness
2 Foam gaskets
Mounting screws
2 Power/video harness
2 Hole saws
2 Angle adjustment tools
6-way video switcher
24-pin connector harness with RCAs
28-pin connector harness
These instructions
Wire strippers
Wire cutters
Electrical tape
Zip ties
Plastic panel removal tools
Digital Volt Meter / BCM safe test light
Screwdriver
Socket set
Wrench
Safety Precautions:
•Work in well ventilated area that is clear of obstructions.
•Secure vehicle with tire chucks in both front and rear of tires.
•Turn vehicle accessories OFF and ensure ignition key is in OFF position.
•Wear safety goggles and snug fitting clothes.
•Use tools only for their intended purpose and which are in good repair.
•Only perform this task if confidence, skill, and physical ability permit.
INSTALLATION!INSTRUCTIONS!
Page 2 of 5 GS

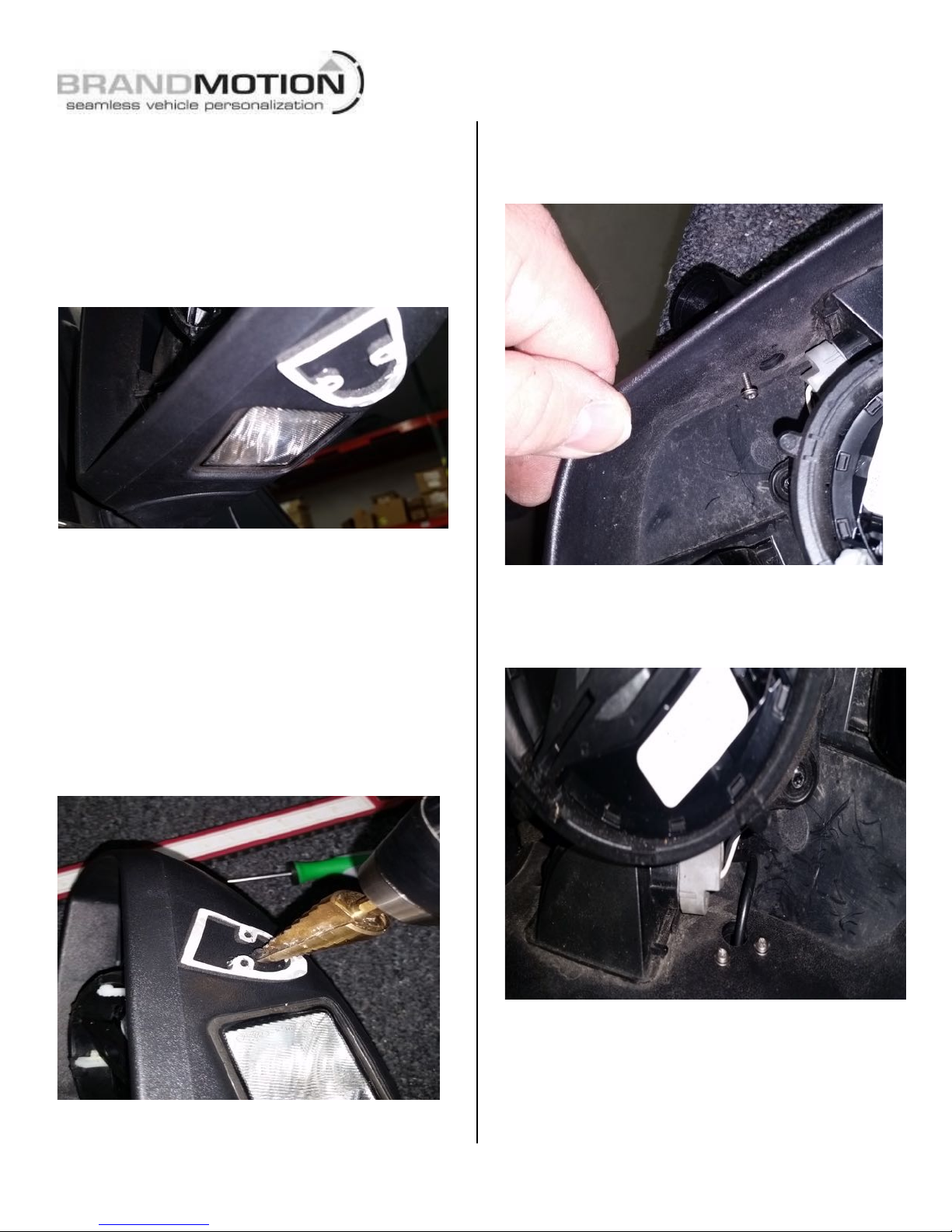

1. Remove the inner door panel to gain access
to the wiring and side view mirror mounting
bolts.
2. Use the foam gasket and attach it to the
bottom of the mirror plastic. Attach it so the
flat area aims towards the rear of the
vehicle.
3. Carefully remove the mirror glass from the
mirror.
Each vehicle is different; consult the
vehicle’s service guide for how-to steps
.
4. Remove the mirror from the vehicle housing
from the vehicle.
5. Drill 2 pilot holes for the mounting screws
and a pilot hole in the center of the camera
pod opening for the harness to be ran
through.
6. Mount pods by screwing from the inside of the
mirror.
Using a Phillips number 1 tip with a ¼
wrench works the best.
7. Run the camera harness into the mirror and
through the arm of the mirror, into the door.
8. Run the camera harness into the vehicle
through the door boot.
9. Connect the video/power harness to the chassis
harness that was just ran into the vehicle.
INSTALLATION!INSTRUCTIONS!
Page 3 of 5 GS
10. Connect the BLACK wire to ground and the RED
wire to accessory 12-volt power. Repeat for
the other door.
11. Locate the 28 terminal connector on the back of
the radio and unplug it.
12. Plug the short 28-pin connector harness from
the kit into the back of the radio. Plug the
connector you removed from the back of the
radio into the other end of the 28-pin connector
harness.

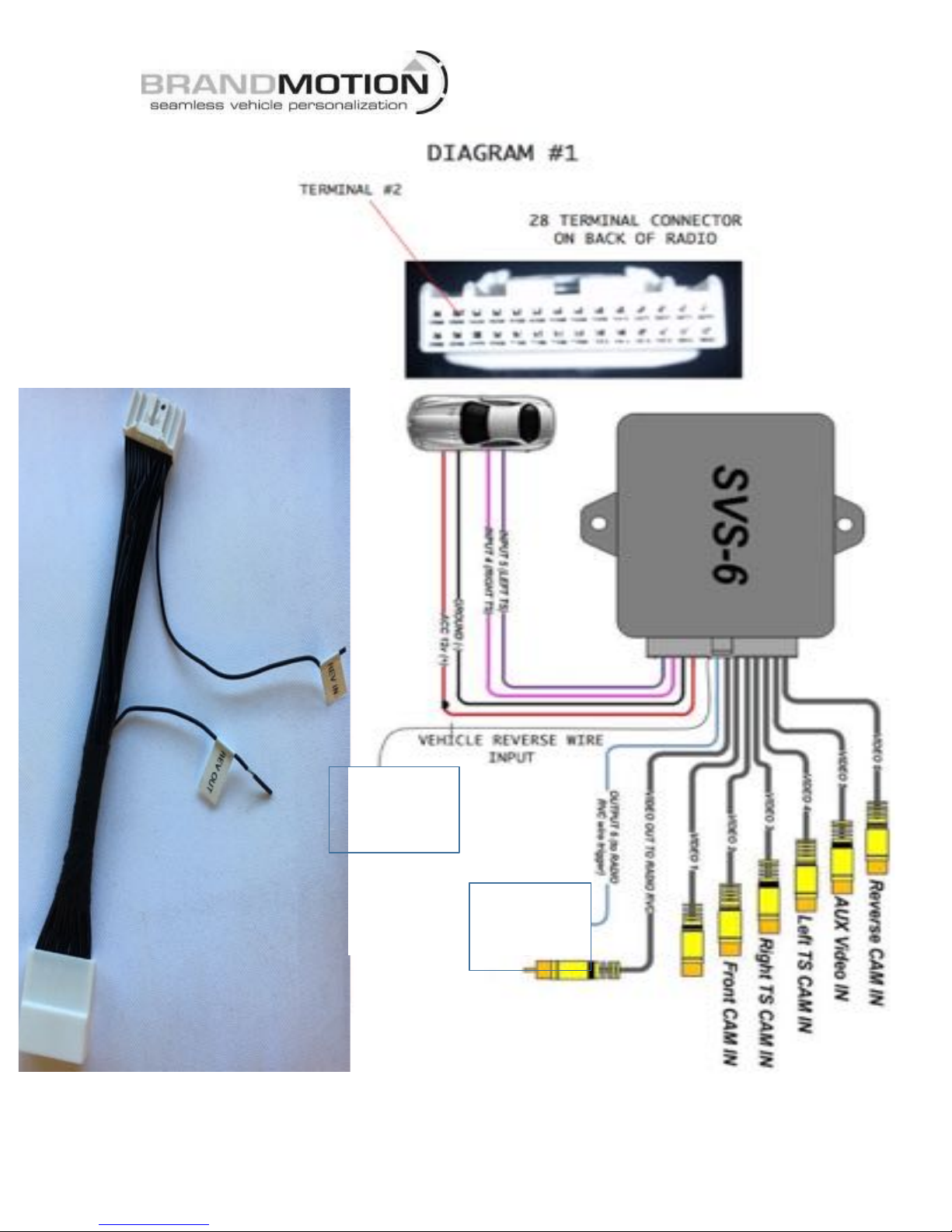

13. Connect the wire from the connector harness
labeled REV IN to the blue wire on the 6-way
video switcher.
14. Connect the wire from the connector harness
labeled REV OUT to the white/black wire on the
6-way video switcher. (See diagram #1)
15. Locate the 24-terminal connector on the back
of the radio and unplug it.
16. Plug the short 24-pin connector harness with
the RCAs from the kit into the back of the radio.
Plug the connector you removed from the back
of the radio into the other end of the 24-pin
connector harness.
17. Connect the female RCA on the 24-pin
connector harness to the VIDEO OUT of the 6-
way switcher.
18. Connect the male RCA from the 24-pin
connector harness to the REAR CAM INPUT on
the 6-way video switcher. (See diagram #2)
19. Connect and match the YELLOW video RCA
from the camera to the RCA input that
corresponds to the door that is being worked
on (left or right.)
20. Connect the trigger wires from the video
switcher to the positive turn signal wires. Left
input trigger wire is PURPLE, the right input
trigger wire is PINK.
21. Connect the BLUE reverse trigger output wire
from the video switcher to the aux-trigger input
on the dual camera interface.
22. Connect the video output RCA from the video
switcher to the input of the interface or video
display.

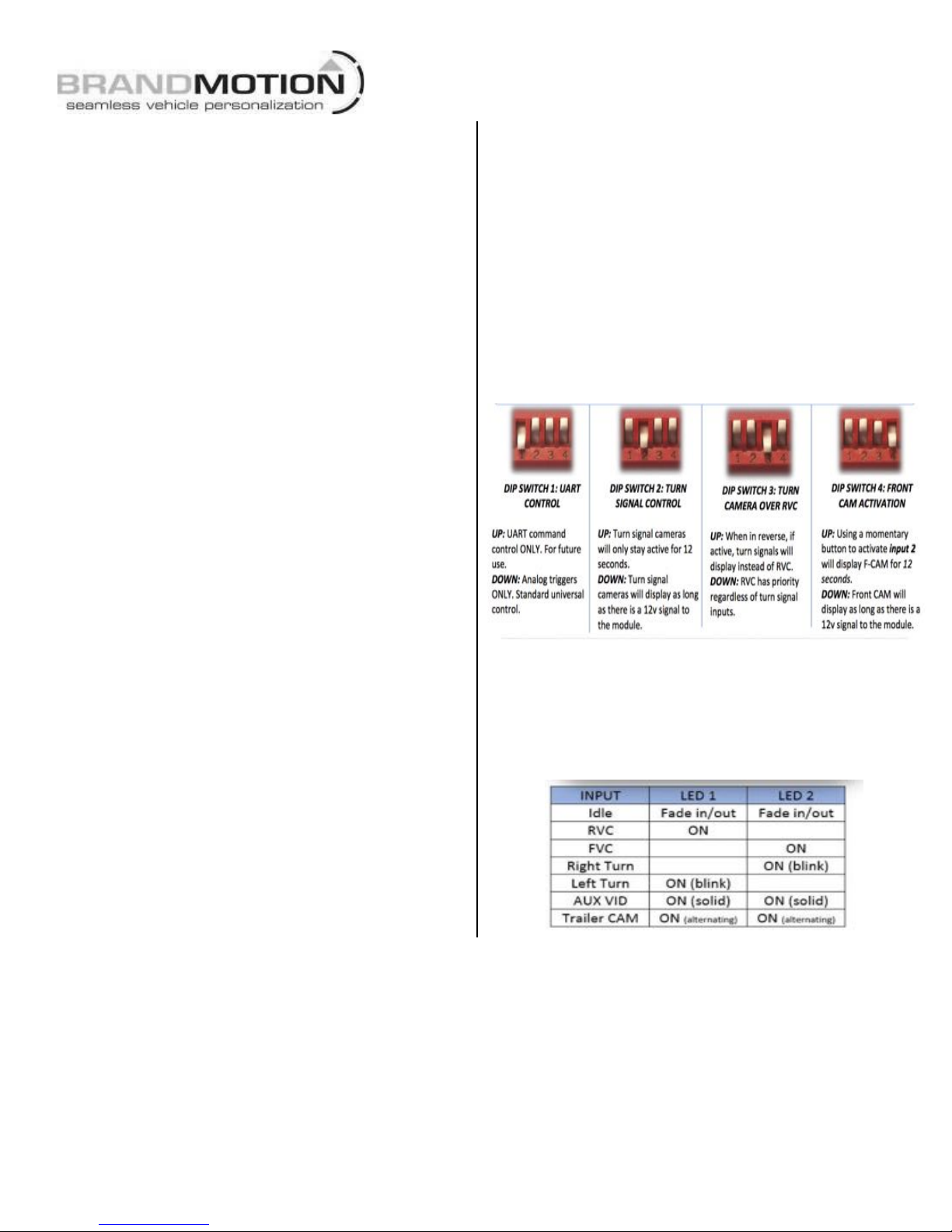

23. The DIP switches have to be set on the video
switcher for the turn signal input wires to be
able to trigger the switcher (see DIP switch
diagram below).
24. Check the angle and view. If the angle needs
to be changed, use the supplied angle
adjustment tool to adjust the camera.
25. Reassemble the vehicle in the reverse order.
INSTALLATION!INSTRUCTIONS!
Page 4 of 5 GS
Connect to
REV OUT
(step 14)
Connect to
REV IN
(step 13)
INSTALLATION!INSTRUCTIONS!
Page 5 of 5 GS

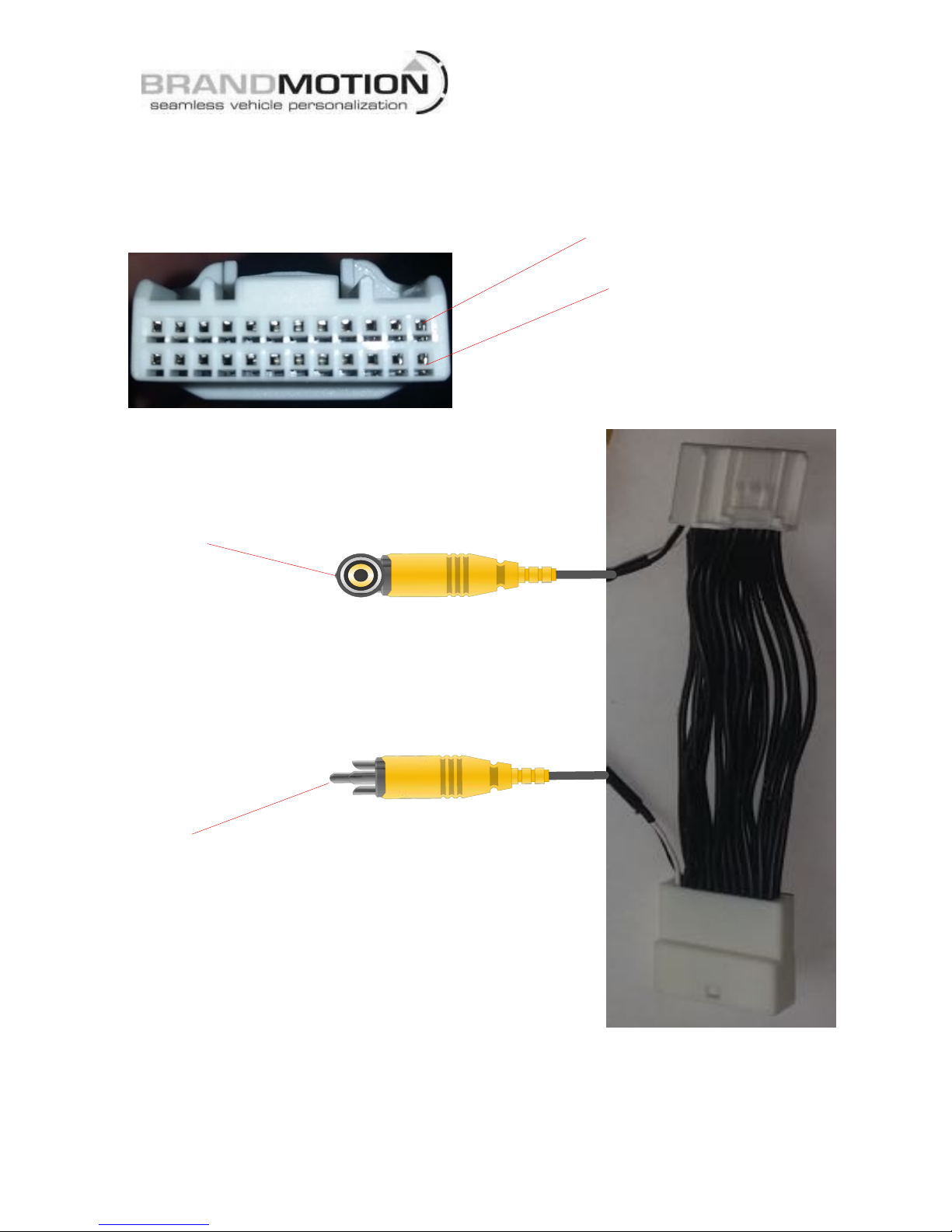

DIAGRAM #2
TERMINAL #12
TERMINAL #24
(NEGATIVE VIDEO)
(POSITIVE VIDEO)
24 TERMINAL CONNECTOR
(RADIO SIDE)
CUT WIRES 12 AND 24
ADD A FEMALE RCA TO THE RADIO
SIDE CONNECTOR
ADD A MALE RCA CONNECTOR TO
THE CAR SIDE OF THE HARNESS
CONNECT TO THE VIDEO
OUT RCA OF THE 6-WAY
SWITCHER
CONNECT TO THE
REAR CAM RCA OF
THE 6-WAY VIDEO
SWITCHER
Learn more about cameras & driver safety on our website.
