Bradley TouchTime Manual de operación
1 of 4 Bradley • 215-1369-41 Rev. A: ECN 17-03-010
Operation and Service Guide: Showers
P.O. Box 309 •Menomonee Falls, WI 53052-0309
1.800.BRADLEY •1.262.251.6000 •bradleycorp.com
Column Showers - TouchTime®(DC)
WARNING
The TouchTime activation must be connected with a 12V DC plug in adapter.
Connections to 110 VAC can cause personal injury and will result in damage
to the electronics.
Make sure that all water supply lines have been flushed and then completely
turned off before beginning installation. Debris in the supply lines can cause
valves to malfunction.
DO NOT put the 120VAC/12VDC plug in adapter in the shower room. Check
local codes and ordinances for proper location and connection requirements.
Conformity to local codes is the responsibility of the installer.
NOTICE
To help prevent electrical damage to the unit, Bradley recommends the use of
a surge protection. The type of surge protection required and its usage is the
responsibility of the installer/electrician.
Water supply requires a flowing pressure of at least 20 psi, but no greater
than 80 psi.
IMPORTANT
Check local codes and ordinances for proper location and connection
requirements. Compliance and conformity to local codes and ordinances is
the responsibility of the installer.
Read this entire service guide to ensure proper installation and use of the
TouchTime®DC valve. When finished with the service, file this manual with
the owner or maintenance department.
Separate parts and packaging and make sure all parts are accounted for
before discarding any packaging. If any parts are missing, do not begin
service until obtaining the missing parts.
2 of 4 Bradley • 215-1369-41 Rev. A: ECN 17-03-010
Operation and Service Guide: Showers
P.O. Box 309 •Menomonee Falls, WI 53052-0309
1.800.BRADLEY •1.262.251.6000 •bradleycorp.com
TouchTime
The TouchTIme Column controls water flow at each station through the use of a timer module. When the pushbutton is pushed, a
signal is sent controlling the opening and closing of the fixture's solenoid valve. The valve then delivers water to the fixture for a
preset length of time of 60 seconds (timing is adjustable on module).
TouchTime and Solenoid Valve
Each TouchTime mechanical pushbutton/piezo switch activates a flow of water. Each nozzle is controlled by a separate solenoid
valve, allowing each user to activate a flow of tempered water from one spray nozzle with a pushbutton or piezo switch for
60 seconds. Each valve uses less than half the maximum amount of hot water allowed by the ANSI/ASHRAE/IES 90A-1980
Standard. Activation time can be adjusted in the field.
Solenoid Valve
An electronically controlled solenoid valve serves as the metering mechanism. Few moving parts provide reliable metering
performance and the solenoid is unaffected by chemicals and minerals often present in municipal water supplies.
Supplies Required
• 110VAC power source for 120VAC/12V DC plug in adapter
• 120VAC/12V DC plug in adapter (available from Bradley)
Installing the TouchTime Valve
WARNING DO NOT put the 120VAC/12VDC plug in adapter in the shower room. Check local codes and
ordinances for proper location and connection requirements. Conformity to local codes is the
responsibility of the installer.
WARNING DO NOT activate power to your shower until installation is complete.
WARNING Verify that the electrical source to the fixture is 12V DC.
NOTICE: Connection of leads other than shown below may cause permanent damage to the electrodes.
Activation of the pushbutton takes place only when it is released, thereby preventing "hold open" activation.
3
2
1
5
3
2
1
Mechanical
Pushbutton
Piezo Switch
Item Part No. Description
1 S83-368 Mechanical Pushbutton
2 150-174 Escutcheon Col. 2-5
3 150-177 Escutcheon Col. 6
4 204-467 Label, TouchTime Col. (Not Shown)
5 110-258 Nut, Hex
Item Part No. Description
1 S83-369 Piezo Switch w/ Hex Nut
2 150-174 Escutcheon Col. 2-5
3 150-177 Escutcheon Col. 6
4 204-467 Label, TouchTime Col. (Not Shown)
3 of 4 Bradley • 215-1369-41 Rev. A: ECN 17-03-010
Operation and Service Guide: Showers
P.O. Box 309 •Menomonee Falls, WI 53052-0309
1.800.BRADLEY •1.262.251.6000 •bradleycorp.com
Column Shower with TouchTime Valve
Solenoid
TouchTime Module
All wiring must be routed on the outside
of manifold next to the column
Escutcheon
Mechanical Pushbutton
or Piezo Switch
Manifold
Assembly
"B" and "O" unit supply position shown
Wiring Diagram Power Adapter to
Customer 120V Supply
Mechanical or Piezo
Pushbutton
TouchTime Module
Solenoid Valve Assembly
Make Electrical Connections
Install a 120VAC/12V DC plug in adapter in
a remote location a safe distance from the
shower room.
AConnect cable from solenoid to TouchTime
module. Connect cable from pushbutton to
TouchTime module. Connect cable from DC
adapter to TouchTime module
B
4 of 4 Bradley • 215-1369-41 Rev. A: ECN 17-03-010
Operation and Service Guide: Showers
P.O. Box 309 •Menomonee Falls, WI 53052-0309
1.800.BRADLEY •1.262.251.6000 •bradleycorp.com

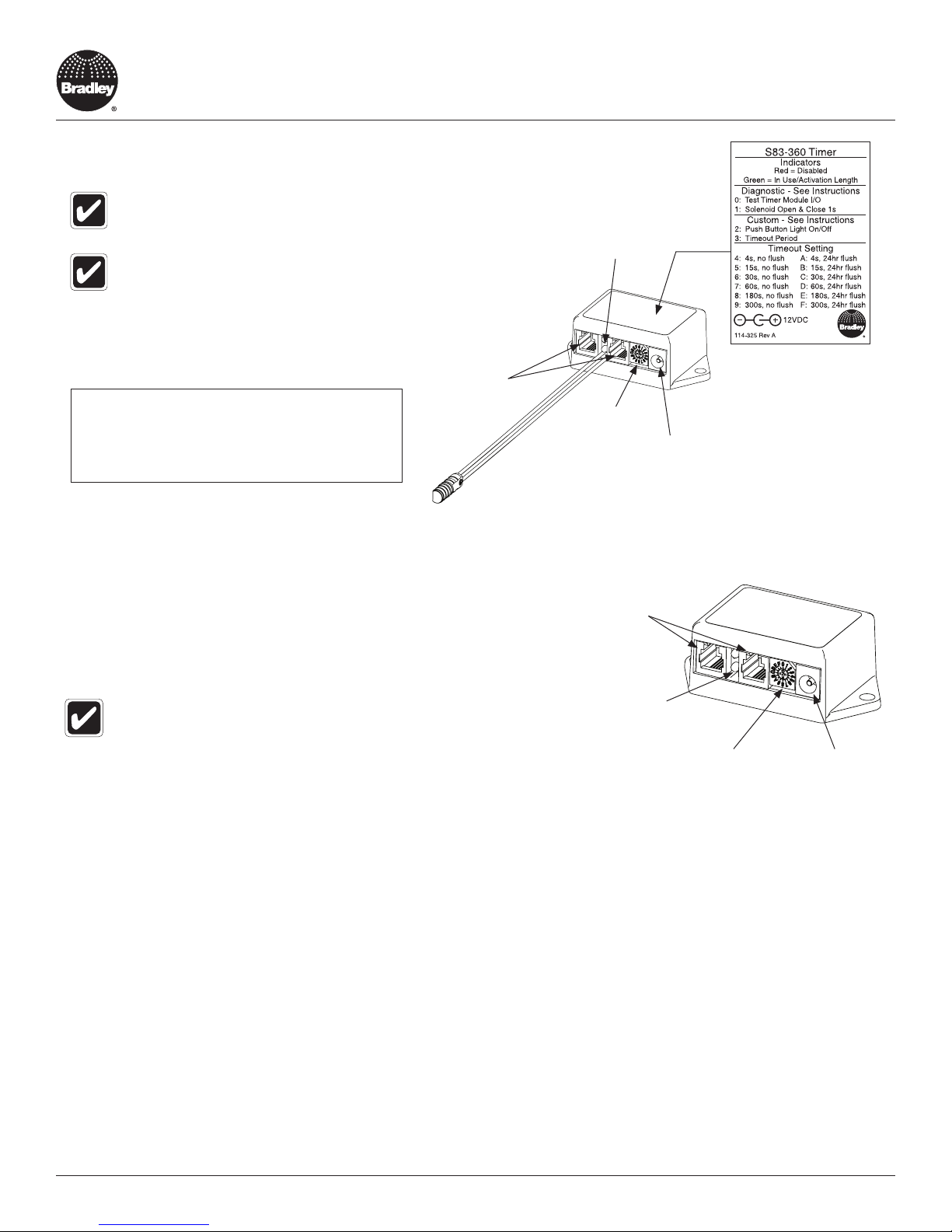

Adjusting the TouchTime Module
The TouchTime module is set at the factory with the selector
switch in position 7. This provides a 60 second time out period.
To adjust the TouchTime module to a different
time out period, turn the selector switch to
the desired time out setting (4 through 9 for
no flush, A though F for 24 hours flush) as
indicated on the module label.
A
The 24 hour flush function will activate water flow for
a period of 60 seconds any time there has been no
activation within the past 24 hours. This function is used
to help clear stagnant water from the plumbing system
and can provide some measure of prevention against the
formation of bacteria in supply pipes.
Pushbutton
Connectors (Can use
either one or both)
LED Indicator
Selector Switch
Power
Connection
How to Test the TouchTime Module (S83-360)
Supplies Needed
• Small flat blade screwdriver - to set the selector switch
• Switch or Pushbutton - either piezo electric or mechanical
• 12VDC plug in adapter
• Solenoid
Use a pushbutton/piezo switch, plug in adapter and
solenoid from an adjacent functioning assembly.
1. Discharge and reset the TouchTime module.
a. Connect solenoid, plug in adapter and pushbutton/piezo switch.
b. Set selector switch on TouchTime module to position 1.
c. Activate the solenoid. The solenoid should cycle open and close each second.
d. Remove power from TouchTime module. The green LED will stop flashing in 1 to 2 seconds.
e. Wait at least 5 seconds. This allows the TouchTime module to completely discharge and reset.
2. Test the TouchTime module.
a. Set the selector switch on TouchTime module to position 0 (diagnostic position for testing TouchTime
module).
b. Connect power to TouchTime module and verify green and red LEDs remain on after 2 seconds.
c. Move selector switch to position 1. The green and red LEDs should flash quickly for 2 seconds (LEDs flash
about 10 times).
d. Verify the solenoid cycles open and close each second.
e. Verify the green LED turns on and off with each solenoid click.
f. Move selector switch to position 4 (timeout setting = 4 seconds).
g. Press and release the pushbutton to initiate the timing cycle. Verify the green LED lights up for 4 seconds.
The solenoid clicks will match the LED.
3. Test is complete. Set the selector switch on the TouchTime module to the desired setting (4-F).
Pushbutton
Connectors (Can use
either one or both)
LED Indicator
Selector Switch Power
Connection
