Bradley Express SS-3N/TT/STD Manual de usuario

P.O. Box 309, Menomonee Falls, WI USA 53052-0309

PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817

bradleycorp.com

Installation

215-1495 Rev. H; ECM 11-08-011

Page 1 of 15 10/24/11

SS-3N/TT/STD

SS-3N/TT-WH

Express®Lavatory System SS-Series

Table of Contents

Pre-Installation Information ........................... 2

Components......................................... 3

Supplies Required ................................... 4

Dimensions........................................4–5

Rough-Ins ........................................... 6

Installation ...................................... 7–10

TouchTime Assembly and Solenoid Valve Access ......11

Solenoid Valve Troubleshooting.......................12

Navigator®Mixing Valve Troubleshooting ..............13

Stop Valve Troubleshooting ..........................14

Cleaning and Maintenance for Terreon®...............14

Soap Dispenser Maintenance ........................15

Express Lavatory Systems are ADA and TAS compliant

U.S. Pat. Nos. 5,611,093, 5,369,818, D398,969

Other Patents Pending

SS-3N/TT/STD/LSD-3

SS-3N/TT-WH/LSD-3

SS-3N/TT/STD, SS-3N/TT/WH Installation

210/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011

IMPORTANT!

Read this entire installation manual to ensure proper installation. When ﬁnished with the

installation, ﬁle this manual with the owner or maintenance department. Compliance and

conformity to local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding any

packaging material. If any parts are missing, do not begin installation until you obtain the missing

parts.

Make sure that all water supply lines have been ﬂushed and then completely turned off before

beginning installation. Debris in supply lines can cause valves to malfunction.

Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to

installation. Electrical power MUST remain off until unit and optional water heater have been

plumbed. After installation is complete, turn on the water supply ﬁrst, then turn on the electrical

power.

Hardware supplied by installer must be appropriate for wall construction. Wall anchors must have

a minimum pull-out rating of 1,000 lbs. Follow appropriate dimensions for standard or juvenile

height based on conﬁguration and required rim height. Overtightening fasteners can damage the

Terreon®material. Use caution when tightening bowl and sprayhead fasteners.

Product warranties may be found in the “Products” section on our Web site at bradleycorp.com.

Installation

THIS

SIDE

Packing List

•

Special Note for Sprayhead/Bowl retroﬁt

to retroﬁt new SS-3N sprayhead onto existing SS-3 bowl

1½" (38mm)

Drill hole Ø 1" (25mm)

to 1½" (38mm).

Existing Hole

2¼" (57mm)

Installation SS-3N/TT/STD, SS-3N/TT/WH

Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 3

WASHER

142-002BJ

LOCKWASHER

142-002BK

NUT, 5/16-18

161-036

BOLT 5/16-18

160-371

SCREW 10-24

160-386

MAIN FRAME

(S17-323)

SCUFF BASE

(17-324)

(USED WITH STANDARD

HEIGHT FRAME ONLY)

SCUFF PANEL FASTENERS (160-450)

WASHERS (142-002CA)

(4) PLACES

SCUFF BASE PANEL

(185-033) - GRAY

(185-033A) - PUTTY

(185-033B) - COAL

PEDESTAL PANEL

(186-1454) - GRAY

(186-1454A) - PUTTY

(186-1454B) - COAL

PANEL FASTENERS (160-450)

WASHERS (142-002CA)

(8) PLACES

SPRAYHEAD COVER

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

SPRAYHEAD BODY

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

BOWL

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

#8-32 SCREW

(160-319)

STRAINER

(P16-075)

DRAIN PLUG

(P16-072)

1/8" RUBBER WASHER

(125-001DP)

WASTE SHOE

(111-062)

P-TRAP (POLYPROPYLENE)

(269-1697)

OPTIONAL P-TRAP

(CHROME-PLATED BRASS)

(S29-094)

DRAIN ASSEMBLY

WASTE TEE

(111-063)

Components

1/4"-20 x 1/2"

PAN HEAD

SCREW (qty. 4)

(160-389)

1/4"-20

WASHER

(qty. 4)

(142-002DB)

BOWL MOUNTING

HARDWARE

#8-32 x 3/4"

ROUND HEAD

MACHINE SCREW

(160-276)

BRACKET

(140-950)

#8 WASHER

OPTIONAL WATER HEATER

EX95TMLB, 240/208 volts

(269-1767)

EX100TMLB, 277 volts

(269-1768)

#8 NUT

110/24 VAC

CLASS II PLUG-IN

TRANSFORMER

S83-134

SS-3N/TT/STD, SS-3N/TT/WH Installation

410/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011

Supplies Required:

• (8) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum pull-out rating of 1,000 lbs.)

• STD. HEIGHT ONLY: (2) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall

• ½" nominal copper tubing for hot and cold supplies and 1½" NPT drain piping

• 110 volt GFCI protected electrical outlet for 1110/24 VAC plug-in transformer (supplied)

• OPTIONAL: 240/208-volt or 277-volt electrical box for electric tankless water heater

Dimensions - Front and Top Views

SOAP

SOAP SOAP

SOAP

Top View

80" (2032mm)

Front View

Standard Frame

Front View

Wall-Hung Frame

85⁄8" (219mm)

30" (762mm)

8" (203mm)

51¼" (1302mm)

58" (1473mm)

64" (1626mm)

68¼" (1734mm)

8" (203mm)

68¼" (1734mm)

58" (1473mm)

64" (1626mm)

8" (203mm) Radius 10" (254mm) Radius

30" (762mm)

Installation SS-3N/TT/STD, SS-3N/TT/WH

Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 5

Dimensions - Side Views

TAS

Wall Hung Mounted

at Standard Height

Standard

Height

Wall Hung Mounted

at Juvenile Height

Ages: 6 through 12

Wall Hung Mounted

at TAS Height

Grades: 6

through

8 or 9

Wall Hung Mounted

at TAS Height

Grades: Pre-K

through 5 or 6

211⁄8" (537mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

13¼"

(311mm)

11½"

(292mm)

Scuff Base on

Standard Height Only

3" (76mm)

85⁄8"

(219mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

13¼"

(311mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

36½"

(927mm)

32"

(813mm)

28"

(711mm)

11¼"

(286mm)

35½"

(902mm)

31"

(787mm)

27"

(686mm)

10¼"

(260mm)

34½"

(876mm) 30"

(762mm)

26"

(660mm)

9¼"

(235mm)

SS-3N/TT/STD, SS-3N/TT/WH Installation

610/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011

1Rough-Ins

FLOOR

A, F A, F

D1 D2 E

38-1/2"

(978mm)

24-3/8"

(619mm)

(203mm)

13"

(330mm)

2-3/4"

70mm)

(102mm)

24-3/8"

(619mm)

38-1/2"

(978mm)

32"

(

813mm)

28-3/4"

(720mm)

15"

(381mm)

5-5/8"

(143mm)

27-1/2" (699mm)

18" (457mm)

24"

(610mm) 23"

(584mm)

34"

(864mm)

RIM

HEIGHT

SEE

CHART

BELOW

3-1/2

(89mm)

CODE DESCRIPTION QTY.

A³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2

B³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 6

C³⁄₈" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not required 2

D1 ½" nominal copper tubing for Cold Supply, stub-out 2" from wall 1

D2 ½" nominal copper tubing for Hot or Tempered Supply, stub-out 2" from wall 1

E 1½" NPT Drain, stub-out 2" from wall 2

On the bowl back, measure the distance between the ¾" bowl mounting holes. Divide this measurement

in half. Measure and mark this dimension on the wall to the left and the right of the centerline. Install two

³⁄₈" wall anchors with a minimum pull-out rating of 1,000 lbs (supplied by installer) at locations marked.

GWater Heater Option #1: Rough-in appropriate electrical supply per local code (recommended location for

240/208v or 277v electrical box [4" long x 4" wide x 8" high] shown) 1

HWater Heater Option #2: Rough-in appropriate electrical supply per local code (recommended location for

240/208v or 277v electrical box [4" long x 4" wide x 4" high] shown) 1

J 110v GFI Protected Electrical Outlet 1

RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR CODES

A–E, H, C and W FIXTURE STYLE

34" None Standard Height

34" None Wall-Hung

32" Subtract 2" TAS, Grades 6 through 8 or 9

31" Subtract 3" Juvenile Height

30" Subtract 4" TAS, Pre-K through Grades 5 or 6

Installation SS-3N/TT/STD, SS-3N/TT/WH

Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 7

3Install Bowl The sprayhead body has slotted holes for adjusting

the fit-up with the bowl and wall.

For clarity, the scuff base frame and drain are not

shown. Turn the tailpiece down to its proper position

before installing the bowl.

Secure the bowl to the

wall anchors with ³⁄₈"

bolts and 1" min. O.D.

washers, two places.

Do not overtighten.

Attach the bowl to the frame with

¼"-20 x ½" pan-head screws and

washers. Do not tighten.

Tighten the pan-head screws

Do not overtighten.

SCUFF BASE FRAME

STANDARD HEIGHT

FRAME ONLY

SCUFF PANEL

STANDARD HEIGHT

FRAME ONLY

2Mount Frame to Wall

Anchoring the frame to a wall that is not

flat may cause the frame to bend, making

it difficult to reinstall the access panels. If

necessary, use shims to compensate for

wall distortion.

AUsing a T20 torx key, remove

the fasteners securing the

access panel to the main

frame, and remove the panel.

Once you have positioned the frame such that it is

level and flat against the wall or shimmed, mount

the frame to the wall at six places using 3/8” bolts

and 1” min. O.D. washers.

NOTE: When mounting the standard height frame,

mount the scuff base to the wall at the same time

using two additional 3/8” bolts and washers.

SS-3N/TT/STD, SS-3N/TT/WH Installation

810/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011

4a Connect the Supply — Hot and Cold Supply

4b Connect the Supply — Single Tempered Supply

The letter “H” on the Navigator Mixing

Valve indicates hot water supply inlet.

Loosen but do not remove

the two mounting screws

holding the valve bracket

to the frame.

Slide the valve bracket up

and lift it from the frame.

Connect one end of each hose to the

Navigator valve (one on the hot side, one on

the cold side).

Connect the other swivel end to the stop

valves.

Attach the stops to the hot

and cold water wall stub-outs.

Loosen but do not remove the two

mounting screws holding the valve

bracket to the frame.

Slide the valve bracket up and lift

it from the frame.

Connect one end of flexible hose

to the tempered line adapter.

Connect the other swivel end to

the stop valve.

Attach the stop to the

tempered wall stub-out.

Installation SS-3N/TT/STD, SS-3N/TT/WH

Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 9

6Optional Electric Tankless Water Heater

5Install the Drains

To Drain

Stub-Out

240/208 or 277 voltage is required for hot water heater.

Refer to the installation manual provided with the hot

water heater for further installation information.

Connect the ½" flexible

hose from the cold water

supply stub-out to the hot

water heater inlet.

Connect the ½" flexible hose

from the hot water heater

outlet to the supply inlet on

the solenoid valve assembly.

Hang the water heater

on the right side frame

member.

SS-3N/TT/STD, SS-3N/TT/WH Installation

10 10/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011

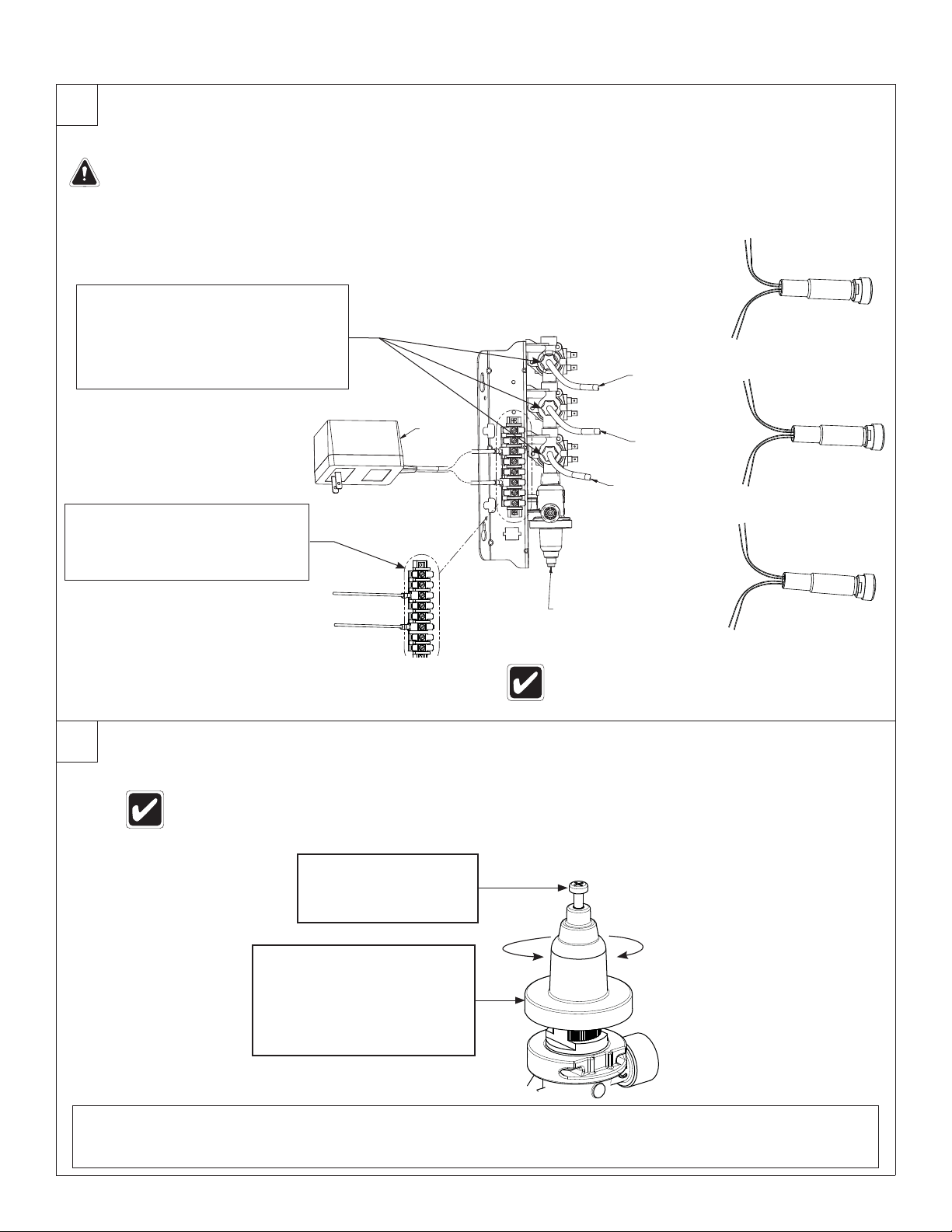

7Connect Electrical and Sprayhead Supplies

Reinstall the valve bracket. Turn on the water supply and check for leaks. Turn on the electrical power, trigger the TouchTime®

push button of each station until all air is purged from the lines and water is flowing smoothly. Reinstall the access panel.

B Black

Black

Supply

Tube

Navigator

Thermostatic

Mixing Valve

Transformer

S83-134

C Black H Brown

G Brown

F Brown

A Black

C Black

D Black

E Brown

F Brown

G Brown

H Brown

Left Button

Right Gray

Right Green

Center Gray

Left Gray

Center Green

Left Green

B Black

Center

Green

Right Green

Right Gray

Center

Gray

Left Gray

Center Button

Right Button

Green Supply

Tube

Red Supply

Tube

Left Green

Connect the wires as shown.

Attach the terminal block to the

frame near the solenoid rack

using the hook-and-loop fastener

provided.

WARNING: The Express® control must be connected with the 24 VAC Class II transformer provided. Connections

to 110 VAC can cause personal injury and will result in damage to the electronics. Connection of leads other than

shown may cause permanent damage to the sensor.

Activation of the push button takes place only when it

is released, thereby preventing “hold open” activation.

Loosen the compression nuts.

Push the sprayhead supply tubes

firmly into the tube connectors until

they are fully seated.

Tighten the compression nuts by

hand.

ALoosen the cap screw

about ¼" (4–6 turns)

and lift up the cover

(do not remove).

Using the cover, turn the

cartridge gently until

desired water temperature

is reached. Do not turn past

stops as this may damage

the unit. Push the cover

down and tighten the screw.

This valve is NOT factory preset. Upon installation, the temperature of this

valve must be checked and adjusted to ensure delivery of a safe water

temperature. Water in excess of 110°F (43°C) may cause scalding.

8Adjust the Temperature

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Producto de plomería de Bradley

Bradley

Bradley S19-310BF Manual de usuario

Bradley

Bradley TDB3108 Manual de usuario

Bradley

Bradley S19294 Series Manual de usuario

Bradley

Bradley Express Crescent CRS Series Manual de usuario

Bradley

Bradley S19-310PVC Manual de usuario

Bradley

Bradley Sentry SN2013/IR Manual de usuario

Bradley

Bradley S19-220DCR Manual de usuario

Bradley

Bradley Verge LVGD Series Manual de usuario

Bradley

Bradley Bradmar 700 Series Manual de usuario

Bradley

Bradley S19-465EFW Manual de usuario

Bradley

Bradley SN2013 Manual de usuario

Bradley

Bradley Express ELX-3 Manual de usuario

Bradley

Bradley Sentry SN2008/IR Manual de usuario

Bradley

Bradley SN2003 Guía de inicio rápido

Bradley

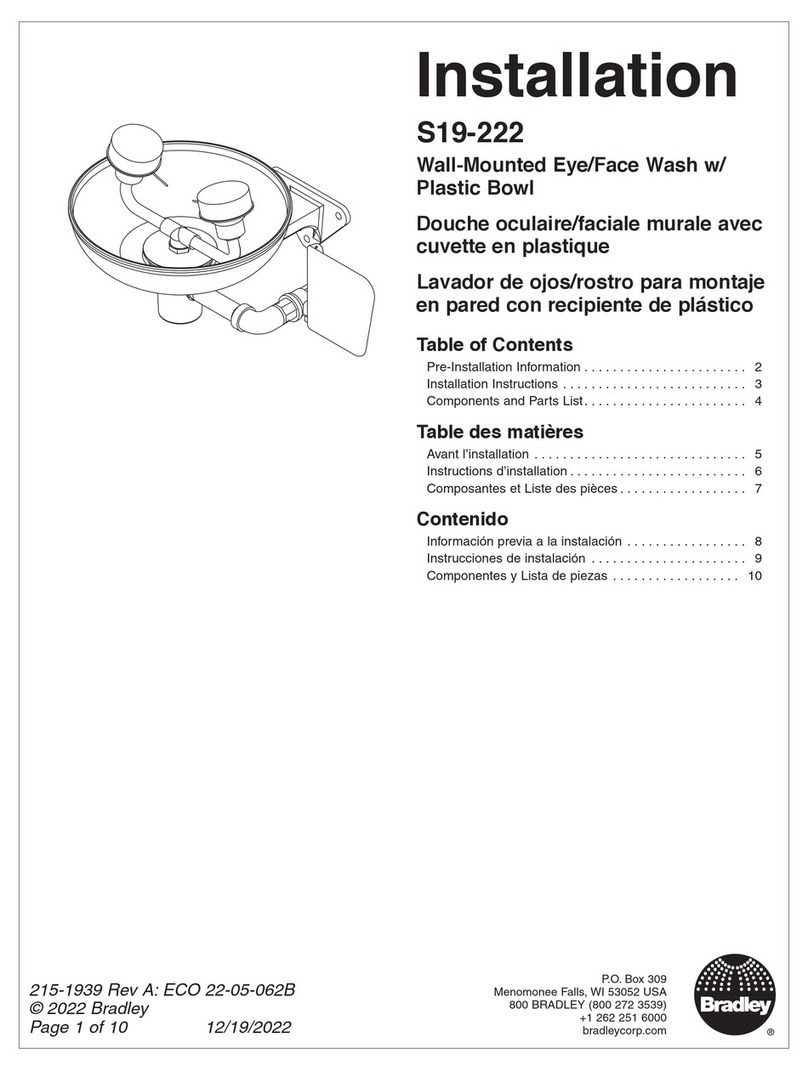

Bradley S19-222 Manual de usuario

Bradley

Bradley MF2939/BIR3 Manual de usuario

Bradley

Bradley TBD3103 Manual de usuario

Bradley

Bradley Frequency FL-2H Manual de usuario

Bradley

Bradley S19-130SSBF Manual de usuario

Bradley

Bradley MG-2/BIR3 Manual de usuario

Bradley

Bradley OmniDeck 3000 Series Manual de usuario

Bradley

Bradley Verge LVRD Series Manual de usuario

Bradley

Bradley Express SS-3 Infrared-to-Touch Time Manual de usuario

Bradley

Bradley S19-220DC Manual de usuario

Manuales populares de Producto de plomería de otras marcas

Weka

Weka 506.2020.00E Instrucciones de funcionamiento

Kohler

Kohler K-6228 Instrucciones de montaje

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Manual de usuario

American Standard

American Standard DetectLink 6072121 Manual de usuario

Uponor

Uponor Contec TS Manual de usuario

Pfister

Pfister Selia 49-SL Manual de usuario

Fortis

Fortis VITRINA 6068700 Manual de usuario

Fortis

Fortis MILANO 78211JS Manual de usuario

Kohler

Kohler K-12183 Instrucciones de montaje

Maxxus

Maxxus MX-M206-01 Manual de usuario

Moen

Moen 5922 Series Manual de usuario

Viega

Viega Prevista Pure 8512 Manual de usuario

Kohler

Kohler Centerset K-15240 Instrucciones de montaje

Viega

Viega Prevista Dry 8522.33 Manual de usuario

Sanela

Sanela Lema SLP 59RB Manual de usuario

Elkay

Elkay EDF15AC Manual de instalación

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Manual

baliv

baliv WT-140 Manual de usuario
