Installation

S19-110BF

Freestanding Drench Shower

Table of Contents

Pre-Installation Information ..............2

Installation Instructions.................. 3

Assembly of Components ...............4

Parts List ............................5

Bradley S19-110BF Free Standing Drench Shower Barrier Free

Bradley S19-110BFSS Stainless Steel Free Standing Drench Shower - Barrier Free

netzerotools.com

S19-110BF Installation

5/29/2012

IMPORTANT

Read this installation manual completely to ensure proper installation, then file it

with the owner or maintenance department. Compliance and conformity to drain

requirements and other local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before

discarding any packaging material. If any parts are missing, do not begin installation

until you obtain the missing parts.

Flush the water supply lines before beginning installation and after installation is

complete. Test the unit for leaks and adequate water flow. Main water supply to the

eyewash should be “ON” at all times. Provisions shall be made to prevent unauthorized

shutoff.

The ANSI Z358.1 standard requires an uninterruptible supply of flushing fluid at a

minimum 30 PSI (0.21 MPa) flowing pressure. Flushing fluid should be tepid per ANSI

Z358.1.

The inspection and testing results of this equipment should be recorded weekly to verify

proper operation. This equipment should be inspected annually to ensure compliance

with ANSI Z358.1.

Workers who may come in contact with potentially hazardous materials should be

trained regarding the placement and proper operation of emergency equipment per ANSI

Z358.1.

Installation

THIS

SIDE

Packing List

••••

P.O.Box309, Menomonee Falls, WI 53051

TESTTHISUNIT EACHWEEK

Test-operatevalve(s) each week and sign below.

Reportanymalfunctions immediately.

Ventil(e)wöchentlich im Testbetrieb prüfen, bestätigt

durchUnterschrift. Jegliche Störung sofort melden.

Date

Datum

Date

Signed

Unterschrift

Signe

Date

Date Signed

Signed

DIESESGERÄT1ST WÖCHENTLICH ZU PRÜFEN.

ESSAIHEBDOMADAIRE

Testle fonctionnement des valves chaque semaine et

signeen bas. S'il y à quelquechose qui ne va pas fait

unrapport immédiatement.

P.O.BOX 309, MENOMONEE FALLS, WI 53052-0309 USA

TEL:1-800-BRADLEY FAX: (262-251-5817)

http://www.bradleycorp.com

114-051

netzerotools.com

Installation S19-110BF

5/29/2012

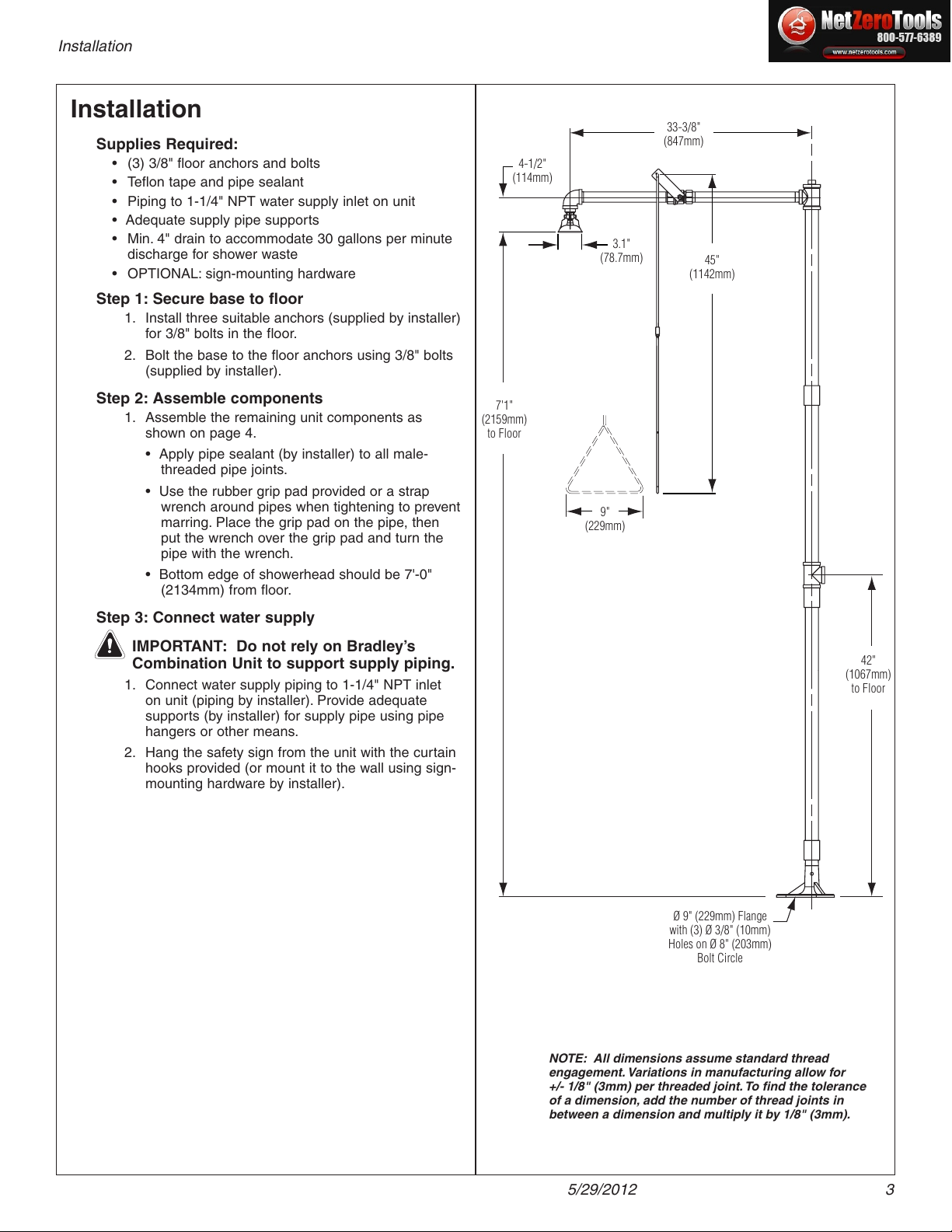

Installation

Supplies Required:

•฀(3)฀3/8"฀floor฀anchors฀and฀bolts•฀Teflon฀tape฀and฀pipe฀sealant•฀Piping฀to฀1-1/4"฀NPT฀water฀supply฀inlet฀on฀unit•฀฀Adequate฀supply฀pipe฀supports•฀Min.฀4"฀drain฀to฀accommodate฀30฀gallons฀per฀minute฀discharge฀for฀shower฀waste•฀OPTIONAL:฀sign-mounting฀hardwareStep 1: Secure base to floor

1.฀Install฀three฀suitable฀anchors฀(supplied฀by฀installer)฀for฀3/8"฀bolts฀in฀the฀floor.2.฀Bolt฀the฀base฀to฀the฀floor฀anchors฀using฀3/8"฀bolts฀(supplied by installer).

Step 2: Assemble components

1.฀Assemble฀the฀remaining฀unit฀components฀as฀shown฀on฀page฀4.•฀฀Apply฀pipe฀sealant฀(by฀installer)฀to฀all฀male-threaded฀pipe฀joints.•฀฀Use฀the฀rubber฀grip฀pad฀provided฀or฀a฀strap฀wrench฀around฀pipes฀when฀tightening฀to฀prevent฀marring.฀Place฀the฀grip฀pad฀on฀the฀pipe,฀then฀put฀the฀wrench฀over฀the฀grip฀pad฀and฀turn฀the฀pipe฀with฀the฀wrench.•฀฀Bottom฀edge฀of฀showerhead฀should฀be฀7'-0"฀(2134mm) from floor.

Step 3: Connect water supply

IMPORTANT: Do not rely on Bradley’s

Combination Unit to support supply piping.

1.฀Connect฀water฀supply฀piping฀to฀1-1/4"฀NPT฀inlet฀on฀unit฀(piping฀by฀installer).฀Provide฀adequate฀supports฀(by฀installer)฀for฀supply฀pipe฀using฀pipe฀hangers฀or฀other฀means.2.฀Hang฀the฀safety฀sign฀from฀the฀unit฀with฀the฀curtain฀hooks฀provided฀(or฀mount฀it฀to฀the฀wall฀using฀sign-mounting฀hardware฀by฀installer).NOTE: All dimensions assume standard thread

engagement. Variations in manufacturing allow for

+/- 1/8" (3mm) per threaded joint. To ﬁnd the tolerance

of a dimension, add the number of thread joints in

between a dimension and multiply it by 1/8" (3mm).

33-3/8"

(847mm)

4-1/2"

(114mm)

3.1"

(78.7mm) 45"

(1142mm)

(229mm)

42"

(1067mm)

to Floor

7'1"

(2159mm)

to Floor

Ø 9" (229mm) Flange

with (3) Ø 3/8" (10mm)

Holes on Ø 8" (203mm)

Bolt Circle

netzerotools.com

S19-110BF Installation

5/29/2012

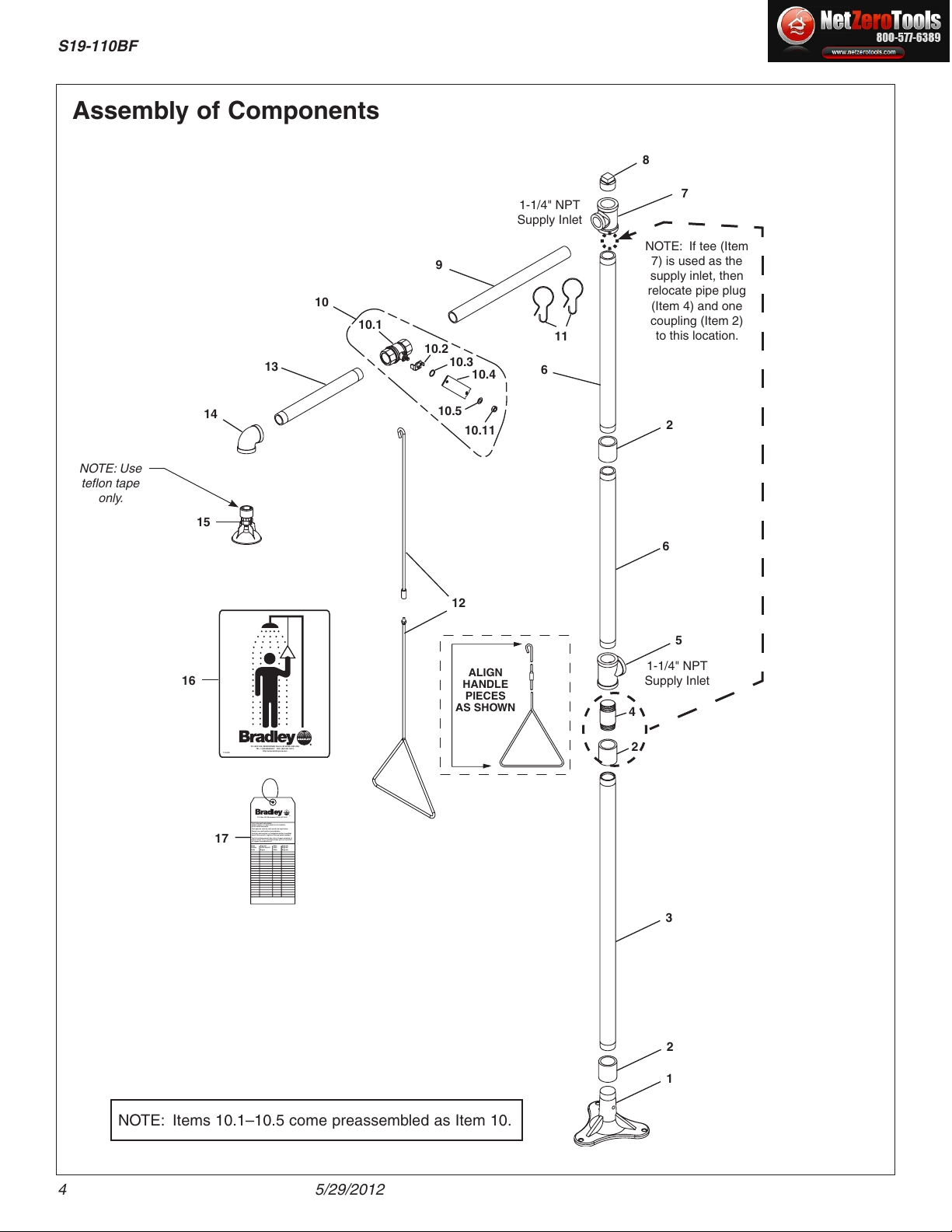

Assembly of Components

P.O. Box 309, Menomonee Falls,WI 53051

TESTTHIS UNIT EACH WEEK

Test-operatevalve(s) each week and sign below.

Report any malfunctions immediately.

Ventil(e)wöchentlich im Testbetrieb prüfen, bestätigt

durch Unterschrift. Jegliche Störung sofort melden.

Date

Datum

Date

Signed

Unterschrift

Signe

Date

Date Signed

Signed

DIESES GERÄT 1STWÖCHENTLICH ZU PRÜFEN.

ESSAI HEBDOMADAIRE

Testle fonctionnement des valves chaque semaine et

signe en bas.S'il y à quelque chose qui ne va pas fait

un rapport immédiatement.

P.O. BOX 309, MENOMONEE FALLS,WI 53052-0309 USA

TEL: 1-800-BRADLEY FAX: (262-251-5817)

http://www.bradleycorp.com

114-050

10.210.310.4

10.5

10.11

10.1

ALIGN

HANDLE

PIECES

AS SHOWN 1-1/4"฀NPT฀Supply Inlet 1-1/4"฀NPT฀Supply Inlet

NOTE:฀฀If฀tee฀(Item฀7)฀is฀used฀as฀the฀supply฀inlet,฀then฀relocate฀pipe฀plug฀(Item 4) and one

coupling฀(Item฀2)฀to฀this฀location.NOTE:฀Items฀10.1–10.5฀come฀preassembled฀as฀Item฀10.NOTE: Use

teflon tape

only.

netzerotools.com

Installation S19-110BF

5/29/2012

Parts List

Item Part No. Qty. Description

1131-059 1 Base

2 169-853 3 Coupling฀1-1/4"3 113-1181 1 Pipe฀1-1/4"฀NPT฀x฀31"4 S06-136 1 Pipe฀Plug5 169-727 1 Pipe฀Tee฀1-1/4"฀NPT6 113-006LW 2 Pipe฀1-1/4"฀NPT฀x฀22-1/2"7 169-722 1 Red.฀Tee฀1-1/4"฀x฀1-1/4"฀x฀1"฀NPT8 169-724 1 Sq.฀Head฀Pipe฀Plug฀1-1/4"฀NPT9 269-434 1 Pipe฀1"฀NPT฀x฀9"10 S30-059 1 Stay-Open฀Ball฀Valve฀1"฀NPT10.1 S27-278 1 Ball฀Valve฀1"฀with฀Jam฀Nut10.11 110-214 1 Jam฀Nut฀onlyItem Part No. Qty. Description

10.2 140-720 1 Stop฀Bracket10.3 124-048 1 Friction฀Washer10.4 128-129 1 Handle

10.5 142-002DC 1 Lockwasher11 151-001 2 Curtain฀Hook12 S90-365D 1 Pull Rod

13 113-006LK 1 Pipe฀1"฀NPT฀x฀12"14 169-847 1 90°฀Elbow฀1"฀NPT15 S24-188 1 Plastic฀Showerhead฀Assembly16 114-050 1 Safety฀Sign17 204-421 1 Emergency฀Inspection฀Tag18 269-915 1 Grip฀Pad฀(not฀shown)
