Bradley TDB3105 Manual de usuario
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
Installation
TDB3105
Terreon®36" Circular Deep Bowl
Washfountain with TouchTime®Control
215-1563 Rev. E; ECN 12-00-004
© 2013 Bradley
Page 1 of 22 1/15/2013
TDB3105 with
TouchTime Control Table of Contents
Pre-Installation Information ........................2
Circular Washfountain Dimensions ..................3
Rough-In Specifications......................... 4-5
Installing the Drain...............................6
Bowl/Pedestal Mounting and Assembly ..............7
Installing Drain Spud in Bowl.......................8
TouchTime®Assembly Installation ................ 9-12
Valve and Tubing Connections ....................13
Valve and Electrical Connections ..................14
Adjust the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and Maintenance .................... 15-17
Soap Valve Parts List and Maintenance .......... 17-18
Sprayhead Parts List and Troubleshooting ...........19
TouchTime Troubleshooting.......................20
Solenoid Valve Troubleshooting....................21
Thermostatic Mixing Valve Troubleshooting...........22
Available in standard height,
juvenile height, and TAS height.
IMPORTANT!
Read this entire installation manual to ensure proper installation. When finished with the
installation, file this manual with the owner or maintenance department.
Separate parts from packaging and make sure all parts are accounted for before discarding
any packaging material. If any parts are missing, do not begin installation until you obtain
the missing parts.
Make sure that all water supply lines have been flushed and then completely turned off
before beginning installation. Debris in supply lines can cause valves to malfunction.
Product warranties may be found under “Product” on our web site
at www.bradleycorp.com.
Installation
THIS
SIDE
UP
Packing List
•
•
•
•
TDB3105 Installation
21/15/2013 Bradley • 215-1563 Rev. E; ECN 12-00-004
Supplies Required by Installer
• (4) 1/2" lag bolts, screws or other fasteners to anchor washfountain pedestal
• 1/2" nominal copper tubing for hot and cold water supply lines
• Standard P-trap (vented trap supplied by Bradley when required)
• 2" drain lines and fittings
• Teflon tape or pipe dope
• 1-1/2" vent or tie pipe on types vented through washfountain column
• 110 VAC GFI power source for 110/24 VAC UL Class II transformer supplied
• OPTIONAL: Bradley recommends installing an electrical cutoff switch to the unit. This feature allows no accidental
water delivery during regular maintenance and service.
Pre-Installation Information
Terreon Material
The Washfountain is constructed of Terreon®, a densified solid surface material composed of polyester resin. Terreon is resistant to
chemicals, stains, burns and impact. Surface damage can be easily repaired with everyday cleaners or fine-grit abrasives. Terreon
is NAHB certified to meet ANSI Z124.3, Z124.6 and ANSI/ICPA SS-1-2001.
TouchTime
Pushing the TouchTime®button allows the user to activate a solenoid valve. This starts the flow of water with a 15 second run
time.
Installation TDB3105
Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013 3
Circular Washfountain Dimensions
Model TDB3105
36" Circular
45-1/4"
(1149)
41-5/8"
(1057)
34"
(864)
18-1/2"
(470)
36"
(914)
9-3/4"
(248)
Optional equipment may not comply with all
ADA or TAS dimensional guidelines
23-1/2"
(597)
8-3/4"
(222)
Model TDB3105
36" Circular with Optional Accessories
Model TDB3105 (Juvenile/TAS Height)
36" Circular with Optional Accessories
Adjust to Towel Dispenser
Mounting Holes
6"
(152)
59"* (1499) w/
Soap
50-1/2"* (1283)
w/o Soap
51-1/8"*
(1299)
42-3/4"*
(1085)
39-1/8"*
(994)
30"*
(762)
23-1/2"*
(597)
18-1/2"
(470)
36"
(914)
9-3/4"
(248)
(mm)
Adjust to Towel Dispenser
Mounting Holes
6"
(152)
53-5/8"
(1362)
45-1/4"
(1149)
41-5/8"
(1057)
34"
(864)
23-1/2
(597)
18-1/2"
(470)
36"
(914)
9-3/4"
(248)
8-3/4"
(222)
61-1/2" (1562)
w/ Soap
53" (1346)
w/o Soap
Model TDB3105 (Juvenile/TAS Height)
36" Circular
42-3/4"*
(1085)
39-1/8"*
(994)
30"*
(762)
18-1/2"
(470)
36"
(914)
9-3/4"
(248)
23-1/2"*
(597)
8-3/4"
(222)
8-3/4"
(222)
* Add 2" (51) for TAS height unit
TDB3105 Installation
41/15/2013 Bradley • 215-1563 Rev. E; ECN 12-00-004
(mm)
Rough-In Specifications
Type A
Off-line vent with
supplies from below
8-1/2"
(216)
4-1/4"
(108)
1-5/8"
(41)
1/2" Nominal Copper
Tubing for Supplies
Through Floor, Stub Up
2-1/2" (64) Above Floor
Cold
Hot
4-1/8"
(105)
2" NPT Drain,
Stub Up 3" (76)
Above FLoor
2"
(51)
4-3/4"
(121)
3-7/8"
(98)
5"
(127)
Suggested
Electrical Outlet
Location
36" (914) Bowl
Type B
Centrally rising vent with
supplies from above
1/2" Nominal
Copper Tubing,
Supplies from
Above
7/8" (22)
7/8" (22)
Cold
1-1/2" NPT
Vent to Ceiling
1-5/8"
(41)
1-1/4"
(32)
5"
(127)
Suggested
Electrical Outlet
Location
3-7/8"
(98)
4-1/4"
(108)
8-1/2"
(216)
4-1/8" (105)
2" NPT Drain,
Stub Up 3" (76)
Above Floor
36" (914) Bowl
Hot
Installation TDB3105
Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013 5
Type H
Centrally rising vent
with supplies from
below
8-1/2"
(216)
4-1/4"
(108) 1-5/8"
(41)
1/2" Nominal Copper
Tubing for Supplies
Through Floor, Stub Up
2-1/2" (64) Above Floor
Cold
Hot
4-1/8" (105)
2" NPT Drain,
Stub Up 3" (76)
Above FLoor
2"
(51)
4-3/4"
(121)
3-7/8"
(98)
5"
(127)
Suggested
Electrical Outlet
Location
36" (914) Bowl
1-1/2" NPT
Vent to Ceiling
(mm)
Rough-In Specifications
Type O
Off-line vent with
supplies from above
1/2" Nominal
Copper Tubing,
Supplies from
Above
7/8" (22)
7/8" (22)
Cold
Hot
1-5/8"
(41)
1-1/4"
(32)
5"
(127)
Suggested
Electrical Outlet
Location
3-7/8"
(98)
4-1/4"
(108)
8-1/2"
(216)
4-1/8" (105)
2" NPT Drain,
Stub Up 3" (76)
Above Floor
36" (914) Bowl
TDB3105 Installation
61/15/2013 Bradley • 215-1563 Rev. E; ECN 12-00-004
1Installing the Drain
ARough in supply and drain piping as
required for your installation.
BAssemble the drain to the dimension shown
below for the bowl size you are installing.
All piping shown in dotted lines
to be supplied by installer.
Table 1 — “B” Trap Dimensions
Dim Standard Height Juvenile Height TAS
B 25" (635) 22-1/2" (572mm) 24-1/2" (622mm)
Vent or Tie Pipe
(Supplied by
Installer) Vented Trap
(111-024)
B - See Table 1
4"
(102)
Centerline of
Washfountain
Types B, H
2" NPT Coupling if Tie
Pipe is Not Required
(Supplied by Installer)
B - See Table 1
4"
(102)
Centerline of
Washfountain
Types A, O
Vent or Tie Pipe
(Supplied by
Installer) Optional Tie Pipe
Bracket (S70-082)
B - See Table 1
4"
(102)
Centerline of
Washfountain
Types A, O with Tie
Pipe Bracket Option
See Rough-In information for
dimensions not shown.
Installation TDB3105
Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013 7
CAUTION! Bowl surface is very smooth. Approximate
weight of bowl is 73 pounds. Handle with Care!
2Bowl/Pedestal Mounting and Assembly
Top View
Drain Position with
Optional B-Trap
Front View
Place Hands
Here When
Lifting Bowl
Kick Ring
Threaded
Rods (4)
Places
1/4" Washers and
Wing Nuts (4) Places
Place Hands
Here When
Lifting Bowl
Valve Bracket
Washer and Screw
Before attaching 1/4" wing nuts and washer to
threaded rod, remove red protective caps from
threaded rods. Discard sleeve caps after removal.
APosition the pedestal making sure the
floor mounting holes (4) line up. Mark the
mounting hole positions.
TAS OPTION: Place TAS spacer on floor
over the mounting holes. Place pedestal on
top of the spacer.
BSecure pedestal to floor with suitable
fasteners, 1/2" anchors and bolts (supplied
by installer). Do not overtighten.
CInstall valve mounting screws into valve
mounting bracket.
D
Using two people, carefully lift bowl. Place
bowl onto pedestal, making sure drain
holes line up with floor drain and mate
thread rods with slotted holes in pedestal
using locator ribs.
EUsing 1/4" wing nuts and washers, secure
the bowl to the pedestal in four places.
Threaded Rods
(Qty 4)
Floor Mounting
(Qty 4)
Drain Position without
Optional B-Trap
TDB3105 Installation
81/15/2013 Bradley • 215-1563 Rev. E; ECN 12-00-004
3Installing Drain Spud in Bowl
ALoosely attach the drain spud to the bowl
with the locknut and washer.
Seal between drain spud and drain hole with
plumber’s putty (supplied by installer).
Strainer
(S45-067)
Spud
(112-015)
Washer
(142-068)
Drain Pre-Pack
(S45-273)
Bowl
Locknut
(161-021)
BTighten the spud and lock nut against bowl.
B Trap Option: Attach B trap to drain spud.
Tie Pipe Option: Attach tie pipe bracket to
drain spud.
CSecure the strainer to drain spud with screws
provided.
DConnect spud (or B Trap or Tie Pipe Bracket)
to drain.
Installation TDB3105
Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013 9
4a TouchTime Assembly for A and O Units Without Tie Pipe Option
AInstall hemmed end (not sharp end) of
support tube with gasket onto bowl.
B
Connect 3/8" supply tubing to sprayhead with
tube connector and place sprayhead onto
support tube. Run the tubing down through
the support tube to valve tube connector.
C
Place the upper tie bar (notched at both
corners of each end) on top of sprayhead.
Connect the longer tie rod to the 4-1/4" tie
rod using the coupling nut with hex head
set screws. Run the tie rod assembly down
through upper tie bar and secure from
underneath the bowl using lower tie bar (no
notches) and hex nut with socket head set
screw.
Tie Rod Pre-Pack Cover
Actuator
Module
Assembly
Coupling
Nut
Sprayhead Tie Bar
Tie Rod
Supply Tube
Section View of
A/O Unit Assembly
Tie Rod Pre-Pack
(S45-1336)
Top Cover
(107-099 (A))
(107-179 (O))
Module Cover
(S04-083)
Sprayhead
(S05-054)
Drain
(S45-273)
Terreon®Deep Bowl (ADA bowl
shown) (Part No. Varies with color of
bowl and height of unit. Contact your
local Bradley Rep for assistance)
Access Panel
(186-1469)
Standard Pedestal Assembly
(S17-337)
TAS Pedestal Assembly
(S17-338)
Tie Bar Pre-Pack
(S45-055)
Support
Tube Gasket
(125-011)
Support Tube
(S57-006)
Tie Bar
TT Module Assembly
(S83-179)
Nut
3/8" Supply
Tube
Tie Rod
(176-008)
A/O
(A Shown)
TDB3105 Installation
10 1/15/2013 Bradley • 215-1563 Rev. E; ECN 12-00-004

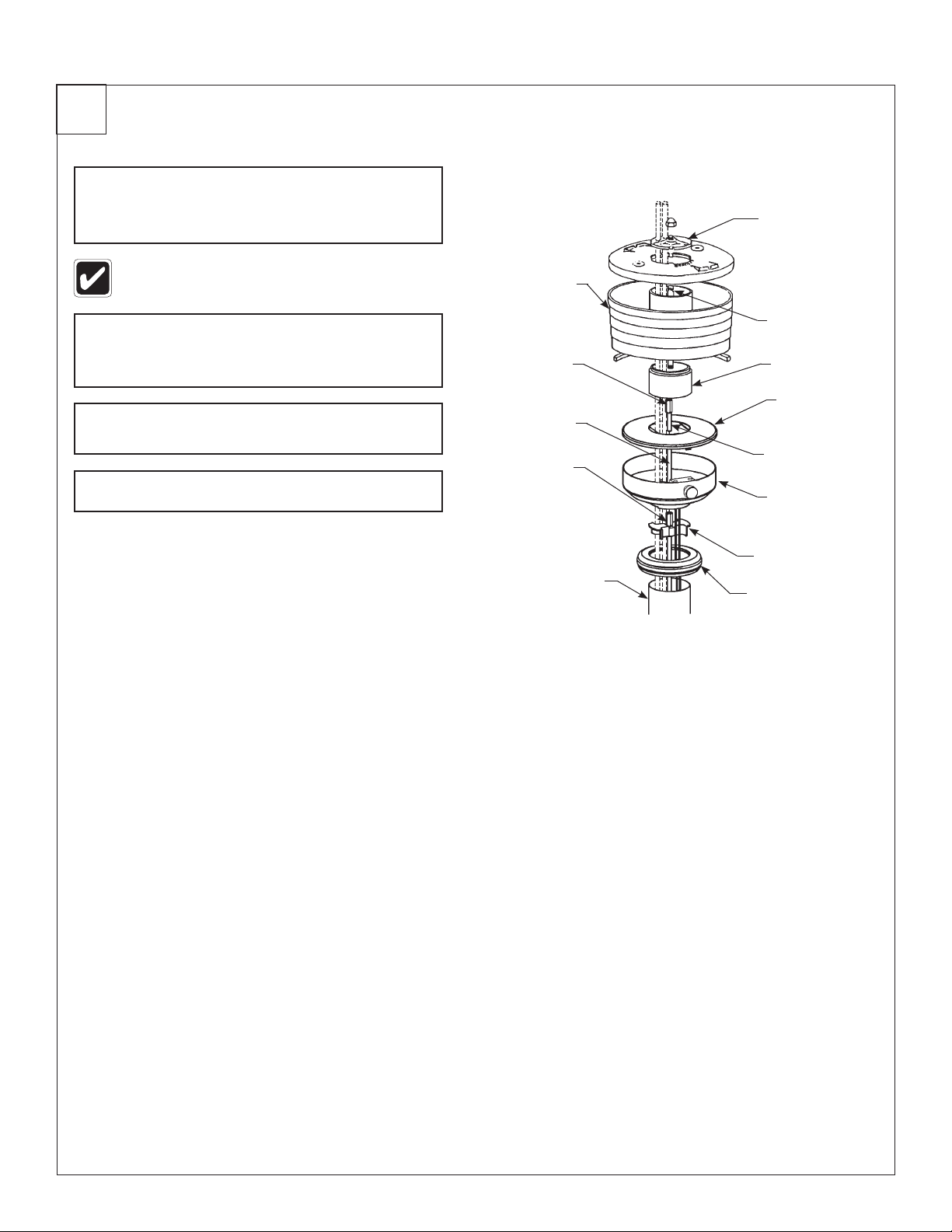

4a TouchTime Assembly for A and O Units Without Tie Pipe Option
continued...
D
Place the TouchTime actuator module assembly
on top of sprayhead. Rotate until actuator module
locks in with tie bar. Drop TouchTime module wires
down the support tube.
Skip to step F for units without soap.
E
For units with soap option, install the spacer, soap
dispenser and cover using the third tie rod (8-5/8"
long) and second coupling nut as shown. Secure
with acorn nut and set screw.
FSecure TouchTime actuator module cover and top
cover with acorn nut and set screw.
GConnect stops to supply stub-outs.
Unit with "O" Drain and Actuator Module
Shown, Also Available with "A" Drain
Top
Cover
Soap
Dispenser
8-5/8" Tie Rod
Spacer
Coupling
Nut
Module
Cover
4-1/4" Tie Rod
TT Module
Assembly
(S83-179)
Coupling
Nut
Tie Bar
Sprayhead
(S05-054)
Support Tube
(S57-006)
Tie Rod
Tabla de contenidos
Otros manuales de Accesorio de baño de Bradley
Bradley
Bradley Bradmar 400 Series Manual de usuario
Bradley
Bradley Express SS Series Manual de usuario
Bradley
Bradley LOFT Series Manual de usuario
Bradley
Bradley Express SS Series Manual de usuario
Bradley
Bradley S19-310DC Manual de usuario
Bradley
Bradley SXWS9557FM Manual de usuario
Bradley
Bradley S19-110BF Manual de usuario
Bradley
Bradley OmniDeck 3000 Series Manual de usuario
Bradley
Bradley HSC79 Manual de usuario
Bradley
Bradley WF2608 Manual de usuario
Bradley
Bradley S19-310FW Manual de usuario
Bradley
Bradley MF2904/AST4 Manual de usuario
Bradley
Bradley OmniDeck 4000 Series Manual de usuario
Bradley
Bradley Verge LVA Series Manual de usuario
Bradley
Bradley HN-200 Manual de usuario
Bradley
Bradley LUCENT Series Manual de usuario
Bradley
Bradley HN300 Manual de usuario
Bradley
Bradley Express SS Series Manual de usuario
Bradley
Bradley S19-310UU Manual de usuario
Bradley
Bradley 600 Series Manual de usuario
