SS-3N/AST/STD

SS-3N/AST-WH

Express®Lavatory

System - SS-Series

SS-3N/AST/STD/LSD-3

SS-3N/AST-WH/LSD-3

215-1494 Rev. G; ECN 17-08-026

Page 1 of 15 2/22/2018

Table of Contents

Pre-Installation Information ...............................2

Components ..........................................3

Supplies Required......................................4

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Rough-Ins ............................................6

Install the Bowl ........................................7

Mount the Frame.......................................7

Connect the Supply - Hot and Cold Supply ..................8

Connect the Supply - Single Tempered Supply ...............8

Install the Drains .......................................9

Connect Supply and Tubing ..............................9

Push Button Assembly .................................10

Sprayhead Components ................................10

Adjust the Temperature .................................10

Cleaning and Maintenance for Terreon®. . . . . . . . . . . . . . . . . . . . 11

Cleaning and Maintenance for Stainless Steel ...............11

Brand Names ........................................11

Troubleshooting – Metering Air Valve ......................12

Thermostatic Mixing Valve Troubleshooting .................13

Stop Valve Troubleshooting ..............................14

Fill Soap Dispenser....................................15

Clean Soap Dispenser .................................15

SS-3N/AST/STD, SS-3N/AST/WH Installation

22/22/2018 Bradley • 215-1494 Rev. G; ECN 17-08-026

Special Note for Sprayhead/Bowl retrofit

to retrofit new SS-3N sprayhead onto existing SS-3 bowl

1½" (38mm)

Drill hole

Ø 1" (25mm) to

1½" (38mm).

Existing Hole

2¼" (57mm)

WARNING

Make sure that all water supply lines have been flushed and then completely turned off before beginning

installation. Debris in supply lines can cause valves to malfunction.

Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation. Electrical

power MUST remain off until installation is complete. After installation is complete, turn on the water supply

first, then turn on the electrical power.

Installer's hardware must be appropriate for wall construction. Wall anchors must have a minimum pull-out

rating of 1,000 pounds.

NOTICE

Overtightening fasteners can damage the Terreon material. Use caution when tightening bowl and sprayhead

fasteners.

IMPORTANT

Read this entire installation manual to ensure proper installation. When finished with the installation, file this

manual with the owner or maintenance department. Compliance and conformity to local codes and ordinances

is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding any packaging

material. If any parts are missing, do not begin installation until you obtain the missing parts.

Product warranties may be found under “Products” on our website at www.bradleycorp.com.

Installation SS-3N/AST/STD, SS-3N/AST/WH

Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018 3

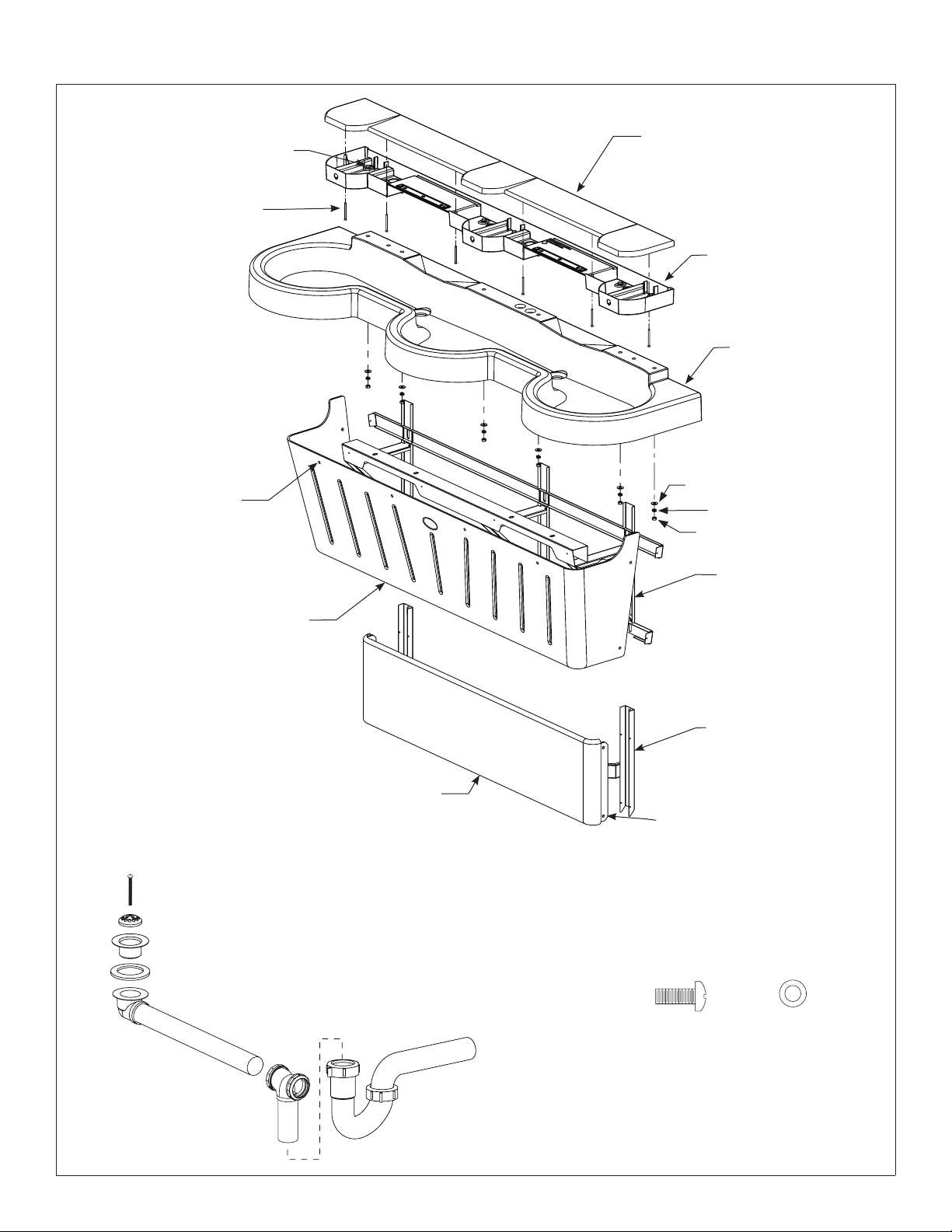

Components Sprayhead Cover

(SS-3N-COVR-ONLY)

(Contact your local Bradley

Representative for part number.

Sprayhead Body

(33-3N-SPYD-ASSY)

Contact your local Bradley

Representative for part number.

Main Frame (S17-323)

Screw 10-24

(160-386)

Washer (142-002BJ)

Pedestal Panel

Coal (186-1454B)

Bowl

(33-3N-BOWL)

Contact your local Bradley

Representative for part number.

LockWasher (142-002BK)

Nut, 5/16-18 (161-036)

Scuff Base (S17-324) (Used with

Standard Height Frame Only)

Scuff Panel Fasteners (160-450)

Washers (142-002CA) (4) Places

Scuff Base Panel

Coal (185-033B)

Panel Fasteners (160-450)

Washers (142-002CA)

(8) Places

Bolt 5/16-18

(160-371)

#8-32 Screw

(160-319)

Strainer (P16-075)

Drain Plug (P16-072)

1/8" Rubber Washer (125-001DP)

Waste Shoe

(111-062)

Waste Tee

(111-063)

P-Trap (Polypropylene)

(269-1697)

Optional P-Trap

(Chrome-Plated Brass)

(S29-094)

Drain Assembly

Bowl Mounting

Hardware

1/4"-20x1/2"

Pan Head

Screw (qty 4)

(160-389)

1/4"-20

Washer

(qty 4)

(142-002DB)

SS-3N/AST/STD, SS-3N/AST/WH Installation

42/22/2018 Bradley • 215-1494 Rev. G; ECN 17-08-026

Supplies Required

• (8) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum

pull-out rating of 1,000 lbs.)

• STD. HEIGHT ONLY: (2) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall

• 1/2" nominal copper tubing for hot and cold supplies and 1-1/2" NPT drain piping

• OPTIONAL: 240/208-volt or 277-volt electrical box for electric tankless water heater

SOAP

SOAP SOAP

SOAP

Top View

80" (2032)

Front View

Standard Frame

Front View

Wall-Hung Frame

8-5/8" (219)

30" (762)

8" (203)

51-1/4" (1302)

58" (1473)

64" (1626)

68-1/4" (1734)

8" (203)

68-1/4" (1734)

58" (1473)

64" (1626)

8" (203) Radius 10" (254) Radius

30" (762)

(mm)

Installation SS-3N/AST/STD, SS-3N/AST/WH

Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018 5

Dimensions - Side Views

TAS

Wall Hung Mounted

at Standard Height

Standard

Height

Wall Hung Mounted

at Juvenile Height

Ages: 6 through 12

Wall Hung Mounted

at TAS Height

Grades: 6 through 8 or 9

Wall Hung Mounted

at TAS Height

Grades: Pre-K through 5 or 6

21-1/8" (537)

38-1/2"

(978)

34"

(864)

30"

(762)

13-1/4"

(311)

11-1/2"

(292)

Scuff Base on

Standard Height

Only

3" (76)

8-5/8"

(219)

38-1/2"

(978)

34"

(864)

30"

(762)

8-5/8"

(219)

21-1/8" (537)

11-1/2"

(292)

13-1/4"

(311)

8-5/8"

(219)

21-1/8" (537)

11-1/2"

(292)

8-5/8"

(219)

21-1/8" (537)

11-1/2"

(292)

8-5/8"

(219)

21-1/8" (537)

11-1/2"

(292)

36-1/2"

(927)

32"

(813)

28"

(711)

11-1/4"

(286)

35-1/2"

(902)

31"

(787)

27"

(686)

10-1/4"

(260)

34-1/2"

(876) 30"

(762)

26"

(660)

9-1/4"

(235)

(mm)

SS-3N/AST/STD, SS-3N/AST/WH Installation

62/22/2018 Bradley • 215-1494 Rev. G; ECN 17-08-026

CODE DESCRIPTION QTY.

A 3/8" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2

B 3/8" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 6

C3/8" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not

required 2

D1 1/2" nominal copper tubing for Cold Supply, stub-out 2" from wall 1

D2 1/2" nominal copper tubing for Hot or Tempered Supply, stub-out 2" from wall 1

E 1-1/2" NPT Drain, stub-out 2" from wall 2

On the bowl back, measure the distance between the ¾" bowl mounting holes. Divide this

measurement in half. Measure and mark this dimension on the wall to the left and the right

of the centerline. Install two 3/8" wall anchors with a minimum pull-out rating of 1,000 lbs

(supplied by installer) at locations marked.

RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR

CODES A–E, H, C and W FIXTURE STYLE

34" None Standard Height

34" None Wall-Hung

32" Subtract 2" TAS, Grades 6 through 8 or 9

31" Subtract 3" Juvenile Height

30" Subtract 4" TAS, Pre-K through Grades 5 or 6

1Rough-Ins

28-3/4"

(730)

32"

(813)

15"

(381)

(102)

Floor

2-3/4"

(70)

24"

(610)

34"

(864)

Rim Height

See Chart

Below

38-1/2"

(978)

24-3/8"

(619)

5-5/8"

(143)

38-1/2"

(978)

24-3/8"

(619)

(203)

3-1/2"

(89)

Installation SS-3N/AST/STD, SS-3N/AST/WH

Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018 7

Anchoring the frame to a wall that is not flat may cause the

frame to bend, making it difficult to reinstall the access panels.

If necessary, use shims to compensate for wall distortion.

2Mount the Frame

AUsing a T20 torx key, remove the

fasteners securing the access panel to

the main frame, and remove the panel.

Once you have positioned the frame

such that it is level and flat against the

wall or shimmed, mount the frame to

the wall at six places using 3/8" bolts

and 1" min. O.D. washers.

When mounting the standard height frame,

mount the scuff base to the wall at the

same time using two additional 3/8" bolts

and washers.

Scuff Panel

Standard Height

Frame Only

Scuff Base Frame

Standard Height

Only

3Install the Bowl

The sprayhead body has slotted holes for adjusting the fit-up with

the bowl and wall. For clarity, the scuff base frame and drain are

not shown. Turn the tailpiece down to its proper position before

installing the bowl.

AAttach the bowl to the frame using

the ¼-20 x ½" pan-head screws and

washers. Do not tighten screws.

Secure the

bowl to the wall

anchors with

two 3/8" bolts

and washers. Do

not overtighten.

CTighten the pan-head

screws. Do not overtighten.

SS-3N/AST/STD, SS-3N/AST/WH Installation

82/22/2018 Bradley • 215-1494 Rev. G; ECN 17-08-026

The letter “H” on the Navigator

Mixing Valve indicates hot water

supply inlet.

4a Connect the Supply - Hot and Cold Supply

Connect one end of each hose to the

Navigator valve (one on the hot side,

one on the cold side).

Connect the other swivel end to the

stop valves.

Loosen but do not remove the

two mounting screws holding the

valve bracket to the frame.

Slide the valve bracket up and

lift it from the frame. BAttach the stops to the hot and cold

water wall stub-outs.

Connect one end of ﬂexible hose

to the tempered line adapter.

Connect the other swivel end to

the stop valve.

4b Connect the Supply - Single Tempered Supply

Loosen but do not remove the

two mounting screws holding the

valve bracket to the frame.

Slide the valve bracket up and

lift it from the frame.

BAttach the stop to the tempered wall

stub-out.

Installation SS-3N/AST/STD, SS-3N/AST/WH

Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018 9

To Drain

Stub-Out

5Install the Drains

Red Supply

Tubing

Green Supply

Tubing

Black Supply

Tubing

6Connect Supply and Tubing

Loosen the compression nuts.

Push the sprayhead supply tubes firmly

into the tube connectors until they are

fully seated.

Tighten the compression nuts by hand.

Loosen the compression nuts.

Push the matching color 1/8" tubes

firmly into the tube connectors until

they are fully seated.

Tighten the compression nuts by hand.

SS-3N/AST/STD, SS-3N/AST/WH Installation

10 2/22/2018 Bradley • 215-1494 Rev. G; ECN 17-08-026

Sprayhead Components

Push Button Assembly

To access push button assembly: Remove the Phillips-head screws located in the bottom of the sprayhead body and lift the

Terreon cover/shelf off.

To reinstall sprayhead cover/shelf: Position the cover/shelf on the sprayhead body and secure it to the sprayhead body using

the screws provided.

This valve is NOT factory preset. Upon installation, the temperature of this

valve must be checked and adjusted to ensure delivery of a safe water

temperature. Water in excess of 110°F (43°C) may cause scalding.

¼" Tube Connector

(169-890)

Actuator Body ASM

(S39-802)

Spring (135-065)

U-Cup (125-099)

Piston (119-227A)

Duckbill (198-010)

Bracket, SSN Push

Button (140-956)

Nut, ½" - 14 NPSM

(110-115)

Push Button

(S08-324)

#10 Screw

(160-353)

Aerator (S05-180)

7Adjust the Temperature

ALoosen the cap screw about ¼"

(4–6 turns) and lift up the cover

(do not remove).

Using the cover, turn the

cartridge gently until desired

water temperature is reached. Do

not turn past stops as this may

damage the unit. Push the cover

down and tighten the screw.

CReinstall the valve bracket. Turn on the water supply to the Express and check for

leaks. Push the operating buttons of each station until all the air is purged from

the lines and water is ﬂowing smoothly. Reinstall the access panel.

Otros manuales para Express SS Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorio de baño de Bradley

Bradley

Bradley CBSHWR9000KD Manual de usuario

Bradley

Bradley 500 Series Manual de usuario

Bradley

Bradley OmniDeck 4000 Series Manual de usuario

Bradley

Bradley Terreon Classic WF2500 Series Manual de usuario

Bradley

Bradley OmniDeck with WashBar 5000 Series Manual de usuario

Bradley

Bradley S19-110BF Manual de usuario

Bradley

Bradley S19-120T Manual de usuario

Bradley

Bradley Verge LVSD2 Manual de usuario

Bradley

Bradley Vernatherm S59-4004 Manual de usuario

Bradley

Bradley ABP-1WCA Manual de usuario

Bradley

Bradley 500 Series Manual de usuario

Bradley

Bradley WashBar Duo WBD1 Manual de usuario

Bradley

Bradley S19-300T Manual de usuario

Bradley

Bradley Express EXD Series Manual de usuario

Bradley

Bradley Express SS Series Manual de usuario

Bradley

Bradley s19314 series Manual de usuario

Bradley

Bradley S19-310 Manual de usuario

Bradley

Bradley S19-310DC Manual de usuario

Bradley

Bradley Express MG Series Manual de usuario

Bradley

Bradley Bradmar 700 Series Manual de usuario

Bradley

Bradley CBSHWR9000 Manual de usuario

Bradley

Bradley S19-310UU Manual de usuario

Bradley

Bradley Halo S19314EW Manual de usuario

Bradley

Bradley LVA Series Manual de usuario

Manuales populares de Accesorio de baño de otras marcas

DURAVIT

DURAVIT C.1 C15240 0090 Manual

Heatstore

Heatstore HSTRL500WTN Manual de usuario

Sunshower

Sunshower PURE SOLO Manual de usuario

Delabie

Delabie Delabie Sporting 714700 Manual de usuario

Kohler

Kohler K-13056 Instrucciones de montaje

ESS

ESS Container TCL-11 Manual de usuario

Mustee

Mustee 22C Manual de usuario

VITRA

VITRA V-Flow Manual de usuario

baliv

baliv DUK-80.30 T Manual de usuario

Malmet

Malmet B105BT Manual de usuario

bathstore

bathstore Transition H1690MM Guía

BELLOSTA

BELLOSTA Edward 0800/M Manual de usuario

baliv

baliv DU-5160 Manual de usuario

Franke

Franke PRTR0006 Manual de usuario

Gessi

Gessi RILIEVO 59011 Manual de usuario

noken

noken VITAE 100188525-N299998810 Manual de usuario

Allen + Roth

Allen + Roth 1142VA-30-201 Manual de usuario

Britex

Britex HBDA Manual de usuario
