Boya BY-BM2021 Manual de usuario

BY-BM2021

User Manual • Uživatelský manuál •

Užívateľský manuál • Használati utasítás •

Benutzerhandbuch

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention

to the safety instructions. If you have any questions or comments about the device,

please contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Instruction

Thanks for purchasing BOYA BY-BM2021!

The BOYA BY-BM2021 is a super-cardioid video shotgun microphone, which offer much

better sound performance than using smartphone, tablets, cameras, camcorders built in

microphone.

With both TRRS and TRS audio connector cable included it compatible with mostly

smartphone, tablets, DSLRs, camcorders which has a 3.5mm mic jack.

Unique super-cardioid polar pattern, its tight pickup area focuses directly in front of the

microphone and reduces other surrounding sounds, ensuring that your subject is

isolated from any background noise.

Reinforced ABS construction at only 63g, the microphone always keeps your setup super

lightweight, making it ideal for handheld shooting.

Without any complicated switches or settings, it’s mainly powered by cameras,

camcorders or smartphone, PC external microphone input, requiring no batteries to

operate.

Features

•Compatible with smartphone, DSLR cameras, camcorders, PC etc.

•Super-Cardioid Condenser Microphone

•No Battery Required

•Compact Lightweight Design

•Reinforced ABS Construction

•Includes one 3.5mm TRS cable & one 3.5mm TRRS cable

•Foam windshield included

Specifications

Polar Pattern:

Super-cardioid

Frequency Response

40-20,000Hz

Sensitivity:

-35dB±3dB@1Khz

Signal to Noise Ratio:

76dB

Plug:

3.5mm TRS & TRRS connector

Dimensions(L*H*D):

6.6*3.0*2.0” (168*77.2*49.9mm)

Net Weight:

2.2oz (63g)

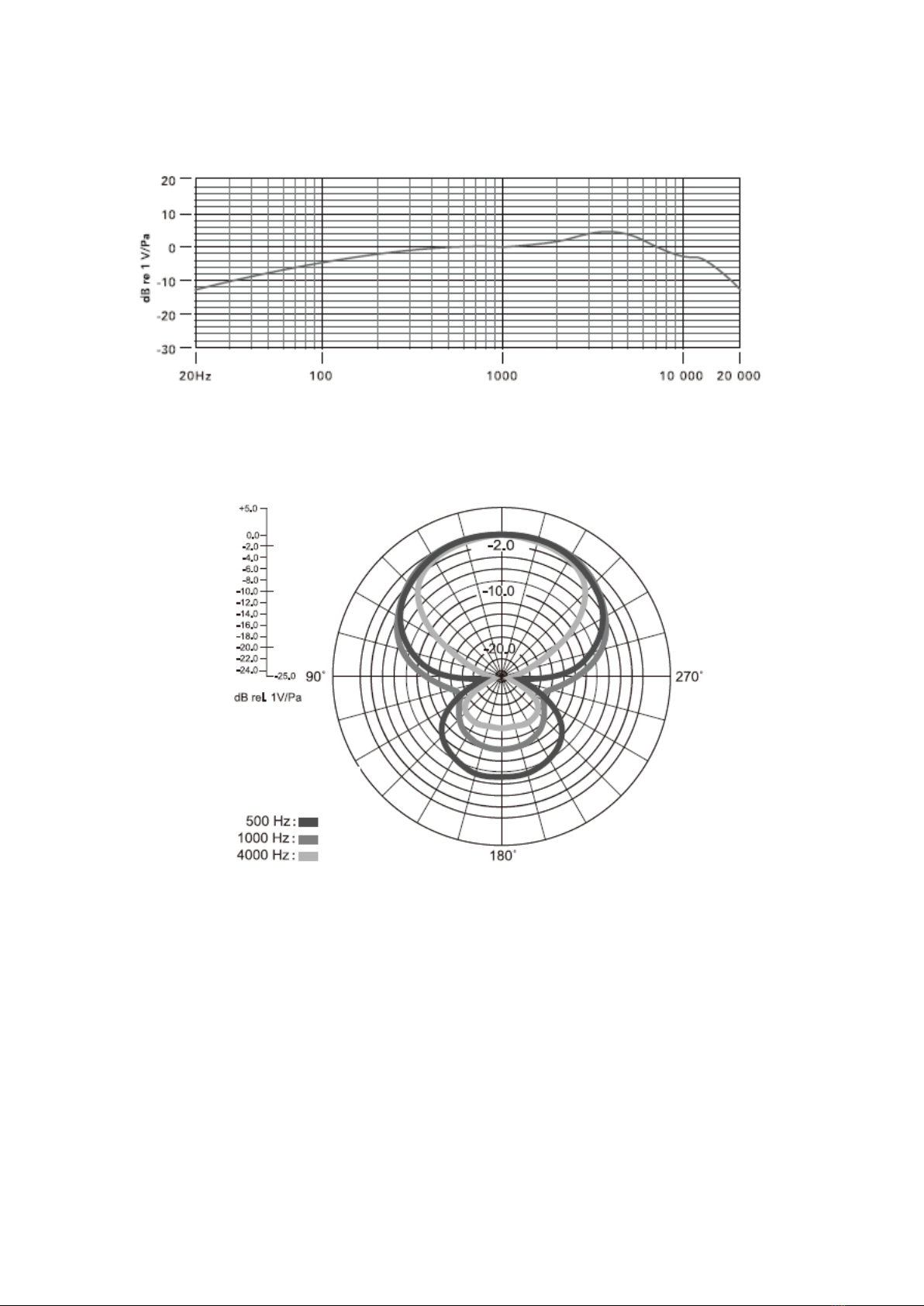

Frequency response

Polar pattern

Package contents:

1. Microphone

2. Foam windscreen

3. Carrying pouch

4. 3.5mm TRS & TRRS cable both included

5. User guide

Frequency:

Tip:

Use this microphone with your camera before recording an important event. Make sure that you

are familiar with its operation with your specific camera and verify the audio recording results are

as expected.

What’s Included

1. Windshield foam

2. 3.5mm audio output jack

3. Antishock mount

4. 1/4 hot shoe mount adapter

5. 3.5mm TRS cable

6. 3.5mm TRRS cable

What’s difference?

Setting up your microphone with camera

1. Loosen the locking knob, then slide the microphone’s hot shoe mount onto the

camera.

2. Tighten the locking knob, to secure the microphone.

3. Use the 3.5mm TRS audio cable to connect the camera and microphone.

3.5 mm TRRS connector

- For Smartphone, tablet, or Mac

- 1 terminal is 90 degree, another side is straight

3.5 mm TRS connector

- For cameras, camcorders, audio recorders and other audio/video recording devices

- Both terminals are 90 degree

Setting up your microphone with smartphone, tablets,

or Mac

1. Use the 3.5mm TRRS audio cable to connect the smartphones, tablets or Mac and

microphone.

2. Turn on the audio-only or video recording app then start recording.

Please noted to plug 90 degree 3.5mm connector to the microphone, straight 3.5mm

TRRS connector to the smartphone, tablets, or Mac.

Troubleshooting

If you have any problem using the BY-BM2021 components, use the following checklist.

If any problem persists, please consult our local dealer, or contact us directly at

sales@boya-mic.com.

Problem

Solution

The microphone can’t work

Solution: make sure that using the correct audio

connector.

1) For smartphone, tablet, or Mac, using 3.5mm TRRS

cable.

2) For other devices, using 3.5mm TRS cable.

Too much ambience noise is

being picked up

Make sure that the microphone is as close as possible

to the subject.

A certain amount of ambient noise is unavoidable in

loud environments.

Warranty Conditions

A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you

need repair or other services during the warranty period, contact the product seller

directly, you must provide the original proof of purchase with the date of purchase.

The following are considered to be a conflict with the warranty conditions, for

which the claimed claim may not be recognized:

•Using the product for any purpose other than that for which the product is intended

or failing to follow the instructions for maintenance, operation and service of the

product.

•Damage to the product by a natural disaster, the intervention of an unauthorized

person or mechanically through the fault of the buyer (e.g. during transport, cleaning

by inappropriate means, etc.).

•Natural wear and aging of consumables or components during use (such as

batteries, etc.).

•Exposure to adverse external influences, such as sunlight and other radiation or

electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,

electrostatic discharge voltage (including lightning), faulty supply or input voltage and

inappropriate polarity of this voltage, chemical processes such as used power

supplies, etc.

•If anyone has made modifications, modifications, alterations to the design or

adaptation to change or extend the functions of the product compared to the

purchased design or use of non-original components.

EU Declaration of Conformity

Identification data of the manufacturer's / importer's authorized representative:

Importer: Alza.cz a.s.

Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7

IČO: 27082440

Subject of the declaration:

Title: Microphone

Model / Type: BY-BM2021

The above product has been tested in accordance with the standard(s) used to

demonstrate compliance with the essential requirements laid down in the

Directive(s):

Directive No. (EU) 2014/30/EU

Directive No. 2011/65/EU as amended 2015/863/EU

Prague, 20.12.2020
