BOXLIGHT CD-850m Manual de usuario

User’s Guide

Boxlight

19332 Powder Hill Place

Poulsbo, WA 98370-7407 USA

www.boxlight.com

U.S.A. and Canada 800-762-5757

International 360-779-7901

BOXLIGHT

CORPORATION

™

CD-850mCD-850m

CD850mCOVER.qxd 7/24/02 1:10 PM Page 1

Declaration of Conformity

Manufacturer: BOXLIGHT, 19332 Powder Hill Place, Poulsbo, Washington USA

We declare under our sole responsibility that the CD-850m projector conforms to the following directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 2000

July, 2002

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM is a trademark or registered trademark of International Business

Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a res-

idential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Safety Certifications

UL, CUL, TÜV, NOM, IRAM, GOST, CCC

Remote Control Warning

Laser radiation class II product; wavelength 650nm; maximum output 1mW. Remote control complies with applicable requirements of 21 CFR 1040.10 and 1040.11. Remote con-

trol complies with applicable requirements of EN 60 825-1: 1994 +A11.

Table of Contents

Introduction 3

Connecting a computer 5

Required computer connections 5

Optional computer connections 5

Displaying a computer image 7

First-time projector use with Windows 98 8

Adjusting the image 10

Connecting a video device 11

Displaying a video image 12

Shutting down the projector 14

Troubleshooting your setup 14

Using the keypad buttons 22

Using the remote control 23

Using the audio 24

Optimizing computer images 25

Presentation features 25

Optimizing video images 26

Customizing the projector 26

Using the menus 27

Picture menu 28

Settings menu 31

Maintenance 34

Cleaning the lens 34

Replacing the projection lamp 35

Using the security lock 37

Appendix 38

Specifications 38

Accessories 38

Projected image size 39

If you are experienced in setting up presentation systems, use the Quick Set

Up card that was included in the carry case. For assistance, call BOXLIGHT at

1-800-762-5757 or 1-360-779-7901.

Important Operating Considerations

Do not place the projector on a tablecloth or other soft covering that may

block the vents. Vents are placed along the left and right sides of the

CD-850m, as well as across the front of the projector. Do not use a non-

approved ceiling mount. In the unlikely event of the lamp rupturing, dis-

card any edible items placed in the surrounding area and thoroughly clean

the area along the sides and in the front of the projector.

2 ft (.6m) 2 ft (.6m)

2 ft (.6m)

Do not place objects in the areas along the side and in the front of the projector

Introduction

Your new digital projector is easy to connect, easy to use, easy to maintain

and has XGA 1024x768 resolution.

The projector comes in a carry case that offers ample room for BOXLIGHT

accessory items such as the projector remote, color-coded cables, and docu-

mentation. The color-coded cable straps and cables they contain make your

setup experience quick and easy, while the case’s design helps you find and

put away all items without the fear of anything becoming lost.

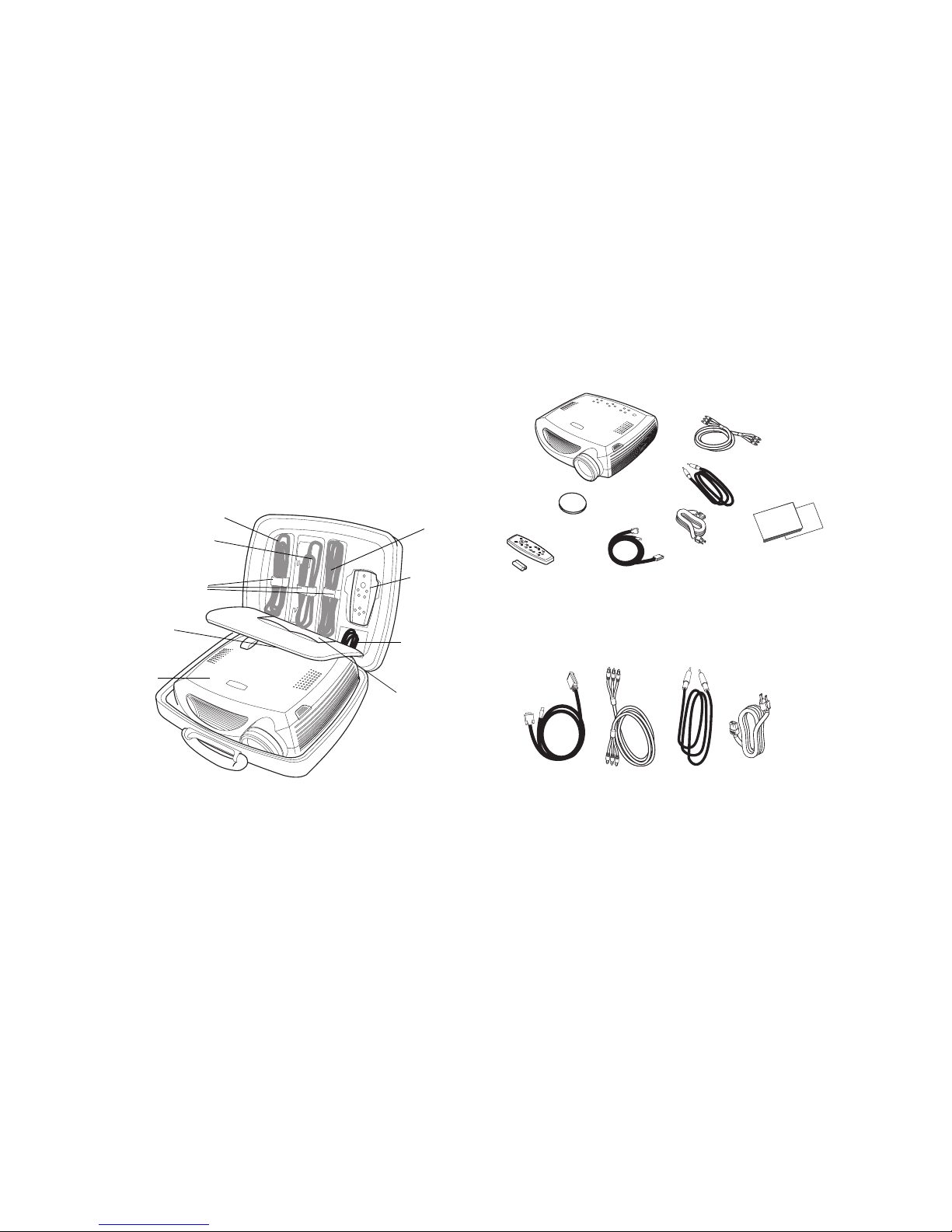

Included items

Cables

computer cable

power cable

video cable

remote

audio

cable

projector

user’s guide

quick setup card

color-coded cable straps

and safety

card

user’s guide,

remote computer

cable

projector

lens cap

power

cable

video cable

audio cable

quick setup card,

and safety card

computer

cable

video

cable

audio

cable

power

cable

Projector components and features

keypad

speakers

zoom

focus

elevator foot release

remote

control

receiver (IR)

air intake

vent

carrying

handle

remote

control

receiver (IR)

connectors

leveling

foot

heat vent

remote control

receiver (IR)

computer 1 computer 2

video

monitor out network

serial control

audio in

audio in audio in

audio out

s-video

computer in

lock

remote control

receiver (IR)

power

connector network

compu

monitor

s-video video

connector

component

video

computer

1 & 2

computer 1

& 2 audio

serial

connector

external

speakers

(audio out)

audio

Connecting a computer

Required computer connections

Connect the black end of the computer cable to the Computer 1 connector

on the projector. Connect the blue end to the video port on your computer. If

you are using a desktop computer, you first need to disconnect the monitor

cable from the computer’s video port.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

The Power LED on the projector’s keypad turns solid green.

NOTE: Always use the power cable that shipped with the projector.

Optional computer connections

To control your computer’s mouse using the projector’s remote control, con-

nect the USB connector on the computer cable to the computer. USB drivers

must be installed to use the USB feature. For more information, see page 9.

To have sound with your presentation, connect the audio cable to your com-

puter and to the computer Audio In connector on the projector.

If you are using a desktop computer and want to see the image on your

computer screen as well as on the projection screen, plug the monitor cable

to the Monitor out connector on the projector.

computer1 computer2

video

monitor network

serialcontrol

audioin

audioin audioin

audioout

s-video

computerin

connect computer cable

connect power cable

computer1 computer2

video

monitor network

serialcontrol

audioin

audioin audioin

audioout

s-video

computerin

connect computer cable

computer1 computer2

video

monitor network

serialcontrol

audioin

audioin audioin

audioout

s-video

computerin

computer1 computer2

video

monitorout network

serialcontrol

audioin

audioin audioin

audioout

s-video

computerin

connect audio cable

connect monitor cable

computer1 computer 2

video

monitorout network

serialcontrol

audioin

audioin audioin

audioout

s-video

computerin

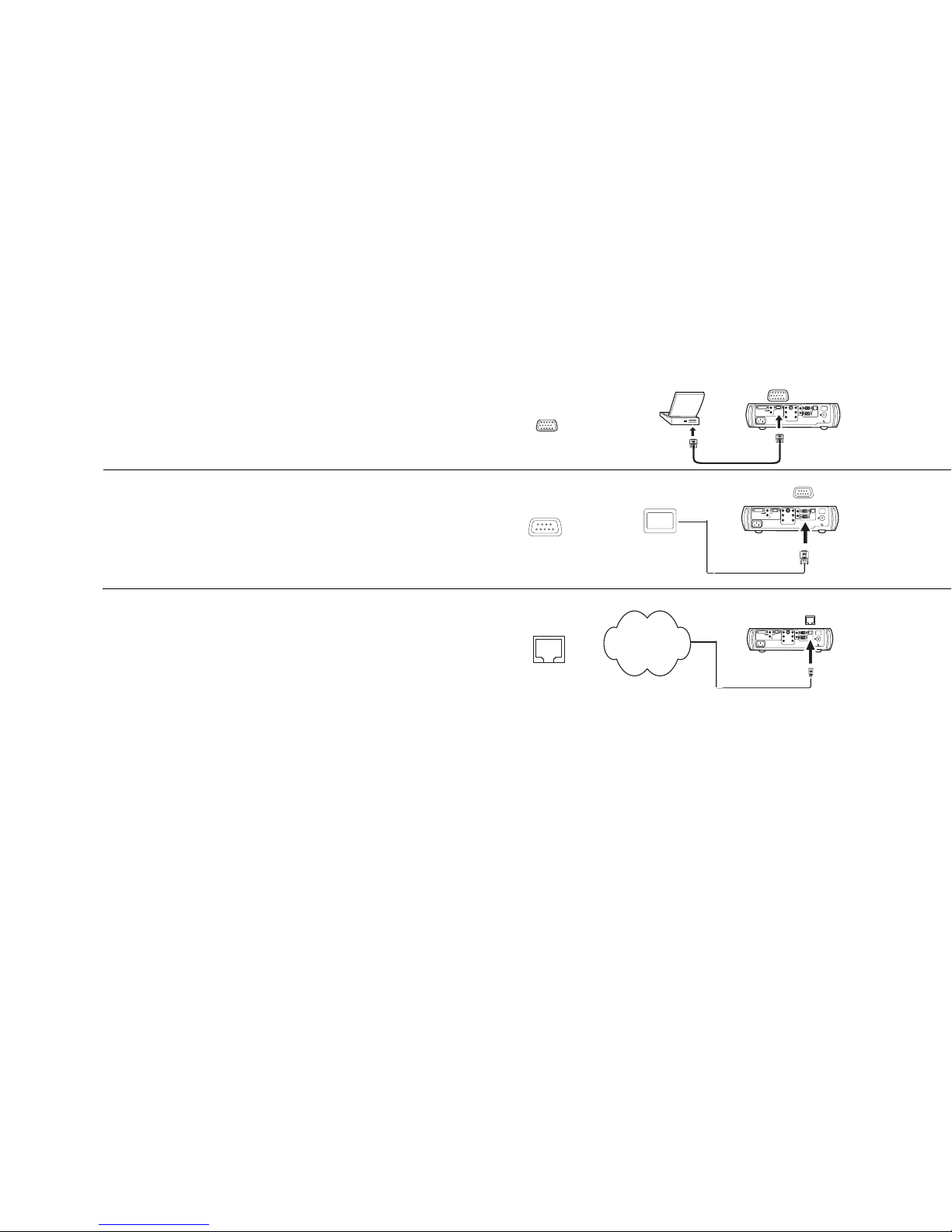

If you prefer connecting your computer to the projector with an optional

VESA cable, connect one end of the cable to the VESA port on your com-

puter, and connect the other end of the cable to the blue Computer 2 con-

nector on the projector.

You can control the projector from an LCD control panel or computer by

connecting an RS-232 cable to the projector’s Serial connector.

The projector can be managed by networking software through its Network

connector.

computer1 computer2

video

monitor network

serialcontrol

audioin

audioin audio in

audioout

s-video

computerin

connect VESA cable

connect RS-232 cable

computer1 computer 2

video

monitor network

serialcontrol

audioin

audioin audioin

audioout

s-video

computerin

computer1 computer 2

video

monitor network

serialcontrol

audioin

audioin audioin

audioout

s-video

computerin

Network

connect network cable

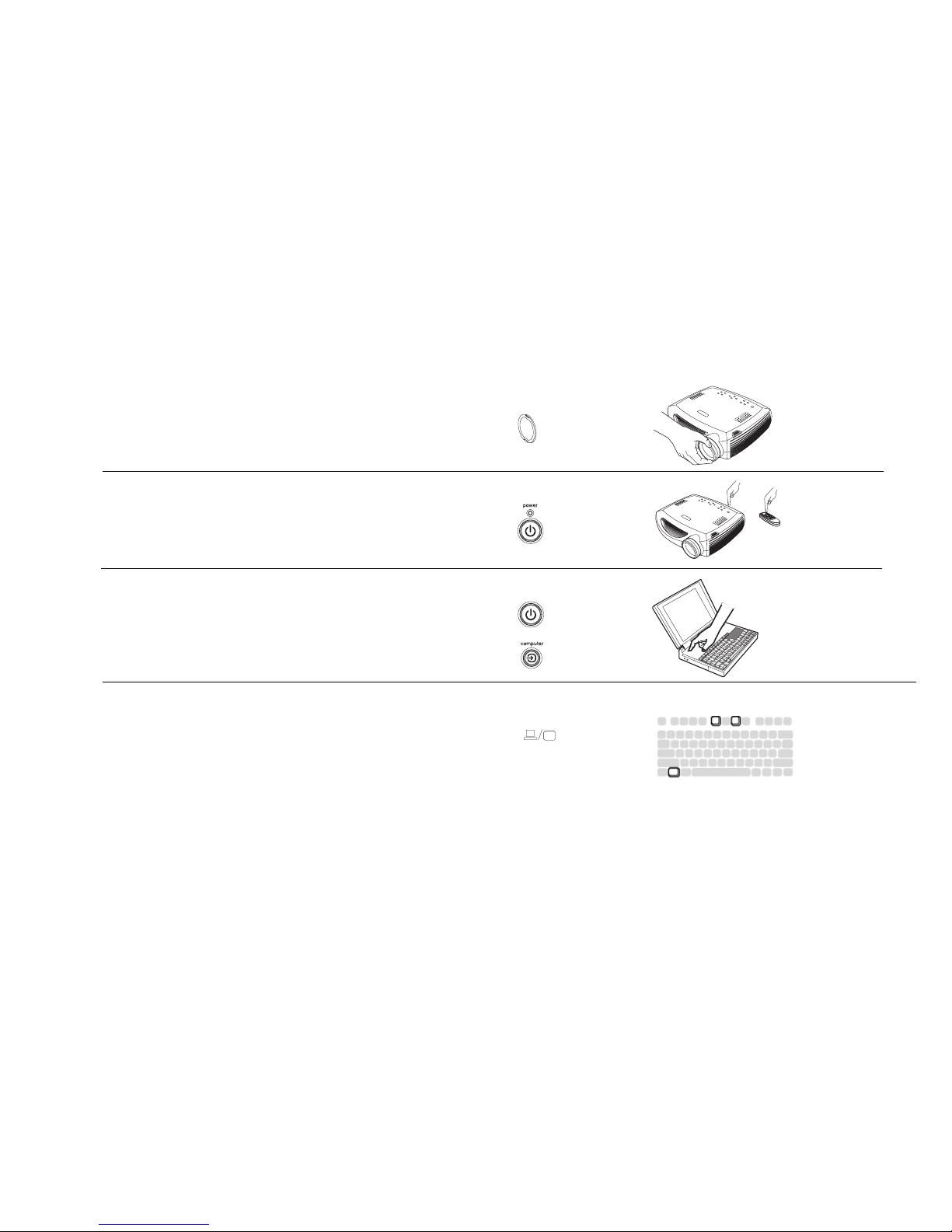

Displaying a computer image

Remove the lens cap.

Press the Power button on the top of the projector or the remote.

The LED flashes green and the fans start to run. When the lamp comes on,

the startup screen is displayed and the LED is steady green. It can take a

minute for the image to achieve full brightness.

? No startup screen? Get help on page 15.

Turn on your computer.

The computer’s image should appear on the projection screen. If it doesn’t,

press the Computer button on the projector’s keypad.

Make sure your laptop’s external video port is active.

Many laptops do not automatically turn on their external video port when a

projector is connected. Usually a key combination like FN + F5 is used to

turn the external display on and off. Refer to your computer’s documenta-

tion to learn your computer’s key combination.

? No computer image? Try pressing the Auto Image

button on the keypad. Get help on page 15.

remove lens cap

press Power

turn on computer

activate laptop’s external port

First-time projector use with Windows 98

The first time you connect a computer running Windows 98 to the projector,

the computer recognizes the projector as “new hardware”and the Add

New Hardware Wizard appears. Follow these instructions to use the Wiz-

ard to load the correct driver (which was installed with your Windows

operating system).

If you are running Windows 2000, Windows ME, or Window XP, skip these

steps and go to “Adjusting the image”on page 10.

aClick Next to begin searching for the driver.

bMake sure “Search for the best driver”is selected, then click Next.

cUncheck any checked boxes, then click Next. Windows automatically

locates the driver. If this driver has been removed, reload the driver using

your Windows operating system CD.

dWhen Windows finds the driver, you are ready to install it. Click Next.

Skip this page if you did not connect a USB mouse cable

For Windows 98:

•If you connected the USB cable, the Add New Hardware Wizard

appears again. Drivers must be installed to use the USB functionality.

•The Wizard launches three times.

The first time it detects a USB Composite Device.

The second time a USB Human Interface Device (for the keyboard).

The third time it detects a USB Human Interface Device (for the

mouse).

For Windows 2000, Windows ME, and Windows XP:

•The USB drivers are automatically installed.

Otros manuales para CD-850m

Tabla de contenidos

Otros manuales de Proyector de BOXLIGHT

BOXLIGHT

BOXLIGHT Projecto Write8 Manual de usuario

BOXLIGHT

BOXLIGHT MP-37t Manual de usuario

BOXLIGHT

BOXLIGHT CP-33t Manual de usuario

BOXLIGHT

BOXLIGHT XP-58z Manual de usuario

BOXLIGHT

BOXLIGHT TraveLight3 Manual de usuario

BOXLIGHT

BOXLIGHT SP-45m Manual de usuario

BOXLIGHT

BOXLIGHT CD-450m Manual de usuario

BOXLIGHT

BOXLIGHT CD-725c Manual de usuario

BOXLIGHT

BOXLIGHT CP-324i Manual de usuario

BOXLIGHT

BOXLIGHT XD-10m Manual de usuario

BOXLIGHT

BOXLIGHT CP-310t Manual de usuario

BOXLIGHT

BOXLIGHT Seattle X26N Manual de usuario

BOXLIGHT

BOXLIGHT CP-14t Manual de usuario

BOXLIGHT

BOXLIGHT CP-315t Manual de usuario

BOXLIGHT

BOXLIGHT PhoenixX30 Manual de usuario

BOXLIGHT

BOXLIGHT CP322ia Manual de usuario

BOXLIGHT

BOXLIGHT CP-19t Manual de usuario

BOXLIGHT

BOXLIGHT N12 BNW Manual de usuario

BOXLIGHT

BOXLIGHT P12 Manual de instrucciones de instalación

BOXLIGHT

BOXLIGHT Cinema 17SF Manual de usuario

BOXLIGHT

BOXLIGHT MP-38t Manual de usuario

BOXLIGHT

BOXLIGHT XP-56d Manual de usuario

BOXLIGHT

BOXLIGHT cp-710k Manual de usuario

BOXLIGHT

BOXLIGHT 9000-INT Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
