SAFETY INFORMATION

Please read this owner’s guide

Please take the time to follow this owner’s guide carefully. It will help you set up and operate your system properly

and enjoy all of its advanced features. Please save your owner’s guide for future reference.

For your safety

WARNING: To reduce the risk of fire or electric shock, do not expose the powered Acoustimass®module to rain or

moisture.

WARNING: No naked flame sources, such as lighted candles, should be placed on the apparatus.

These CAUTION marks are located on the rear of the Acoustimass module:

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the

presence of uninsulated, dangerous voltage within the system enclosure that may be of sufficient magni-

tude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle, as marked on the system, is intended to alert the user

to the presence of important operating and maintenance instructions in this owner’s guide.

CAUTION: To prevent electric shock, match the wide blade of the line cord plug to the wide slot of the AC (mains)

receptacle. Insert fully.

This product conforms to the EMC Directive 89/336/EEC and to the Low Voltage Directive 73/23/EEC.

The complete Declaration of Conformity can be found on www.bose.com/static/compliance/index.html.

Additional safety information

See the additional safety information on the Important Safety Instructions page enclosed with your speaker system.

For your records

The system serial number is located on the rear of the Acoustimass module.

Serial number: ___________________________________________________________________________________

Dealer name: ____________________________________________________________________________________

Dealer phone: _______________________________ Purchase date: ____________________________________

Please keep your sales receipt and warranty card together with this owner’s guide.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpub-

01_Safety.fm Page 2 Thursday, August 17, 2006 12:29 PM

CONTENTS

English FrançaisEspañol

SETTING UP4

Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Unpacking the carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Placing your speakers to achieve realistic home theater sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Front left and right speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Center speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Rear speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Powered Acoustimass®module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Making the connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting speakers to the Acoustimass module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting the Acoustimass module to the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Checking the connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

USING YOUR SYSTEM 11

Getting the most from your home theater speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Adjusting the bass/room compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Adjusting the LFE level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Setting your digital surround sound receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Receiving a digital audio signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting your analog surround sound receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

REFERENCE 13

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning the speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

EnglishFrançais Español

SETTING UP

Before you begin

We appreciate your choice of the Bose®Acoustimass®6 Series III or Acoustimass 10

Series IV home entertainment speaker system.

The Acoustimass 6 features five small cube speakers, while the Acoustimass 10 system

features four cube speaker arrays and a center front speaker. These speakers, together with

the Acoustimass module, reproduce the full spectrum of multi-channel digital programming

for a powerful and realistic home theater experience.

Unpacking the carton

Carefully unpack the carton contents (Figure 1):

1. Remove the brown inner carton containing the small speakers.

2. Gently roll the carton onto its side and pull out the Acoustimass module.

WARNING: To avoid injury, use care in lifting the module, which weighs roughly 30 lb (14 kg).

Figure 1

Carton contents

Now is a good time to record the serial number of these speakers on your warranty card.

Please save all packing materials for possible future use.

WARNING: To avoid danger of suffocation, keep the plastic bags that wrap these speakers out

of the reach of children.

Powered Acoustimass

module

Three 20-ft (6.1 m)

front speaker cables

With Acoustimass 10 system

Rubber feet for front

center cube speaker

Four cube speaker arrays

Two 50-ft (15.2 m)

rear speaker cables

Power cord (1)

U.S./Canada Europe U.K./Singapore Australia

With Acoustimass 6 system

20-ft (6.1 m)

system input cable

Five cube speakers

Two 50-ft (15.2 m)

rear speaker cables

Center

front speaker

03_Setup.fm Page 4 Tuesday, March 21, 2006 4:05 PM

SETTING UP

English FrançaisEspañol

Placing your speakers to achieve realistic home theater sound

Keep these guidelines in mind when choosing a location for each speaker:

• The Acoustimass®module should be at least 2 feet (.6 m) from your TV set to prevent

interference.

• All of the small speakers are magnetically shielded to prevent interference with a TV picture.

• Select a stable and level surface for each of the small speakers.

Vibration can cause them to move, particularly on smooth surfaces like marble, glass, or

highly polished wood. To prevent this problem, rubber feet are provided for attachment to

the bottom of the center front speaker.

Note: You may order additional rubber feet, free of charge, by contacting Bose. Refer to the

address list included in the carton.

• In an Acoustimass 10 system, the center front speaker is for use at the front of the room

and near the center of your TV. The other cube array speakers are identical and can be

placed interchangeably around the room (Figure 2a and 2b).

• The top and bottom cube on each cube array speaker can be rotated to create

room-filling sound patterns.

• In the Acoustimass 6 system, all five single cube speakers are identical and can be placed

interchangeably around the room (Figure 2c and 2d).

The shape and size of your room and location of the furniture in it will affect your choice of

speaker locations. Use the examples below as the basis, but not the rule, for your home

theater setup.

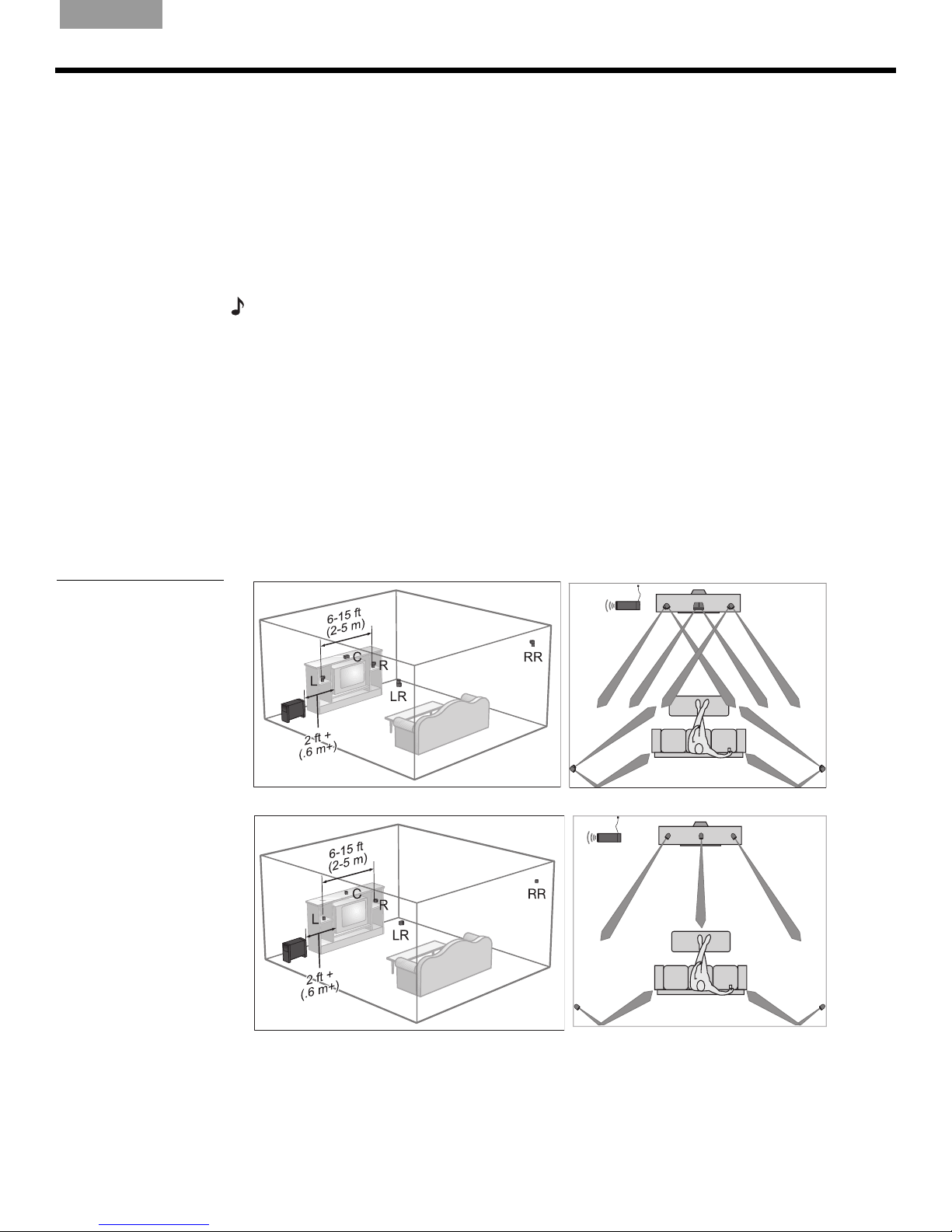

Figure 2

Sample speaker placement

(a and c) and performance

results (b and d)

Acoustimass 10 Series IV system

Acoustimass 6 Series III system

a. b.

c. d.

03_Setup.fm Page 5 Tuesday, March 21, 2006 4:05 PM

SETTING UP

EnglishFrançais Español

Front left and right speakers

The goal for these is to create a sound image wider than the screen that seems natural to

viewers sitting anywhere in the room.

• Place these two front speakers on either side of your TV.

• Keep them from 6 feet (2 m) to 15 feet (5 m) apart (as shown in Figure 2 on page 5).

Center speaker

Sound from the center speaker should seem to come from within the picture to give the most

realistic performance of on-screen action and dialogue.

• Place the center speaker above, on top of, or below your TV. Do NOT rest the weight of the

TV on the speaker.

• Keep the speaker in line with the vertical center of the screen, if possible, for the most

accurate reproduction of dialogue (as shown in Figure 2 on page 5).

CAUTION: Before placing the center speaker on top of your television, attach the four supplied

rubber feet to the bottom of the speaker. Position two of the feet near the front edge and close

together on the bottom surface. Place the other two feet at the rear outer edges on the bottom.

Rear speakers

While the rear (surround) speakers may deliver some dialogue, they serve primarily to !

deliver discrete sounds and special effects that expand the visual image. They help bring the

viewer into the center of the action.

Choose locations that are practical and convenient, while considering these recommended

guidelines:

• Position the left and right rear speakers so they can deliver sound on both sides of the

viewer, rather than from directly behind (as shown in Figure 2 on page 5).

• Place these speakers at the same height as the ears of a seated viewer or higher.

•For the Acoustimass®10 system, rotate the top and bottom sections of the rear cube

speaker arrays to direct the sound to the front and back of the listener (see Figure 3 on

page 7).

•For the Acoustimass 6 system, aim the rear cube speakers slightly behind the listener or

reflect the sound off the rear wall (see Figure 2 on page 5).

SETTING UP

English FrançaisEspañol

Powered Acoustimass®module

Acoustimass®speaker technology makes it difficult to locate the source of low-frequency

sound from this module. So feel free to hide it from view, and:

• Locate the module at the same end of the room as the TV screen.

• Keep the module at least 2 feet (.6 m) from your TV set to prevent interference.

• To increase bass effects, turn the front opening toward a wall; turn it away from the wall to

decrease bass effects.

• Keep both the front opening and the ventilation grille on the bottom of the module at least 2

inches (5 cm) from any other surface.

• Do not block the ventilation grilles located on the bottom of the module.!

Impeding ventilation can cause a reduction in the bass-frequency output from the module.

Figure 3

Position options for your

Acoustimass module

Preferred Alternate

Front opening

PreferredPreferred

Ventilation grille

Making the connections

Only the Acoustimass module connects to your receiver. The small speakers all connect

directly to the Acoustimass module.

WARNING: Connecting the small speakers to a receiver can result in damage to your system

and possible electric shock.

Connecting speakers to the Acoustimass module

Insert the connector on each speaker cable into the jack on the module. Refer to the label on

each connector to match it to the proper jack.

Figure 4

Speaker cable connection

to an output jack on the

module and to the speaker

Red collar

to red speaker terminal

Matched markings

Supplied

speaker cable

Right front

speaker

1. Use the supplied 20-ft (6.1 m) speaker cables for the three front speakers.

Insert the connectors, as labeled, into jacks on the module as follows!

(Figure 5 on page 8).

• R goes into the jack labeled Right Front.

• C goes into the jack labeled Center Front.

• L goes into the jack labeled Left Front.

SETTING UP

EnglishFrançais Español

2. Use the supplied 50-ft (15.2 m) speaker cables for the speakers at the rear of your room

(Figure 5).

Insert them into the jacks on the module as follows:

• RR goes into the jack labeled Right Rear.

• LR goes into the jack labeled Left Rear.

3. At the other end of each cable, insert the red-collared (+) wire into the red (+) terminal on

one speaker. Insert the other wire into the other terminal (Figure 5).

Notice a label on each red-collared wire that matches it to the proper speaker:

• L for the speaker at the left front • LR for the speaker at the left rear

• R for the speaker at the right front • RR for the speaker at the right rear

• C for the speaker at the center front

Figure 5

Completing connections of

the small speakers to your

Acoustimass®module

Red-collared wire

labeled LR

Red terminal

Right

front speaker

Left

front speaker

Center

front speaker

label

Acoustimass®10 system module

SETTING UP

English FrançaisEspañol

Connecting the Acoustimass®module to the receiver

The system input cable is 20 feet (6.1 m) long and connects to your surround receiver. Unlike

the speaker cables, this input cable has a multi-pin connector that inserts into the Audio Input

jack on the module (Figure 6).

Figure 6

System input cable

connection

Module input jack

System input

cable connector

At the other end of the system input cable, multiple wire pairs “unzip” for easy reach and

insertion into terminals on your receiver. A red collar marks a wire as positive (+) wire.

CAUTION: Do NOT connect your module to the TV, which lacks the required amplification.

The single RCA connector at that end is for use ONLY with a receiver that handles !

low-frequency effects and provides an LFE/SUBWOOFER jack (Figure 7).

Figure 7

Unzipping the paired wires

re pa

RCA

connector

for LFE

only

CAUTION: Before making these connections, turn off your receiver to prevent unwanted noises

when you plug the Acoustimass®module into it.

To make the connections (Figure 8 on page 10):

1. Insert the multi-pin connector on the system input cable into the input jack on the !

Acoustimass module. Tighten the two thumbscrews to secure the connection.

2. Connect each wire pair on the other end of the system input cable to your surround

receiver, which should have audio output terminals labeled:

• Right, Left, and Center for the front audio channels.

• Right Surround and Left Surround for the rear channels. !

The specific labels on your receiver may differ slightly.

CAUTION: Do not allow exposed wires to brush against each other; this could damage your

receiver.

3. Carefully match the polarity of the connections (+ to + and – to –).

• Attach each red-collared wire (+) to the appropriate + terminal.

• Attach each plain wire (–) to the appropriate – terminal.

4. If applicable to your receiver, insert the RCA plug marked LFE on the system input cable

into the LFE/SUBWOOFER OUT jack on your surround receiver. Remove the cover first.

SETTING UP

EnglishFrançais Español

Figure 8

Acoustimass®module to

receiver connections

Thumbscrews

Home theater

receivers

Acoustimass®

module

LFE connector with

cover removed

Checking the connections

Before plugging in the Acoustimass module, check all connections from the receiver to the

the module and the module to the small speakers (Figure 8).

• Make sure all cube speaker arrays are connected to the proper terminals according to their

position in your room.

• Check to be sure all wires are connected to your surround receiver with the proper polarity

(+ to + and – to – wires). Incorrect wiring can result in a total loss of module output.

• Correct any wiring problems before you plug in your receiver and turn it on.

When all the connections check out, plug the power cord from the Acoustimass module into

an AC (mains) outlet. Plug in the receiver also.

Note: Bose recommends using a quality surge suppressor on all electronics equipment.

Voltage variations and spikes can damage electronic components in any system. Using a high-

quality suppressor (available at electronics stores) can eliminate the vast majority of failures

caused by a power surge.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Bose

Bose

Bose SMART SOUNDBAR 700 Manual de usuario

Bose

Bose 8.2 Stereo Everywhere Manual de usuario

Bose

Bose PANARAY LT II Series Manual de usuario

Bose

Bose L1 Pro32 Manual de usuario

Bose

Bose Companion 3 Series II Manual de usuario

Bose

Bose L1 PRO32 SUB2 Manual de instrucciones

Bose

Bose Acoustimass 700 Manual de usuario

Bose

Bose 901 Series V Loud Manual de usuario

Bose

Bose Freestyle Speaker System Manual de usuario

Bose

Bose 901 Manual de usuario

Bose

Bose Lifestyle 900 Manual de usuario

Bose

Bose PANARAY MB4 Manual de usuario

Bose

Bose Acoustimass Bass System Manual de usuario

Bose

Bose Acoustimass 500 Manual de usuario

Bose

Bose SMART Soundbar 600 Manual de usuario

Bose

Bose 601 Series II Manual de usuario

Bose

Bose 601 Series IV Direct/Reflecting Manual de usuario

Bose

Bose L1 Model II Manual de usuario

Bose

Bose Lifestyle Music Center Manual de usuario

Bose

Bose 20-49 Manual de usuario

Bose

Bose L1 Pro32 Manual de usuario

Bose

Bose Lifestyle Surround Sound Speaker System Manual de usuario

Bose

Bose Companion 3 Series II Manual de usuario

Bose

Bose Solo 5 Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
