Bose L1 Pro32 Manual de usuario

L1 Pro32

Portable Line Array

Owner's Guide

English •5Owner's Guide •L1 Pro32 Portable Line Array

PRO.BOSE.COM Overview

Overview

Package Contents

L1 Pro32

Optional Accessories

• L1 Pro32 Array & Power Stand Bag

• SubMatch Cable

For additional information on L1 Pro accessories, visit PRO.BOSE.COM.

6 •English L1 Pro32 Portable Line Array •Owner's Guide

PRO.BOSE.COM

Setup

qChannel Parameter Control: Adjust the level of

volume, treble, bass, or reverb for your desired

channel. Press the control to switch between

parameters; rotate the control to adjust the level

of your selected parameter.

wSignal/Clip Indicator: The LED will illuminate

green when a signal is present and will illuminate

red when the signal is clipping or the L1 Pro is

entering limiting. Reduce the channel or signal

volume to prevent signal clipping or limiting.

eChannel Mute: Mute the output of an individual

channel. Press the button to mute the channel.

While muted, the button will illuminate white.

rChannel ToneMatch Button: Select the

ToneMatch preset for an individual channel. Use

MIC for microphones and use INST for acoustic

guitar. The corresponding LED will illuminate

white while selected.

tChannel Input: Analog input for connecting

microphone (XLR), instrument (TS unbalanced),

or line level (TRS balanced) cables.

yPhantom Power: Press the button to apply

48-volt power to channels 1 and 2. The LED will

illuminate white while phantom power is applied.

uUSB Port: USB-C connector for Bose service use.

Note: This port is not compatible with

Thunderbolt 3 cables.

iXLR Line Output: Use an XLR cable to connect

the line-level output to a Sub1/Sub2 or another

bass module.

oToneMatch Port: Connect your L1 Pro to a T4S or

T8S ToneMatch mixer via a ToneMatch cable.

CAUTION: Do not connect to a computer or

phone network.

aStandby Button: Press the button to power on

the L1 Pro. The LED will illuminate white while the

L1 Pro is on.

sSystem EQ: Press the button to scroll through

and select a master EQ suitable for the use case.

The corresponding LED will illuminate white while

selected.

dTRS Line Input: Use a 6.4-millimeter (¼-inch) TRS

cable to connect line-level audio sources.

fAux Line Input: Use a 3.5-millimeter (⅛-inch) TRS

cable to connect line-level audio sources.

gBluetooth® Pair Button: Set up pairing with

Bluetooth capable devices. The LED will ﬂash

blue while the L1 Pro is discoverable and

illuminate solid white when a device is paired for

streaming.

hSubMatch Output: Connect a Sub1/Sub2 bass

module with a SubMatch cable.

jPower Input: IEC power cord connection.

Connections and Controls

MUTE MUTE MUTE

PUSH

VOLUME

TREBLE

BASS

REVERB

VOLUME

TREBLE

BASS

REVERB

VOLUME

TREBLE

BASS

TREBLE

BASS

REVERB

VOLUME

TREBLE

BASS

REVERB

VOLUME

TREBLE

BASS

INST INST

PHANTOM

LINE OUT

OFF

LIVE

MUSIC

SPEECH

SYSTEM EQ

English •7Owner's Guide •L1 Pro32 Portable Line Array

PRO.BOSE.COM Setup

Assembling the Power Stand and Array

Upper mid-high array

Lower mid-high array

Before connecting the power

stand to a power source,

assemble the L1 Pro32 using the

upper mid-high array and lower

mid-high array.

1. Insert the lower array into

the power stand.

2. Insert the upper array into

the lower array.

The L1 Pro32 can be used

without the upper array.

This conﬁguration is useful

when a venue ceiling cannot

accommodate the height of the

L1 Pro32.

Power stand

8 •English L1 Pro32 Portable Line Array •Owner's Guide

PRO.BOSE.COM

Setup

Connecting Power and a Sub1/Sub2

qw e tr

L1 Pro32Sub1/Sub2

1. Plug the SubMatch cable into the SubMatch Input on a Sub1/Sub2.

2. Plug the other end of the SubMatch cable into the SubMatch Output of the L1 Pro32.

3. Plug the power cord into the Power Input on the L1 Pro32.

4. Plug the other end of the power cord into a live electrical outlet.

Note: Do not power on the L1 Pro until after you've connected your sources. See Connecting Sources on

page9.

5. Press the Standby Button. The LED will illuminate white while the L1 Pro is on.

Note: Press and hold the Standby Button for 10 seconds to reset the L1 Pro to factory settings.

Press the Standby Button on any connected Sub1/Sub2. For additional information on how to set up a Sub1/

Sub2, see the Sub1/Sub2 owner's guide at PRO.BOSE.COM.

Note: When two Subs are connected to the L1 Pro32, ﬁrst turn on the Sub connected directly to the L1 Pro32,

then turn on the second Sub.

AutoO/Low-power Standby

After four hours of no use, the L1 Pro will enter AutoO/Low-power Standby mode to save power. To wake

the L1 Pro from AutoO/Low-power Standby mode, press the Standby Button. When the L1 Pro32 goes into

AutoO/Low-power Standby mode, this will cut power to any Sub1/Sub2 connected with a SubMatch cable.

Press the Standby Button on a connected Sub1/Sub2 to wake it from AutoO/Low-power Standby mode.

Note: Disable AutoO/Low-power Standby mode by pressing and holding all three Channel Parameter

Controls for 10 seconds, or via the Settings page in the Bose Music app. Enable AutoO/Low-power Standby

mode by repeating this step. Disabling AutoO/Low-power Standby mode will result in higher energy usage

when the L1 Pro is not in use.

English •9Owner's Guide •L1 Pro32 Portable Line Array

PRO.BOSE.COM Setup

Connecting Sources

Channel 1 & 2 Controls

Channel 1 and 2 are for use with microphones, guitars, keyboards,

or other instruments. The channel inputs are suitable for a wide

range of input types and will have the proper gain staging to

minimize noise when the channel volume is set for the desired

output level.

1. Connect your sound source to the Channel Input with the

appropriate cable.

2. Apply a ToneMatch preset—to optimize the sound of your

microphone or instrument—by pressing the Channel ToneMatch

Button until the LED for your chosen preset is illuminated.

Use MIC for microphones and use INST for acoustic guitars

and other instruments. Use OFF if you do not want to apply a

preset.

Note: Use the Bose Music app to choose custom presets from

the ToneMatch library. The corresponding LED will illuminate

green when a custom preset is selected.

3. Press the Channel Parameter Control to choose a parameter

to modify. The parameter name will illuminate white while it is

selected.

4. Rotate the Channel Parameter Control to adjust the level of the

selected parameter. The parameter LED will indicate the level of

the selected parameter.

Note: While Reverb is selected, press and hold the control for

two seconds to mute the reverb. While reverb is muted, Reverb

will ﬂash white. To unmute reverb, press and hold for two

seconds while Reverb is selected. Reverb mute will reset when

the L1 Pro is powered o.

q w

INST

10 •English L1 Pro32 Portable Line Array •Owner's Guide

PRO.BOSE.COM

Setup

Channel 3 Controls

Channel 3 is for use with Bluetooth®enabled devices and line-level audio inputs.

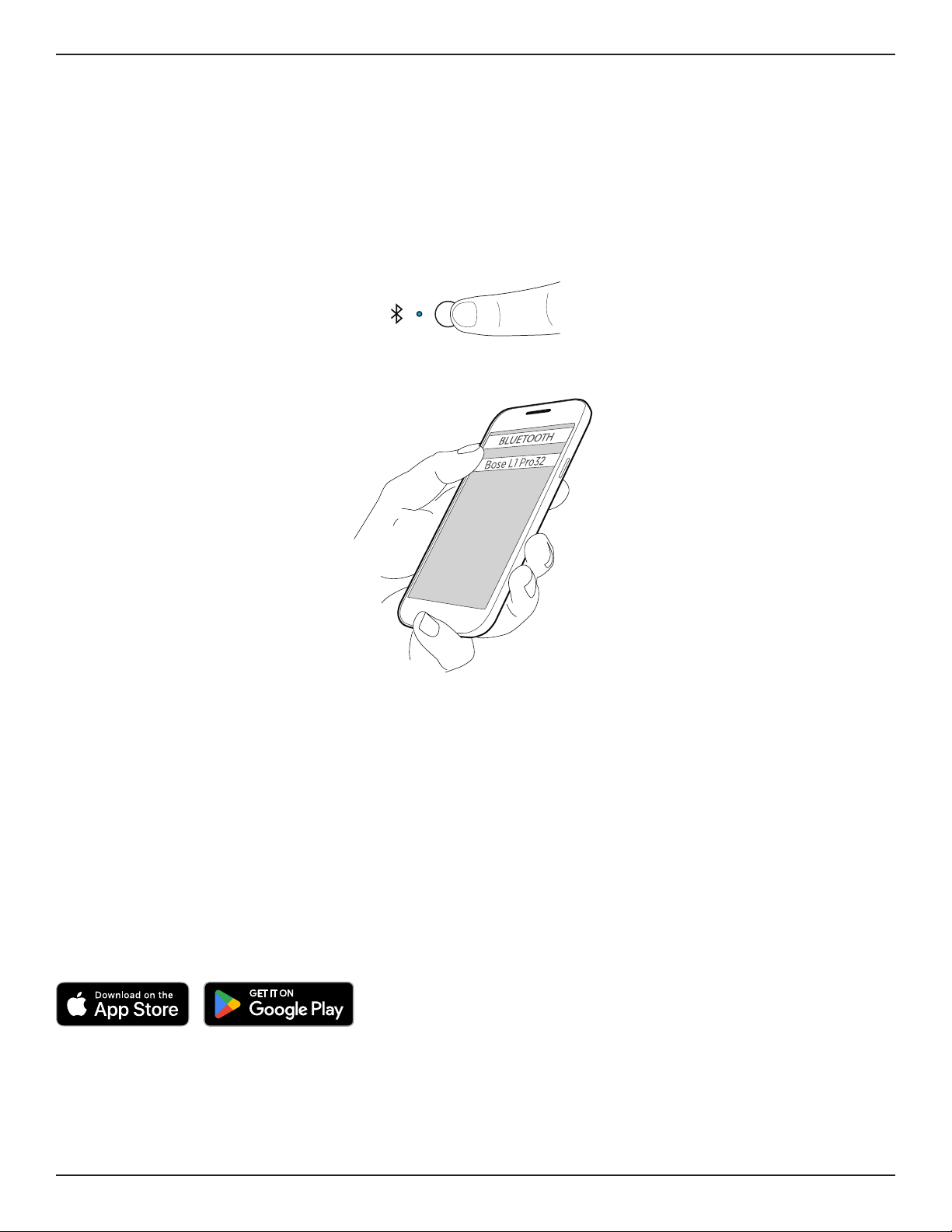

Bluetooth Pairing

The following steps describe how to manually connect a Bluetooth enabled device to stream audio.

You can use the Bose Music app to access additional device control. For more information on the Bose Music

app, see Bose Music App Control below.

1. Turn on the Bluetooth feature on your mobile device.

2. Press and hold the Bluetooth Pair Button for two seconds. When ready to pair, the LED will ﬂash blue.

3. Your L1 Pro will be visible in your device list on your mobile device. Select your L1 Pro from the device list.

When the device pairs successfully, the LED will illuminate solid white.

Note: Some notiﬁcations may be audible through the L1 Pro while in use. To prevent this, disable notiﬁcations

on your connected device. Enable airplane mode to prevent call/message notiﬁcations from interrupting

audio.

TRS Line Input

A mono input. Use a 6.4-millimeter (¼-inch) TRS cable to connect line-level audio sources, such as mixers or

instrument eects.

Aux Line Input

A stereo input. Use a 3.5-millimeter (⅛-inch) TRS cable to connect a line-level audio source, such as mobile

devices or laptops.

Bose Music App Control

Download the Bose Music app for additional device control and audio streaming. Once downloaded, follow

the instructions in the app to connect your L1 Pro. For speciﬁc information on how to use the Bose Music app,

see the in-app help.

Features

• Adjust channel volume

• Adjust channel mixer parameters

• Adjust system EQ

• Enable channel mute

• Enable reverb mute

• Enable phantom power

• Access to ToneMatch preset library

• Save scenes

English •11Owner's Guide •L1 Pro32 Portable Line Array

PRO.BOSE.COM Setup

Additional Adjustments

Channel Mute

Press the Channel Mute to mute the audio for an individual channel. While a channel is

muted, the button will illuminate white. Press the button again to unmute the channel.

Phantom Power

Press the Phantom Power button to apply 48-volt power to channels 1 and 2. The

LED will illuminate white while phantom power is applied. Apply phantom power

when using a condenser microphone. Press the button again to turn o phantom

power.

Note: Phantom power will only aect sources connected to a Channel Input using an

XLR cable.

System EQ

Select your system EQ by pressing the System EQ button until the

corresponding LED for your desired EQ illuminates white. Choose

between OFF, LIVE, MUSIC, and SPEECH. Your chosen EQ will stay

selected when you power o and power on your L1 Pro.

Note: The system EQ aects power stand/array audio only. System EQ

does not aect XLR Line Output audio.

SYSTEM EQ

OFF

SPEECH

SYSTEM EQ

OFF

SPEECH

12 •English L1 Pro32 Portable Line Array •Owner's Guide

PRO.BOSE.COM

Setup

Setup Scenarios

The L1 Pro32 can be placed on the ﬂoor or on an elevated stage (see Assembling the Power

Stand and Array on page 7).

WARNING: Do not place the equipment in an unstable location. The equipment could

become unstable leading to a hazardous condition, which could result in injury.

CAUTION: The power stand should not be placed anywhere that may block the

ventilation holes at the rear/bottom of the L1 Pro32. Operating directly on sand or grass

could cause debris to enter the product through vent openings and result in the L1 Pro32

not functioning properly.

L1 Pro32

All of the following setup scenarios require at least one Sub1 or Sub2 bass module. For proper Sub1/Sub2

settings, see the Sub1/Sub2 owner's guide at PRO.BOSE.COM.

Musician (with Sub)

MUTE MUTE

INST INST

English •13Owner's Guide •L1 Pro32 Portable Line Array

PRO.BOSE.COM Setup

MUTE MUTE MUTE

INST INST

MUTE MUTE MUTE

INST INST

Band (with Sub)

Musician with Mobile Device (with Sub)

Otros manuales para L1 Pro32

Tabla de contenidos

Otros manuales de Sistema de altavoces de Bose

Bose

Bose Companion 5 Manual de usuario

Bose

Bose 4.2 Manual de usuario

Bose

Bose Acoustimass 15 Manual de usuario

Bose

Bose 901 Series VI Loud Manual de usuario

Bose

Bose Acoustimass AM293692 Manual de usuario

Bose

Bose COMPANION 2 Manual de usuario

Bose

Bose Acoustimass 6 Manual de usuario

Bose

Bose Lifestyle Surround Sound Speaker System Manual de usuario

Bose

Bose Acoustimass 16 Series II Manual de usuario

Bose

Bose 151 Manual de usuario

Bose

Bose Acoustimass Bass System Manual de usuario

Bose

Bose Acoustimass Powered Manual de usuario

Bose

Bose L1 Model II Manual de instrucciones

Bose

Bose TV SPEAKER Manual de usuario

Bose

Bose Acoustic Wave Series II Manual de usuario

Bose

Bose 201 Series Manual de usuario

Bose

Bose Acoustimass 10 Series IV Manual de usuario

Bose

Bose Panaray 502 Manual de usuario

Bose

Bose Acoustimass 6 Series II Manual de usuario

Bose

Bose Acoustimass 6 Series III Manual de usuario

Bose

Bose Acoustimass 3 Series Manual de usuario

Bose

Bose Lifestyle Homewide Manual de usuario

Bose

Bose 131 Manual de usuario

Bose

Bose 601 Series IV Direct/Reflecting Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
