RF3401E
EN Installation Instructions
Wireless (RF) Point
Transmitter
Bosch Security Systems | 6/03 | 42597E
EN | 2
RF3401E | Installation Instructions | 1.0 Overview
1.0 Overview
The RF3401E Point Transmitter is a magnetic and dry
contact wireless transmitter used for monitoring doors,
windows, or other dry contact devices.
This device is equipped with an internal reed contact for
use with an external magnet assembly and a cover/wall
tamper switch. The point transmitter can accept a dual
EOL resistor supervised dry contact input from an
external device.
Supervision is provided by transmitting a signal to the
receiver every 13 min. if there is no other activity. All
transmissions from the RF3401E send battery status
information.
Table 1: Specifications
Dimensions
(H x W x D)
Transmitter:
76.5 mm x 35 mm x 19 mm
(3 in. x 1.38 in. x 0.75 in.)
Mounting Plate:
76.5 mm x 35 mm x 3.2 mm
(3 in. x 1.38 in. x 0.13 in.)
Magnet:
80 mm x 14 mm x 12 mm
(3.15 in. x 0.55 in. x 0.47 in.)
Operating
Temperature -30°C to +65°C (-22°F to +149°F)
Frequency
Band 433.42 MHz
Maximum RF
Power < 10 mW
Operating
Voltage Supplied by a 3 VDC lithium battery
Battery Life Minimum of five years under normal
operating conditions with the
recommended battery types.
Recommended
Battery Types
Duracell DL 123A,
Energizer EL 123AP, or
Panasonic CR 123A
Compatible
Receivers RF3212E or RF3222E
Compliance CE 0165. This point transmitter
complies with EN 300683,
EN 300220, and 89/336/EEC.
2.0 Specifications
EN | 3
RF3401E | Installation Instructions |
Bosch Security Systems | 6/03 | 42597E
3.0 Mounting
3.0 Mounting
3.1 Mounting Considerations
• The maximum range of the point transmitter, in open
air, is approximately 300 m (984 feet). In normal
residential or commercial applications, it is
recommended the point transmitter be kept within
100 m (328 in.) of the receiver to which it is
assigned.
• Mounting the point transmitter on metal surfaces can
reduce its RF range. Mounting the point transmitter
on ferrous metal (iron or steel) surfaces can affect the
operation of the internal magnetic contact.
• It is recommended the point transmitter be mounted
on the door/window frame and the magnet assembly
be mounted on the moving portion. Note that the
magnet assembly must be mounted within 15 mm
(0.59 in.) of the point transmitter and in an
acceptable orientation as shown in Figure 1.
3.2 Mounting the Transmitter
1. Position the mounting plate over the desired
location. If connecting an external device, position
the mounting plate so the wiring passes through the
wire entrance (see Figure 2).
2. Attach the mounting plate using two flathead screws
(see Figure 2).
When mounting the base, be sure to note
the location of the magnet.
3. If using the wall tamper feature, use a panhead
screw in the wall tamper breakaway (see Figure 2).
4. From the point transmitter bottom (see Figure 3),
remove the wall tamper breakout with a small tool.
Figure 2: Mounting Plate
1 - Magnet
2 - Mounting holes (use two flathead screws)
3 - Wall tamper breakaway (use panhead screw)
4 - Wire entrance
5 - Release tab
1
Figure 1: Mounting Considerations (shown without
mounting plate or spacer)
1 - Acceptable
2 - Not acceptable
12
Figure 3: Point Transmitter
The ID label removed to show detail.
1 - Wall tamper breakout area
2 - Wire entrance
1
2
Bosch Security Systems | 6/03 | 42597E
EN | 4
RF3401E | Installation Instructions | 3.0 Mounting
Figure 6: Mount for Extra Security
1 - Security screw
1
Figure 7: Correctly Installed Battery
Cover removed to show detail.
1 - Battery
2 - Tamper switch wires
3 - Wall tamper breakout area
4 - Wire entrance
5 - Release tab
1
23
5
Figure 5: Slide the Point Transmitter onto the
Mounting Plate
5. Tear off the loose portion of the ID label to use in
panel programming (see Section 5.0 Panel
Programming).
6. Depending on which case your transmitter comes
with (see Figure 4), open the transmitter cover by
inserting a small flat-blade screwdriver into the slot
at the end of the transmitter. Then push in with the
screwdriver until the latch opens.
7. Slide the point transmitter over the mounting plate
to lock it into place (see Figure 5). If connecting an
external device, make sure its wiring is pulled
through the wire entrance of the point transmitter as
the point transmitter slides onto the mounting plate.
8. Make the wiring connections for any external
device. Refer to Section 4.0 Setting Up Magnetic or
External Contacts.
Figure 4: Open the Point Transmitter
1 - Insert screwdriver and push here.
2 - Push in.
1
1
9. If the installation requires additional security, use an
additional panhead screw to mount the point
transmitter (see Figure 6).
10. Install a recommended battery (see Section 2.0
Specifications). Be sure to observe the proper polarity
(see Figure 7).
11. Close the cover.
12. Release the point transmitter from the base by
disconnecting any external wiring and removing the
security screw (if used). Then press the release tab
(see Figure 7) with a small tool and slide the point
transmitter off the mounting plate.
EN | 5
RF3401E | Installation Instructions |
Bosch Security Systems | 6/03 | 42597E
4.0 Setting Up Magnetic or External Contacts
3.3 Mounting the Magnet Assembly
1. Mount the magnet base using two panhead screws
(see Figure 8).
2. Snap on the magnet cover.
The spacer is optional and should be used
for alignment as needed.
4.0 Setting Up Magnetic or
External Contacts
The RF3401E can monitor its internal reed contact or an
external dry contact.
If using the RF3222E Receiver, the
RF3401E cannot monitor both magnetic and
external contacts simultaneously.
If using the magnet, do not use an external
device.
If using an external device, remove the reed
switch (see Figure 9).
One set of external normally closed (NC) contacts (see
Figure 10) can be monitored. Be sure your panel
supports the intended loop condition.
The contact input is supervised using dual 1.5 kΩand
2.2 kΩ End-of-Line (EOL) resistors. This lets the panel
identify wire tamper conditions (opens or shorts). The
total cable length for the external wiring should not
exceed 6 m (19 feet).
Figure 9: Remove the Reed Switch
1 - Antenna
2 - Reed switch
1
2
Figure 10: Typical NC Wiring
2
1
1.5 kΩ
2.2 kΩ
3
1 - Up to 6 m (19 ft.)
2 - Non-polarized
3 - Normally closed (NC) contact
Figure 8: Magnet Assembly
1 - Cover
2 - Base
3 - Spacer
3
2
1
Bosch Security Systems | 6/03 | 42597E
EN | 6
RF3401E | Installation Instructions | 5.0 Panel Programming

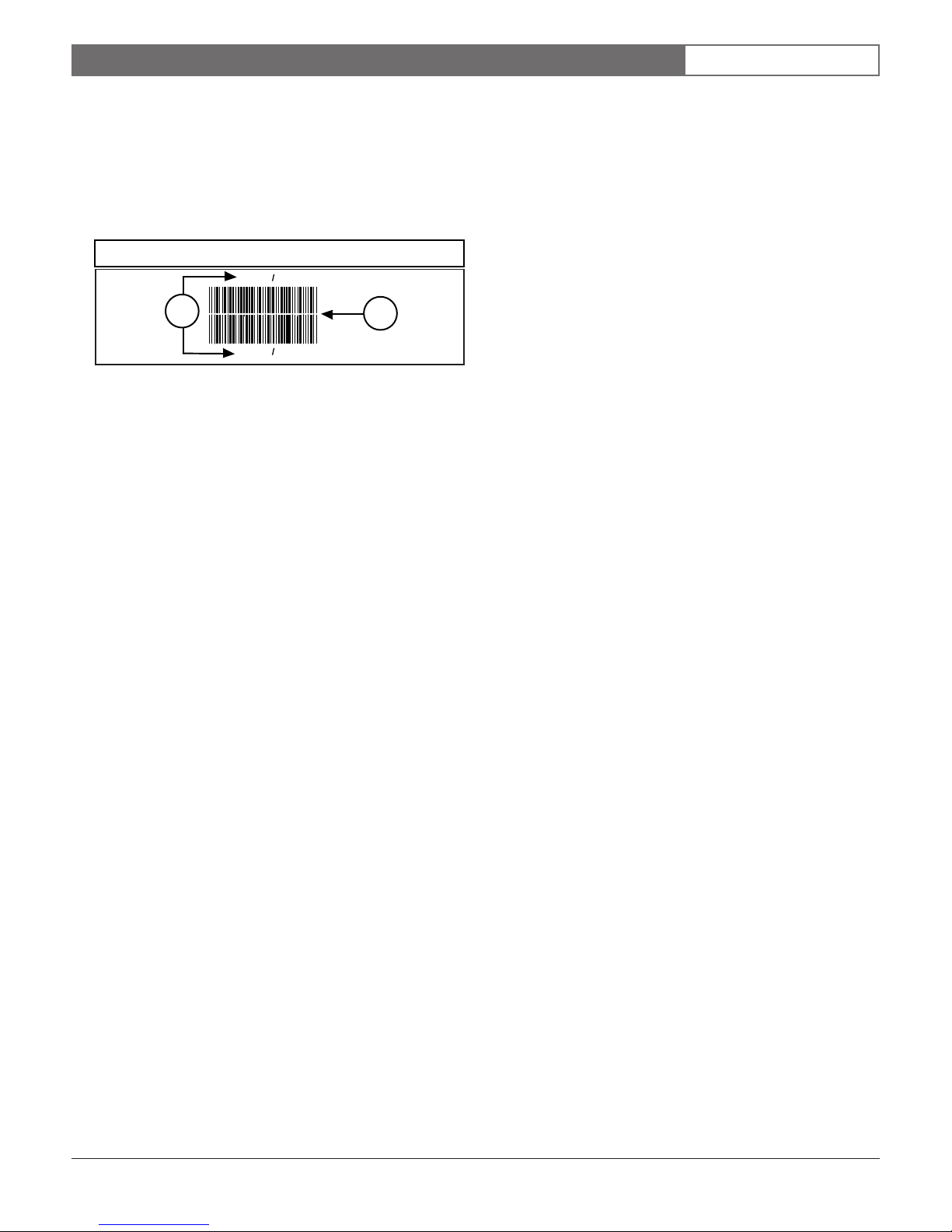

Figure 11: ID Number
1 - ID number
2 - Bar code
167770187
167770187
12
5.0 Panel Programming
A two-part ID sticker (see Figure 11) is located on the
housing of the RF3401E. The number on this sticker is
required to program the point transmitter into the
control panel. Refer to your panel's Programming Guide
for programming information on wireless type devices.
PROTÓTIPO DO SELO ANATEL E DA RESOLUÇÃO 365
Código EAN – Modelo RF3401E: (01)07891009341408
Bosch Security Systems
130 Perinton Parkway
Fairport, NY 14450-9199 USA
www.boschsecurity.us
Customer Service: (800) 289-0096
Technical Support: (888) 886-6189
© 2003 Bosch Security Systems
Subject to change | Printed in the USA
42597E
