Bosch GLM 42 Instrucciones de montaje

IMPORTANT:

Read Before Using

IMPORTANT :

Lire avant usage

IMPORTANTE:

Leer antes de usar

For English Version

See page 6

Version française

Voir page 30

Versión en español

Ver la página 57

Call Toll Free for

Consumer

Information and Service

Locations

Pour obtenir des informations

et les adresses de nos centres

de service après-vente,

appelez ce numéro gratuit

Llame gratis para obtener

información para el

consumidor y ubicaciones

de servicio

Operating/Safety Instructions

Consignes de sécurité/d’utilisation

Instrucciones de funcionamiento y seguridad

1-877-BOSCH99 (1-877-267-2499) www.boschtools.com

0.0°

⁄

4'02"



8'05"

⁄

12'07"

16'11" ⅜

GLM 42

2610051599 03-18 GLM42.indd 1

3/23/18 9:52 AM

-2-

L⁄

4'02"

W

8'05"

H⁄

12'08"

456.45ft3

2007

GLM 42 3 601 K72 K10

5°

10.345m

4.900m

2.500m

126.05m

5432

14 13

678

a b e g

ft/m

GLM 42

0.0º

L⁄

4'02"

W

8'05"

H⁄

12'08"

456.45ft

See page 12 & 13 for descriptions

Voir les descriptions aux pages 37 & 38

Consulte las descripciones en las páginas 63 y 64

2610051599 03-18 GLM42.indd 2

3/23/18 9:52 AM

-3-

2610051599 03-18 GLM42.indd 3

3/23/18 9:52 AM

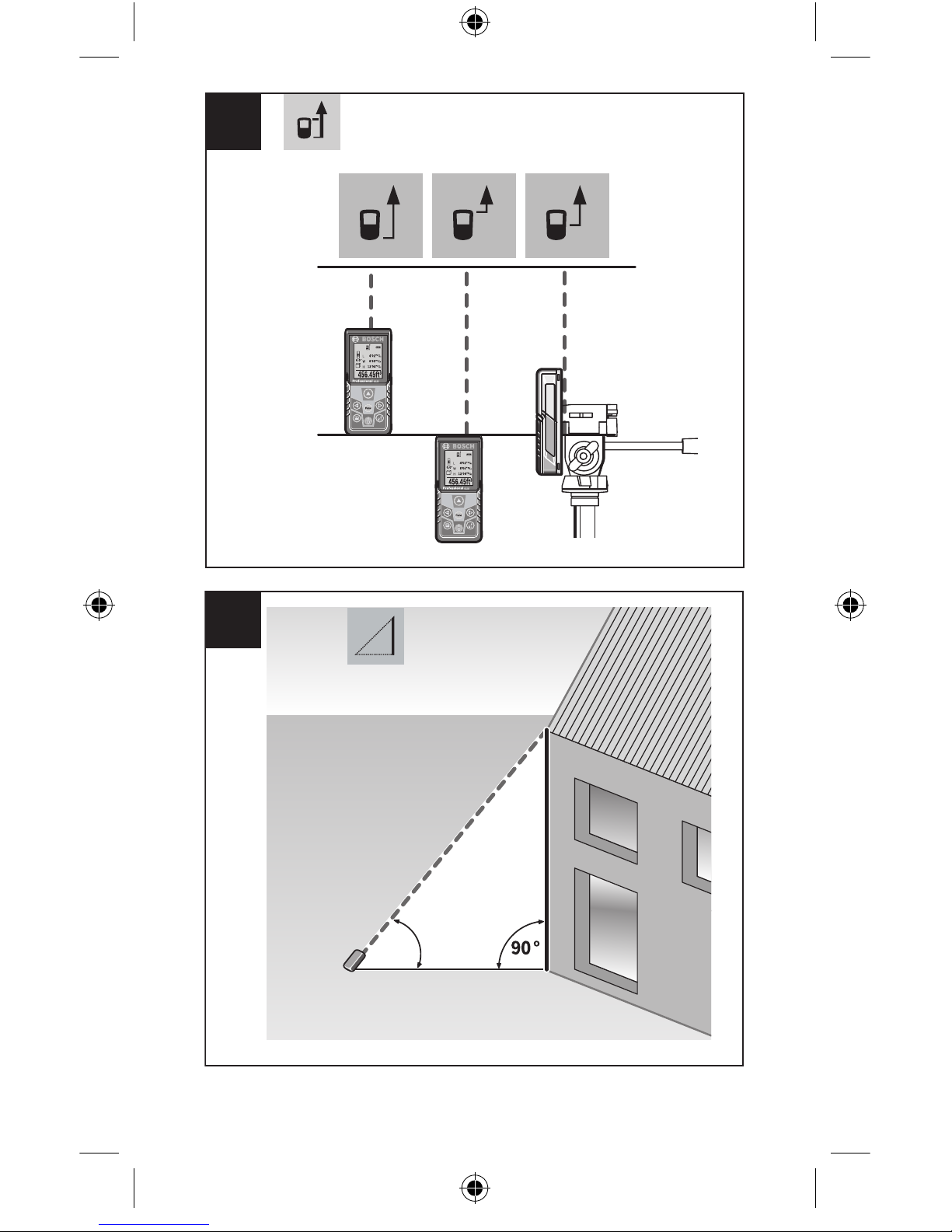

-4-

11.430 m

10.160m

8.890

0.0°

m7.620

11.430m

10.160m

8.890

0.0°

m7.620

2610051599 03-18 GLM42.indd 4

3/23/18 9:52 AM

-5-

2610051599 03-18 GLM42.indd 5

3/23/18 9:52 AM

-6-

Read all instructions. Failure to

follow all instructions listed below

may result in hazardous radiation exposure, electric

shock, ﬁre and/or serious injury.

The term “laser measure” in the warnings listed below

refers to your battery-operated (cordless) laser mea-

suring tool.

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTURE REFERENCE

The following label is on your

laser measure for your safety.

ALWAYS BE AWARE of its

location when using the laser

measure.

DO NOT direct

the laser beam

at persons or animals and do not stare

into the laser beam yourself. This laser

measure produces class 2 laser radiation

and complies with 21 CFR 1040.10 and 1040.11 ex-

General Safety Rules

Safety Symbols

The definitions below describe the level of severity for each

signal word. Please read the manual and pay attention to

these symbols.

This is the safety alert symbol. It is used to

alert you to potential personal injury hazards.

Obey all safety messages that follow this

symbol to avoid possible injury or death.

Read manual symbol - Alerts user to read

manual.

WARNING indicates a hazardous

situation which, if not avoided, could

result in death or serious injury.

2610051599 03-18 GLM42.indd 6

3/23/18 9:52 AM

-7-

cept for deviations pursuant to Laser Notice No. 50,

dated June 24, 2007. This can lead to persons being

blinded.

DO NOT stare directly at the laser beam or project

the laser beam directly into the eyes of others. Seri-

ous eye injury could result.

DO NOT place the laser measure in a position that

may cause anyone to stare into the laser beam inten-

tionally or unintentionally. Serious eye injury could

result.

DO NOT operate the laser measure around children

or allow children to operate the laser measure. Seri-

ous eye injury could result.

ALWAYS: Make sure that any bystanders in the vicin-

ity of use are made aware of the dangers of looking

directly into the laser measure.

Never aim the beam at a workpiece with a reﬂective

surface. Bright shiny reﬂective sheet steel or similar

reﬂective surfaces are not recommended for laser

use. Reﬂective surfaces could direct the beam back

towards the operator.

Use of controls or adjustments or performance of

procedures other than those speciﬁed herein may

result in hazardous radiation exposure.

DO NOT use any optical tools such as, but not limited

to, telescopes or transits to view the laser beam. Se-

rious eye injury could result.

DO NOT leave the laser measure “ON” unattended in

any operation mode. ALWAYS turn the laser measure

“OFF” when not in use. Leaving the laser measure

“ON” increases the risk of someone inadvertently star-

ing into the laser beam.

DO NOT operate the laser measure in combustible

areas such as in the presence of ﬂammable liquids,

gases or dust.

Do not use the laser viewing glasses as safety gog-

gles. The laser viewing glasses are used for improved

visualization of the laser beam, but they do not protect

against laser radiation.

2610051599 03-18 GLM42.indd 7

3/23/18 9:52 AM

-8-

Do not use the laser viewing glasses as sun glasses

or in traﬃc. The laser viewing glasses do not aﬀord

complete UV protection and reduce color perception.

ALWAYS position the laser measure securely. Dam-

age to the laser measure and/or serious injury to the

user could result if the laser measure falls.

Take care to recognize the accuracy and range of the

laser measure. Measurement may not be accurate if

used beyond the rated range of the laser measure.

DO NOT remove or deface any warning or caution

labels. Removing labels increases the risk of exposure

to laser radiation.

Electrical safety

Batteries can explode or leak, cause injury or ﬁre. To

reduce this risk, always follow all instructions and

warnings on the battery label and package.

DO NOT short any battery terminals.

DO NOT charge alkaline batteries.

DO NOT mix old and new batteries. Replace all of

them at the same time with new batteries of the

same brand and type.

DO NOT mix battery chemistries.

Dispose of or recycle batteries per local code.

DO NOT dispose of batteries in ﬁre.

Keep batteries out of reach of children.

Remove batteries if the device will not be used for

several months.

2610051599 03-18 GLM42.indd 8

3/23/18 9:52 AM

-9-

Maintenance

DO NOT disassemble the laser measure. There are

no user serviceable parts inside. Disassembling the

laser will void all warranties on the product. Do not

modify the product in any way. Modifying the laser

measure may result in hazardous laser radiation expo-

sure.

ALWAYS remove the batteries when cleaning the

laser light aperture to laser lens.

DO NOT use this laser measure for any purpose other

than those outlined in this manual. This could result

in serious injury.

ALWAYS use only the accessories that are recom-

mended by the manufacturer of your laser measure.

Use of accessories that have been designed for use

with other laser measures could result in serious in-

jury.

Repair and servicing must always be performed by

a qualiﬁed repair facility. Repairs performed by un-

qualiﬁed personnel could result in serious injury.

2610051599 03-18 GLM42.indd 9

3/23/18 9:52 AM

-10-

Technical Data

Laser Measure GLM 42

Measuring range (typical): 6 in – 135 ft

(0.15 – 40 m)A

Measuring accuracy (typical)

±1/16 in (±1.5 mm)

Lowest indication unit 1/32 in (0.5 mm)

Indirect Distance Measurement and Vial

Measuring range 0°–360° (4 x 90°)

General

Operating temperature +14 °F to 113 °F

(-10 °C to 45 °C)D

Storage temperature -4 °F to 158 °F

(-20 °C to 70 °C)

Relative air humidity, max. 90 %

Laser class 2

Laser type 635 nm, <1 mW

Laser beam diameter at 77 °F

(25 °C) approx.

– at 33 ft (10 m) distance

– at 135 ft (40 m) distance

4/11 in (9 mm)

1-2/5 in (36 mm)

Weight 0.22 lb (0.1 kg)

Dimensions 4.2 x 1.8 x 0.9 in

(106 x 45 x 24 mm)

Automatic switch-oﬀ after approx.

– Laser

– Laser measure (without mea-

surement)

20 s E

5 min
