CM744B

3G GSM/GPRS/SMS Radio Module

Security System

Installer Reference Guide

Security Systems

CM744B Installer Reference Guide

2Bosch Security Systems 07/15 CM744BIRG FTR1.1

Introduction

The CM744B 3G radio module allows you to interface

compatible security control panels to the GSM/GPRS /SMS

network providing a high reliability primary or backup

reporting path.

The unit is designed to plug onto the main control panel

with the supplied antenna mounting onto the metal

cabinet.

Module Compatibility

Panels Supported Version

Solution 6000 Series 2.23

Getting Started

There are four main steps required to conﬁgure the

CM744B for reporting to the control room. The instruc-

tions assume that you already have purchased a SIM card

and that the card has been charged with credit and acti-

vated on the network if necessary.

1. Install the CM744B hardware on the control panel.

2. Install the antenna.

3. Conﬁgure the module’s features and parameters.

4. Conﬁgure the control panel for reporting.

Step 1 - Installing the Radio Module

Ensure that the panel is powered oﬀ before proceeding.

Plug the 3 short plastic standoﬀs into the module and

then plug it onto the Expansion Port header pins on the

panel as shown in. If you are connecting the CM744B to a

panel which also has a CM101B Voice Module ﬁtted then

you should use the longer standoﬀs from the HW750 Riser

Kit.

Install the SIM card into the SIM 1 card position.

Step 2 - Installing the Antenna

Remove the knockout in the top of the cabinet and pass

the antenna lead through the hole ensuring the antenna

is on the outside of the cabinet. Screw the lead to the

socket on the radio module before power the panel.

Do not ﬁx the antenna in place at this stage.

Step 3 - Conﬁguring The Module

Once powered the radio will attempt to connect to the

network. This may take up to a minute to complete. Dur-

ing this time the online indicator on the module will be on

solid. Once the radio has registered the online indicator

will begin to ﬂash and the signal strength indicators will

show the current signal condition.

Experiment with the position of the antenna to ﬁnd the

best signal strength before ﬁxing it in place.

Step 4 - Conﬁguring The Panel Reporting

Reporting conﬁguration will vary depending on the re-

quired options and whether or not the GSM module is to

be used as the primary or secondary reporting route.

Conﬁgure the required reporting formats in MENU 5-4-0

and 5-4-1. The system can be conﬁgured to report to the

base in CID and also to selected phone numbers via SMS,

or to the base in CID via PSTN line and then CID via GSM if

the PSTN line is cut.

All reporting scenarios are conﬁgured by varying the pro-

gramming of the reporting format and reporting routes

conﬁgurations options.

Module Indicators

The module includes 7 led indicators which are used to

show status and signal strength. See table below.

Module Indicators

Indicator Meaning

TX Module Transmitting Data

RX Module Receiving Data

Online ON Steady = Not Registered On Network

Pulsing = Registered On Network

Signal 1 Signal strength indicators show relative

signal level at the radio. Signal indicator 1

on indicates weak signal and all 4 indicators

on indicates stronger signal strength.

Signal 2

Signal 3

Signal 4

CM744B Installer Reference Guide

Bosch Security Systems 07/15 CM744BIRG FTR1.1

Supported Reporting Formats

Version 2.22 of the Solution 6000 panel ﬁrmware is

required to support the CM744B.

The following reporting formats are currently supported

by the module.

SMS Format via GSM

CSV-IP Format via GPRS

Conettix Format via GPRS

Support for the MyAlarm iFob App and RAS upload /

download via GPRS is not currently supported but will be

available in a future panel ﬁrmware update.

There is no support in the 3G module for Contact ID (CID)

over GSM.

CLI Trigger Output Control

The CLI trigger tables in MENU 6-5-5-1 and 6-5-6-2 can be

used to store a list of telephone numbers that can trigger

an output on the control panel. If you call the GSM unit

from a telephone number that matches a number in the

CLI list then the appropriate output will be operated.

An output needs to be programmed with an event type of

CLI Trigger and event assignment of 1 or 2 depending on

which table is to be checked.

Simply call the GSM unit from a telephone number that is

programmed in the CLI trigger list to activate the output.

Module Status

MENU 6-5-0 can be used to obtain various information on

the radio module. The following information is currently

available.

1) Connected Network

2) Signal Strength in dB

3) IMEI Number

4) Radio Firmware Revision

5) SIM Card Present

Dial Number Test

It is possible to check the SIM phone number by selecting

the dial number test via GSM option in MENU 5-9-5.

SMS Remote Control

The SMS control option in MENU 6-5-6 allows you to

program up to 10 telephone numbers that are allowed

to send SMS commands to the GSM unit. The ﬁrst num-

ber in this list is considered as the administrator who will

also receive SMS messages that the GSM unit is unable to

interpret. i.e. any message sent to the radio which cannot

be interpreted will be sent back via SMS to the ﬁrst num-

ber in the SMS control number list.

Numerous commands can be sent to the panel using the

SMS control functions including arming/ disarming areas,

controlling outputs and doors or checking system status.

The panel can also be requested to send a conﬁrmation

SMS if required.

The control messages must be sent to the SIM phone

number.

The SMS Control phrase table shows the correct method

for constructing the SMS messages. Note there are no

spaces between the ﬁelds only commas as shown.

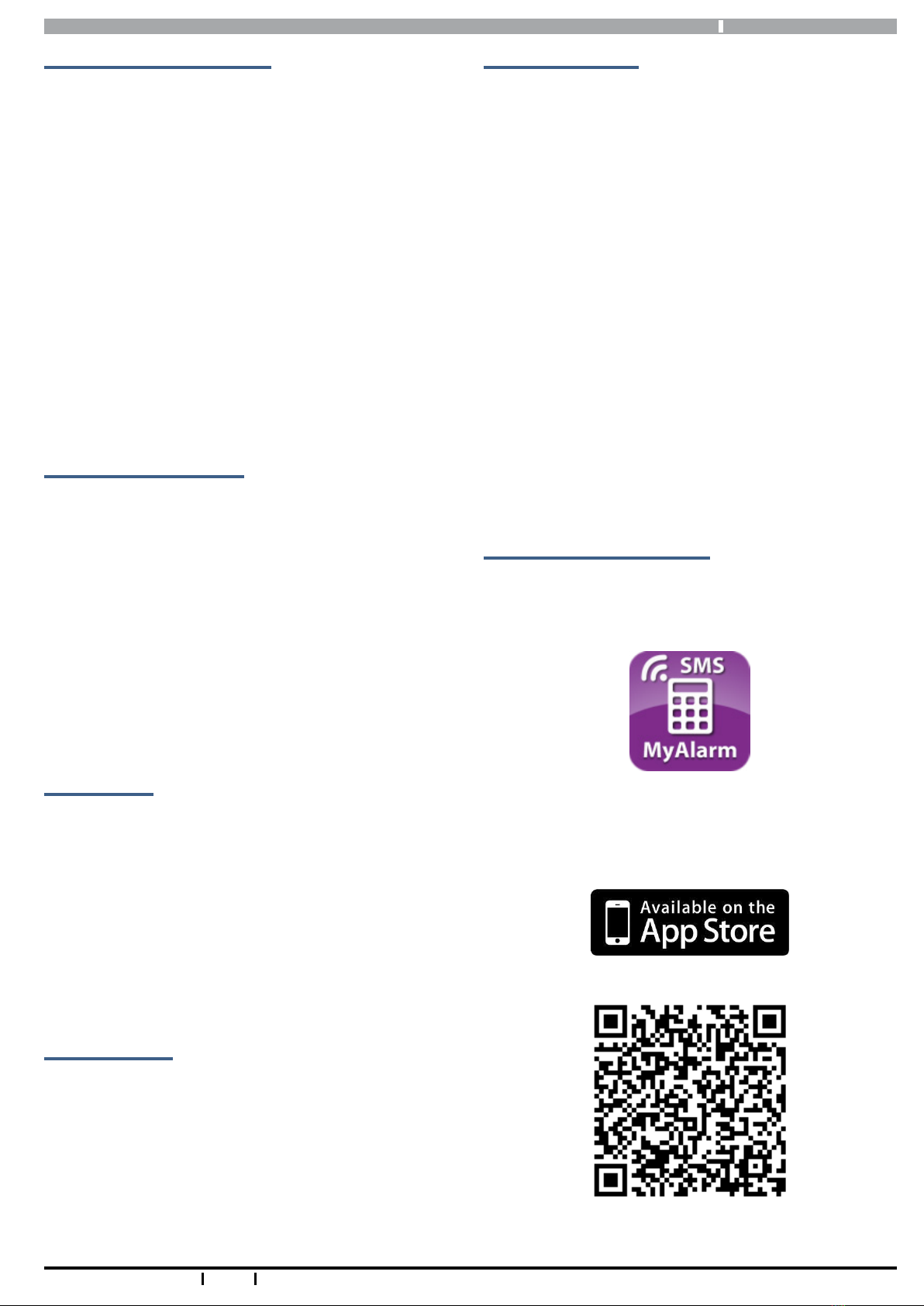

SMS Control Smartphone App

The MyAlarm SMS Control App for iOS and Android

devices is now available and can be used to simplify the

conﬁguration and sending of SMS control messages.

You can search for the MyAlarm SMS Control app in the

app store or scan the QR codes below using your device’s

barcode reader for a direct link to the app.

Scan Here (iOS Version)

CM744B Installer Reference Guide

4Bosch Security Systems 07/15 CM744BIRG FTR1.1

Scan Here (Android Version)

SIM Balance Recharge Reminder Function

In Solution 6000 version 2.20 ﬁrmware, a new SIM ex-

pire parameter can be added to the to the SIMBAL setup

command when using the GSM module with a pre-paid

SIM card. When conﬁgured the control panel will send a

reminder to the designated SIM owner prompting them

to recharge the SIM before it expires.

The SIM Balance string would include the follows param-

eters including the new optional reminder in weeks (01 to

52 weeks).

The MyAlarm SMS Control smart device app has been

updated to include support for this new feature. For more

information refer to the example below.

User Code

This ﬁeld is used to enter your PIN (eg. 2580).

Command Header

The command header ﬁeld is ﬁxed - SIMBAL.

Access Number

Enter the communication providers access number for

SIM card balance enquiries.

• Optus = 9999

• Vodafone = 1555 / 1512

• Telstra = #100#

• Virgin = 225

Text

Enter the text required by the communication providers

to obtain your SIM card balance (Max = 16 characters). In

Australia, examples may change and include:

• Optus = Balance

• Vodafone = Blank Message

• Telstra = Voice Call

• Virgin = Bal

Preamble

Enter text to search for the credit remaining on your SIM

card (eg. if Vodafone Australia displays ‘U’ve Remaining:

365 day: $35.53 Exp: 09/11/2015’ enter ‘Day:’ as the pream-

ble).

Minimum Amount

Enter the minimum balance to ﬁlter GSM module SIM card

balance enquiries. This allows the GSM module to only

forward an SMS balance alert message to your mobile

telephone when the SIM card balance falls below the

minimum amount set here.

Days

This parameter sets how often the GSM module will

automatically request a SIM card balance. This can be set

between 001 and 255 days / 000 = disabled.

Mobile

This parameter allows you to program which mobile

telephone number the GSM module will forward the SIM

card balance enquiry of the GSM module to.

Expire Reminder

Enter the number of weeks for the GSM module to remind

you to recharge your GSM SIM card (01 to 99 weeks / 00 =

disabled).

Example

The example below is requesting a SIM Balance of the SIM

card connected to the Vodafone network (Australia) with a

reminder that the credit available on the SIM card requires

a recharge in 25 weeks using a 180 day prepaid SIM card.

The SIMBAL requests a balance enquiry every two days

when the balance falls below $20.00.

SIMBAL,2580,1555,Day,$20.00,002,0414123456,25

After 25 weeks, the GSM module will send the following

SMS, ‘SIM is about to expire please recharge immediately’.

Information in this example is correct at time of print-

ing. Check with your telco carrier as these options may

change.

CM744B Installer Reference Guide

Bosch Security Systems 07/15 CM744BIRG FTR1.1

Description SMS String

Arming / Disarming Areas

Turning Area 1 On <User Code>,AREA,1,ON

Turning Area 1 On With Conﬁrmation <User Code>,AREA,1,ON,CONFIRM

Turning Area 1 Part 1 On <User Code>,AREA,1,PART 1

Turning Area 1 Part 1 On With Conﬁrmation <User Code>,AREA,1,PART 1,CONFIRM

Turning Area 1 Part 2 On <User Code>,AREA,1,PART 2

Turning Area 1 Part 2 On With Conﬁrmation <User Code>,AREA,1,PART 2,CONFIRM

Turn Multiple Areas On <User Code>,AREA,1,2,3,4,ON

Turn All Areas On That the User Belongs To <User Code>,AREA,ON

Turning Area 1 OFF <User Code>,AREA,1,OFF

Turning Area 1 OFF With Conﬁrmation <User Code>,AREA,1,OFF,CONFIRM

Check Area Status <User Code>,AREA,1,STATUS

Check Status Of Multiple Areas <User Code>,AREA,1,2,3,STATUS

Turning Outputs On/Oﬀ

Turn Output 1 On <User Code>,OUTPUT,1,ON

Turn Output 1 On With Conﬁrmation <User Code>,OUTPUT,1,ON,CONFIRM

Turn Multiple Outputs On <User Code>,OUTPUT,1,2,3,4,ON

Turn Multiple Outputs On With Conﬁrmation <User Code>,OUTPUT,1,2,3,4,ON,CONFIRM

Turning Output 1 OFF <User Code>,OUTPUT,1,OFF

Turning Output 1 OFF With Conﬁrmation <User Code>,OUTPUT,1,OFF,CONFIRM

Turning Multiple Outputs OFF <User Code>,OUTPUT,1,2,3,4,OFF

Turning Multiple Outputs OFF With Conﬁrmation <User Code>,OUTPUT,1,2,3,4,OFF,CONFIRM

Check Output Status <User Code>,OUTPUT,1,STATUS

Check Status Of Multiple Outputs <User Code>,OUTPUT,1,2,3,4,STATUS

Locking and Unlocking Doors

Unlock Door 1 <User Code>,DOOR,1,UNLOCK

Unlock Door 1 With Conﬁrmation <User Code>,DOOR,1,UNLOCK,CONFIRM

Unlock Multiple Doors <User Code>,DOOR,1,2,3,UNLOCK

Unlock Multiple Doors With Conﬁrmation <User Code>,DOOR,1,2,3,UNLOCK,CONFIRM

Lock Door 1 <User Code>,DOOR,1,LOCK

Lock Door 1 With Conﬁrmation <User Code>,DOOR,1,LOCK,CONFIRM

Lock Multiple Doors <User Code>,DOOR,1,2,3,LOCK

Lock Multiple Doors With Conﬁrmation <User Code>,DOOR,1,2,3,LOCK,CONFIRM

Check Status Of A Door <User Code>,DOOR,1,STATUS

Check Status Of Multiple Doors <User Code>,DOOR,1,2,3,STATUS

Check System Status <User Code>,SYSTEM,STATUS

SIM Balance Check - Must have been conﬁgured under site settings

Check Current SIM Balance <User Code>,SIMBAL,<Access Number>,<Text.,

<Preamble>,<Min Amount>,<Days>,<Mobile>,<Expire

Reminder>

CM744B Installer Reference Guide

6Bosch Security Systems 07/15 CM744BIRG FTR1.1

Page Intentionally Blank

CM744B Installer Reference Guide

Bosch Security Systems 07/15 CM744BIRG FTR1.1

CM744B Speciﬁcations

Part Number: CM744B - 3G GSM/GPRS/SMS Radio Module

Reporting Formats:

SMS via GSM , CSV-IP via GPRS and Conettix Format via GPRS are supported.

iFob app and RAS will be available via a future panel ﬁrmware update. Check with your distributor for availability.

The CM744B does not support Contact ID (CID) over GSM.

SIM Card Type: Dual standard size SIM cards.

When using the module in single SIM mode the SIM card should be installed in SIM 1 socket.

Antenna: Quad Band Omni Directional Adhesive Antenna with integrated lead and SMA Connector. 3dbi gain - 50 ohm

Operating Environment: 0˚ to 55˚C RH 5 to 85% at 30˚C non-condensing.

Fixing Method: The CM744B is mounted directly to the expansion port on the control panel PCB. Three plastic standoﬀs are sup-

plied to support the module and these should be connected to the control panel before installing the CM744B.

Warranty: 3 years from date of manufacture (return to base)

In the interest of ongoing product development this

document is subject to change without notice.

Bosch Security Systems

Level 2, 21 Solent Circuit

Baulkham Hills, NSW 2153

Australia

Phone: +61(2) 9842 4743

Facsimile: +61(2) 8850 2230

CM744BIRG

Issue FTR1.1

Tabla de contenidos

Otros manuales de Unidad de control de Bosch

Bosch

Bosch Sensortec Application Board 3.0 Manual de usuario

Bosch

Bosch Professional GCY 42 Manual de usuario

Bosch

Bosch Rexroth VM350 Manual de usuario

Bosch

Bosch TouchOne Manual de usuario

Bosch

Bosch MED17.5.2 Manual de usuario

Bosch

Bosch Rexroth VKK Manual de usuario

Bosch

Bosch rexroth M1-16 Series Manual de usuario

Bosch

Bosch SE352 Manual de usuario

Bosch

Bosch Rexroth IndraControl VPB 40.4 Manual de usuario

Bosch

Bosch 715ES Manual de referencia

Bosch

Bosch Rexroth VKK Series Manual de usuario

Bosch

Bosch GCY 30-4 Professional Manual de usuario

Bosch

Bosch Rexroth IndraControl VCP 20.2 Manual técnico

Bosch

Bosch D9127U Manual de usuario

Bosch

Bosch Rexroth M SED 6 VE1 Series Manual de usuario

Bosch

Bosch D8128D Manual de usuario

Bosch

Bosch Rexroth DB 5X XC Series Manual de usuario

Bosch

Bosch Rexroth PSI 6500 Series Manual

Bosch

Bosch rexroth 4WS2EM10 5X XH Series Manual de usuario

Bosch

Bosch Rexroth ctrlX I/O XI322204 Manual de usuario

Bosch

Bosch D9133TTL-E Manual de usuario

Bosch

Bosch Rexroth IndraControl XFE 01.1 Series Manual de usuario

Bosch

Bosch Rexroth SB23 Manual de usuario

Bosch

Bosch Rexroth IndraControl XM21 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
