Hardware User Manual

EXT-SBC-i.MX51-COMM V1.2

EXT-SBC-i.MX51-COMM_HUM_V1.2.docx 2

Contact

Bluetechnix Mechatronische Systeme GmbH

Waidhausenstraße 3/19

A-1140 Vienna

AUSTRIA/EUROPE

office@bluetechnix.at

http://www.bluetechnix.com

Document No.: 100-2524-1-1.4

Date: 2011-12-06

EXT-SBC-i.MX51-COMM_HUM_V1.2.docx 3

Table of Contents

i.MX Core Modules.....................................................................................................................................................................................6

Core Module naming information ......................................................................................................................................................7

i.MX Development Boards......................................................................................................................................................................8

1Introduction .......................................................................................................................................................................................9

1.1 Overview..................................................................................................................................................................................10

1.2 Key Features ...........................................................................................................................................................................10

1.3 Applications............................................................................................................................................................................11

2General Description ......................................................................................................................................................................12

2.1 Functional Description.......................................................................................................................................................12

2.1.1 Powering........................................................................................................................................................................12

2.2 PCB Placement ......................................................................................................................................................................12

2.3 Mechanical Outline..............................................................................................................................................................13

3Specifications...................................................................................................................................................................................14

3.1 Electrical Specifications......................................................................................................................................................14

3.1.1 Digital I/O Characteristics........................................................................................................................................14

3.1.2 Analog Inputs...............................................................................................................................................................14

3.1.3 Maximum Ratings.......................................................................................................................................................14

3.1.4 ESD Sensitivity .............................................................................................................................................................15

4Connector Description.................................................................................................................................................................16

4.1 Display Data Connector X1 (Toshiba LT084AC3711) .............................................................................................16

4.2 LVDS Backlight Supply Connector X2 (Toshiba LT084AC3711) .........................................................................16

4.3 Display Power Supply Connector X3............................................................................................................................17

4.4 Touch Panel Connector X4 (Toshiba LT084AC3711)..............................................................................................17

4.5 Display Connector X5 (ET0500G0DH6)........................................................................................................................17

4.6 GSM/GPRS Antenna Connector X7 (SMA Jack).........................................................................................................18

4.7 GPS Antenna Connector X8 (SMA Jack).......................................................................................................................18

4.8 SIM Connector X9.................................................................................................................................................................18

4.9 Image Sensor Connector X13 (BLT-ISM-Connector)...............................................................................................18

5Support ..............................................................................................................................................................................................20

5.1 General Support....................................................................................................................................................................20

5.2 Board Support Packages ...................................................................................................................................................20

5.3 i.MX Software Support .......................................................................................................................................................20

5.3.1 Linux ................................................................................................................................................................................20

5.3.2 Win CE .............................................................................................................................................................................20

5.4 i.MX®Design Services..........................................................................................................................................................20

5.4.1 Upcoming Products and Software Releases....................................................................................................20

EXT-SBC-i.MX51-COMM_HUM_V1.2.docx 4

6Ordering Information ...................................................................................................................................................................21

6.1 Related products for EXT-SBC-i.MX51-COMM ..........................................................................................................21

7Dependability..................................................................................................................................................................................22

7.1 MTBF..........................................................................................................................................................................................22

8Product History ...............................................................................................................................................................................23

8.1 Version Information.............................................................................................................................................................23

8.2 Anomalies................................................................................................................................................................................23

9Document Revision History .......................................................................................................................................................24

10 List of Abbreviations ................................................................................................................................................................25

AList of Figures and Tables............................................................................................................................................................26

EXT-SBC-i.MX51-COMM_HUM_V1.2.docx 5

The information herein is given to describe certain components and shall not be considered as a guarantee of

characteristics.

Terms of delivery and rights of technical change reserved.

We hereby disclaim any warranties, including but not limited to warranties of non-infringement, regarding circuits,

descriptions and charts stated herein.

Bluetechnix makes and you receive no warranties or conditions, express, implied, statutory or in any

communication with you. Bluetechnix specifically disclaims any implied warranty of merchantability or fitness for a

particular purpose.

Bluetechnix takes no liability for any damages and errors causing of the usage of this board. The user of this board is

responsible by himself for the functionality of his application. He is allowed to use the board only if he has the

qualification. More information is found in the General Terms and Conditions (AGB).

Information

For further information on technology, delivery terms and conditions and prices please contact Bluetechnix

(http://www.bluetechnix.com).

Warning

Due to technical requirements components may contain dangerous substances.

EXT-SBC-i.MX51-COMM_HUM_V1.2.docx 6

i.MX Core Modules

CM-i.MX27-C-C-Q26S128F32N512

The Core Module CM-i.MX27 is powered by Freescales' SoC i.MX27 (ARM 926 core, up to 400MHz). It addresses

128MB DDR-RAM, has an onboard NOR-flash of 32MByte and a NAND-flash with 512MByte at a size of 55x45mm.

CM-i.MX31-C-C-Q26S128F40N128-E

The Core Module CM-i.MX31 is powered by Freescales' SoC i.MX31 (ARM1136JF-S core, up to 532MHz). It

addresses 128MB DDR-RAM, has an onboard NOR-flash of 40MByte and a NAND-flash with 128MByte at a size of

55x45mm. Core module is available as connector or BGA.

CM-i.MX53-C-I-Q24S1024F4N2048)

The Core Module CM-i.MX53 is powered by Freescales' SoC i.MX53 (ARM® Cortex™-A8, up to 1GHz). It addresses

1024MB DDR2-SDRAM, has an onboard NOR-flash of 4MByte and a NAND-flash with 2048MByte at a size of

80x45mm.

EXT-SBC-i.MX51-COMM_HUM_V1.2.docx 7

Core Module naming information

The idea is to put more Core Module specific technical information into the product name. New Core Module names

will have following technical information covered in their names.

•Product Family,

•CPU-Type,

•Connection-Type,

•Operating Temperature Range,

•Crystal Frequency [MHz],

•RAM [MB],

•Flash [MB],

•External Controllers

•Optional

oSpecial and/or

oFormer name

That expands of course the name but allows the customer to get the most important Core Module specific

information at the first sight. Have a look at the example below to get an idea of the new Core Module names.

Example CM-BF537-C-C-Q25S32F4 (CM-BF537E)

- - - - - -

Product Family Former name

CM = Core Modul e Special

SBC = Single Board Computer Custom Core Modules or specials

CPU-Type uC = uclinux

Equals the name of CPU Extra controllers mounted

Connection-Type E = Ethernet

A = BGA U = USB

B = Border pa d Flash [MB]

C = Connector F = NOR Flash [MB]

S = S

Spec i al N = NAND Fl a s h [MB]

Operating Temperature Range RAM

A = Automoti ve (-40° to +125°) S = SDRAM [MB]

C = Commer ci a l (0° to +70°)

I = Industry (-40° to +85°)

Crystal Frequency

Nota ti on: QXX[MHz]

(CM-BF537E)

S32

BF537

Q25

EXT-SBC-i.MX51-COMM_HUM_V1.2.docx 8

i.MX Development Boards

DEV-i.MX27

The DEV-i.MX27 development board is an extendable development platform for the CM-i.MX27 processor modules.

With display connector and keypad it can be used as a reference design for a low power mobile handheld device

dedicated expansion connectors. Extender boards can be plugged on top of the development board in order to

enable additional interfaces.

DEV-iMX31

The DEV-i.MX31 Development Board is an extendable development platform for the CM-i.MX31 processor module.

With display connector and keypad it can be used as a reference design for a low power mobile handheld device

dedicated expansion connectors. Extender boards can be plugged on top of the development board in order to

enable additional interfaces.

SBC-i.MX51-S-C-Q24S512N2048

The Single-Board Computer SBC-i.MX51 is based on Freescale’s high-performance i.MX51 mobile platform,

incorporating an ARM Cortex-A8 CPU, an Image Processing Unit (IPUv3EX), a Video Processing Unit (VPU) and a

Graphical Processing Unit (GPU). The IPUv3EX provides comprehensive support for connectivity to displays and

cameras. The VPU supports hardware encoding and decoding of MPEG-4, H.263, H.264 and many more standards.

The GPU serves 3D and 2Dacceleration in hardware. The board‘s memory capabilities (NAND Flash, DDR2) and

numerous interfaces like Ethernet, HDMI,4xUSB and USB-OTG turn the SBC-i.MX51 into the ultimate development

board for future high-end embedded devices.

DEV-i.MX53

The DEV-i.MX53 development board is an extendable development platform for the CM-i.MX53 processor module.

The development board provides all interfaces of the connector version (Ethernet, HDMI,4xUSB and USB-OTG) on

dedicated extender connectors. Extender boards can be plugged on top of the development board in order to

enable additional interfaces.

Extender boards

Extender boards (EXT-SBC-i.MX51-) are expanding the development board SBC-i.MX51 by several interfaces and

functionalities. Targeted application areas are: audio/video processing, security and surveillance, Ethernet access,

positioning, automation and control, experimental development and measuring.

Note! Bluetechnix is offering tailored board developments as well.

EXT-SBC-i.MX51-COMM_HUM_V1.2.docx 9

1Introduction

The EXT-SBC-i.MX51-COMM is the best equipped extender board for the SBC-i.MX51. It offers GPS, GSM/GPRS, a

camera (BLT-ISM-CONNECTOR) as well as a display interface. Antenna connectors for GSM and GPS are available for

external antennas. Possible applications are wireless communication, mobile Navigation, surveillance, locating and

industrial applications.

Antenna connectors are provided to connect to the GPS and GSM module.

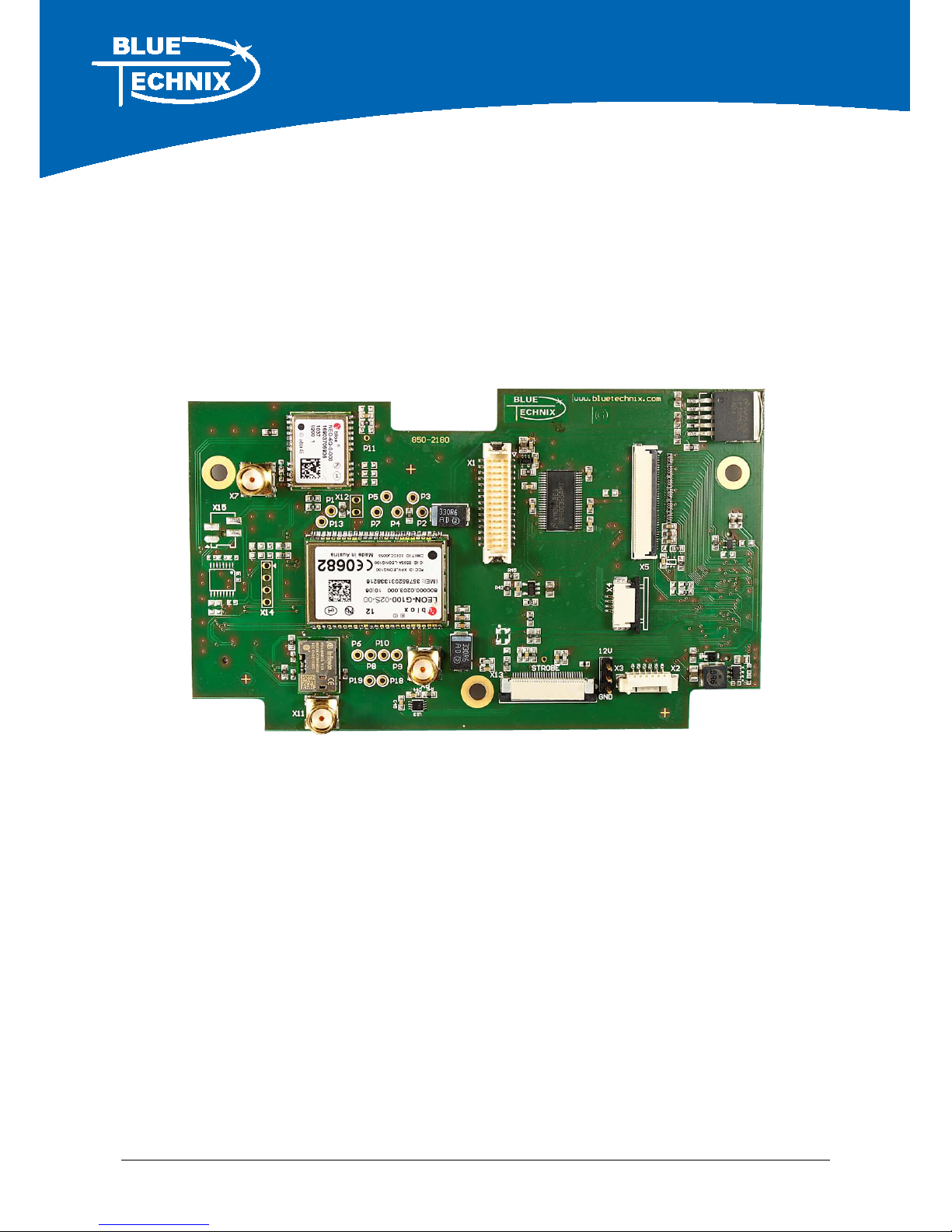

Figure 1-1: EXT-SBC-i.MX51-COMM

EXT-SBC-i.MX51-COMM_HUM_V1.2.docx 10

1.1 Overview

EXT-SBC-i.MX51-COMM

Active

Components Connectors

GSM/GPRS

Module GPS Module

LVDS Backlight

Supply Connector

LVDS Transmitter

BLT-ISM-

Connector

LVDS Display

Connector

TFT Connector

Touch Panel

Connector

Figure 1-2: Main components of EXT-SBC-i.MX51-COMM

1.2 Key Features

•GPS Module

oU-Blox NEO-6Q

Onboard RTC crystal for faster warm and hot starts

Up to 5Hz navigation rate

Anti-jamming technology

oOnboard antenna connector

•GSM/GPRS Module

oU-Blox LEON G100 incl. SIM Card Holder

Full feature quad-band GSM/GPRS, class 10

Embedded TCP/IP stack

oOnboard antenna connector

•TFT Connector

o40 pin ZIF connector

oVarious EDT displays available (3,5” to 7”; 320x240 to 800x480)

•LVDS Connector

o30 pin connector

oSupports Toshiba LT084AC3711 LVDS display

•LVDS Transmitter

oNational Semiconductor DS90C365
