BLODGETT OVEN COMPANY
www.blodgett.com
1400 Toastmaster Drive, Elgin, IL USA 60120 • Phone: (847) 741-3300 • Fax: (847) 741-0015
EXTERIOR CONSTRUCTION
Stainless steel top, front and sides
Aluminized steel back and bottom
20-1/2" (521mm) x 3-1/2" (89mm) side loading stainless steel door and handle
2" (51mm) Vitreous fiber insulation at bottom, back and top
1" (25mm) Ceramic fiber insulation top, bottom, front, back and sides
INTERIOR CONSTRUCTION
Fourteen Aluminized steel nozzles at bottom
Aluminized steel adjustable air flow plates at top
38" (965mm) stainless steel wire mesh conveyor belt
Four single inlet blowers above the combustion area for air circulation
OPERATION
Heat transferred through forced convection (impingement)
Open vented baking compartment
Electronic spark ignition control system
Gas power type burner has mixer with adjustable shutter and sight window
Internal gas pressure regulator
Remote microprocessor based controls with solid state 600°F (315.5°C) maxi-
mum thermostat and belt speed control with digital display
Four blower motors (1/3 HP minimum) with thermal overload protectors
Centrifugal cooling fan
STANDARD FEATURES
Computerized remote control
Belt direction: (must specify)
left to right right to left
Product stops
Oven start-up
One year parts & labor warranty*
* For all international markets, contact your local distributor.
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Legs/casters:
17-1/4" (438mm) black legs with casters
23-1/4" (591mm) black legs with casters
Triple stack base with casters
Shelf extensions:
10" (254mm)
15" (381mm)
Flexible gas hose with quick disconnect and
restraining device:
36" (914mm)
48" (1219mm)
Note: Two 48" (1219mm) and one 36" (914mm) hose
on triple model
Split belt - one 8" (203mm) and one 29" (737mm) belt
10' (3.0M) cord with receptacle
Stacking rail
One year additional extended warranty*

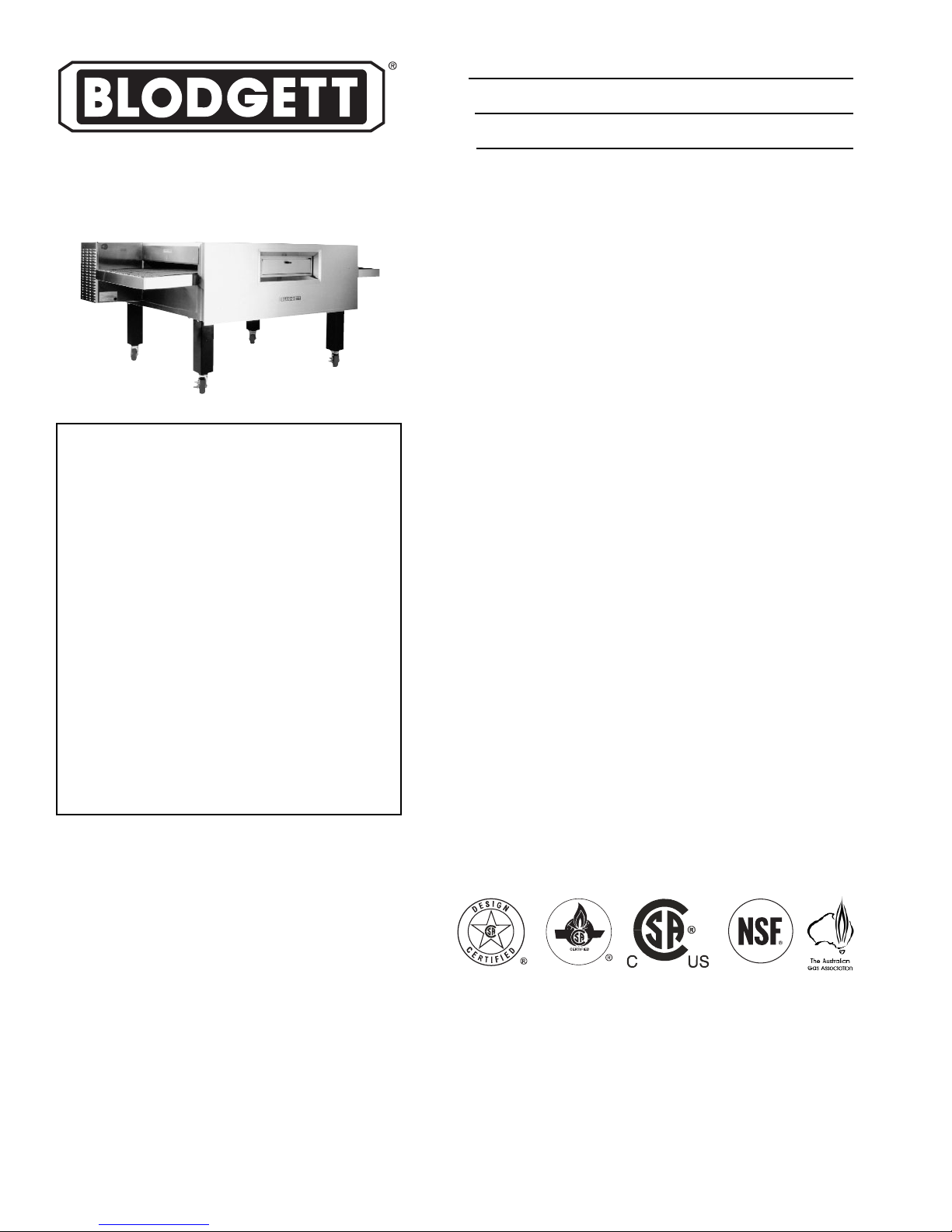

MODEL MT3870
Gas Conveyor Oven
MT3870
Project
Item No.
Quantity
Blodgett conveyor oven with 38" (965mm) wide belt and 70" (1778mm)
baking zone length. Single, double or triple stack models are available.
All data is shown per oven section, unless otherwise indicated.
BLODGETT OVEN COMPANY
www.blodgett.com
1400 Toastmaster Drive, Elgin, IL USA 60120 • Phone: (847) 741-3300 • Fax: (847) 741-0015
MODEL MT3870
SHORT FORM SPECIFICATIONS
Provide Blodgett Conveyor Oven model MT3870 conveyor oven. Unit shall be gas fired and shall cook by means of forced, heated air (impingement). Unit shall be (single/double/triple)
deck supported by (specify stand type from options list) . Each deck shall be fully independent, of stainless steel construction, and fully insulated on all sides. Provide with electronic
spark ignition gas fired baking compartment with four blowers to evenly distribute heat across baking zone. Conveyor belt shall be 38" (965mm) wide and constructed of stainless steel
wire mesh; baking zone length shall be 70" (1778mm). Unit shall be provided with glass side loading door. Remote control panel shall be solid state with 600°F (315.5°C) maximum
thermostat and digital display of adjustable belt speed. Provide start-up inspection service by a factory authorized service agent. Provide options and accessories as indicated.
DIMENSIONS:
Floor space 62" (1575mm) W x 105.8" (2685mm) L
Product clearance 3" (75mm)
Combustible wall clearance 2" (510mm)
Belt width
Standard belt 38" (965mm)
Optional twin belt 19" (482mm)
Optional split belt One 8" (203mm) and one 29" (737mm)
Baking zone length 70" (1780mm)
GAS SUPPLY: (specify) Natural Propane
Single 3/4" NPT 3/4" NPT
Double stack 1" NPT 1" NPT
Triple stack 1-1/4" NPT 1" NPT
MAXIMUM INPUT:
Single 150,000 BTU/hr
Double 300,000 BTU/hr
Triple 450,000 BTU/hr
Minimum Gas Pressure: 4.5" W.C. for natural gas
11.0" W.C. for propane gas
Maximum Gas Pressure: 10.5" W.C. for natural gas
13" W.C. for propane gas
POWER SUPPLY:
Domestic Model:
120/208-240 VAC, 1 Phase, 60 Hz., 9 amp, 3 wire with Ground
Export Model:
220 or 240 VAC, 1 phase, 50 Hz., 9 amp, 2 wire with Ground
MINIMUM ENTRY CLEARANCE:
Uncrated 24" (610mm)
Crated 32" (813mm)
SHIPPING INFORMATION:
Approx. Weight: Crated Uncrated
Single 1570 lbs. (711 kg) 1400 lbs. (636 kg)
Double 2970 lbs. (1346 kg) 2800 lbs. (1272 kg)
Triple 4390 lbs. (1990 kg) 4200 lbs. (1908 kg)
Crate sizes:
32" (813mm) x 70" (1778mm) x 105" (2667mm)
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to make substitutions
of components without prior notice
APPROVAL/STAMP
P/N M9996 Rev H (1/03)
