Blodgett KLT-20G Manual de usuario
Project
Item No.
Quantity

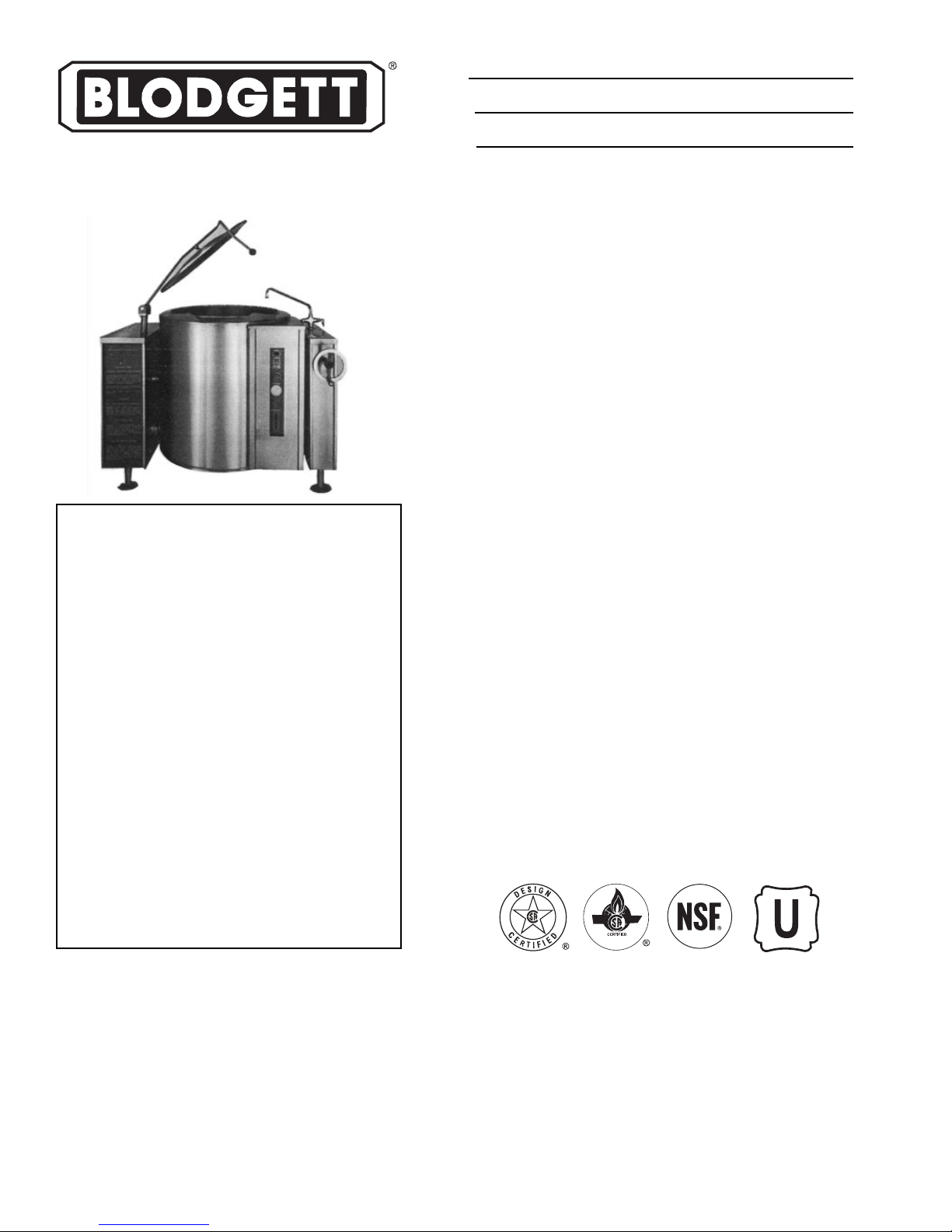

Model KLT-20G - 20 gallon (76 litres) gas floor model tilting kettle
Model KLT-40G - 40 gallon (151 litres) gas floor mode tilting kettle
Model KLT-60G - 60 gallon (227 litres) gas floor mode tilting kettle
CONSTRUCTION
304 stainless steel construction
2/3 jacketed with factory sealed distilled water enclosure
Hemispherical design on bottom of kettle for superior heat circulation
Drip proof stainless steel console
Legs fitted with two hole adjustable flanged feet for securing to floor
Self-locking tilt mechanism with trunnions connected to the gear and
control consoles permit the kettle to tilt forward 90° for emptying
Stainless steel control housing
316 stainless steel liner for 20 and 40 gallon models
High efficiency power burner system
OPERATION
Integrally mounted controls
Power switch
Pressure switch
Direct immersion thermostat
Water sight glass
Cook indicator light
Pressure gauge
Low water light
Low water shut off
Pressure relief valve
165-275°F (74-135°C) temperature range
STANDARD FEATURES
Manual control
Stainless steel faucet bracket
120 VAC, 1 phase, 60 Hz
One year parts and labor warranty*
* For all international markets, contact your local distributor.
BLODGETT
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Faucets
Single pantry faucet with swing spout
Double pantry faucet with swing spout
Draw Off valves and accessories
2” (50mm) draw off valve
3” (76mm) draw off valve
2” (50mm) dairy valve
3” (76mm) dairy valve
Perforated strainer for draw off
Solid stainless steel disc for draw off valve
Etched markings
Gallons
Litres
Spring assist hinged stainless steel cover
316 stainless steel liner for 60 gallon models
Triple basket assembly
Graduated measuring strip
Strainer hook
Pour strainer
Correctional package
KLT-G
Gas Floor Model Tilting Kettle
KLT-G FLOOR MODEL TILTING KETTLE
BLODGETT
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
KLT-G FLOOR MODEL TILTING KETTLE
SHORT FORM SPECIFICATIONS
Provide Blodgett model KLT-20G (20 gallon), KLT-40G (40 gallon) or KLT-60G (60 gallon) gas fired tri-leg tilting kettle. The unit shall have a double wall interior to form a steam jacket
around the lower 2/3 of the kettle. The jacket enclosure shall contain distilled water which is factory sealed. The bottom of the kettle shall be of hemispherical design for superior heat cir-
culation. The console shall be drip proof, stainless steel clad and shall be mounted on 6” removable legs fitted with two hole adjustable flanged feet for securing to floor. The unit shall
pivot on trunions connected to the tilt mechanism and the outbore bearing connected to the gear and control consoles and shall permit the kettle to tilt forward a full 90° for complete emp-
tying. The tilt mechanism shall be self locking for positive stop action. Construction shall be of all welded satin finish 304 stainless steel. The controls shall be integrally mounted and shall
include a power switch, direct immersion thermostat water site glass with range of 165-275°F (74-135°C), a cook indicator light, pressure gauge, pressure relief valve, low water light
and low water shut off. Unit shall be ASME code stamped and National Board registered. Provide options and accessories as indicated.
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to make substitutions of components without prior notice.
APPROVAL/STAMP
P/N S00013 Rev D (12/06)
MAXIMUM INPUT:
KLT-20G 80,000 BTU
KLT-40G 100,000 BTU
KLT-60G 120,000 BTU
GAS SUPPLY:
3/4" IPS supply line required
Minimum Inlet Pressure:
Natural 6.0" W.C. static to unit
Propane 11.0" W.C. static to unit
POWER SUPPLY:
120VAC, 1 phase, 60 Hz., 2-wire w/ground
SHIPPING INFORMATION:
Approx. Weight:
KLT-20G 750 lbs. (340 kg)
KLT-40G 980 lbs. (444 kg)
KLT-60G 1195 lbs. (542 kg)
MODEL A B C D E F G H J K L M N
KLT-20G 20[508] 48.13[1222] 40.63[1032] 19[483] 40.13[1019] 76.5[1943] 16.5[419] 24[610] 11[279] 22[559] 40.5[1029] 18.38[467] 25.5[648]
KLT-40G 26[660] 55.25[1403] 43.63[1108] 16.5[419] 43.25[1099] 76[1930] 15.5[394] 22.25[565] 7.5[191] 23[584] 42.5[1080] 22.13[562] 28.5[724]
KLT-60G 30[762] 59[1499] 45.63[1159] 17.88[454] 43.88[1115] 82[2083] 19.5[495] 22.25[565] 5.5[140] 23[584] 45.5[1156] 24.75[629] 30.5[775]
