Blizzard Lighting MAX L Manual de usuario

Blizzard Lighting, LLC

http://www.blizzardpro.com

Waukesha, WI USA

Page 2

TABLE OF CONTENTS

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of the Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions 4

2. Meet MAX L™ 5

Main Features 5

DMX Quick Reference 5

MAX L™ Pin-Up Picture 6

The Rear Connections 6

3. Setup 7

Fuse Replacement 7

Connecting A Bunch of MAX L's 7

Data/DMX Cabling 7

Cable Connectors 8

3-Pin??? 5-Pin??? Huh?!? 8

Take It To The Next Level: Setting Up DMX Control 8

Fixture Linking (M/S Mode) 9

Mounting & Rigging 9

4. Operating Adjustments 10

The Control Panel 10

Control Panel Menu Structure 11

DMX Mode 12

Starting DMX Address 12

DMX Channel Mode 12

M/S Mode 12

Auto, Sound Active, & Manual Adjustments 12

Color Jump & Color Fade 12

Color Mixing and Presets 12

5. Appendix 14

Keeping Your MAX L™ As Good As New 14

Returns (Gasp!) 14

Shipping Issues 14

Tech Specs! 15

Dimensional Drawings 15

Page 3

1. GETTING STARTED

What’s In The Box?

• 1 x MAX L™ LED Strobe

• 1 x IEC Power Cord

• 1 x Mounting Bracket & Locking Knobs

Getting It Out Of the Box

Congratulations on purchasing the multi-talented MAX L™: color strobe, blinder

and wash eect. Now that you’ve got MAX L™, you should carefully unpack

the box and check the contents to ensure that all parts are present and in

good condition. If anything looks as if it has been damaged in transit, notify

the shipper immediately and keep the packing material for inspection. Again,

please save the carton and all packing materials. If a xture must be returned

to the factory, it is important that the xture be returned in the original factory

box and packing.

Powering Up!

All xtures must be powered directly o a switched circuit and cannot be run

o a rheostat (variable resistor) or dimmer circuit, even if the rheostat

or dimmer channel is used solely for a 0% to 100% switch.

Warning! All xtures must be connected to circuits with a suitable

Ground (Earthing).

Getting A Hold Of Us

If something goes wrong, please visit www.blizzardpro.com/support

and open a support ticket. We’ll be happy to help, honest.

Disclaimer: The information and specications contained in this document are

subject to change without notice. Blizzard Lighting™ assumes no responsibility

or liability for any errors or omissions that may appear in this user manual.

Blizzard Lighting™ reserves the right to update the existing document or to

create a new document to correct any errors or omissions at any time. You can

download the latest version of this document from www.blizzardpro.com.

Author: Date: Last Edited: Date:

J. Thomas 9/23/2020 J. Thomas 12/28/2020

Page 4

Please read these instructions carefully. They include

important information about the installation, usage and

maintenance of this product.

Safety Instructions

• Please keep this User Guide for future use. If you sell the unit to someone

else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that

the line voltage you are connecting to is not higher than that stated on the de-

cal or rear panel of the xture.

• This product is intended for indoor use only.

• To prevent risk of re or shock, do not expose xture to rain or moisture.

• Make sure there are no ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse

and be sure to replace with same fuse size and type.

• ALWAYS secure xture using a safety chain. NEVER carry the xture by its

head. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately.

NEVER try to repair the unit by yourself. Repairs carried out by unskilled people

can lead to damage or malfunction. Please contact the nearest authorized tech-

nical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not open the

housing or attempt any repairs yourself. In the unlikely event your unit may

require service, please open a support ticket at www.blizzardpro.com/support.

Page 5

2. MEET MAX L™

Main Features

• 3-in-1 strobe, blinder, and wash eect

• 132x 0.2W high output SMD 5050 RGB LEDs

• RGB color mixing in DMX and stand-alone mode

• Flicker-free, constant current LED driver

• Multiple built-in color macros and strobe eects

• Auto and sound active programs via DMX

• Variable electronic strobe (1-30Hz)

• Beam angle: 80°

• Built-in microphone with sensitivity adjustments

• 8 DMX modes with dimmer, ash frequency, and duration

• 3-pin DMX input/output + IEC power input

• Compact black metal housing with mounting bracket

Control

• Protocol: USITT DMX-512

• DMX channel modes: 1/2/3/4/6-channels (8 total)

• 4-button control panel with LED display

• Operating modes: DMX512, M/S, auto mode, sound active

DMX Quick Reference (1/2/3-Channel Modes)

1CH 2CH(1) 2CH(2) 3CH(1) What It Does

-- 1 1 1 Dimmer (0% <--> 100%)

1 -- 2 2 Strobe (slow <--> fast)

-- 2 -- -- Color Macros

-- -- -- 3 Flash Duration (0ms to 510ms)

DMX Quick Reference (3/4/6-Channel Modes)

3CH(2) 3CH(3) 4CH 6CH What It Does

1 -- 1 1 Dimmer (0% <--> 100%)

2 -- 2 2 Strobe (slow <--> fast)

3 -- 3 -- Color Macros

-- 1 -- 3 Red Intensity (0% <--> 100%)

-- 2 -- 4 Green Intensity (0% <--> 100%)

-- 3 -- 5 Blue Intensity (0% <--> 100%)

-- -- 4 6 Sound Active (mic sensitivity)

Page 6

The Rear Connections

MAX L™ Pin-Up Picture

132x 0.2W SMD 5050

RGB LEDs

Mounting

Bracket

Locking

Knob

Fuse Holder

Control Panel Menu

DMX Input

Power Input DMX Output

Safety

Loop

Page 7

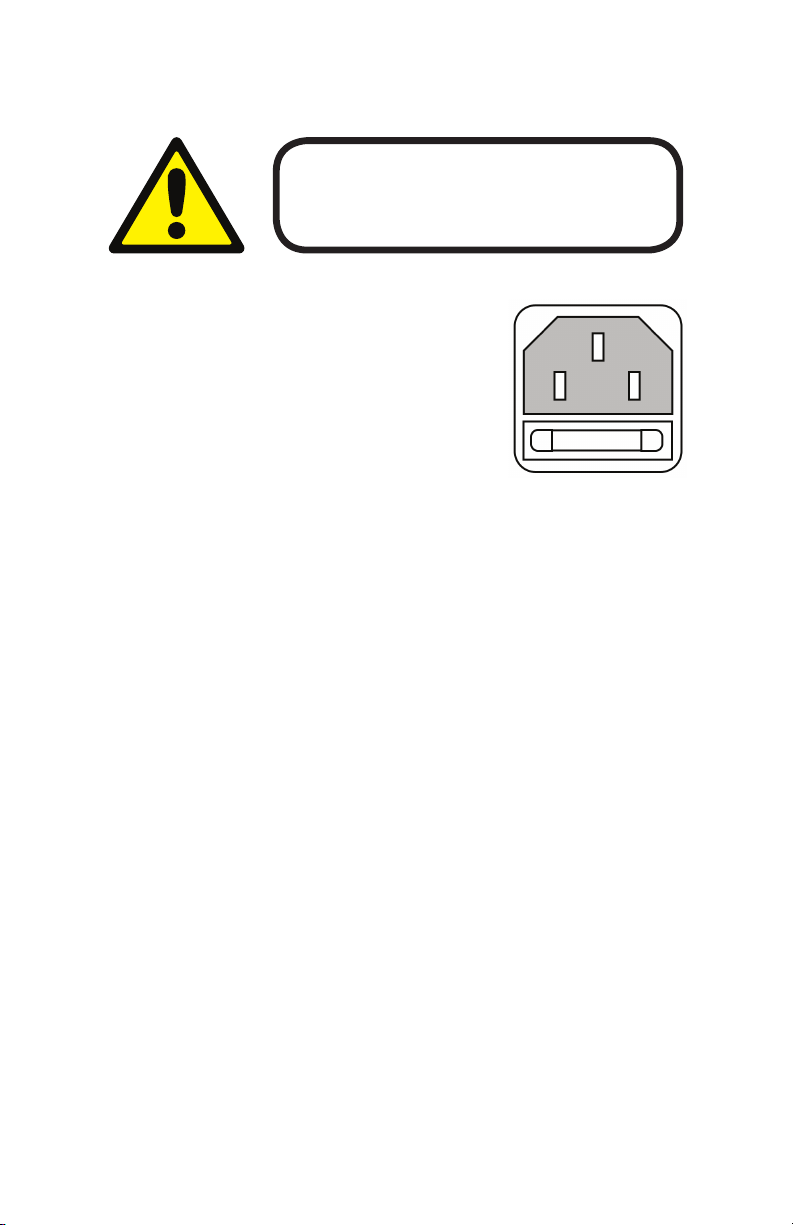

Fuse Replacement

With a at head screwdriver, wedge the fuse

holder out of its housing. Remove the damaged

fuse from its holder and replace with exact same

type fuse.

Connecting A Bunch of MAX L's

You will need a serial data link to run light shows

using a DMX-512 controller or to run shows on

two or more xtures set to sync in master/slave operating mode. The combined

number of channels required by all the xtures on a serial data link determines

the number of xtures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line. Also,

connecting more than 32 xtures on one serial data link without the use of a

DMX optically-isolated splitter may result in deterioration of the digital DMX

signal. The maximum recommended cable-run distance is 500 meters (1640

ft). The maximum recommended number of xtures on a serial data link is 32

xtures.

Data/DMX Cabling

To link xtures together you’ll need data cables. You should use data-grade

cables that can carry a high quality signal and are less prone to electromagnetic

interference.

For instance, Belden© 9841 meets the specications for EIA RS-485

applications. Standard microphone cables will “probably” be OK, but note that

they cannot transmit DMX data as reliably over long distances. In any event,

the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft.

Maximum capacitance between conductor & shield – 55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100 – 140 ohms

Before replacing a fuse, disconnect the power cord.

ALWAYS replace with the same type and rating of fuse.

3. SETUP

Page 8

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connec-

tor on the other end. (Duh!)

To build your own DMX Terminator:

Obtain a 120-ohm, 1/4-watt resistor, and wire it between pins 2 & 3 of the last xture. They are also

readily available from specialty retailers.

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the DMX cable to the female connector

(output) on the controller.

Step 2: Connect the female connector of the

DMX cable to the rst xture’s male connector

(input).

Note: It doesn’t matter which xture address is the rst one

connected. We recommend connecting the xtures in terms

of their proximity to the controller, rather than connecting the

lowest xture number rst, and so on.

Step 3: Connect other xtures in the chain

from output to input as above. Place a DMX

terminator on the output of the nal xture to

ensure best communication.

CAUTION: Do not allow contact between the common and the xture’s chassis

ground. Grounding the common can cause a ground loop, and your xture may

perform erratically. Test cables with an ohm meter to verify correct polarity and

to make sure the pins are not grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5-pin DMX output connector, you will need to use a 5-pin to 3-pin adapter. If

you’d like to build your own, the chart below details a proper cable conversion:

Conductor 3-Pin Female (Output) 5-Pin Male (Input)

Ground/Shield Pin 1 Pin 1

Data 1- (Primary Data Link) Pin 2 Pin 2

Data 1+ (Primary Data Link) Pin 3 Pin 3

Data 2- (Optional Secondary Data Link) -- Pin 4 - Do Not Use

Data 2+ (Optional Secondary Data Link) -- Pin 5 - Do Not Use

INPUT OUTPUT

Common

DMX +

DMX -

DMX OUTDMX IN

First

Fixture

in Chain

Fixture

in Chain

DMX OUTDMX IN

A Word on Termination:

DMX is a resilient communication protocol, however

errors still occasionally occur. Termination reduces signal

errors, and therefore best practices include use of a

terminator in all circumstances. If you are experiencing

problems with erratic xture behavior, especially over

long signal cable runs, a terminator may help improve

performance.

Page 9

Fixture Linking (M/S Mode)

1. Connect the male connector side of the DMX cable to the output female

connector of the rst xture.

2. Connect the end of the cable coming from

the rst xture which will have a female

connector to the input connector of the next

xture consisting of a male connector. Then,

proceed to connect from the output as stated

above to the input of the following xture

and so on.

A quick note: Often, the setup for Master-Slave and

Standalone operation requires that the rst xture in the

chain be initialized for this purpose via either settings in the

control panel or DIP-switches. Secondarily, the xtures that

follow may also require a slave setting.

Check the “Operating Adjustments” section in this manual for complete

instructions for this type of setup and conguration.

DMX OUTDMX IN

First

Fixture

in Chain

Fixture

in Chain

DMX OUTDMX IN

Mounting & Rigging

This xture may be mounted in any SAFE position provided there is enough

room for ventilation. The fan or vent pathway must never be obstructed.

IMPORTANT: Regardless of the rigging option you choose for your xtures,

always be sure to secure your xture with a safety cable.

Mount the xture using a suitable "C" or "O" type clamp. The clamps should be

rated to hold at least 10x the xture’s weight to ensure structural stability. Do

not mount to surfaces of unknown strength, and ensure properly rated rigging

is used when mounting xtures overhead.

Overhead mounting requires extensive experience, which includes calculating

working load limits, knowledge of the installation material being used, and

periodic safety inspections. If you lack these qualications, do not attempt the

installation yourself. Improper installation can result in bodily injury.

Bracket

Clamp

Safety Loop

Page 10

The control panel LED display shows the menu items you select from the menu

map on page #11. When a menu function is selected, the display will show im-

mediately the rst available option for the selected menu function. To select a

menu item, press <ENTER>.

Use the <UP> and <DOWN> buttons to navigate the menu options. Press the

<ENTER> button to select the menu function currently displayed, or to enable

a menu option. To return to the previous option or menu without changing the

value, press the <MENU> button.

4. OPERATING ADJUSTMENTS

The Control Panel

All the features and dierent modes possible with the MAX L™ are accessed by

using the control panel on the rear of the xture. There are 4 control buttons

under to the LED display which allow you to navigate through the various con-

trol panel menus.

<MENU>

Is used to navigate to the previous higher-level menu item.

<UP>

Scrolls through menu items and numbers in ascending order.

<DOWN>

Scrolls through menu items and numbers in descending order.

<ENTER>

Is used to select and conrm/store the current selection.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de iluminación de Blizzard Lighting

Blizzard Lighting

Blizzard Lighting THE PUCK RGBA LED PAR Can Manual de usuario

Blizzard Lighting

Blizzard Lighting Northstar Spec-Z Manual de usuario

Blizzard Lighting

Blizzard Lighting Colorise Quadra Manual de usuario

Blizzard Lighting

Blizzard Lighting The Puck 3NX Manual de usuario

Blizzard Lighting

Blizzard Lighting REANIMATOR Manual de usuario

Blizzard Lighting

Blizzard Lighting mikrokassette Manual de usuario

Blizzard Lighting

Blizzard Lighting HUSH PAR Infiniwhite 500 Manual de usuario

Blizzard Lighting

Blizzard Lighting snokontrol Manual de usuario

Blizzard Lighting

Blizzard Lighting Torrent 90 Beam Manual de usuario

Blizzard Lighting

Blizzard Lighting Torrent Xray Manual de usuario

Blizzard Lighting

Blizzard Lighting Tournado SKY W-DMX Manual de usuario

Blizzard Lighting

Blizzard Lighting SPOTMAN Manual de usuario

Blizzard Lighting

Blizzard Lighting G-Mix 200 Manual de usuario

Blizzard Lighting

Blizzard Lighting ToughPAR Satellight Manual de usuario

Blizzard Lighting

Blizzard Lighting the puck Manual de usuario

Blizzard Lighting

Blizzard Lighting The Puck RGB Unplugged Manual de usuario

Blizzard Lighting

Blizzard Lighting HUSH PAR Theatrik Manual de usuario

Blizzard Lighting

Blizzard Lighting Node:b RGBAL Manual de usuario

Blizzard Lighting

Blizzard Lighting ICE 30 Manual de usuario

Blizzard Lighting

Blizzard Lighting HotStik 5 COB Mini Manual de usuario

Blizzard Lighting

Blizzard Lighting G70 Manual de usuario

Blizzard Lighting

Blizzard Lighting Tour QT Skywire Manual de usuario

Blizzard Lighting

Blizzard Lighting Motif Risplendi 150 Manual de usuario

Blizzard Lighting

Blizzard Lighting SnowBlind Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
