USER GUIDE

CONSOLE

12VDC3.0A

DVI-I OUT

Audio

K/M

Audio

K/M

Audio Audio Audio

DVI-I DVI-I DVI-I DVI-I

IN-8 IN-7 IN-6 IN-5

Audio Audio Audio Audio

DVI-I DVI-I DVI-I DVI-I

IN-4 IN-3 IN-2 IN-1

CAC K/M K/M K/M K/M K/M K/M K/MCAC CAC CAC CAC CAC CAC CAC CAC

1 2 3 4 5 6 7 8

8 PORT DVI-I W/ AUDIO AND CAC

SECURE KVM SWITCH

SS8P-SH-DVI-UCAC

MS KB

• SS8P-SH-DVI-U 8-Port Secure DVI-I KVM Switch with Audio

• SS8P-SH-DVI-UCAC 8-Port Secure DVI-I KVM Switch with Audio and CAC Support

• SS8P-DH-DVI-U 8-Port Secure Dual-Head DVI-I KVM Switch with Audio

• SS8P-DH-DVI-UCAC 8-Port Secure Dual-Head DVI-I KVM Switch with Audio and CAC Support

• SS16P-SH-DVI-U 16-Port Secure DVI-I KVM Switch with Audio

• SS16P-SH-DVI-UCAC 16-Port Secure DVI-I KVM Switch with Audio and CAC Support

MODELS:

ADVANCED

8/16-PORT DVI-I

SECURE KVM SWITCH

USM-2S0-MM1 REV: 1.1A DATE: 07/03/2018

USER GUIDE

TABLE OF CONTENTS

TECHNICAL SPECIFICATIONS

WHAT’S IN THE BOX?

SECURITY FEATURES

SECURE KVM SWITCH FRONT AND REAR

INSTALLATION

CAC INSTALLATION: COMMON ACCESS CARD, SMART CARD READER

CAC PORT CONFIGURATION

AUDITING: Dumping the Event Log via User Menu Options

RESET: Restore Factory Default

LED’s BEHAVIOR

SYSTEM OPERATION

TROUBLESHOOTING

TECHNICAL SUPPORT

LIMITED WARRANTY STATEMENT

USER GUIDE

TECHNICAL SPECIFICATIONS

VIDEO

Format DVI-I Dual Link

Host Interface

SS8P-SH-DVI-U/SS8P-SH-DVI-UCAC (8) DVI-I 29-pin (female)

SS8P-DH-DVI-U/SS8P-DH-DVI-UCAC/

SS16P-SH-DVI-U/SS16P-SH-DVI-UCAC (16) DVI-I 29-pin (female)

User Console Interface

SS8P-SH-DVI-U/SS8P-SH-DVI-UCAC/

SS16P-SH-DVI-U/SS16P-SH-DVI-UCAC (1) DVI-I 29-pin (female)

SS8P-DH-DVI-U/SS8P-DH-DVI-UCAC (2) DVI-I 29-pin (female)

Max Resolution 2560 x 1600 @ 60Hz

DDC 5 volts p-p (TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

USB

Signal Type USB 1.1 and 1.0 Keyboard and Mouse only. USB 2.0 for CAC connection (only in models with CAC)

Type B

SS8P-SH-DVI-U/SS8P-DH-DVI-U: (8) USB Type B

SS8P-SH-DVI-UCAC/SS8P-DH-DVI-UCAC/SS16P-SH-DVI-U: (16) USB Type B

SS16P-SH-DVI-UCAC: (32) USB Type B

User Console Interface

(2) USB Type-A for keyboard and mouse connection only

(1) USB Type-A for CAC connection (only in models with CAC)

AUDIO

Input (8)/(16) Connector Stereo 3.5mm Female

Output (1) Connector Stereo 3.5mm Female

POWER

Power Requirements 12V DC, 3A (minimum) power adapter with center-pin positive polarity

ENVIRONMENT

Operating Temp 32° to 104° F (0° to 40° C)

Storage Temp -4° to 140° F (-20° to 60° C)

Humidity 0-80% RH, non-condensing

CERTIFICATIONS

Security Accreditation Common Criteria Validated To NIAP, Protection Prole PSS Ver. 3.0

OTHER

Emulation Keyboard, Mouse and Video

Control Front Panel Buttons

USER GUIDE

CONSOLE

12VDC3.0A

DVI-I OUT

Audio

K/M

Audio

K/M

Audio Audio Audio

DVI-I DVI-I DVI-I DVI-I

IN-8 IN-7 IN-6 IN-5

Audio Audio Audio Audio

DVI-I DVI-I DVI-I DVI-I

IN-4 IN-3 IN-2 IN-1

CAC K/M K/M K/M K/M K/M K/M K/MCAC CAC CAC CAC CAC CAC CAC CAC

1 2 3 4 5 6 7 8

8 PORT DVI-I W/ AUDIO AND CAC

SECURE KVM SWITCHSS8P-SH-DVI-UCAC

MS KB

CONSOLE

12VDC3.0A

DVI-I OUT

Audio

K/M

Audio

K/M

Audio Audio Audio

DVI-I DVI-I DVI-I DVI-I

IN-8 IN-7 IN-6 IN-5

Audio Audio Audio Audio

DVI-I DVI-I DVI-I DVI-I

IN-4 IN-3 IN-2 IN-1

CAC K/M K/M K/M K/M K/M K/M K/MCAC CAC CAC CAC CAC CAC CAC CAC

1 2 3 4 5 6 7 8

8 PORT DVI-I W/ AUDIO AND CAC

SECURE KVM SWITCH

SS8P-SH-DVI-UCAC

MS KB

Port Selection LEDs

Port Selection Push Buttons CAC Backlight LEDs

WHAT’S IN THE BOX?

SECURITY FEATURES

ANTI-TAMPER SWITCHES

Each model is equipped with internal Anti-Tamper switches, which sense attempts to open the device enclosure. Once the

system identies such an attempt, all the front panel LED’s will flash rapidly and the unit will become useless by shutting off

connection with all attached PCs and peripherals disabling any functionality.

TAMPER-EVIDENT SEAL

The enclosure of the unit is protected with a tamper-evident seal to provide a visual evidence if the unit has been opened.

PROTECTED FIRMWARE

The controller of the unit has a special protection feature that prevents reprogramming or reading the rmware.

HIGH ISOLATION ON USB CHANNELS

Opto-isolators are used in the unit to keep USB data paths electrically isolated from each other, providing high isolation and

preventing data leakage between ports.

SECURE EDID EMULATION

The unit prevents unwanted and unsecure data to be transmitted through the DDC lines by means of secure EDID

learning and emulation.

Secure DVI-I KVM Switch Unit 8/16-port Secure DVI-I KVM Switch

BX-1203000 Desktop power supply 100-240V, 12VDC 3A

User Manual

Figure 4-1: SS8P-SH-DVI-UCAC Front panel

Figure 4-2: SS8P-SH-DVI-UCAC Rear panel

USER GUIDE

INSTALLATION

SYSTEM REQUIREMENTS

1. Black Box Secure PSS is compatible with standard personal/portable computers, servers or thin-clients, running

operating systems such as Windows or Linux.

2. The peripheral devices that are supported by the Secure KVM Switch are listed in the following table:

*TOE - Models with CAC only Table 5-1

Console Port Authorized Devices

Keyboard

Wired keyboard and keypad without internal USB hub or composite device functions,

unless the connected device has at least one endpoint which is a keyboard or mouse HID

class, KVM/KM extender.

Audio out Analog amplied speakers, Analog headphones, Digital audio appliance.

Mouse / Pointing Device Any wired mouse or trackball without internal USB hub or composite device functions,

Touch-screen, Multi-touch or digitizer, KVM/KM extender.

User Authentication Device Smart-card reader, PIV/CAC reader, Token or Biometric reader*

USER GUIDE

INSTALLATION

Single-Head Units:

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use a DVI cable to connect the DVI output port from each computer to the corresponding DVII IN ports of the unit.

3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit.

4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computers to the

AUDIO IN ports of the unit.

5. Connect a monitor to the DVI-I OUT console port of the unit using a DVI cable.

6. Connect a USB keyboard and mouse in the two USB console ports.

7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.

8. Optionally connect CAC (COMMON ACCESS CARD, SMART CARD READER) to the CAC port in the user console

interface. For models with CAC.

9. Finally, power on the Secure KVM Switch by connecting a 12VDC power supply to the power connector, and then

turn on all the computers.

Note: The computer connected to port 1 will always be selected by default after power up.

Note: You can connect up to 8 computers to the 8 port Secure KVM Switch and up to 16 computers to the 16 port Secure

KVM Switch.

USB IN

USB OUT

AUDIO IN

DVI-I OUT

CAC IN

CAC OUT

DVI-I IN

AUDIO OUT

SS8P-SH-DVI-UCAC

8 PORT DVI-I W/ AUDIO AND CAC

SECURE KVM SWITCH

SS8P-SH-DVI-UCAC

MS KB

1 2 3 4 5 6 7 8

Figure 6-1: SS8P-SH-DVI-UCAC

IMPORTANT WARNINGS - FOR SECURITY REASONS:

• This product does not support wireless devices. Do not attempt to use a wireless keyboard or a wireless mouse with

this product.

• This product does not support keyboards with integrated USB hubs or USB ports. Only use standard (HID) USB

keyboards with this device.

• This product does not support microphone audio input or line input. Do not connect any mi-crophones or headsets

with microphones to this device.

• Connection of authentication devices (CAC) with external power sources is prohibited.

USER GUIDE

INSTALLATION (Continued)

Dual-Head Units:

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use DVI cables to connect the DVI output ports of each computer to the corresponding DVI-I IN ports of the unit. For

example, if using SS8P-DH-DVI-UCAC the 2 DVI ports of one computer must all be connected to one channel.

The DVI-I IN connectors that belong to the same channel are arranged vertically.

3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit.

4. Optionally connect a stereo audio cable (3.5mm on both ends) to connect the audio output of the computer to the

AUDIO IN ports of the unit.

5. Connect the monitors to the DVI-I OUT console ports of the unit using DVI cables.

The DVI-I IN ports on one row will be switched to the DVI-I OUT of the same row.

6. Connect a USB keyboard and mouse in the two USB console ports.

7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.

8. Optionally connect CAC (smart card reader) to the CAC port in the user console interface.

9. Power on the Secure KVM Switch by connecting a 12VDC power supply to the power connector, and then turn on all

the computers.

Note: VGA-to-DVI adapter must be used if video input sources are analog. Also, if the monitors connected to the outputs

are dual-link DVI monitors, then DVI-I cables must be used from each computer.

Note: The computer connected to port 1 will always be selected by default after power up.

Figure 7-1: SS8P-DH-DVI-UCAC

Figure 7-2: SS8P-DH-DVI-UCAC

CONSOLE

12VDC3.0A CAC

K/M

Audio

DVI OUT DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

DVI OUT DVI

IN-8 DVI

IN-7 DVI

IN-6 DVI

IN-5 DVI

IN-4 DVI

IN-3 DVI

IN-2 DVI

IN-1

Audio

K/M CAC

SDVN-8D-P

PC Workstation

CONSOLE

12VDC3.0A CAC

K/M

Audio

DVI OUT DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

Audio

K/M CAC

DVI

DVI OUT DVI

IN-8 DVI

IN-7 DVI

IN-6 DVI

IN-5 DVI

IN-4 DVI

IN-3 DVI

IN-2 DVI

IN-1

Audio

K/M CAC

SDVN-8D-P

USER GUIDE

INSTALLATION (Continued)

USB IN

USB OUT

AUDIO IN

DVI-I OUT

CAC IN

CAC OUT

DVI-I IN

AUDIO OUT

SS8P-DH-DVI-UCAC

1 2 3 4 5 6 7 8

8 PORT DVI-I W/ AUDIO AND CAC

SECURE KVM SWITCHSS8P-DH-DVI-UCAC

MS KB

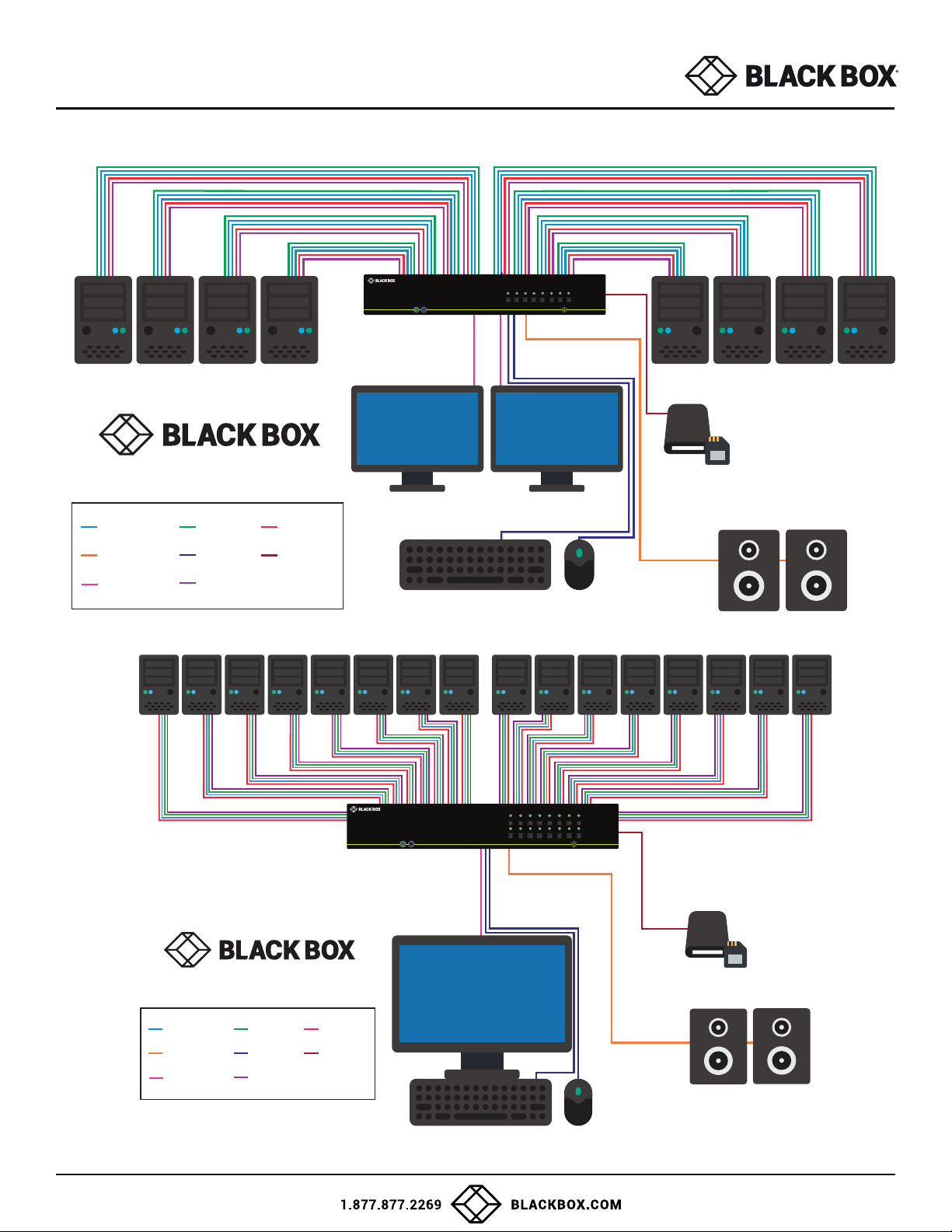

Figure 8-1: SS8P-DH-DVI-UCAC

Figure 8-2: SS16P-SH-DVI-UCAC

USB IN

USB OUT

AUDIO IN

DVI-I OUT

CAC IN

CAC OUT

DVI-I IN

AUDIO OUT

SS16P-SH-DVI-UCAC

9 10 11 12 13 14 15 16

1 2 3 4 5 6 7 8

16 PORT DVI-I W/AUDIO AND CAC

SECURE KVM SWITCH

SS16P-SH-DVI-UCAC

MS KB

USER GUIDE

INSTALLATION (Continued)

EDID Learn:

The Secure KVM Switch is designed to learn the connected monitor’s EDID upon power up. In the event of connecting a new monitor

to the Secure KVM Switch, a power recycle is required.

The Secure KVM Switch will indicate to the user the EDID learn process by flashing the front panel’s LEDs. Port one green and push

button blue LEDs will both begin to flash for about 10 seconds. When the LEDs stop flashing, the EDID learn process is done.

If the Secure KVM Switch has more than one video board (such as dual-head and quad-head models), then the unit will continue to

learn the EDIDs of the connected monitors and indicate the progress of the process by flash-ing the next port selection green and

push button blue LEDs respectively.

The monitor must be connected to the video output connector located in the console space at the back of the Secure KVM Switch

during the EDID learn process.

If the read EDID from the connected monitor is identical to the current stored EDID in the Secure KVM Switch then the EDID learn

function will be skipped.

USER GUIDE

SINGLE-HEAD MODE SECURE KM SWITCHING

In addition to traditional channel switching by buttons located on the front panel, Secure KM Switch also supports cursor

control of selected channels. This technology allows seamless switching between computers by moving the mouse

cursor from one display to another. Users can effortlessly switch computers for faster productivity.

1. KM functionality for KVM devices is only available once the device has been put into KM mode,

refer to admin tool guide for detail.

2. When the device is placed into KM mode, it will behave identically to the KM models of the product.

3. The major difference when the device is placed into KM mode is that cursor control of selected channels is available

as an additional method to switch the connected computer.

4. Figure 10-1 below shows how this functionality works.

5. For more information about how to congure this functionality, refer to the KM guide.

Figure 10-1

Cursor

Auto-switch

from 4 to 1

Auto-switch

from 1 to 2

Auto-switch

from 2 to 3

Auto-switch

from 3 to 4

Monitor 4

Monitor 3Monitor 2

Monitor 1

MULTI-HEAD MODE SECURE KM SWITCHING

When using computers with multiple displays, cursor control of selected channels allows switching between computers through

the use of simple mouse clicks and gestures. No device driver is required. Simply press the scroll wheel twice and then move the

mouse in the direction of the channel you desire to switch to.

Click the Mouse Wheel Twice

Move the mouse to the

direction of the target

computer screen

Figure 10-2

Note: This feature only works in Multi-Head display mode.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Black Box

Black Box

Black Box SW281A-R2 Manual de usuario

Black Box

Black Box KV2008A Manual de usuario

Black Box

Black Box KV9204A Manual de usuario

Black Box

Black Box SWI037A Manual de usuario

Black Box

Black Box ServSelect III Manual de usuario

Black Box

Black Box LGB708A-R3 Manual de usuario

Black Box

Black Box LGB5124A-R2 Manual de usuario

Black Box

Black Box LB8422A-US Manual de usuario

Black Box

Black Box ServSwitch Wizard DVI KV1002A Manual de usuario

Black Box

Black Box ServSwitch ACR9000A Manual de usuario

Black Box

Black Box SM508-C-2 Manual de usuario

Black Box

Black Box KV6222DP Manual de usuario

Black Box

Black Box SW1035A Manual de usuario

Black Box

Black Box IC160A Manual de usuario

Black Box

Black Box LB620C Manual de usuario

Black Box

Black Box LPB2810A Manual de usuario

Black Box

Black Box LGB1048A Manual de usuario

Black Box

Black Box ServSwitch RMK19WX 1 Manual de usuario

Black Box

Black Box LH8050A Manual de usuario

Black Box

Black Box SERVSWITCH PANTHER KV1108A Manual de usuario

Black Box

Black Box IC562A Manual de usuario

Black Box

Black Box LGB1001A Manual de usuario

Black Box

Black Box ServSwitch KV130-UPG Manual de usuario

Black Box

Black Box VSW-HDMI2-3X1 Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
