Black Box KVS4-1004KX Manual de usuario

USER GUIDE

• KVS4-1004KX 4-Port Secure Pro KM w/audio and CAC, PP 4.0

• KVS4-1008KX 8-Port Secure Pro KM w/audio and CAC, PP 4.0

1 2 3 4ST1 ST2

CONSOLE

12VDC2.0A AUDIO

K/M

AUDIO AUDIO AUDIO AUDIO

K/M K/M K/M K/M

CAC

CAC CAC CAC CAC

IN-1IN-2IN-3IN-4

KVS4-1004KX

MODELS:

ADVANCED 4/8-PORT

SECURE KM SWITCH

USM-2S0-1M0 REV: 1.3A DATE: 09/29/2020

USER GUIDE

TABLE OF CONTENTS

TECHNICAL SPECIFICATIONS

WHAT’S IN THE BOX?

SECURITY FEATURES

FRONT AND REAR

INSTALLATION

INITIAL SETUP

SCROLL WHEEL KM SWITCHING

HOTKEY COMMANDS

DISPLAY TOPOLOGY CONFIGURATION

LIMIT INPUT PORTS CONFIGURATION

DISPLAY TOPOLOGY CONFIGURATION (8-PORT)

LIMIT INPUT PORTS CONFIGURATION (8-PORT)

CAC INSTALLATION: COMMON ACCESS CARD, SMART CARD READER

CAC PORT CONFIGURATION

AUDITING: Dumping the Event Log via User Menu Options

RESET: Restore Factory Default

LED’s BEHAVIOR

SYSTEM OPERATION

TROUBLESHOOTING

TECHNICAL SUPPORT

USER GUIDE

TECHNICAL SPECIFICATIONS

USB

Signal Type USB 1.1 and 1.0 Keyboard and Mouse only. USB 2.0 for CAC connection

(Only in models with CAC)

CPU Interface

KVS4-1004KX: (8) USB Type B

KVS4-1008KX: (16) USB Type B

User Console Interface (2) USB Type-A for keyboard and mouse connection only

(1) USB Type-A for CAC connection (only in models with CAC)

AUDIO 

Input (4)/(8) Connector Stereo 3.5mm Female

Output (1) Connector Stereo 3.5mm Female

POWER 

Power Requirements 12V DC, 3A (minimum) power adapter with center-pin positive polarity.

ENVIRONMENT 

Operating Temp 32° to 104° F (0° to 40° C)

Storage Temp -4° to 140° F (-20° to 60° C)

Humidity 0-80% RH, non-condensing

Altitude 0 to 10,000 ft. (0 to 3048 m)

CERTIFICATIONS

Security Accreditation Common Criteria Validated To NIAP, Protection Prole PSS Ver. 4.0

OTHER

Emulation Keyboard and Mouse

Control Front Push Buttons, Mouse (hotkeys supported)

USER GUIDE

1 2 3 4ST1 ST2

CONSOLE

12VDC2.0A AUDIO

K/M

AUDIO AUDIO AUDIO AUDIO

K/M K/M K/M K/M

CAC

CAC CAC CAC CAC

IN-1IN-2IN-3IN-4

KVS4-1004KX

WHAT’S IN THE BOX?

Secure KM Switch Unit 4/8-port Secure KM Switch

BX-1203000 Desktop power supply 100-240V, 12VDC 3A

User Manual

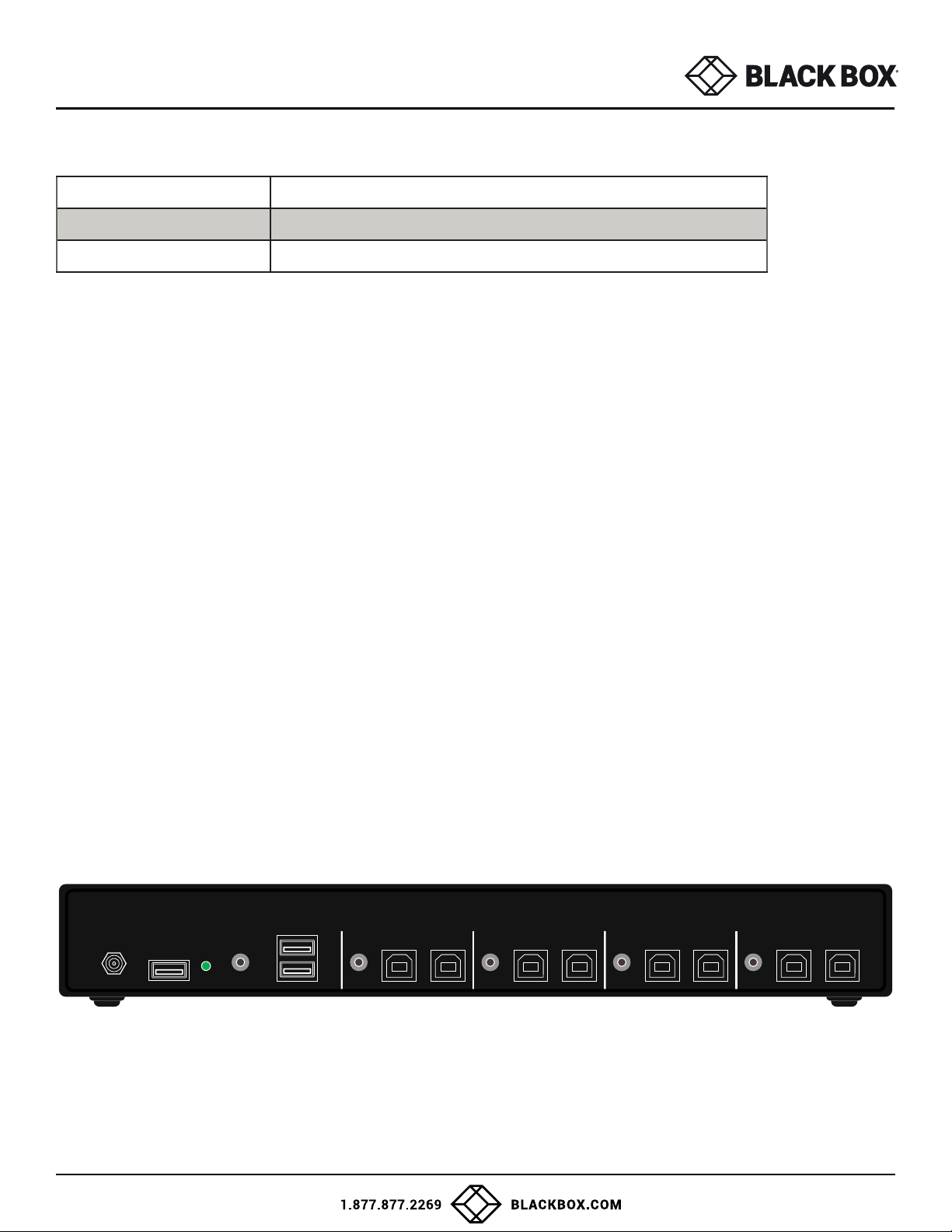

Figure 4-2: KVS4-1004KX Rear panel

SECURITY FEATURES

ANTI-TAMPER SWITCHES

Each model is equipped with internal Anti-Tamper switches, which sense attempts to open the device enclosure. Once the

system identies such an attempt, all the front panel LED’s will ash rapidly and the unit will become useless by shutting off

connection with all attached PCs and peripherals disabling any functionality.

TAMPER-EVIDENT SEAL

The enclosure of the unit is protected with a tamper-evident seal to provide a visual evidence if the unit has been opened.

PROTECTED FIRMWARE

The controller of the unit has a special protection feature that prevents reprogramming or reading the rmware.

HIGH ISOLATION ON USB CHANNELS

Opto-isolators are used in the unit to keep USB data paths electrically isolated from each other, providing high isolation and

preventing data leakage between ports.

SECURE EDID EMULATION

The unit prevents unwanted and unsecure data to be transmitted through the DDC lines by means of secure

EDID learning and emulation.

SELF-TEST

A self-test is performed each times the KVM is powered on as part of its boot-up sequence. If the KVM starts up correctly

and is functional, the self-test has passed. However, if all Front Panel LED’s are on and not ashing, the power up self-test

has failed and all functions are disabled. Check if any of the front panel port selection buttons are jammed. In this case,

release the jammed button and recycle the power.

USER GUIDE

INSTALLATION

SYSTEM REQUIREMENTS

1. Black Box Secure KM is compatible with standard personal/portable computers, servers or thin-clients, running

operating systems such as Windows or Linux.

2. The peripheral devices that are supported by the Secure KM Switch are listed in the following table:

CONNECTING THE SECURE KM SWITCH

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit.

3. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computers to the

AUDIO IN ports of the unit.

4. Connect a USB keyboard and mouse in the two USB console ports.

5. Optionally connect stereo speakers to the AUDIO OUT port of the unit.

6. Optionally connect CAC (COMMON ACCESS CARD, SMART CARD READER) to the CAC port in the user console

interface. For models with CAC.

7. Power on the Secure KM Switch by connecting a 12VDC power supply to the power connector, and then turn on all the

computers.

Note: The computer connected to port 1 will always be selected by default after power up.

Note: You can connect up to 4 computers to the 4 port Secure KM Switch and up to 8 computers to the 8 port Secure KM

Switch.

Figure 5-1: KVS4-1004KX

AUDIO OUT

VIDEO USB IN

USB OUT

CAC IN

CAC OUT

AUDIO IN

KVS4-1004KX

CONSOLE

12VDC2.0A AUDIO

K/M

AUDIO AUDIO AUDIO AUDIO

K/M K/M K/M K/M

CAC

CAC CAC CAC CAC

IN-1IN-2IN-3IN-4

Table 5-1

Console Port Authorized Devices

Keyboard Wired keyboard and keypad without internal USB hub or composite device functions, unless

the connected device has at least one endpoint which is a keyboard or mouse HID class.

Audio out Analog amplied speakers, Analog headphones.

Mouse / Pointing Device Any wired mouse or trackball without internal USB hub or composite device functions.

User Authentication Device USB devices identied as user authentication (base class 0Bh, e.g. Smart-card reader, PIV/

CAC reader, Token, or Biometric reader)

USER GUIDE

INSTALLATION (Continued)

IMPORTANT WARNINGS - FOR SECURITY REASONS:

• This product does not support wireless devices. Do not attempt to use a wireless keyboard or a wireless mouse with

this product.

• This product does not support keyboards with integrated USB hubs or USB ports. Only use standard (HID) USB

keyboards with this device.

• This product does not support microphone audio input or line input. Do not connect any microphones or headsets

with microphones to this device.

• Connection of authentication devices (CAC) with external power sources is prohibited.

USER GUIDE

INITIAL SETUP

After connecting all devices to the Secure KM Switch, a display topology congurations and display mode must be chosen.

By default, Secure KM Switch is congured to a topology with 4 screens arranged horizontally starting with port 1 on the

most left-hand side.

The installation setup must match one of KM switches’ predened display topology congurations. This can be selected

through keyboard hotkey commands. Please refer to the “Display Topology Conguration” for the available display

topologies.

SCROLL WHEEL KM SWITCHING

HOTKEY COMMANDS

Cursor control of selected channels allows switching between computers through the use of simple mouse clicks and gestures.

No device driver is required. Simply press the scroll wheel twice and then move the mouse in the direction of the channel you

desire to switch to.

The Hotkey command is a keyboard sequence used to trigger an action on the Secure KM Switch through the use of the keyboard

connected on the USB port of the Secure KM Switch. To activate the hotkey sequence, press the Left or Right CTRL key twice and

then enter the desired hotkey commands.

Note: All commands can use upper and/or lower case characters

* - There is a 2-second timeout for the Scroll-Wheel clicking as of October 2020, units produced before this have an undened

timeout.

Click the Mouse Wheel Twice*

Move the mouse to the

direction of the target

computer screen

Figure 7-1

Table 7-2

Note: Display Topology species the number of horizontal columns. The number of vertical rows is calculated in

the software by 4/n columns.

Note: The Cursor Rolling feature allows the cursor to loop back to the rst input after moving past the last input.

COMMANDS HOTKEYS

Display Topology (multiple rows) CTRL + CTRL + H(1—4), (1-8) for KM-8P

Limit Input Ports (one row only) CTRL + CTRL + W(1—4), (1-8) for KM-8P

Cursor Rolling (in single row mode only) CTRL + CTRL + O(0—OFF) or (1—ON)

USER GUIDE

DISPLAY TOPOLOGY CONFIGURATION

LIMIT INPUT PORTS CONFIGURATION

The Secure KM Switch has a congurable display topology conguration that can be easily activated through keyboard hotkeys.

No software or drivers are required to congure the display topology.

Note: Hotkey CTRL + CTRL command allows for multiple rows.

Hotkey Commands: CTRL +CTRL +W +(X)commands (allows one row only):

Note: Limit Input Ports commands reset Display Topology conguration

Each of the cells shown represents a display or multiple displays

from a computer.

Note: Port 4 N/A

Note: Ports 3, 4 N/A

Note: Port 2-4 N/A

(1) Hotkey Command: “CTRL + CTRL + H+ 4+ ENTER”

CTRL + CTRL + W+ 4+ ENTER

(2) Hotkey Command: “CTRL + CTRL + H+ 2+ ENTER”

CTRL + CTRL + W+ 3+ ENTER

(3) Hotkey Command: “CTRL + CTRL + H+ 3+ ENTER”

CTRL + CTRL + W+ 2+ ENTER

(4) Hotkey Command: “CTRL + CTRL + H+ 1+ ENTER”

CTRL + CTRL + W+ 1+ ENTER

1234

123

1 2

3 4

USER GUIDE

DISPLAY TOPOLOGY CONFIGURATION (8-Port)

The 8-Port Secure KM Switch has a congurable display topology conguration that can be easily activated through keyboard

hotkeys. No software or drivers are required to congure the display topology.

Note: Hotkey CTRL + CTRL + H + (X) command allows for multiple rows.

Each of the cells shown represents a display or multiple displays

from a computer.

Note: Cursor control of selected channels can only be used in

Single-Head display mode.

- Multi-Head display mode switching must be used if any of the

eight computers have multiple displays.

(1) Hotkey Command: “CTRL + CTRL + H+ 4+ ENTER”

(3) Hotkey Command: “CTRL + CTRL + H+ 2+ ENTER”

(4) Hotkey Command: “CTRL + CTRL + H+ 1+ ENTER”

(2) Hotkey Command: “CTRL + CTRL + H+ 3+ ENTER”

1234

5678

1 2

3 4

5 6

7 8

123

456

USER GUIDE

LIMIT INPUT PORTS CONFIGURATION (8-Port)

Hotkey Commands: CTRL +CTRL +W +(X)commands (allows one row only):

Note: Limit Input Ports commands reset Display Topology conguration

Note: Port 8 N/A

Note: Port 4-8 N/A

Note: Ports 7, 8 N/A

Note: Ports 3-8 N/A

Note: Port 6-8 N/A

Note: Port 5-8 N/A

Note: Port 2-8 N/A

CTRL + CTRL + W + 8 <CR>

CTRL + CTRL + W + 4 <CR>

CTRL + CTRL + W + 7 <CR>

CTRL + CTRL + W + 3 <CR>

CTRL + CTRL + W + 6 <CR>

CTRL + CTRL + W + 2 <CR>

CTRL + CTRL + W + 5 <CR>

CTRL + CTRL + W + 1 <CR>

12345678

1234

1234567

123

123456

1 2

12345
