Black Box RM5000A-R3 Manual de usuario

BL A C K B OX®

Protect your sensitive electronic equipment in

dusty and dirty indoor environments with this

sealed cabinet.

Guards against dripping water and dust.

Prevents air exchange.

ClimateCab NEMA 12 Server and Data Cabinet

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •

Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

RM5000A-R3 RM5009A

RM5005A-R3 RM5010A-R3

RM5007A-R3 RM5011A

724-746-5500 | blackbox.com

Page 2

ClimateCab NEMA 12 Server and Data Cabinet

TRADEMARKS USED IN THIS MANUAL

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

UL is a registered trademark of Underwriters Laboratories Inc.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

NOTE: The ClimateCabs ship with the AC cutout on the right-hand side of the cabinet. You can remove the side panel and

mount it on the left-hand side of the cabinet if needed.

724-746-5500 | blackbox.com

Page 3

Chapter 1: Specifications

1. Specifications

AC Cutout: RM5000A-R3, RM5005A-R3, RM5007A-R3, RM5010A-R3: 5000/8000 BTU;

RM5009A, RM5011A: 12,000 BTU

Compliance: EIA RS-310-D, UL®508A, cUL C22.2 No. 94, NEMA/EEMAC Type 12 File Number E61997

Construction: Welded 12-gauge steel frame with integral struts;

Front window door: 14-gauge steel and safety glass window;

Back door: Solid 16-gauge steel;

Sides: Solid 16-gauge steel

Finish: Phosphatized steel coated with RAL 9005 black textured, low-gloss polyester powder paint

Hole Type: RM5000A-R3, RM5005A-R3, RM5007A-R3, RM5009A: M6;

RM5010A-R3, RM5011A: 10-32

Load Rating: 1500 lb. (680.4 kg)

Rack Units: RM5000A-R3, RM5010A-R3, RM5009A, RM5011A: 42U;

RM5005A-R3, RM5007A-R3: 24U

724-746-5500 | blackbox.com

Page 4

ClimateCab NEMA 12 Server and Data Cabinet

2. Overview

2.1 Introduction

The ClimateCab NEMA 12 Server & Data Cabinet houses data equipment in dusty and dirty environments. It’s sealed against

dripping water and dust and prevents air exchange. Use the cabinet to house and protect sensitive electronic equipment in an

uncontrolled indoor environment.

2.2 Features

• Three-point locking handles on all doors provide easy but controlled access. Four keys are included.

• Fully welded frame safely supports sensitive equipment.

• Fully gasketed to keep contaminants away from equipment, reducing maintenance costs.

• Two sets of 19-inch rack angles support both front and rear of equipment.

• Rack angles are infinitely adjustable from front to rear for positioning flexibility.

• Mobile base provides easy placement of cabinet.

• Levelers and anti-tip bracket are included to secure cabinet to the floor.

2.3 What’s Included

• ClimateCab NEMA 12 Cabinet

• (2) pairs of keys

• (1) anti-tip angle

• (4) bolts (for installing the anti-tip angle)

• This user’s manual

724-746-5500 | blackbox.com

Page 5

Chapter 3: Assembly

3. Assembly

Side

Top

Side

Mobile

base

Anti-tip

angle

Window

door

Rack

angles

(4)

Rear

door

Figure 3-1. Assembling the cabinet.

NOTE: An AC

cutout is not

shown on this

panel in this

manual. Actual

cutout size and

location will

depend on the

AC unit ordered.

724-746-5500 | blackbox.com

Page 6

ClimateCab NEMA 12 Server and Data Cabinet

RM5000A-R3 and RM5009A

64 mm

2.5"

maximum outside

distance of rack angles

Door

opening

1911 mm

75.24"

Depth

1003 mm

39.5"

Width

608 mm

23.94"

Height

2134 mm

84"

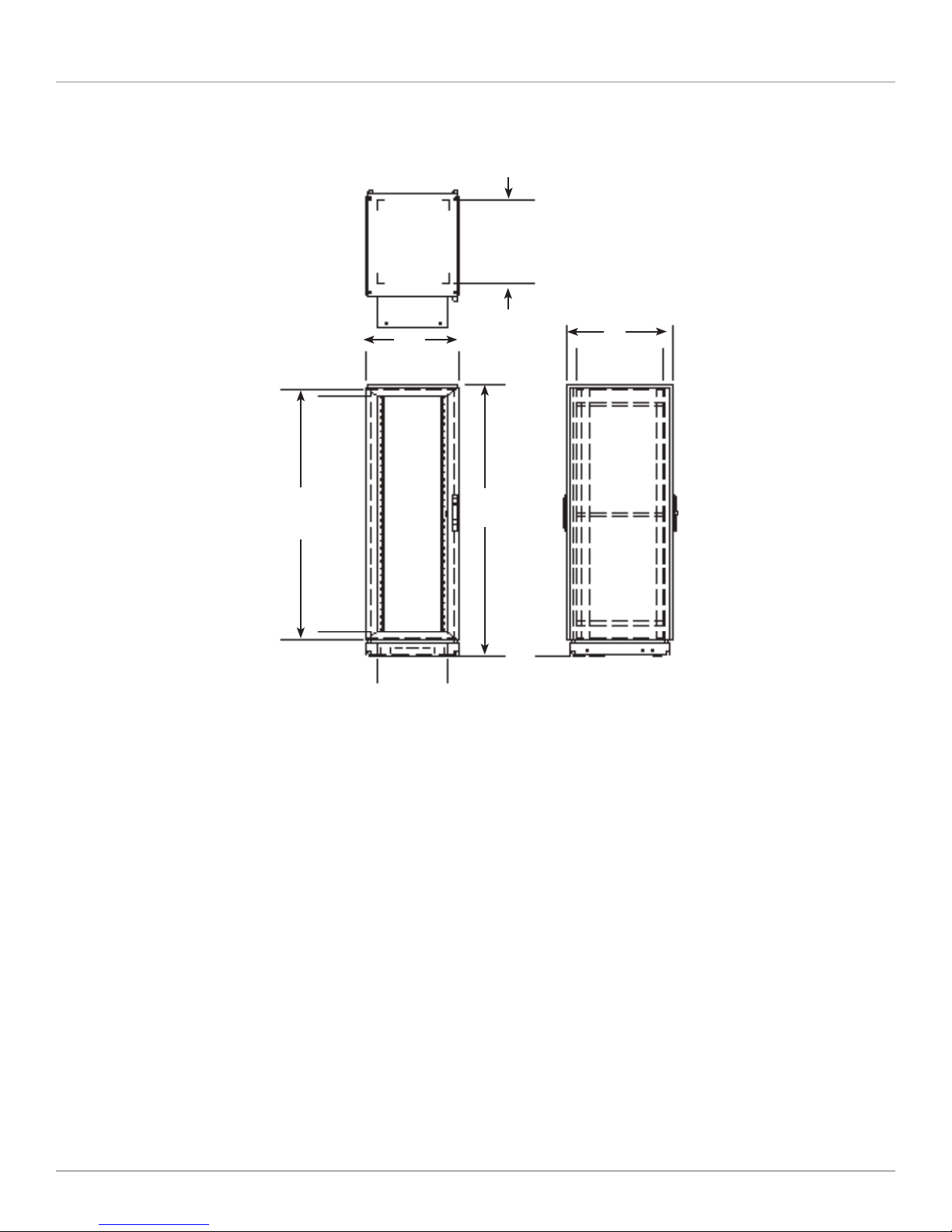

Figure 3-2. RM5000A-R3 and RM5009A dimensions.

724-746-5500 | blackbox.com

Page 7

Chapter 3: Assembly

RM5005A-R3

64 mm

2.5"

maximum outside

distance of rack angles

Door

opening

1137 mm

44.75"

Depth

800 mm

31.5"

Width

704.8 mm

27.75"

Height

1295 mm

51"

Figure 3-3. RM5005A-R3 dimensions.

724-746-5500 | blackbox.com

Page 8

ClimateCab NEMA 12 Server and Data Cabinet

RM5007A-R3

64 mm

2.5"

maximum outside

distance of rack angles

Door

opening

1137 mm

44.75"

Depth

1016 mm

40"

Width

609.6 mm

24"

Height

1295 mm

51"

Figure 3-4. RM5007A-R3 dimensions.

724-746-5500 | blackbox.com

Page 9

Chapter 3: Assembly

RM5010A-R3 and RM5011A

64 mm

2.5"

maximum outside

distance of rack angles

Door

opening

1911 mm

75.24"

Depth

846 mm

33.31"

Width

708 mm

27.87"

Height

2085 mm

82.10"

Figure 3-5. RM5010A-R3 and RM5011A dimensions.

724-746-5500 | blackbox.com

About Black Box

Black Box Network Services is your source for an extensive range of networking and infrastructure products. You’ll find everything

from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by

free, live 24/7 Tech support available in 30 seconds or less.

BLACK BOX®

Black Box Tech Support: FREE! Live. 24/7.

Tech support the

way it should be.

Great tech support is just 30 seconds away at 724-746-5500 or blackbox.com.

RM5000A-R3, version 3
