Compact T1
QUICK START GUIDE
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside the U.S. call 724-746-5500)
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
MAY 2003
PRODUCT P/N MT850A
002-0162-0001
Supporting Software Version:
Controller 6.1
IP Router 1.6
CMG Router 2.0
PREFACE
Preface
Safety Information
CAUTION! ALWAYS USE CAUTION WHEN INSTALLING TELEPHONE LINES.
READ THE CAUTIONS BELOW FOR DETAILS ON SAFETY GUIDELINES TO PREVENT
INJURY.
lNever touch uninsulated telephone wires and terminals unless the
telephone line has been disconnected at the Network Interface (NI) as
voltage potentials as high as 300 VAC may be present across the transmit
and receive pairs.
lOnly use No. 26 AWG or larger telecommunication line cord, to reduce
the risk of fire.
lNever install telephone wiring during a lightning storm.
lNever install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
lRefer to the installation section of this manual for a safe and proper
installation procedure. All wiring external to thisequipment should follow
the current provision of the National Electrical Code.
4 Compact T1 - Release 6.1
Preface
Electrostatic Discharge (ESD) Precautions
Electrostatic Discharge (ESD) Precautions
ESD can damage processors, circuit cards, and other electronic components. Always
observe the following precautions before installing a system component.
1. Do not remove a component from its protective packaging untilready to install
it.
2. Wear a wrist grounding strap and attach it to a metal part of the system unit
before handling components. If a wrist strap is not available, maintain contact
with the system unit throughout any procedure requiring ESD protection.
WARNING! INTEGRATED CIRCUITS (ICS) ARE EXTREMELY SUSCEPTIBLE TO
ELECTROSTATIC DISCHARGE. UNLESS YOU ARE AQUALIFIED SERVICE
TECHNICIAN WHO USES TOOLS AND TECHNIQUES THAT CONFORM TO ACCEPTED
INDUSTRY PRACTICES, DO NOT HANDLE ICS.
The ESD warning label appears on packages and storage bags
that contain static-sensitive products and components.
QUICK START
Quick Start
In this Guide
nUnpacking and Inspection
nInstallation Environment
nAssembly of Compact T1
nWall Mounting
nRack Mounting (Optional Feature)
nCompliant Installation
nChassis Connectors and Buttons
nInterface Connectors
nLocal and Remote Management Option
nConfiguration
nController Cards
nPower Supplies
nService Cards
2 Compact T1 - Release 6.1
Quick Start
Unpacking and Inspection
Unpacking and Inspection
WARNING! OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC
DEVICES.
1. Inspect containers for damage during shipment. Report any damage to the
freight carrier for possible insurance claims.
2. Compare packing list with office records. Report any discrepancies to the
office.
3. Open shipping containers, be careful not to damage contents.
4. Inspect contents and report any damage.
5. If equipment must be returned for any reason, carefully repack equipment in
the original shipping container with original packing materials if possible.
6. If equipment is to be installed later, replace equipment in original shipping
container and store in a safe place until ready to install.
Installation Environment
The environment in which you are installing the Compact T1 must meet the following
conditions:
lOperating temperature range: 32° to 104° F (0°to 40°C)
lStorage temperature range: -40° to 158° F (-40°to 70°C)
lCooling method is byfree air convection, requires long axis of unitto be mounted
horizontally
lMaximum operating altitude: 10,000 ft. (3,048 m)
lMaximum non-operating altitude: 40,000 ft. (12,192 m)
lRelative humidity (non-condensing) range: 0 to 95%
For operation outside the defined environment requirements, the Compact T1 must be
placed in an environmentally controlled enclosure.
Compact T1 - Release 6.1 3
Quick Start
Assembly of Compact T1
Assembly of Compact T1
The cards should be positioned in the chassis as follows:
Note: Slots are labeled on the top and the bottom of the chassis.
lPower Supply in the POWER Slot
lT1 Controller in Slot A
lService Cards can be in any slot 1 through 6.
Note: When an Unit is mounted to the wall, cards that use the front cable
connections should be loaded from Slot 6 to 1. This will minimize card access
issues due to cable interference.
lAlways install blank faceplates in any unused slots.
Service Card Slots
123456APOWER
4 Compact T1 - Release 6.1
Quick Start
Wall Mounting
Wall Mounting
Before beginning the mounting process, verify that the area meets the following
requirements:
lA stable environment, clean and free from extremes of temperature, shock,
vibration and EMI, that meets the all installation environment requirements, see
Installation Environment on page 1-2.
The Unit is delivered with a mounting bracket attached for quick and easy wall
mounting, as shown in the illustration above.
To install the unit to the wall, attach the unit using the four screws provided, one at each
bracket foot.
NOTE: Do not mount the Unit in any other orientation as show above.
Leave at least 3.5"
above and below
the Unit for
adequate ventilation
Mounting Bracket
Leave adequate clearance
at the back for access to
connectors Leave at least 14" at
the front of the unit for
access to cards and
DIP switches
Compact T1 - Release 6.1 5
Quick Start
Rack Mounting (Optional Feature)
Rack Mounting (Optional Feature)
Rack mounting kits are available for both 19 and 23 inch racks.
To rack mount the Unit, follow the instructions below:

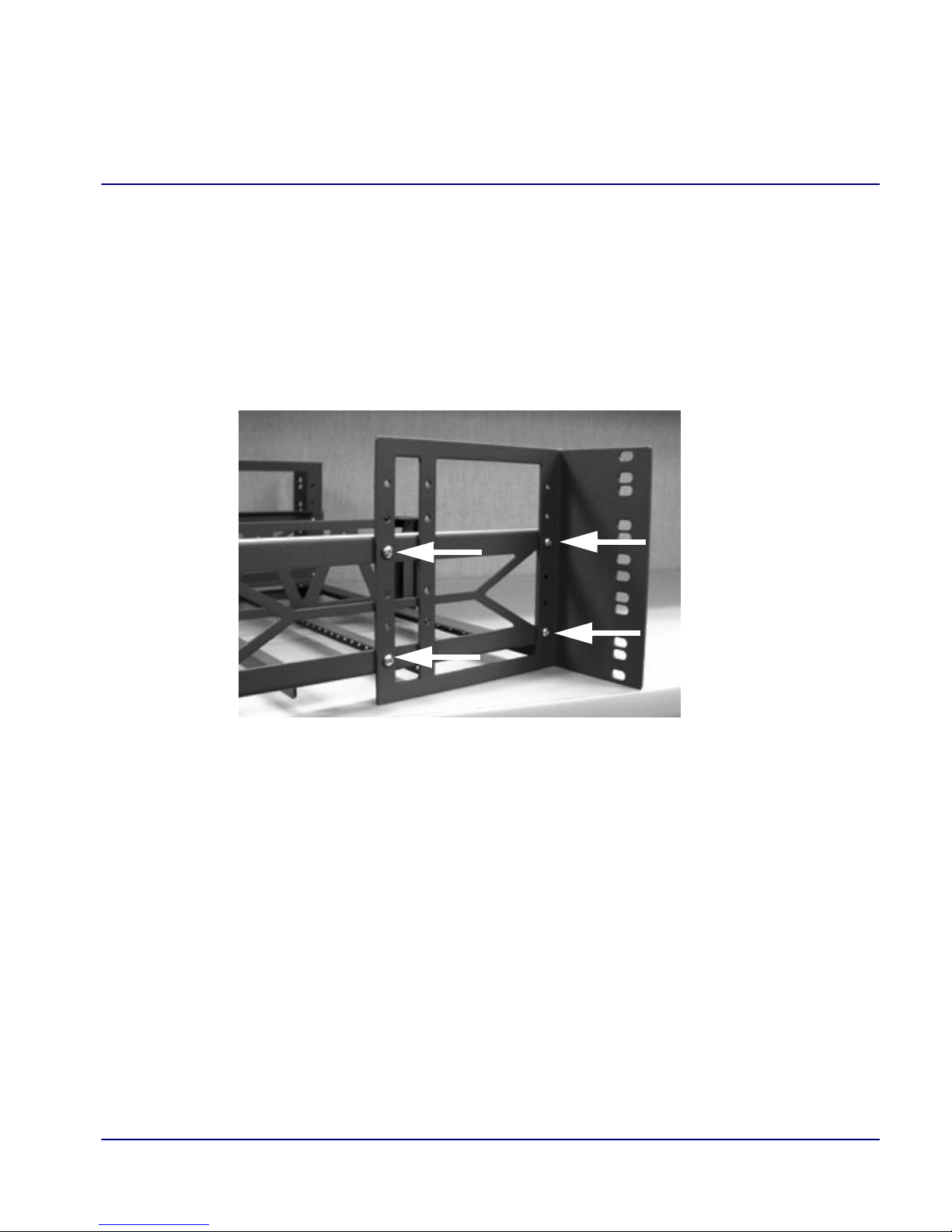

1. Attach bracket ears to rack mounting bracket using four #8-32 x 3/16" screws
on each side.
Bracket Ear
Left Side View
6 Compact T1 - Release 6.1
Quick Start
Rack Mounting (Optional Feature)
2. Attach heat baffle to bracket ears using two #8-32 x 5/16" screws on each side.
3. Attach rack mounting bracket ears to rack using two #12-24 x 5/8" rack
mounting screws on each side.
Heat Baffle
Left Side View
Front View
