FEATURES

• Fully automatic sharing/switching on

an adjustable keyboard-timeout basis.

• Displays video to all user stations

simultaneously.

• Supports temporarily private or

uninterruptible connections.

• Supports VGA, SVGA, XGA video at

resolutions up to 1280 x 1024.

• Supports PS/2 and AT type keyboards.

• Supports any two-button PS/2 or

serial mouse.

OVERVIEW

Do all of your users really need a dedicated computer CPU

on their desk just to look up something on your network once

or twice a day? If they can share access to data or an

application program, why buy multiple CPUs and multiple-

seat software licenses when you can get by with one of each?

If this sounds like a good idea to you, try a ServShare™

keyboard/video/mouse (KVM) switch. Users at the two, three,

or four attached “user stations” (each consisting of a monitor,

keyboard, and mouse) can take turns using the attached IBM®

PC compatible CPU (and controlling the ServShare with

keyboard commands) for as long as they want. Once a user’s

keyboard has been idle for the length of the adjustable

inactivity timeout, the ServShare releases the CPU for the

next user—first come, first served.

Normally, the ServShare handles switching automatically

while displaying the CPU’s video on all users’ monitor screens

at the same time. But you can also blank the video at other

stations for privacy, or even disable keyboard and mouse

control at other stations to avoid being interrupted by other

users while they wait for the CPU to process or download

something. (Don’t worry—if there’s a station or a user that

you don’t want to be able to do this, you can disable

keyboard commands from that station by setting DIP switches

on the ServShare.)

Connecting devices to the ServShare is a piece of cake.

You’ll run a three-in-one CPU Adapter Cable to the CPU,

and similar KVM Adapter Cables to each user station, up

to maximum CPU-to-station distances of 200 feet (61 m).

The ServShare supports VGA, SVGA, or XGA video up

to 1280 x 1024 noninterlaced, although SVGA and XGA

will require coaxial cabling. It also supports PS/2®or PC/AT®

compatible keyboards using any of the three IBM “keyboard

modes.” And the attached mice can be any two-button PS/2

or serial type by Microsoft®or Logitech™.

The front-panel LEDs of the ServShare show unit power,

which stations are receiving video, and which station is

controlling the CPU.

The ServShare also saves the Num Lock, Caps Lock, and

Scroll Lock states of the keyboards, and it instantly refreshes

their LEDs when users connect.

With the ServShare, you can set the keyboard “typematic”

(automatic key repeat) rate and delay for each keyboard.

The ServShare automatically re-enables PS/2 mice when

they’re reattached after being disconnected.

Technically Speaking

✦ServShare

✦Power supply

✦User’s manual

WHAT‘S INCLUDED

ServSwitch to

Keyboard/Monitor/Mouse Cable

CPU/Server to

ServSwitch Cable

Keyboard,monitor,

and mouse

Keyboard,monitor,

and mouse

CPU

ServShare™

(KV754A)

Keyboard,monitor,

and mouse

Keyboard,monitor,

and mouse

Multiple keyboard/video/mouse user stations can share a single server.

3 of 3

9/27/2007

#21401

724-746-5500 blackbox.com

Item Code

ServShare

2-Port, 115-VAC KV752A

2-Port, 230-VAC KV752AE

4-Port, 115-VAC KV754A

4-Port, 230-VAC KV754AE

To rackmount your ServShare, order…

19" Rackmount Kit

for KV752A SW727

for KV754A SW728

To connect your ServShare, use the following cables.

For distances up to 20 feet (6.1 m), order standard cables.

For higher resolutions and greater distances, order coax.

CPU Cables

Standard CPU/Server to ServSwitch™Cables

for PS/2®EHN151

Standard CPU/Server to ServSwitch Cables

for AT®EHN048

Coax CPU/Server to ServSwitch Cables

for PS/2 and AT EHN282

User Cables

Standard ServSwitch to Keyboard/Monitor/Mouse

Cables for PS/2 EHN154

Standard ServSwitch to Keyboard/Monitor/Mouse

Cables for AT EHN052

Coax ServSwitch to Keyboard/Monitor/Mouse

Cables for PS/2 EHN283

Coax ServSwitch to Keyboard/Monitor/Mouse

Cables for AT EHN270

TECH SPECS

Compliance — CE, FCC Part 15 Subpart B Class A, DOC Class/MDC

classe A

Distance (Maximum) — Depending on the CPU, monitor, and video

resolution:

40 ft. (12.2 m) of total original Serv cable from any keyboard,

monitor, and mouse to the CPU; or

20 ft. (6.1 m) of coaxial cable—possibly as much as 100 ft. (30.5 m),

depending on the CPU—from any ServShare to any device

attached to it

Resolution (Maximum) — With original Serv cabling: 1024 x 768

noninterlaced;

With coaxial cabling: 1280 x 1024 noninterlaced

Standards — With original Serv cabling: VGA (color or monochrome/page

white) video;

With original Serv cabling (minimal) or coaxial cabling (recommended):

SVGA video;

With coaxial cabling: XGA video

User Controls — Keyboard commands; Front-mounted 8-position

DIP switch;

Rear-mounted power (ON/OFF) push button

Interface —

All CPU and KVM ports: Proprietary composite of IBM®PS/2 or PC/AT

keyboard, PS/2 or RS-232 mouse, and VGA/SVGA/XGA video;

RS-232 port: Proprietary variant of TIA/EIA RS-232 using RJ-12 (“6-wire

RJ-11”) connectors, DTE

Connectors — Front-mounted: (1) DB25 F for CPU;

KV752A, KV752AE: (2) DB25 F for keyboard, video, and mouse;

KV754A, KV754AE: (4) DB25 F for keyboard, video, and mouse;

Rear-mounted: (1) RJ-12 F for RS-232; (1) 5-pin DIN for power

Indicators — All front-mounted LEDs: (1) Power; (1) Remote Video;

KV752A, KV752AE: (2) Status (active station);

KV754A, KV754AE: (4) Status (active station)

Enclosure — Steel

Altitude (Maximum) — 10,000 ft. (3048 m)

Temperature Tolerance — 32 to 131°F (0 to 55°C)

Humidity Tolerance — 5 to 80% noncondensing

Power — KV752A, KV754A: From wallmount power supply PS018:

Optimal input: 120 VAC, 60 Hz, 100 mA;

Output: 16.5 VAC CT, 1.45 amps;

Consumption: Up to 23.9 VA (23.9 watts);

KV752AE, KV754AE: From desktop power supply PS018E:

Optimal input: 230 VAC, 50 Hz, 60 mA;

Output: 16.5 VAC CT, 1.45 amps;

Consumption: Up to 23.9 VA (23.9 watts)

Size — KV752A, KV752AE: 2.1"H x 8.9"W x 4.9"D (5.3 x 22.6 x 12.4 cm);

KV754A, KV754AE: 5.3"H x 13.1"W x 4.9"D (13.5 x 33.3 x 12.4 cm)

Weight — KV752A, KV752AE: 3 lb. (1.4 kg);

KV754A, KV754AE: 7 lb. (3.2 kg)

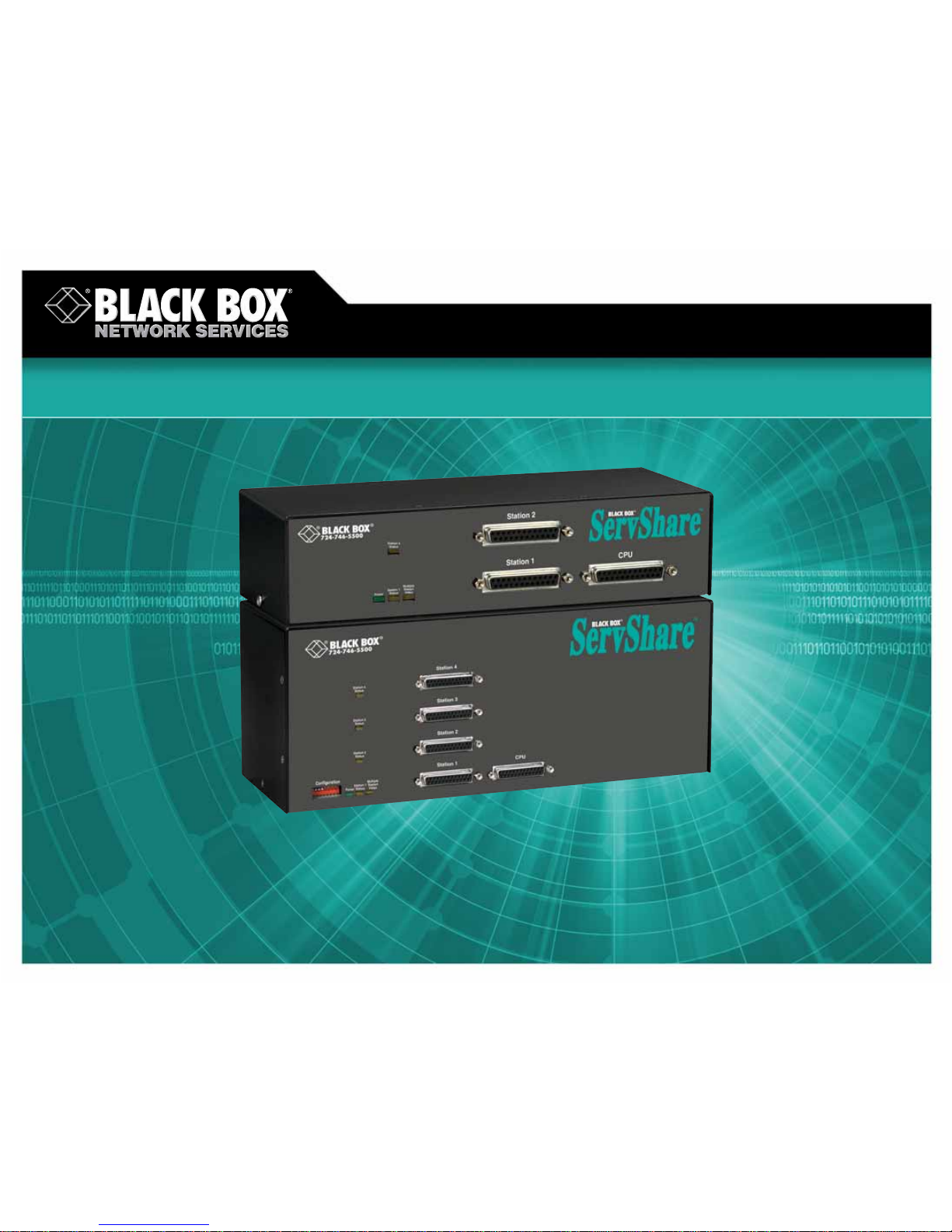

Top: KV752A; bottom: KV754A
