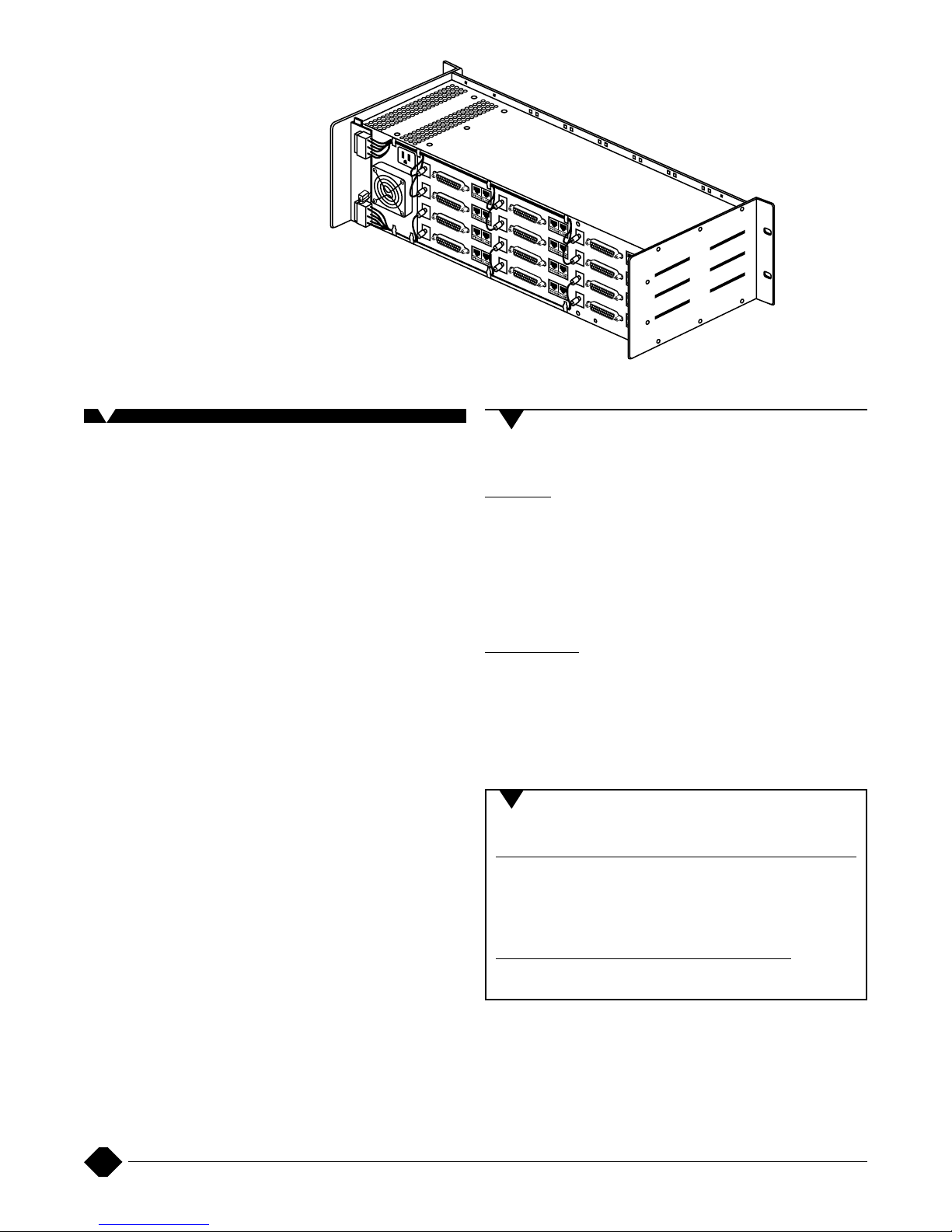

Black Box MD1620A Manual de usuario

Fully AT command

compatible.

Offers a variety of

negotiation and

dialing features.

Non-volatile memory

saves modem settings

if the power fails.

Includes Windows

based data and fa

communication

software.

Second RJ-11

connector for

telephone pass-

through.

Use alone or

rackmount up to

12 Mini-Modems.

f you have up to 12 individual

devices to connect to personal

computers, terminals, or on-line

computer services (Internet)

through a modem, use one Mini-

Modem for each connection.

To keep your office neat and tidy,

install the modems in the Mini-

Modem ack (part number

M1601A). It includes a

redundant power supply, so if

primary power goes down, data

and file transfer are not

compromised.

While rackmounting the

modems is perfect for larger

applications, the Mini-Modems

can also be used alone. They are

available in three models that

conform to three different

standards. Choose V.34+, V.90, or

V.92.

When deciding which Mini-

Modems to order, consider how

POWER

These Mini-Modems offer a

full range of datacomm, fax,

and software features.

KeyFeatures

MINI-MODEMS

often you use your connection

and how important it is to you to

download files quickly.

Get the fastest download

speeds from the V.90 or V.92

models. Both download data at

speeds up to 56 kbps. (Keep in

mind that although these modems

are capable of 56-kbps

downloads, FCC regulations limit

download speeds to 53 kbps.)

Both of these modems offer

enhanced V.34 speeds from client

to client and Caller ID reporting.

Dialing features include 4-number

storage for automatic or DT

dialing, redial, repeat dial, dial

linking, pulse or tone dialing, and

dial pauses.

If you’re on a strict budget,

choose the Mini-Modem

33.6-kbps (MD1621A). It includes

enhanced V.34 (33.6-kbps) speeds

without Caller ID reporting or

Flash memory. It supports

download rates up to 33.6 kbps.

Configure this modem remotely. It

also responds to Class 1 or Class

2 fax commands.

The Mini-Modems include

integral fax. With the V.34+ and

V.90 models, you get a V.17

(14.4-kbps) fax. For even faster fax

speeds, the V.92 model provides a

33.6-kbps fax.

All the modems have

nonvolatile memory that saves

modem settings if the power fails,

as well as telephone-number

storage for automatic dialing and

Flash memory for firmware

upgrades.

Supported operating systems

include all versions of Windows

(Windows 3.1x/95/98/Me/XP/

2000, and Windows NT) , as well

as Linux and SCO OpenServer.

Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: [email protected]

Black Box Corporation.

10/6/2004 #21449

Compression:

MD1620A–MD1621A: V.42 bis,

MNP®5;

MD1626A: V.44, V.42 bis, MNP 5

Error Correction:

MD1620A–MD1621A: V.42,

MNP 3–4;

MD1626A: V.42

Fax Standards:

MD1620A–MD1621A: V.17,

Group III;

MD1626A: V.34, Class 2.1 and

Class 1.0 commands; V.17 and

Group III, Class 1 and Class 2

commands

Line Type:

MD1620A–MD1621A: 2-wire

dialup;

MD1626A: 2-wire dialup or

leased

Modem Standards:

MD1620A: V.90, V.34+, V.34,

V.32 bis, V.32, V.22 bis;

Bell 212A and 103;

MD1621A: V.34+, MNP 3–4;

MD1626A: V.92, V.90, V.34+

Operating Systems Supported:

Windows®3.1x/95/98/Me/XP/

2000, Windows NT®; Linux®,

SCO®OpenServer

Operation: Asynchronous

Speed Maximum): Uploads:

MD1620A–MD1621A:

33.6 kbps;

MD1626A: 48 kbps;

Downloads: MD1620A, MD1626A:

56 kbps;

MD1621A: 33.6 kbps;

Fax: MD1620A–MD1621A:

14.4 kbps;

MD1626A: 33.6 kbps

Interface: S-232

Connectors: (1) DB25 F, (2) J-11

Power: MD1620A–MD1621A:

115 VAC, 60 Hz;

MD1626A: 110–240 VAC,

47–63 Hz, 9 VDC

Size: MD1620A–MD1621A,

MD1626A: 1"H x 4.3"W x 5.6"D

(2.5 x 10.9 x 14.2 cm);

M1601A: 5.3"H x 19"W x 7.8"D

(13.5 x 48.3 x 19.8 cm)

Weight: MD1620A–MD1621A,

MD1626A: 0.5 lb. (0.2 kg);

M1601A: 8 lb. (3.6 kg)

Installupto12Mini-Modems

intheMini-ModemRack.

Specifications

Mini-Modem

• (1) Mini-Modem

• (1) DC power-supply module

• (1) J-11 telephone cable

• (1) CD- OM containing communications software

• (4) plastic feet

• (1) users’ manual

Mini-Modem Rack

• (1) Mini-Modem ack

• (1) power supply

• (1) users’ manual

What’sIncluded

Ordering Information

ITEM CODE

Mini-Modems

56-kbps V.90 ..........................................................MD1620A

33.6-kbps V.34+.....................................................MD1621A

56-kbps V.92 ..........................................................MD1626A

To rackmount up to 12 Mini-Modems, order…

Mini-Modem ack................................................... M1601A
