1. Specifications

Number of Sub-Channels —

PSD-4: 4

PSD-8: 8

Channel Configuration —

Lowest Priority: Sub-channel 1

Highest Priority: PSD-4: Sub-channel 4

PSD-8: Sub-channel 8

Sub-Channel Selection — RTS/DCD on or data transitions (strap-selectable)

Sub-Channel Deselection — RTS/DCD off or 16 bits of idle data (strap-selectable)

Sub-Channel Dialing —

Manual: Press in the front-panel pushbutton switch

Automatic: If a sub-channel stays connected for more than a pre-set period of time

(strap-selectable—1.7, 13.5, or 108), the PSD automatically disables it

Clock Source — Internal, external from main channel, or external from sub-channel 1

Data Rates —

Asynchronous: Up to 19.2 kbps

Synchronous: Internal Clock: 1.2, 2.4, 4.8, 7.2, 9.6, 14.4, or 19.2 kbps

External Clock: Up to 19.2 kbps

Connectors — IEIA RS-232-C/CCITT V.24; DCE or DTE (strap-selectable)

Controls — Front-panel SUB-CHANNEL DISABLE pushbutton switch for each sub-channel; rear-panel

POWER rocker switch; rear-panel 110/220 VAC selector

LED Indicators — POWER: Lights when the unit is receiving AC power

DATA: Lights when data is broadcast from the main channel

to the sub-channels

ACTIVITY: Lights when the sub-channel accesses the main channel

AUTOMATIC: Lights when sub-channel has been automatically disabled

Temperature — 32 to 122°F (0 to 50°C)

Humidity — 30 to 90%, non-condensing

Power — 110/220 VAC switchable + 10%

Size — I1.7"H x 17"W x 8.2"D (4.3 x 43.1 x 20.8 cm)

Weight — 4.4 lb (2.0 kg)

CHAPTER 2: Introduction

2. Introduction

The Programmable Sharing Device enables up to 4 (TL304A) or 8 (TL305A) modems or terminals to share

a master modem, multiplexor, or computer port in an asynchronous or synchronous multipoint environment.

(Asynchronous and synchronous equipment cannot be mixed on the same PSD.)

MAIN CHANNEL

The main channel transmits information to all sub-channels in parallel.

SUB-CHANNELS

Sub-channels contend to transmit to the main channel by activating RTS/DCD (Request to Send/Data Carrier

Detect) or by data transitions (strap-selectable). When the sub-channel is active, the sub-channel’s transmit data

and control signals are connected to the main channel. When RTS/DCD drops, data transitions stop, or 16 idle

bits are received, the PSD will disconnect and monitor other sub-channels.

Sub-channels can be disabled either manually by front-panel pushbuttons or automatically. If a sub-channel

is streaming and staying active for longer than a configured amount of time, the PSD will automatically disable

that sub-channel. A front-panel LED will illuminate to indicate that the sub-channel has been automatically

disabled. The sub-channel will be reset when RTS/DCD drops or 16 idle bits are transmitted to it from the

attached device.

CLOCK MODES

Three clock modes are supported: internal, external from the main channel, or external from sub-channel 1.

BUFFER

A built-in-buffer compensates for phase differences between the clocks of modems connected to the sub-

channels and the PSD main-channel transmit clock.

An extra-buffer option on the PSD-8 can be activated when the PSD is connected to equipment that cannot

accept an external clock. Examples include DDs (United States) or other digital lines and modems that cannot

be set to an external clock. This additional buffer compensates for phase differences between the PSD clock

and sub-channel clock(s).

Figure 1. The Programmable Sharing Device allows multiple devices to share a master port.

RS-232 Cable

Modem

CSU/DSU

PSD-4

AS/400®

Dialup Line

Leased Line

Modem

CSU/DSU

Controllers

PSD-4 AND PSD-8

3. Installation

3.1 Choosing a Site

• The PSD must be installed within five feet (1.5 m) of a grounded AC outlet.

• The PSD must be within 50 feet (15 m) of the equipment that will be attached to the main channel and

each sub-channel.

• Allow 36 inches (91 cm) frontal clearance for operating and maintenance accessibility.

• Allow four inches (10 cm) rear-panel clearance for the power and interface cables.

• Side-panel brackets can be used to install the unit in a 19" rack. (The brackets can be removed without

harming the PSD.)

3.2 Configuring the PSD Printed Circuit Board

Table 1 on the following page explains each of the configurable jumpers or switches on the PSD printed circuit

board. Figures 3 and 4 show the locations of each of the jumpers and switches for the PSD-4 and PSD-8.

There are two EXT. BUFFER switches on the PSD-8. These are extra buffers—not external buffers. Use the

extra buffers when the PSD is connected to equipment that cannot accept an external clock from the PSD.

The extra buffers compensate for phase differences between clocks. There are many applications where this

might be necessary, but one example would be where multiple CSU/DSUs (each attached to its own leased

line that provides clocking) are connected to the PSD.

Switch S1 controls the buffer for sub-channels 1 through 4, and switch S2 controls the buffer for sub-channels 5

through 8.

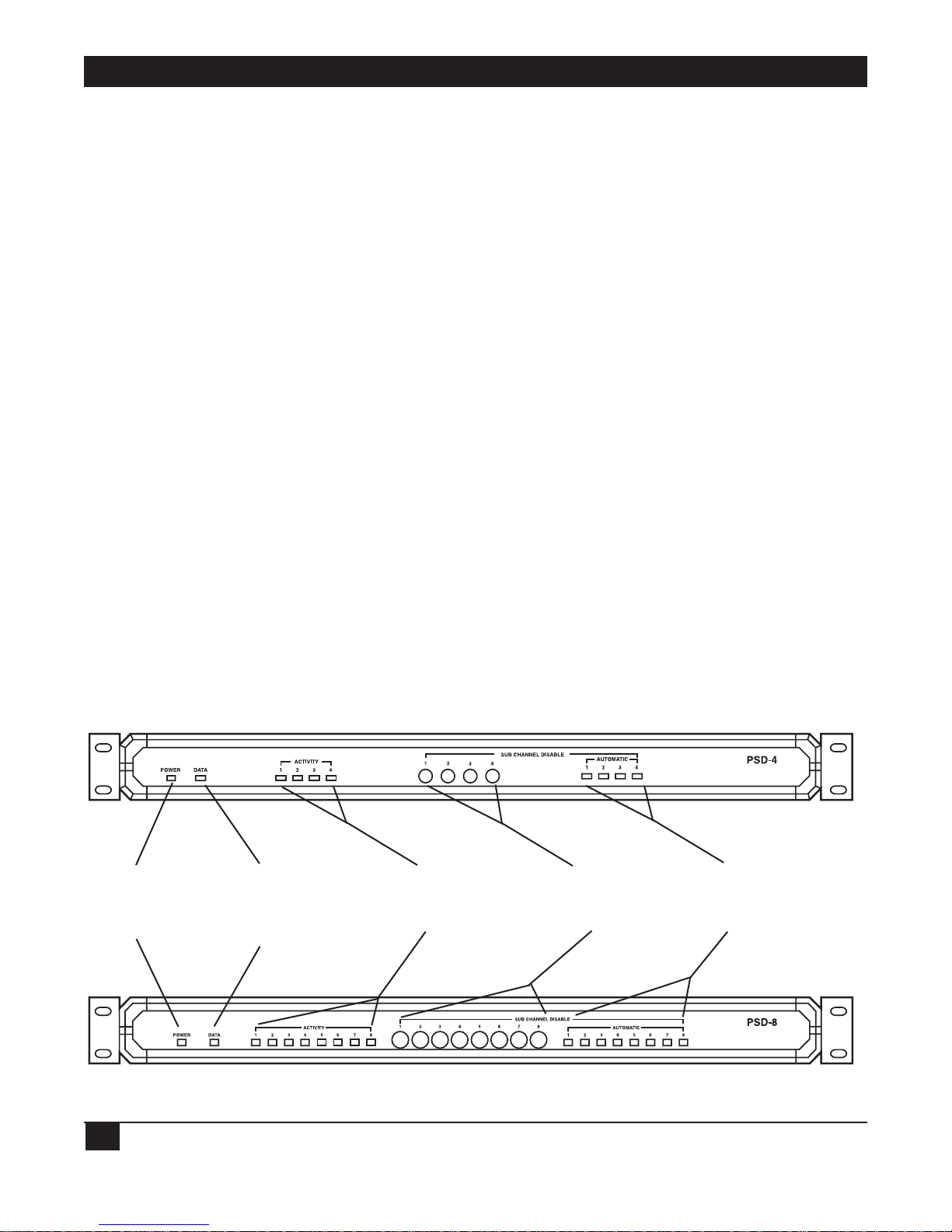

Figure 2. The front panels of the PSD-4 (top) and the PSD-8 (bottom).

POWER:

Lights when

the unit is

receiving

AC power

DATA:

Lights when

data is broadcast

from the main

channel to the

sub-channels

ACTIVITY:

Lights when the

sub-channel

accesses the

main channel.

AUTOMATIC:

Lights when sub-

channel has been

automatically

disabled.

SUB-CHANNEL

DISABLE:

Press in the push button

to manually disable a

sub-channel.

CHAPTER 3: Installation

Table 1. Printed Circuit-Board Switch and Strap Settings

Possible Factory

Stap Identity Location Settings Setting Function

MAIN DCE/DTE switch DTE DTE Determines the PSD’s Main Channel

DCE interface as either DTE (straight connection

to a modem) or as DCE (straight connection

to a computer or terminal).

Sub-channel DTE DTE Determines the PSD’s sub-channel interface

DCE/DTE switches DCE as either DTE or DCE.

DATA RATE (kbps) BR1 19.2 9.6 Selects the PSD’s internal data rate or external

(rotary switch) 14.4 clock from sub-channel 1.

9.6

7.2

4.8 NOTE: When using CLK 1 mode, the main

2.4 channel cannot be connected to a modem

1.2 working in internal clock.

CLK 1

Chas. GND J1 CONNECT DISCONNECT The CONNECT setting connects signal ground

DISCONNECT to chassis ground. The DISCONNECT setting

isolates them.

PIN 24 DIS J1A ENABLE ENABLE Exits main channel when PIN 24 is disabled.

(jumpered)

DISABLE

(NO jumper)

TIME OUT J2 1.7 108 Selects the time-out period (in seconds) after

13.5 which the PSD will automatically disable the

108 sub-channel. Selecting DISABLE will stop

DISABLE the PSD from automatically disabling any

sub-channels.

CONTENTION J5 RTS RTS Determines the sub-channel selection and

DATA deselection.

FORMAT J6 ASYNC SYNC Selects the data format.

SYNC

CLOCK J7 NORMAL NORMAL Determines the source of the clock for

FROM EXT DTE synchronous data. Set to NORMAL for

internally derived clock. Set to FROM EXT

DTE for externally dermined clock from a

connected DTE.

EXT. BUFFER S1 ON OFF Activates or deactivates the extra buffer.

(PSD-8 only) S2 OFF

PSD-4 AND PSD-8

Figure 3. The Printed Circuit Board of the PSD-4.

Figure 4. The Printed Circuit Board of the PSD-8.

CHAPTER 3: Installation

3.3 System Synchronization

ASYNCHRONOUS MODE

Strap the J6 jumper over the ASYNC pins. All attached equipment must be asynchronous. Turn the BIT RATE

rotary switch (BRI) to the correct system speed. No other adjustments to the PSD are necessary.

SYNCHRONOUS MODE

Strap the J6 jumper over the SYNC pins (this is the factory-default setting). All attached equipment must be

synchronous. There are four ways to synchronize the system:

1. Synchronization on the PSD’s internal clock.

• Main channel: Equipment attached to the main channel should be set to external clock.

• Sub-channel: Equipment attached to the sub-channels should be set to external clock.

• BIT RATE rotary switch: Set BRI to the correct system speed.

2. Synchronization on the equipment attached to the main channel.

• Main channel: Equipment attached to the main channel should be set to internal clock.

• Sub-channels: Equipment attached to the sub-channels should be set to external clock.

• BIT RATE rotary switch: Set BRI to the correct system speed.

• Jumper J7: If the equipment attached to the main channel is DCE, strap to NORMAL. If the equipment is

DTE, strap to FROM EXT DTE.

3. Synchronization on the equipment attached to sub-channel 1.

• Main channel: Equipment attached to the main channel should be set to external clock.

• Sub-channel 1: Equipment attached to sub-channel 1 should be set to internal clock.

• Sub-channel 2 through 8: Equipment attached to the sub-channels 2 through 8 should be set to external

clock.

• BIT RATE rotary switch: Set BRI to position 7 (CLK1).

• Jumper J7: If the equipment attached to the sub-channel 1 is DCE, strap to NORMAL. If the equipment

is DTE, strap to FROM EXT DTE.

NOTE: Synchronization on sub-channel 1 is not recommended when the device attached to sub-channel

1 operates in switched carrier mode. This will cause fluctuations in clock frequency and phase.

4. Synchronization on equipment attached to any sub-channel (PSD-8 only).

• Main channel: Equipment attached to the main channel can be set to internal or external clock.

• Sub-channels: Equipment attached to the sub-channels can be set to internal or external clock.

Otros manuales para TL304A

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Módem de Black Box

Black Box

Black Box LDM-MR 19.2 Manual de usuario

Black Box

Black Box RM1600 Manual de usuario

Black Box

Black Box ME760A-R2 Manual de usuario

Black Box

Black Box MicroNTU G.703 Series Manual de usuario

Black Box

Black Box MDR100A-R4 Manual de usuario

Black Box

Black Box ME251A-R3 Manual de usuario

Black Box

Black Box Sync/Async Fiber Optic Modem Manual de usuario

Black Box

Black Box SHM-NPR/RJ-45 Series Manual de usuario

Black Box

Black Box 202T Manual de usuario

Black Box

Black Box ME376A-R2 Manual de usuario

Black Box

Black Box ME621A Manual de usuario

Black Box

Black Box Mini-Modem V.92 MD1626A Manual de usuario

Black Box

Black Box SHM-768K Series Manual de usuario

Black Box

Black Box MD960A Manual de usuario

Black Box

Black Box MX320A-HS Manual de usuario

Black Box

Black Box ME0004C-G703 Manual de usuario

Black Box

Black Box MT618A-ST-R2 Manual de usuario

Black Box

Black Box TL555A Manual de usuario

Black Box

Black Box ME800A-PLUS-R2 Manual de usuario

Black Box

Black Box LES1204A-3G Manual de usuario

Black Box

Black Box G.703 NTU w/V35 Manual de usuario

Black Box

Black Box USR5686E Manual de usuario

Black Box

Black Box ME605A-FST Manual de usuario

Black Box

Black Box MD1970A Manual de usuario

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
