Black Box ICU504A Manual de usuario

STEP X - Name of Step

24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM

ICU504A

U S B 3.1

EXTENDER

QUICK START GUIDE

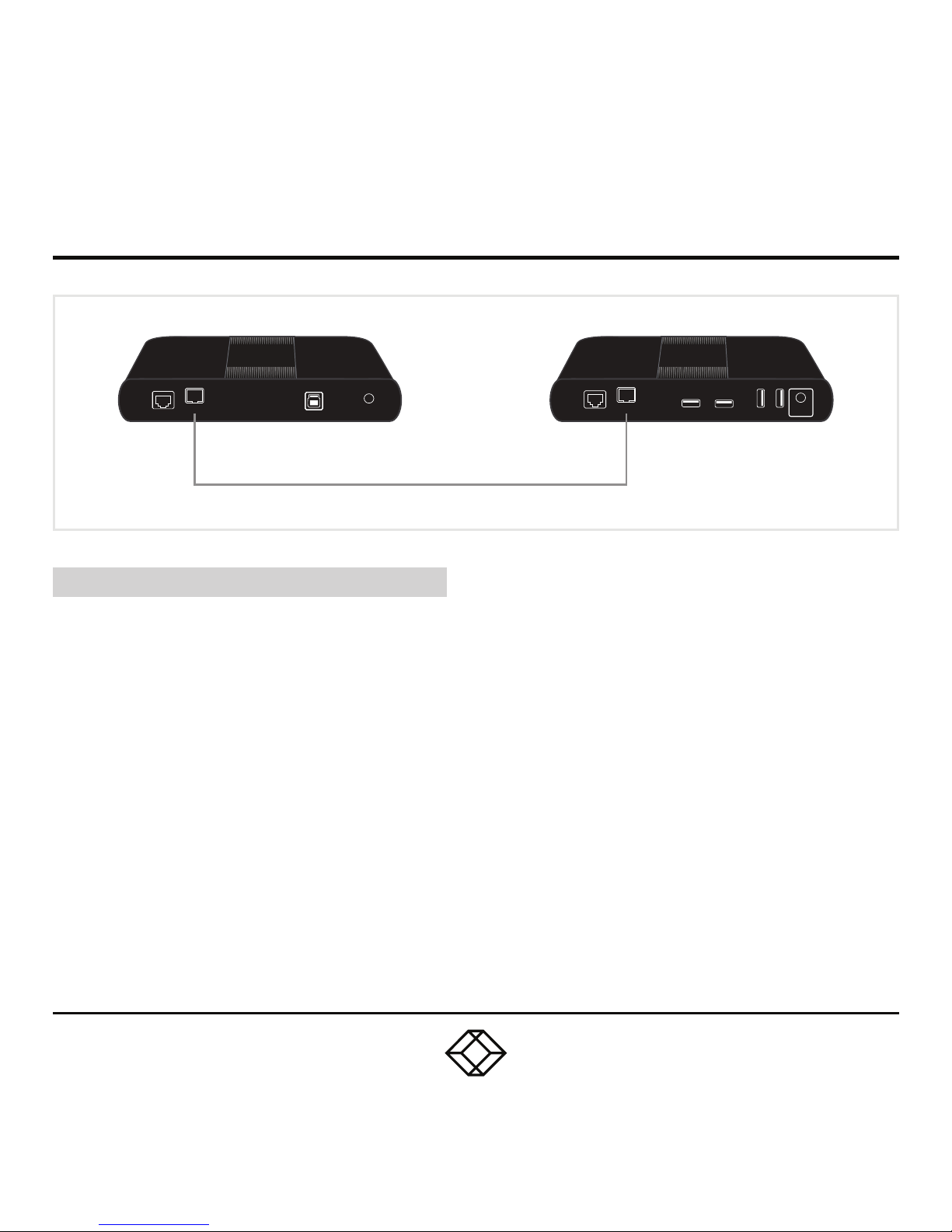

STEP 1 - Connect Local to Remote via CAT6a/7 cable

CONNECT LOCAL TO REMOTE

Place the units where desired, and connect

the CAT6a/7 cable to the Link ports on the

Local and Remote Extenders.

Local Extender (back view) Remote Extender (back view)

(CAT 6a/7 Cable not included)

24V 1AUSBLAN

Link

24V 2.71AUSB USB USB USBLAN

Link

Maximum 328 ft. (100 m) CAT 6a/7 Cable

STEP 2 - Connect the Local Extender to your computer

Connect the Local Extender to the

computer's USB 3 port using the included

USB cable.

Local Extender (back view)

24V 1AUSBLAN

Link

PC

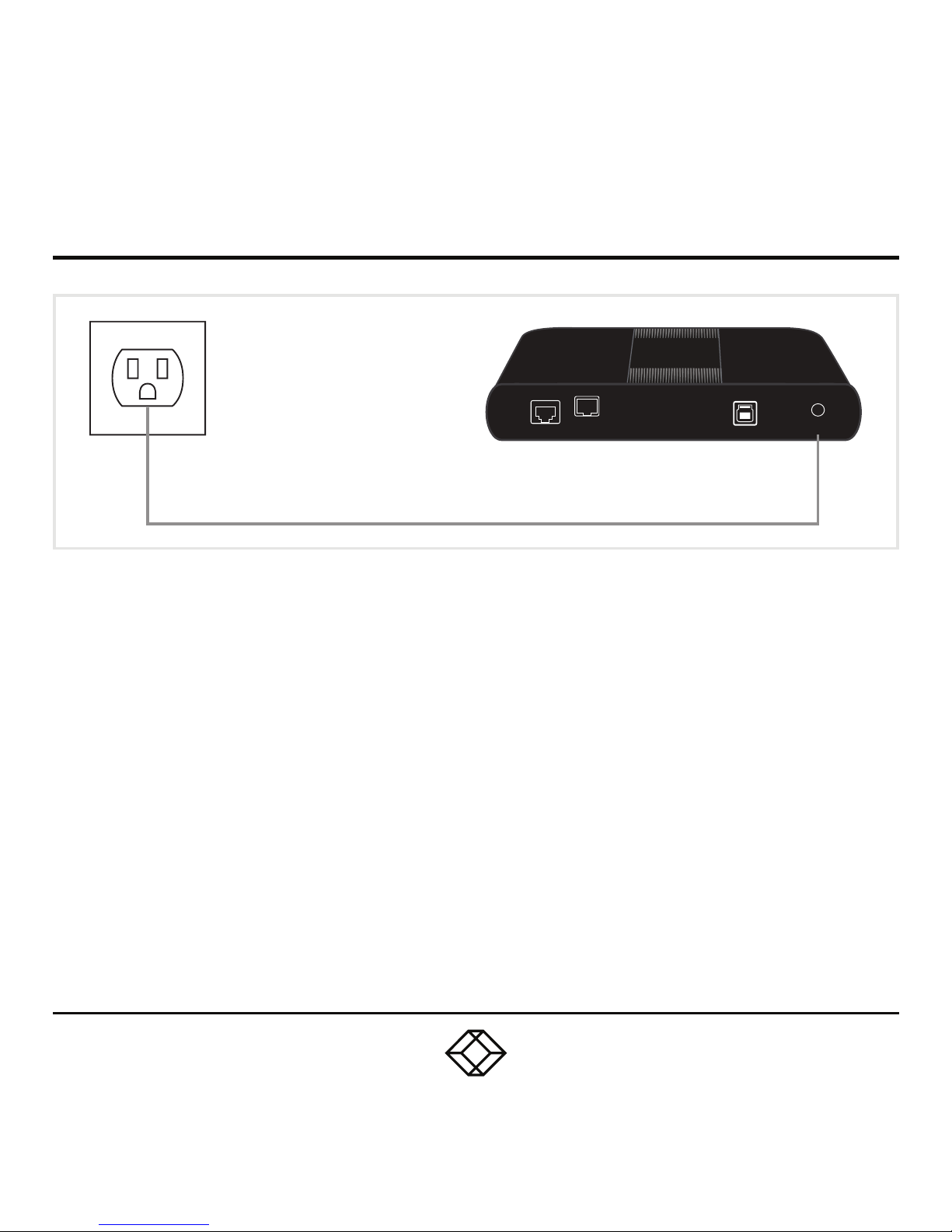

STEP 3 - Power the Local Extender

Power the Local Extender with the included

24-V, 1-A AC adapter and tighten the

locking ring.

Local Extender (back view)

24V 1AUSBLAN

Link

STEP 4 - Power the Remote Extender

Power the Remote Extender with the

included 24-V, 2.71-A AC adapter and

tighten the locking ring.

Remote Extender (back view)

24V 2.71AUSBUSB USB USBLAN

Link

STEP 5 - Attach the USB device(s) to the Remote Extender

Remote Extender (back view)

24V 2.71AUSBUSB USB USBLAN

Link

STEP 6 - Optional: Connect to a LAN network or device

OPTIONAL: DOWNLOAD USER MANUAL

For product specifications and regulatory information,

refer to the User Manual. You can download this

document from our web site.

1. Go to www.blackbox.com

2. Enter the part number (ICU504A) in the search box.

3. Click on the product in the “Product Results” page.

4. Click on the “Support” tab on the product page,

and select the document you wish to download.

If you have any trouble accessing the Black Box

site to download the manual, you can contact

our Technical Support at 877-877-2269

or info@blackbox.com

Local/Remote Extender LAN Port

LAN

Optional: Connect Local and Remote Extender

LAN ports to a network or device as necessary.

STEP X - Name of Step

COPYRIGHT 2018. BLACK BOX CORPORATION. ALL RIGHTS RESERVED.

ICU504A_QSG_REV1.PDF
