Biostar K8T800-A7A Manual de usuario
K8T800-A7A
i
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
Table of Contents
ii
Chapter 1: Introduction .............................................................. 1
1.1 Motherboard Features ..................................................................... 1
1.2 Layout and Components................................................................. 4
Chapter 2: Hardware Installation ............................................ 5
2.1 Installing Central Processing Unit (CPU) ..................................... 5
2.2 FAN Headers .................................................................................... 6
2.3 Installing System Memory .............................................................. 7
2.4 Connectors and Slots ....................................................................... 8
Chapter 3: Headers & Jumpers Setup .................................. 10
3.1 How to Setup Jumpers .................................................................. 10
3.2 Detail Settings ................................................................................. 10
Chapter 4: Useful Help........................................................... 16
4.1 Award BIOS Beep Code ................................................................ 16
4.2 Extra Information ........................................................................... 16
4.3 Troubleshooting ............................................................................. 18
Chapter 5: WarpSpeeder™....................................................... 19
5.1 Introduction .................................................................................... 19
5.2 System Requirement ...................................................................... 19
5.3 Installation....................................................................................... 20
5.4 [WarpSpeeder™] includes 1 tray icon and 5 panels.................. 21
K8T800-A7A
1
CHAPTER 1: INTRODUCTION
1.1 MOTHERBOARD FEATURES
CPU
Supports Socket 754.
Supports AMD Athlon 64 processor up to 3700+.
Supports AMD Sempron processor.
Supports HyperTransport Technology up to 1600MT/s.
Chipset
North Bridge: VIA K8T800.
South Bridge: VIA VT8237R Plus.
Dimensions
ATX Form Factor: 19.00cm (W) x 29.31cm (L)
Slot
Five 32bit PCI bus master slots.
One AGP 4x/8x compatible slot.
On-board IDE
Two on-board connectors support 4 IDE disk drives.
Supports PIO mode 0~4.
Supports Ultra DMA 33/ 66/100/133 Bus Master Mode.
System Memory
Supports up to 2 DDR devices.
Supports DDR-266/333/400.
Maximum memory size is up to 2GB. (Following table is for
reference only.)
Registered memory are not supported.
Supports Non-ECC memory only.
DIMM Socket
Location DDR Module Total Memory Size
DIMM1 128MB/256MB/512MB/1GB *1
DIMM2 128MB/256MB/512MB/1GB *1 Max is 2 GB.
K8T800-A7A
2
Super I/O
Chip: ITE 8705AF.
Low Pin Count Interface.
Provides the most commonly used legacy Super I/O
functionality.
Environment Control initiatives,
H/W Monitor
Fan Speed Controller
ITE's "Smart Guardian" function
Operating System Supporting
Supports Windows 2000 and Windows XP.
Note: Do not support Windows 98SE and Windows ME.
Onboard AC’97 Sound CODEC
Chip: REALTEK ALC655.
Support 6 channels.
Supports S/PDIF out function.
Compliant with AC’97 Version 2.3 specification.
Onboard Serial ATA
Controller integrated in VT8237R Plus.
Supports RAID 0 and RAID 1 functions.
Supports 2 serial ATA (SATA) ports.
-Data transfer rates up to 150 MB/s.
-Compliant with SATA Version 1.0 specification.
10/100 LAN PHY
PHY: RTL8201BL / CL.
Supports 10 Mb/s and 100 Mb/s auto-negotiation.
Half/Full duplex capability.
Supports ACPI, PCI power management.
K8T800-A7A
3
Internal On-board I/O Connectors and Headers
1 front panel header supports front panel facilities.
1 CD-in connector supports 1 CD-ROM audio-in device.
1 front audio header supports front panel audio function.
1 S/PDIF-Out connector supports digital audio-out function.
1 chassis open header supports PC case-opened warning
function.
1 FDD connector supports 2 Floppy drives with 360K, 720K,
1.2M, 1.44M and 2.88Mbytes.
2 IDE connectors support 4 IDE devices.
2 Serial ATA connectors support 2 SATA devices.
3 USB headers support 6 USB 2.0 ports at front panel. (JUSB3
is optional)
Back Panel I/O Connectors
2 USB 2.0 ports.
1 Serial port.
1 Game port.
1 Printer port.
1 RJ-45 LAN jack.
1 PS/2 Mouse port.
1 PS/2 Keyboard port.
1 Audio port including 1 Speaker-out connector, 1 Line-in
connector, and 1 MIC-in connector.
Line In
Speaker Out Mic In
LAN
USB x2
PS/2
Keyboard
PS/2
Mouse Printer port
COM1
GAME Port
K8T800-A7A
4
1.2 LAYOUT AND COMPONENTS
DIMM1
DIMM2
FDD1
K8T800
VT8237R
PLUS
JATXPWR1
JCDIN1
JUSB2 JUSB3(optional)
JUSBV2
JSATA2
JSATA1
JCMOS1
JCI1
JCFAN1
JSFAN1
Codec
JPANEL1
LAN
PHY
Super I/O
BIOS
BAT1
Socket 754
CPU1
JUSBLAN1
PCI1
PCI3
PCI2
AGP1
JKBMS1
JAUDIO2
JSPDIF_OUT1
JATXPWR2
JPRNT1
JCO
M1
JUSBV1
JGamePort
JAUD_GAME
JUSB1
IDE2
IDE1
PCI4
PCI5
IrDA
(optional)
Note: represents the 1st pin.
K8T800-A7A
5
CHAPTER 2: HARDWARE INSTALLATION

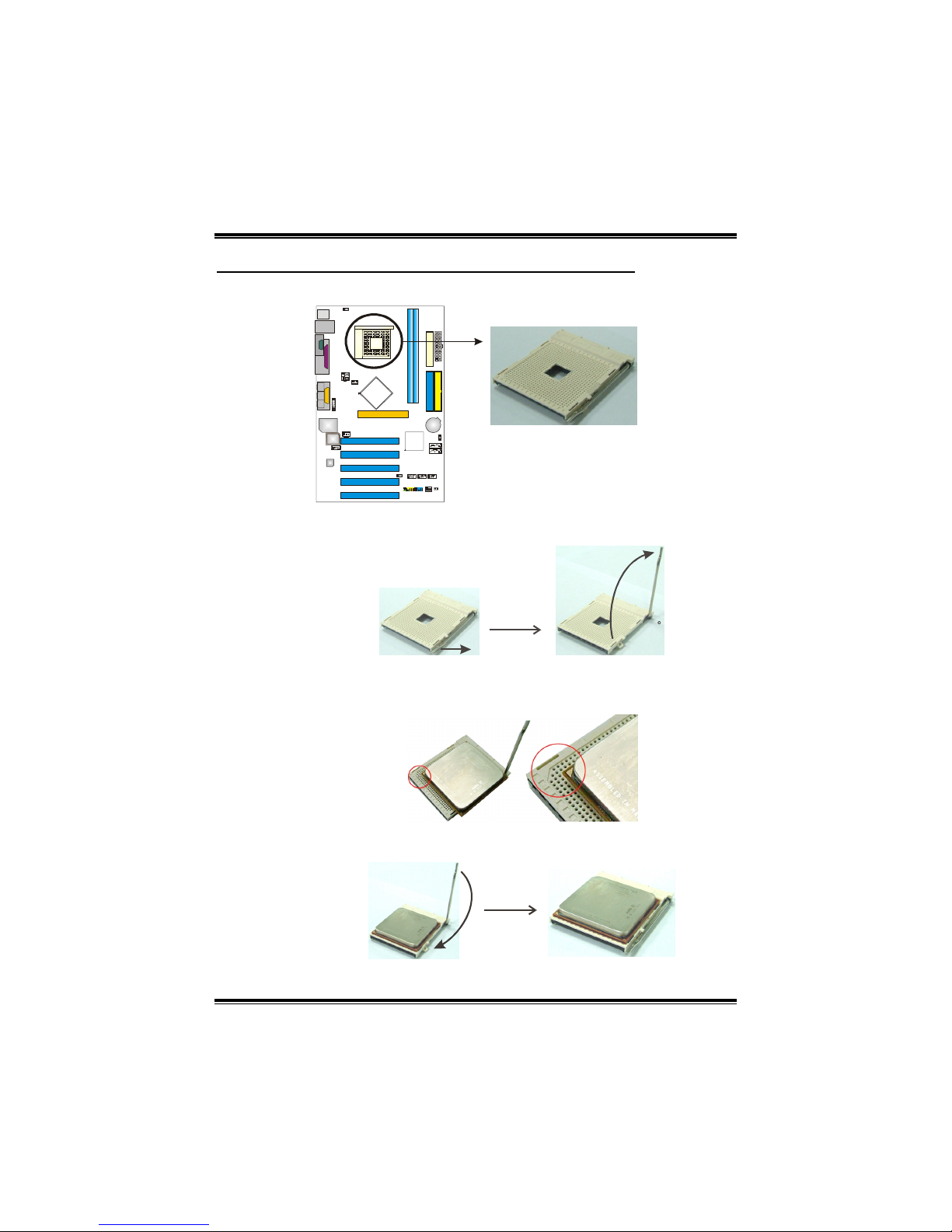

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
Step 1: Pull the lever toward direction A from the socket and then raise the
lever up to a 90-degree angle.
90
A
Step 2: Look for the cut edge on socket, and the gold triangle on CPU
should point forwards this cut edge. The CPU will fit only in the
correct orientation.
Step 3: Hold the CPU down firmly, and then close the lever to complete
the installation.
Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.
K8T800-A7A
6
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
JSFAN1
3
1
JCFAN1
3
1
3 FAN RPM rate
sense
Note:
The JCFAN1 and JSFAN1 support 3-pin head connector. When connecting with wires
onto connectors, please note that the red wire is the positive and should be connected to
pin#2, and the black wire is Ground and should be connected to GND.
K8T800-A7A
7
2.3 INSTALLING SYSTEM MEMORY
DIMM1
DIMM2
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
K8T800-A7A
8
2.4 CONNECTORS AND SLOTS
FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
This connector supports the provided floppy drive ribbon cables.
34 33
12
IDE1/IDE2: Hard Disk Connectors
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDE connectors can connect a master and a slave drive, so
you can connect up to four hard disk drives. The first hard drive
should always be connected to IDE1.
IDE2IDE1
21
3940
