Billion BiPAC 7402(G)X(L) Series Manual de usuario

BiPAC 7402(G)X(L) Series

3G/ADSL2+ (802.11g) (VPN)

Firewall Router

Quick Start Guide

Billion BiPAC 7402(G)X(L) Series ADSL2+ Router

- 1 -

Package Contents

BiPAC 7402(G)X(L) Series ADSL2+ Router

CD containing the on-line manual

RJ-11 ADSL/telephone cable

Ethernet (CAT-5 LAN) cable

One 2dbi detachable antenna (Optional)

AC-DC power adapter (12V DC, 1.2A)

RJ-45 to RS-232 Console Kit

This Quick Start Guide

Splitter/ Micro-filter (Optional)

Attention

Warning

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER’S MANUAL ON

CD-ROM.



Do not use the

router

in high humidity or h

igh temperatures.

Do not use the same power source for the router as other

equipment.

Do not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.



Avoid using this

pro

duct

and all

accessories

outdoors.



Place the router on a stable surface.

Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

Quick Start Guide

- 2 -

Hardware Overview

The Front LEDs

The Rear Ports

Connect the

supplied power

adapter to this jack

Connect the supplied

RJ-11 cable to this port

when connecting to the

ADSL/telephone

network

Connect your computer

to a LAN port, using the

included Ethernet cable

Connect the

detachable antenna

Lit when connected to

an Ethernet device.

Green for 100Mbps;

Orange for 10Mbps.

Blinking when data is

Transmitted / Received

Lit green when IP connected

Flashes green when IP connected and

IP traffic is passing thru the device.

Lit red when device attempted to

become IP connected and failed

Lit when power i

s ON.

Lit red when POST

(Power On Self Test)

failure (not bootable) or

device malfunctions

Lit green when the wireless

connection is made.

Flashes when sending/receiving data.

Flashes regularly when WPS is active

Lit green when

successfully

connected to an

ADSL DSLAM

(“line sync”)

Lit

and

flashed

periodically

when there is

email in the

Inbox

Press it to reset the

device or restore to

factory default

settings

Push WPS button to

trigger Wi-Fi Protected

Setup

BiPAC 7402X(L) does not support 802.11g and WPS functions.

Power ON/

OFF switch

3G/ HSDPA USB

modem backup

for Internet

Lit

green when the

USB device is ready.

Flashes when

sending/ receiving

data.

Billion BiPAC 7402(G)X(L) Series ADSL2+ Router

- 3 -

Hardware Connection

Hardware Installation

1. Power Connection

Plug the supplied power adapter to the wall jack and the other side to the router.

Please note that the plug type may differ according to different countries.

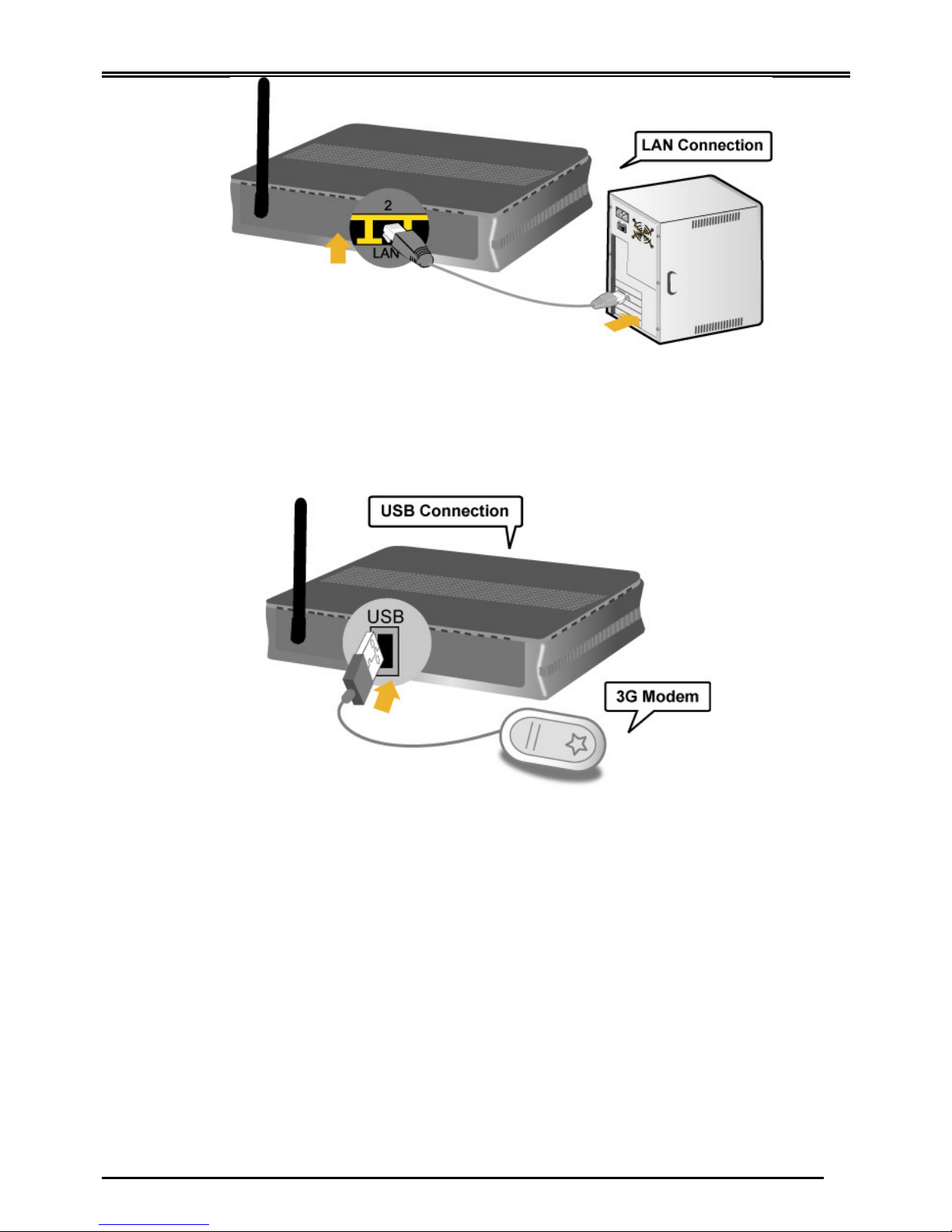

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the

other side to the PC’s Ethernet interface.

Quick Start Guide

- 4 -

3. USB Connection

The USB 2.0 port supports 3G/HSDPA modem connectivity; users can even more

conveniently enter access with 3G service to eliminate the limitation of the wired

network and extends the last-mile service wirelessly. Incorporated the wired

environment, the solution applies the auto fail-over feature to provide various

applications and ensure always-on connectivity for SOHO users.

Billion BiPAC 7402(G)X(L) Series ADSL2+ Router

- 5 -

4. ADSL Connection

Connect the supplied RJ-11 phone cable to the router’s ADSL port, and the other

side to the phone jack on the wall.

5. Splitter/ Micro-filter Connection

Splitter / Micro-filter are important for ADSL installation. It helps high-

frequency

signals are directed to the ADSL modem, and low-

frequency signals are directed to

the telephone or other analog voice-channel device to prevent inter-

modulation

distortion and get good speed and stable ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can be employed.

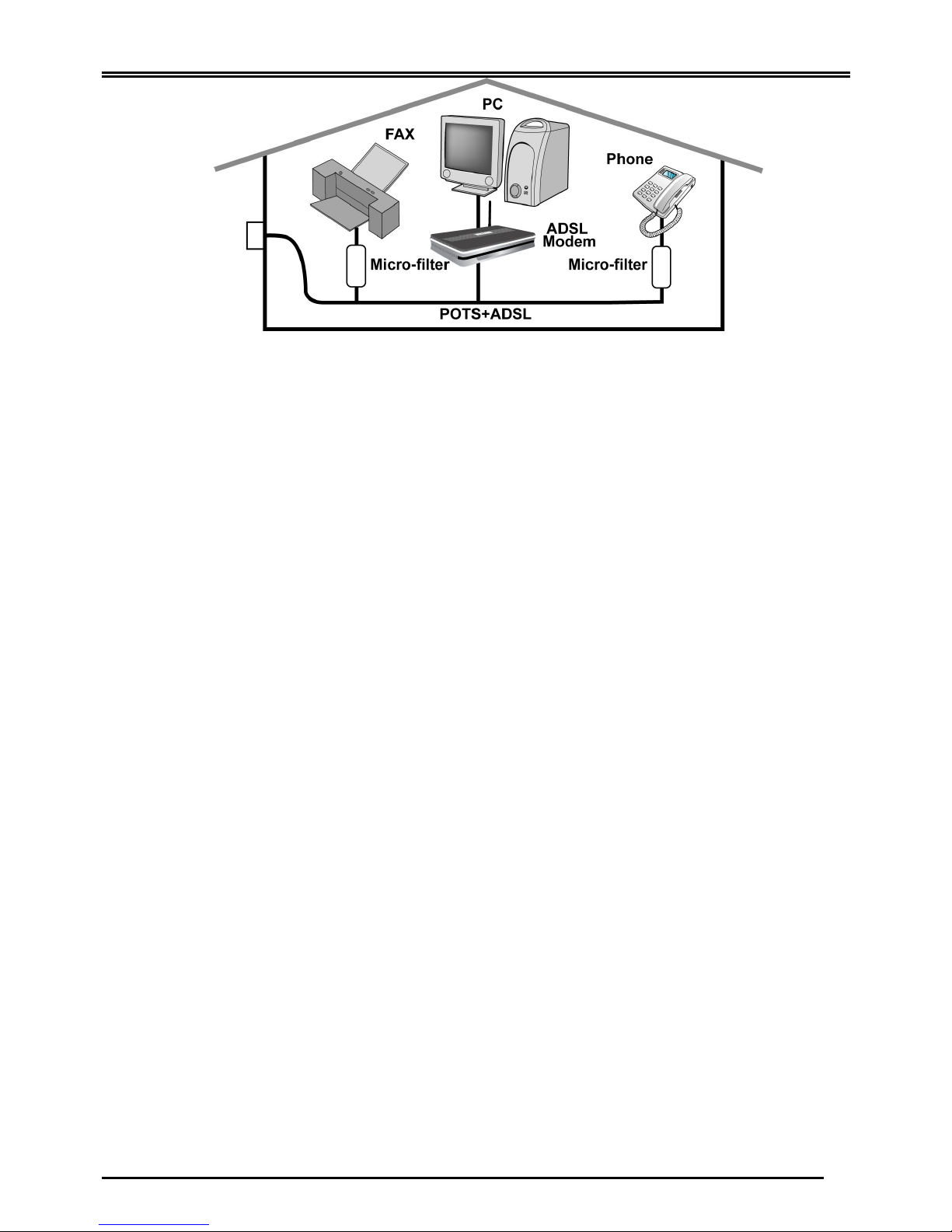

b) Micro-filter connection

If the installation has several telephones or other analog devi

ces, then an internal

micro-filter can be employed at each analog device.

Quick Start Guide

- 6 -

Setup Utility

After you complete the hardware installation, insert the CD-ROM to the CD-ROM drive to

perform Setup Utility for network configuration. The Setup Utility will auto-run. Follow the

step-by-step configuration wizard, the utility will guide you complete the basic network

configuration.

Troubleshooting

1. None of the LEDs are on when you turn on the router.

Check the connection between the adapter and the router. If the error persists, you may have

a hardware problem. In this case you should contact technical support.

2. You have forgotten your router login and/or password.

Try the default login and password, please refer to Chapter 3. If this fails, you can restore

your router to its factory settings by holding the Reset button on the back of your router for 6

seconds or more.

3. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC

connected. If it is off, check the cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. Verify that the IP address and the subnet

mask are consistent between the router and the workstations.

4. Frequent loss of ADSL linesync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them and

the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

problems with your ADSL connection, including causing frequent disconnections. If you have

a back-to-base alarm system you should contact your security provider for a technician to

make any necessary changes.

Billion BiPAC 7402(G)X(L) Series ADSL2+ Router

- 7 -

Product Support and Contact Information

Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.

If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

Contact Billion

WORLDWIDE

http://www.billion.com

7402(G)X

(L)

eries

V100EN
