Bigassfans HAIKU L Manual de usuario
Installation Guide
Guide d’installation
Guía de instalación
bigassfans.com
HAIKU®L
FR127C-U1H
FR150C-U1H
FR127C-U1J
FR150C-U1J
FR112C-U1H
Rev. U
01/18/2024
CONTENTS
Specifications.................................................................................................. 1
Before You Start............................................................................................ 2
Fan Installation .............................................................................................. 5
Troubleshooting..........................................................................................22
Maintenance ................................................................................................24
Contact Us....................................................................................................25
READ AND SAVE THESE INSTRUCTIONS
1
SPECIFICATIONS
Model Mounting Input Voltage Maximum
Weight
Maximum
Watts
FR127C-U1H
Flat or sloped
ceilings 8 ft
(2.4 m) or taller
100–240 VAC,
1 Φ, 50/60 Hz
13.89 lb (6.3 kg) 39 W
FR150C-U1H 14.33 lb (6.5 kg) 55 W
FR127C-U1J 13.45 lb (6.1 kg) 33 W
FR150C-U1J 13.89 lb (6.3 kg) 34 W
FR112C-U1H 13.45 lb (6.1 kg) 36 W
2
BEFORE YOU START
☑Turn O Power at Breaker
Contact an electrician if you are uncomfortable
performing electrical work. A licensed electrician
must install the fan if required by local code.
☑Prepare Fan Site and Gather Hardware
CAUTION
Do not use the fan with a dimmer switch or a third-party switch.
Outlet Box: Make sure your outlet box is suitable for fan support. If there is not an
outlet box at the fan location, install one on a ceiling joist or beam. You will need to
supply two 10-32 screws for attaching the fan mounting bracket to the outlet box.
Concrete Ceiling: You will need to supply four M6 anchor bolts* for attaching the
fan mounting bracket to the ceiling. If required by your local building and safety
codes, you will also need to supply an M6 anchor hook* for the safety cable. See
page 4 for hardware specifications and installation details.
Wood Ceiling Joist: You will need to supply two corrosion-resistant 12-11 x 45mm
hex head timber screws with seal for attaching the fan mounting bracket directly to
the joist. If required by local code, mount or embed an outlet box into the joist. The
outlet box must be suitable for fan support.
Exposed Outdoor Locations**: Wet-rated fans installed in exposed outdoor
locations must have fixed/permanent coverage above the fan wiring cover, must
be installed in a GFCI protected branch circuit, and can be mounted to flat ceilings
only.
☑Gather Tools
*If anchor bolts and anchor hook are included with your fan, use them for concrete mounting.
**When installing the fan in an exposed outdoor location, use only light kits marked “Suitable for Use in
Wet Locations.”
3
BEFORE YOU START
☑Check Ceiling Slope
Consult the table below to make sure you have the appropriate downrod length
for your ceiling slope. The fan can be installed on a flat or sloped ceiling with an
angle no greater than 33° (approximately 8:12 roof pitch). For minimum clearance
guidelines, consult the Important Safety Instructions booklet included with this
installation guide.
Ceiling
Height
Fan
Diameter
Downrod
Length
Maximum Ceiling
Slope (Indoor Only)*
≥ 8 ft
(≥ 2.4 m)
44 in. (112 cm) 5 in. (128.5 mm) Flat
52 in. (132 cm)
≥ 9 ft
(≥ 2.7 m)
44 in. (112 cm) 10 in. (256 mm) 10°
52 in. (132 cm)
≥ 10 ft
(≥ 3 m)
44 in. (112 cm) 22 in. (561 mm) 32°
52 in. (132 cm)
≥ 11 ft
(≥ 3.4 m)
44 in. (112 cm) 34.8 in. (884 mm) 33°
52 in. (132 cm)
≥ 12 ft
(≥ 3.7 m)
44 in. (112 cm) 50.8 in. (1291 mm) 33°
52 in. (132 cm)
≥ 13 ft
(≥ 4 m)
44 in. (112 cm) 62.8 in. (1595 mm) 33°
52 in. (132 cm)
*Wet-rated fans installed in exposed outdoor locations can be mounted to flat ceilings only.
4
BEFORE YOU START

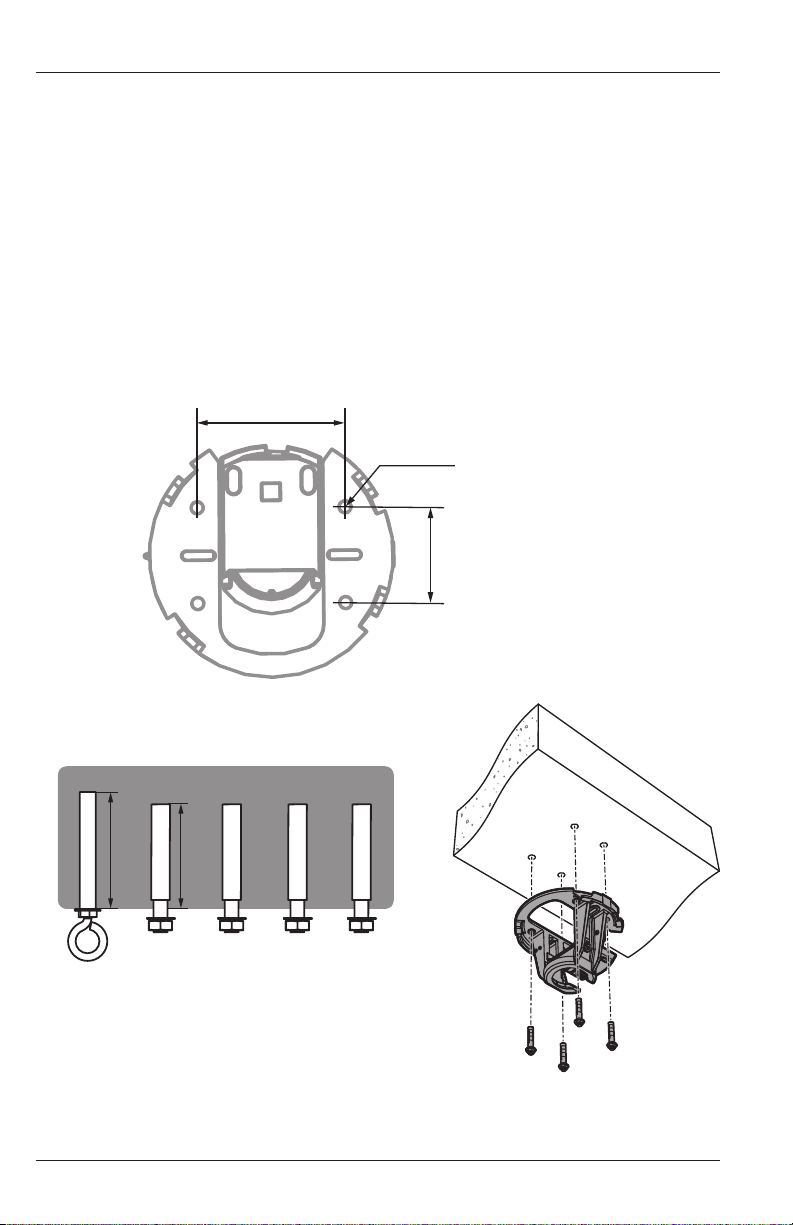

☑Prepare Concrete Ceiling (if applicable)
Use mounting bracket as drilling template and drill four Ø 8 mm holes in concrete
ceiling (Fig. 1). The hole depth should not exceed 40 mm (Fig. 2).
Remove dust from holes. Insert four M6 anchor bolts* into holes. Strike the heads
of the anchor bolts with a hammer, ensuring bolt sleeves are flush with ceiling
surface. Position mounting bracket on anchor bolts (Fig. 3). Ensure all anchor bolts
are fully tightened to expand and lock the anchors.
If required by local building and safety codes, install an M6 anchor hook* for the
safety cable. Drill an Ø 8 mm hole for the anchor hook. The hole depth should not
exceed 50 mm (Fig. 2). Remove dust from hole, and then insert the anchor hook
and fully tighten.
*If anchor bolts and anchor hook are included with your fan, use them for concrete mounting.
Fig. 1
Fig. 2
50 mm max
40 mm max
Fig. 3
88 mm
57 mm
Ø 8 mm
5
Mounting
Bracket
Downrod
Steel Pin
Wiring Cover
M8 x 33 mm Bolt M8
Washer
and Nut
Motor Cover Trim
Motor Cover
(6) M5 x 12 mm Screws
Motor Unit
(3) Airfoils
Control Box
Fan Stabilizer*
(2) M3 x 20 mm
Screws*
Wedge,
Wedge Screw,
Mounting Ball
FAN INSTALLATION
The fan stabilizer is required for outdoor installations and is for use on
flat ceilings only.
Electrical wires and safety cable not shown.
(3) M3 x 6 mm Screws
*Included only with outdoor fans.
6
FAN INSTALLATION
Hardware included
Airfoil Hardware–Step 3
Upper Mounting Hardware–Step 7
x1 Steel Pin x1
Wedge Screw
x1
Wedge
x6 M5 x 12 mm Screw
Motor Cover Hardware–Step 4
x3
x1
Lower Mounting Hardware–Step 5
Safety Cable Shackle–Step 11
x1
Shackle
x1 x1
M8 x 33 mm Bolt M8 Washer M8 Nut
M3 x 6 mm Screw
Fan Stabilizer Hardware–Step 12*
x2 M3 x 20 mm Screw
*Included only with outdoor fans.
7
FAN INSTALLATION
1. Install mounting bracket
WARNING
Disconnect power to fan location before installing mounting bracket.
Mount only to an outlet box marked acceptable for fan support.
Secure mounting bracket to mounting structure with suitable hardware (not supplied)
(Fig. 1). Outlet box shown. Your mounting structure may dier. Mounting bracket
electrical wires not shown.
Suitable Mounting Hardware
(not supplied)
Mounting Bracket
Fig. 1
8
FAN INSTALLATION
2. Wire fan
WARNING
Disconnect power to fan location before wiring fan.
Do not connect fan to a damaged power source. Do not attempt to resolve
electrical failures on your own. Consult a qualified electrician if uncertain of the
electrical installation of this fan.
Do not use the fan with a dimmer switch or a third-party switch.
Connect wires from mounting bracket to supply power wires (Fig. 2). Carefully tuck
wiring into outlet box or building structure so that only the wiring harness is hanging
out. Ensure wire connectors are turned upward and that wires are spread apart
with grounded conductors on one side of the outlet box/mounting structure and
ungrounded conductors on the other side.
Supply Power Wire Colors
North America
100–120 V Australia All other regions
AC Hot/L1
Brown Black Brown or Red Brown
AC Neutral/L2
Blue White Black or Light Blue Blue
PE/Earth Ground
Green with Yellow
Green or Bare
Copper Green with Yellow Green with Yellow
