Beta Three SS Series Manual de usuario

S2153

User Manual

Two Way Full Range

Speaker With Dual 15" Woofers

UM- S 21 5 3 I I - 2 0 1 7 0 6 2 0 Ve r BE

All manuals and user guides at all-guides.com

all-guides.com

10.

Read the instruction first before using this product.

Pay attention to all warnings.

Obey all operating instructions.

Do not expose this product to rain or moisture.

Do not block any ventilation openings. Install according to instructions .

Do not install this product near any heat source, such as , heater, burner, or any other equipment with heat radiation .

Only use spare parts by manufacturer.

Pay attention to the safety symbol on the of the cover.

manual

Please keep this manual for future reference

Clean this equipment with a dry cloth.

manufacturer's

supplied the

outside

SAFETY INSTRUCTIONS

PLEASE READ THIS MANUAL FIRST

Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual

for future reference.

WARNING:

This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with

the product, please ensure they comply with the local safety codes.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important

operating and servicing instructions.

ATTENTION: Don't refit the system or spare parts without being authorized as this will .void the warranty

WARNING: Don't (such as candles) the equipment.place naked flames close to

英文说明书

专业音箱版本第2页共10页

文件（图）号

东莞市三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）

101.05.0009.00482

三基/β3/ΣS2153Ⅱ

All manuals and user guides at all-guides.com

S2153

CONTENT

Features

Description

Applications

Frequency Response And Impedance Curve

CONTENT

CONNECTION

Terminal Plate

NL4 Connection

INSTALLATION

Installation Reference

INTRODUCTION

System Connection Reference

Technical Sheet

Frequency Response And Impedance Curve

2D Dimension

TECHNICAL SPECIFICATION

Product information updated without

notification, please visit www.elderaudio.com for

latest update.

may be

Mounting Accessories

Dual 15" Two Way Full Range Speaker

英文说明书

专业音箱版本第3页共10页

文件（图）号

东莞市三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）

101.05.0009.00482

三基/β3/ΣS2153Ⅱ

All manuals and user guides at all-guides.com

S2153

Dual 15" Two Way Full Range Speaker

INTODUCTION

Dual 15" Two Way Full Range Speaker

3-transducer 2-way Full Range Speaker.

Two 15 High Power LF Driver."

One 3 HF Driver."

0 0

Dispersion( H x V ): 60 x 40 .

Frequency Response 45Hz – 16kHz (-3dB).

Sensitivity 98dB, MAX. SPL 126dB/132dB(PEAK).

Rated Power 750W(RMS), 3000W(PEAK).

Description

Features

Applications

β3 ΣS

ΣS2153II

ΣS

ΣS2153II

ΣS

series speakers are special designed for various

entertainment applications such as: Bars, Clubs, night clubs,

touring and sound reinforcement for portable systems.

the cabinet is with trapezoid section design, it`s easy

for making Line Array system . design can decline the internal

stationary wave, it takes high density MDF board which is

intensive enough, it can absorb strange sound caused by the

resonance of the cabinet, series are standard hanging

structure design, SPK input connectors, it`s easy for installation

and use.

products are developed with the latest computer

aided simulation design combined with latest material and

producing technology. series curves can satisfy the

passionate demand in KTVs, all loudspeakers we adopt

optimized high magnetic, low distortion, better ventilation

and cooling magnetic system, the LF woofers we adopt voice

coil with special impedance adhesive and unparallel thickness

paper box and high power. The tweeter part we adopt high-

temperature treated metal titanium membrane, rectangle coil

with aluminum in cooper wires and compression cavity with

line array phase design, it can obtain broader sound coverage

with high dispersion horn, and also equipped with our latest

adjustable-delay protection circuit, which will greatly improve

reliability without any loss on sound quality, the LF units we

adopt 100mm voice coil and 200mm diameter magnetic circuit,

which will effectively eliminate distortion.

. .

Bars and Dancing halls

KTVs

Night Clubs

Touring

DJ`s

Clubs

英文说明书

专业音箱版本第4页共10页

文件（图）号

东莞市三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）

101.05.0009.00482

三基/β3/ΣS2153Ⅱ

All manuals and user guides at all-guides.com

S2153

INPUT

OUTPUT

S2153

CHA

BRI DGE IN

CHB

SIGN AL GND

SIGN AL +

SIGN AL -

BRID GE

PARAL LEL

STER EO ON

OFF

50HZ

25HZ

OFF

CHB O UTPUT

CHA O UTPUT

POW ER

CAB LE

FUS E

5HZ

CAUTION

BRI DGE

OUT PUT ASSI GNMEN T:

BRI DGE MON O OUTPU T:

CHA :

PIN1 + : SIG NAL GND

CHA:

PIN 1+ :

PIN 1 - :

PIN 2+ :

PIN 2 - :

CHA SIG NAL

CHA GND

CHB SI GNAL

CHB GN D

CHB: PIN 1+ :

PIN 1 - :

PIN 2+ :

PIN 2 - :

CHB SI GNAL

CHB GN D

PIN2 + :

Ser ial no:

Special design for big power！

RISK OF ELECTRIC SHOCK

DO NOT OPEN

MOD E LF FILTER GRO UND

CLI PLIMI TER

INP UT

PIN1 :

PIN2 :

PIN3 :

LOW

HIGH

1+ 1- INPUT

INP UT

OUT PUT

No.:

DON GGUAN 3G AU DIO TECH NOLOG Y CO., LTD.

1+ 1- : INPUT

War rant y doe s not

cover damage caused

by incor rec t in sta llati on,

operation or ov erl oad.

SEN SITIVI TY(1W /1m)

IMP EDANCE

NET WE IGHT

98d B

4Ω

63k g

POW ER(RMS )

FRE QUENCY 4 5Hz-16 kHz

750 W

S2153

INPUT

OUTPUT

LOW

Terminal Plate

CONNECTION

Two NL4 connectors are available for amplifier connection. Paralelled connector is very convenient for another speaker

connection.

System Connection Reference

Attention: The impedance of connected speaker must match the impedance of amplifier output.

Attention: Make sure the polarity of speaker and amplifier correctly.

NL4 Connection

Crossover

1. Connect 2. Disconnect

Dual 15" Two Way Full Range Speaker

英文说明书

专业音箱版本第5页共10页

文件（图）号

东莞市三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）

101.05.0009.00482

三基/β3/ΣS2153Ⅱ

All manuals and user guides at all-guides.com

S2153

Dual 15" Two Way Full Range Speaker

Warning: Make sure the mounting accessories

safety factor not less than 5:1 or meet the local

standard during installation .

1. Ceiling

2.Support

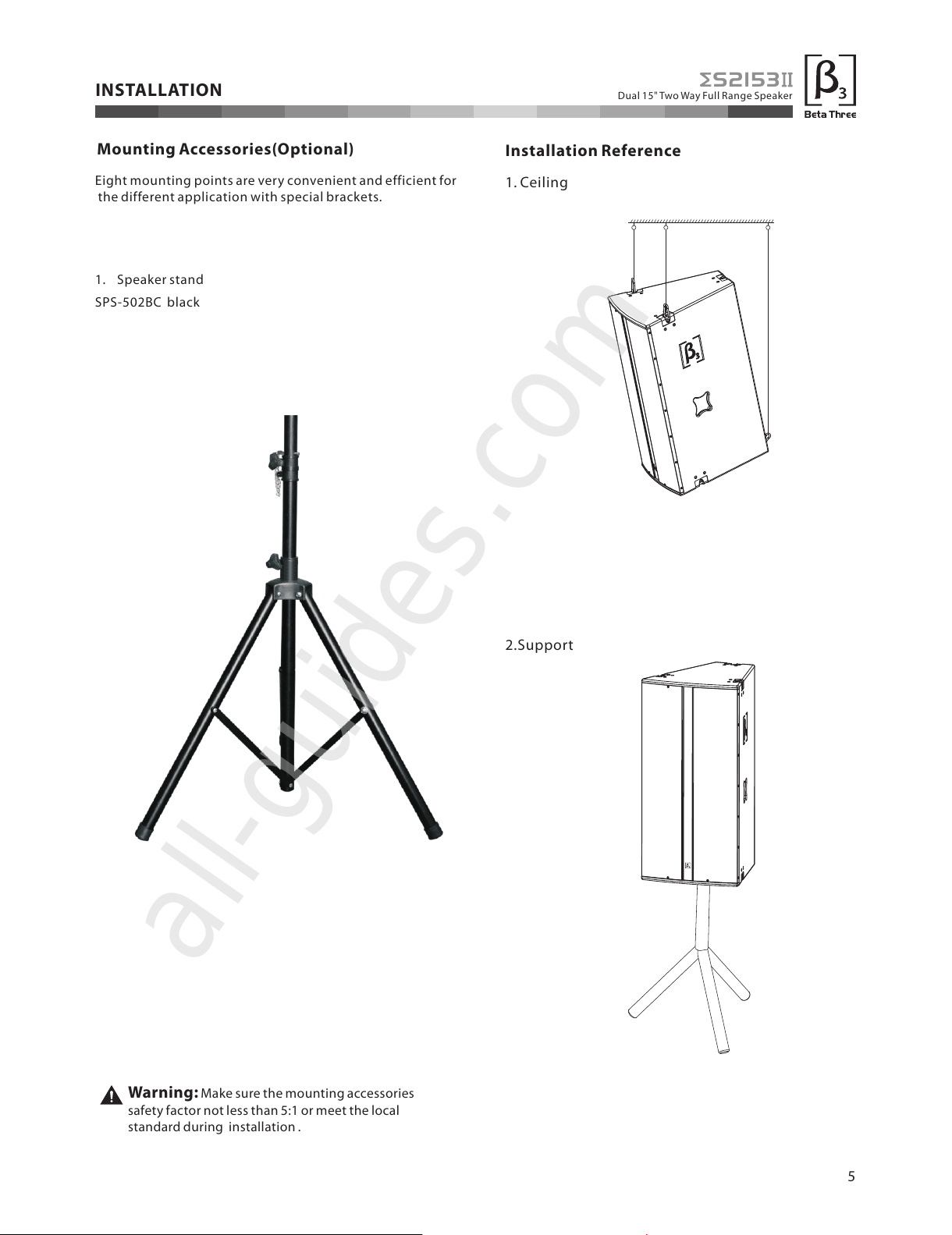

INSTALLATION

Mounting Accessories(Optional)

SPS-502BC black

1. Speaker stand

Installation Reference

Eight mounting points are very convenient and efficient for

the different application with special brackets.

英文说明书

专业音箱版本第6页共10页

文件（图）号

东莞市三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）

101.05.0009.00482

三基/β3/ΣS2153Ⅱ

All manuals and user guides at all-guides.com

all-guides.com

S2153

Sensitivity (dB)

100

110

Frequency (Hz)

Impedance (Ohms)

50 100 200 500 2k 5k 10k 20k

Dual 15" Two Way Full Range Speaker

1×3" Compression Driver

45Hz-16kHz

98dB

750W

1500W

3000W

(RMS)

(MUSIC)

(PEAK)

4 Ohms

60°×40°

Tweeter:

NL4×2

126dB/132dB(PEAK)

2×15" woofers

Woofer:

1.7kHz

Frequency response curve

Impedance curve

Frequency response curve & Impedance curve

Specification

TECHNICAL SPECIFICATION

2×Wooden handles

Wedge shape

Sensitivity(1W@1m):

Power:

Dispersion（H×V）:

N.W.(pc):

System:

Frequency response(-3dB):

Max.SPL(1m):

Rated impedance:

Crossover point:

Cabinet:

Handle:

Connector:

G.W.(pc):

Cabinet dimension:

(W D H)× ×

Package dimension:

(W D H)× ×

Speaker Testing Method

1. Frequency Response

Use Pink noise to test the speaker in the anechoic chamber,

adjust the level to make the speaker work at its rated impedance

and set the output at 1W, then test the frequency response power

1m away from the speaker.

2. Sensitivity

Use full range Pink noise which has been modified using

an EQ speaker in the anechoic chamber, curve to test the

increasing the work at its rated signal to make the speaker

impedance and set the the power output at 1W, then test

sensitivity 1m away from the speaker.

3. MAX.SPL

Use full range Pink noise which has been modified using

an EQ speaker in the anechoic chamber , curve to test the

i n c r e a s e t h e wo r k a t i t s s i g n a l t o m a k e t he sp e a k e r

maximum power output level, then test the SPL1m away

from the speaker.

4. Rated Power

Use Pink noise to the IEC#268-5 standard to test the speaker,

increase the signal for a continuous period of100 hours,

the rated power is the power when the speaker will show

no visible or measurable damage.

Cabinet coated by Polyurethane paint; grille

is powder coated

Fixed supporting base

Mounting accessories:

Painting:

Optional mounting accessories:

Speaker stand

Passive full range wooden speaker with painting

550×1075×660mm

(21.6×42.3×26.0in)

63.0kg(138.6lbs)

67.5kg(148.5 lbs)

1185×660×780mm

(46.7×26.0×30.7in)

英文说明书

专业音箱版本第7页共10页

文件（图）号

东莞市三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）

101.05.0009.00482

三基/β3/ΣS2153Ⅱ

All manuals and user guides at all-guides.com

S2153

660mm

[26.0in]

550mm

[21.6in]

1075mm

[42.3in]

Dual 15" Two Way Full Range Speaker

TECHNICAL SPECIFICATION

2D Dimension

Side viewFront view

Back view

Top view

英文说明书

专业音箱版本第8页共10页

文件（图）号

东莞市三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）

101.05.0009.00482

三基/β3/ΣS2153Ⅱ

All manuals and user guides at all-guides.com

Notes:

英文说明书

专业音箱版本第9页共10页

文件（图）号

东莞市三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）

101.05.0009.00482

三基/β3/ΣS2153Ⅱ

All manuals and user guides at all-guides.com

英文说明书

专业音箱版本第10页共10页

文件（图）号

东莞市三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）

101.05.0009.00482

三基/β3/ΣS2153Ⅱ

www.beta3pro.com.

All manuals and user guides at all-guides.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Oradores de Beta Three

Beta Three

Beta Three S800N Manual de usuario

Beta Three

Beta Three CPM108 Manual de usuario

Beta Three

Beta Three XI5i Manual de usuario

Beta Three

Beta Three X12x Manual de usuario

Beta Three

Beta Three WS125 Manual de usuario

Beta Three

Beta Three S800E Manual de usuario

Beta Three

Beta Three V152a Manual de usuario

Beta Three

Beta Three T4.8 Manual de usuario

Beta Three

Beta Three TH Series Manual de usuario

Beta Three

Beta Three TLA-101 Manual de usuario

Beta Three

Beta Three KO-10H Manual de usuario

Beta Three

Beta Three T15a THUNDER Series Pro Manual de usuario

Beta Three

Beta Three TW212M Manual de usuario

Beta Three

Beta Three Veyron Series Manual de usuario

Beta Three

Beta Three EJ218 Manual de usuario

Beta Three

Beta Three TW212Ma Manual de usuario

Beta Three

Beta Three MU12a Manual de usuario

Beta Three

Beta Three TW Series Manual de usuario

Beta Three

Beta Three SLA Series Manual de usuario

Beta Three

Beta Three X8i Manual de usuario

Beta Three

Beta Three EJ212 Manual de usuario

Beta Three

Beta Three CSR8 Manual de usuario

Beta Three

Beta Three TLB-101 Manual de usuario

Beta Three

Beta Three THUNDER Series Manual de usuario

Manuales populares de Oradores de otras marcas

argon audio

argon audio IE20 Manual de usuario

Denon

Denon SC-N7 Manual de usuario

Gemline

Gemline Ace 3952 Manual de usuario

Focal

Focal ON WALL 300 Manual de instrucciones

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manual de usuario

SoundLogic

SoundLogic BCCS-6/6395 Manual de usuario

Peavey

Peavey DTH 218 Manual de usuario

Avantree

Avantree Pluto Air Manual de usuario

Morel

Morel Integra Series INTEGRA OVATION 4 Manual de usuario

Oppo

Oppo SONICA Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Rocksteady

Rocksteady Stadium Manual de usuario

Bowers & Wilkins

Bowers & Wilkins 4 Manual de usuario

Sonance

Sonance SONOS OUTDOOR Series Manual de usuario

Electro-Voice

Electro-Voice EVID FM4.2 Manual de usuario

Pioneer

Pioneer XW-HTD630 Manual de usuario

Onn

Onn BWA16AA002 Manual de usuario

HP GL313AA - USB Speakers PC Multimedia Manual de usuario
