Beta Three T15F Manual de usuario
T15F
ED-B3-MA-071015-001
USER MANUAL
SMS-YXKQ-T15F-ED 3-EN
CONTENTS
PRODUCT FEATURES
ACOUSTIC CHARTS
INSTALLATION
SPECIFICATION
DIMENSIONS
LIMITED WARRANTY
1
2
1
5
5
CONNECTING WAY
7
6
SMS-YXKQ-T15F-ED 3-EN
1
T15F
Transducers LF:15" 1 MF/HF: Coaxial Transducer
Frequency Response(-3dB) LF:150Hz-650Hz MF:650Hz-5.2kHz HF: 5.2kHz-20kHz
Sensitivity(1W/1m) LF:103dB MF/HF:123dB
THD
Input Connectors
Net Weight
Gross Weight
Dimensions( )WDH
Packing DimensionsW D H)
Power(RMS) LF:500W HF:75W
Rated Impedance
DC Impedance LF:5.6 MF:6.2 HF:6.2
3
NL4 2 1+ 1-
84.6kg
90.6kg
580 660 720mm
770 690 840mm
Power(Program)
Power(Peak)
SPL(1m)
MAX.SPL(1m)
LF:1000W HF:150W
LF:2000W HF:300W
130dB
136dB
LF:8 MF:8 HF:8
Dispersion(H V
Crossover Point LF/MF:550Hz MF/HF:5.2kHz
60 40
PRODUCT FEATURES
SPECIFICATIONS
T15F is a high SPL performance speaker, with big power woofer and
coaxial transducer(MF: 100mm, HF: 44mm combination), the
coaxial transducer is mounted in the front middle of woofer. The
60 x 40 dispersion flare horn makes the sound delivery satisfying.
The cabinet's special design and AeroLock patented integrated flying
hardware lead to a convenient combination. Two speakers can be
locked together by easy handful operation for the cabinet's shackles
and 4x4 speakers can be flied fast and safely together with two rigging
points. The flying hardware is also convenient for speaker's ground
stacking. The firm flying hardware provides enough guarantees
without using any ropes. The echelon design speaker and ring array
combination in whole lead to a firm and strong system inside.
.
SMS-YXKQ-T15F-ED 3-EN
2
T15F
50 100 200 500 1k 2k 5k 10k 20k20 Hz
120
110
dBSPL
100
90
80
70
180
Deg
108
36
-36
-108
-180
50 100 200 500 1k 2k 5k 10k 20k20 Hz
120
110
dBSPL
100
90
80
70
180
Deg
108
36
-36
-108
-180
FREQUENCY RESPONSE
LF-Frequency MF/HF-Frequency
PHASE RESPONSE
Phase Frequency
SMS-YXKQ-T15F-ED 3-EN
IMPEDANCE RESPONSE
3
T15F
THD
10 Hz 20 50 100 200 500 1K 2K 5K 10K 20K
Ohm
6
7
8
9
10
20
30
40
50
60
70
80
90
100
50 100 200 500 1k 2k 5k 10k 20k20 Hz
120
110
dBSPL
100
90
80
70
180
Deg
108
36
-36
-108
-180
Frequency Response 2nd Distortion 3rd Distortion
SMS-YXKQ-T15F-ED 3-EN
4
T15F
0
- 10
- 20
- 30
- 40
- 50
dB
0 .0
2 .7
5 .4
8 . 1 ms
1 00 1k 1 0k 2 0k20 Hz
0
- 10
- 20
- 30
- 40
- 50
dB
0 .0
1 .5
3 .0
4 . 5 ms
1k 1 0k 2 0k2 00 Hz
WATERFALL-LF
WATERFALL-MF/HF
SMS-YXKQ-T15F-ED 3-EN
5
T15F
1+
1-
T15F
2+
2-

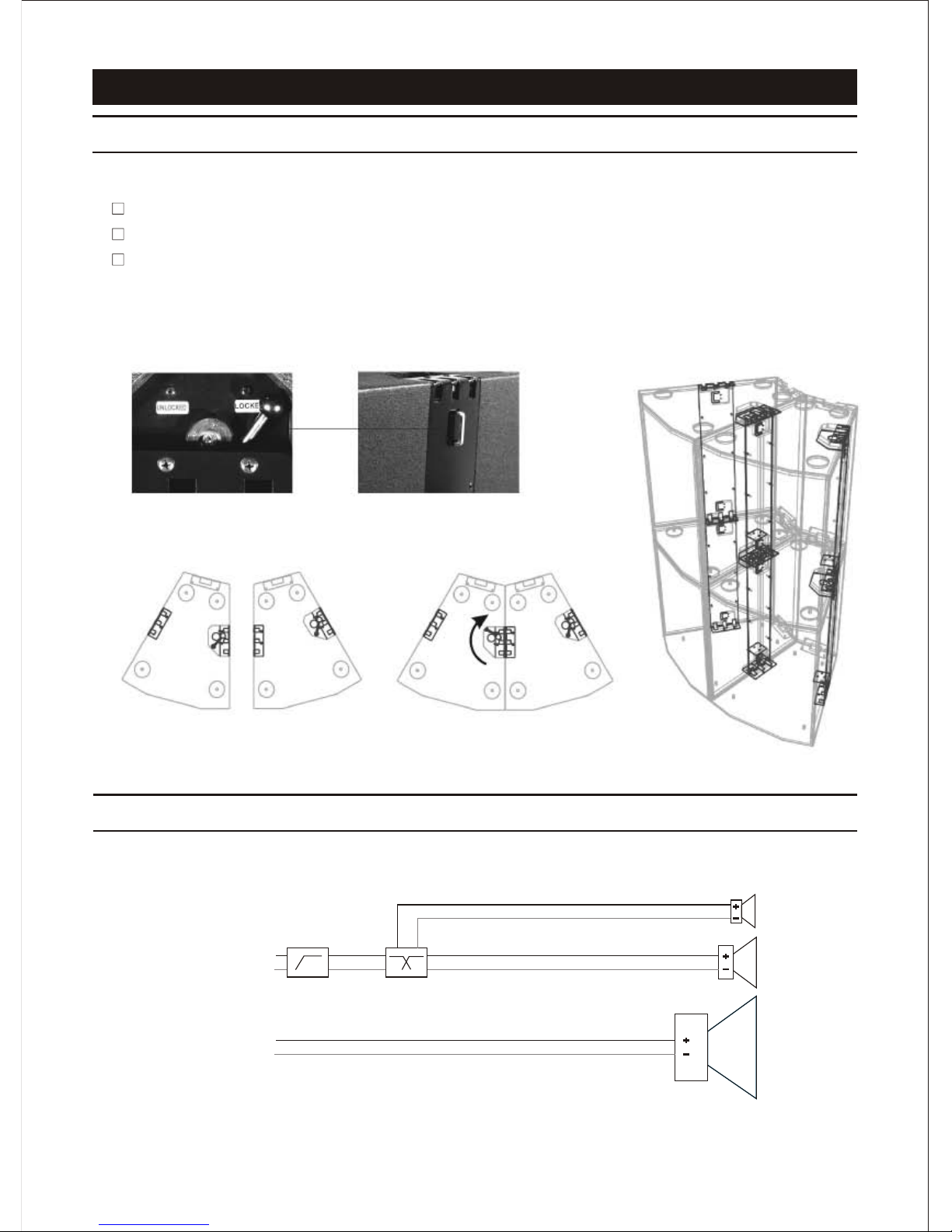

The connecting way of Speakon NL4 for T15F speaker.
Operate the knob to lock in the two speakers wall to wall.
T15Fpatented Aero Lock flying system
INSTALLATION
It is easy to lock in together for two T15Fand more can be connected (see as the picture).
The stacking trough on the speaker's top makes thestacking firm and strong.
There are three rigging points on the two sidesof the speaker's top and the back side of the
speaker is convenient for angle's adjustment when flying.
CONNECTING WAY
SMS-YXKQ-T15F-ED 3-EN
6
T15F
DIMENSIONS
SMS-YXKQ-T15F-ED 3-EN
7
T15F
If malfunction occurs during the specified warranty period from the date of original purchase,
the product will be repaired or replaced without charge by Elder Audio.
The Limited Warranty does not apply to:
(a)exterior finish or appearance;
(b)certain specific items described in the individual product data sheet or owner's manual;
(c)malfunction resulting from use or operation of the product other than as specified in the
individual product data sheet or owner's manual;
(d)malfunction resulting from misuse or abuse of the product;
(e)malfunction occurring at any time after repairs have been made to the product by anyone
other than Elder Audio Service or any of its authorized service representatives.
To obtain warranty service, customer must deliver proof of purchase of the product in the form
of a bill of sale or receipt invoice.
T18W Speakers and Speaker Systems are guaranteed against malfunction due to defects in
materials or workmanship for a period of three (3) years from the date of original purchase. The
Limited Warranty does not apply to burned voice coils or malfunctions such as cone and/or coil
damage resulting from improperly designed enclosures. Additional details are included in the
Limited Warranty statement.
T18W Accessories are guaranteed against malfunction due to defects in materials or workman
ship for a periodof one(1) yearfrom the date of original purchase. Additional details areincluded
in the Limited Warranty statement. .
T18W Flying Hardware (including enclosure-mounted hardware and rigging accessories) is
guaranteed against malfunction due to defects in materials or workmanship for a period of one
(1) year from the date of original purchase. Additional details are included in the Limited Warranty
statement.
LIMITED WARRANTY
Specifications are subject to change without notice.
SMS-YXKQ-T15F-ED 3-EN
SMS-YXKQ-T15F-ED 3-EN
