BestScope BS-6030 Manual de usuario

Inverted Metallurgical

Microscope

Model: BS-6030

User Manual

This manual is written for Inverted Metallurgical Microscope BS-6030. To ensure the safety,

obtain optimum performance and to familiarize yourself fully with the microscope, it is

strongly recommended that you read this manual carefully before operating the microscope.

BestScope International Limited

Contents

User Notice

1 Component Name.......................................................................1

2 Assembly ....................................................................................2

2-1Assembly Diagram..................................................................2

2-2 Assembly Step.......................................................................3

3 Adjustment Set Diagram..............................................................8

4 Adjustment Procedures................................................................9

4-1 Microscope Body...................................................................9

4-2 Mechanical Stage ...............................................................10

4-3 Viewing Tube........................................................................11

4-4 Illumination Set....................................................................13

4-5 Adjusting of Differential Interference ...................................15

4-6 The operation of Micrometer ...............................................16

5 Microscope Video and Photography .........................................17

5-1 Microscope Video.................................................................17

5-2 Microscope Photography.....................................................18

5-3 Digital Camera ....................................................................18

6 Technical Specification...............................................................19

6-1 Major Technical Specification..............................................19

6-2 Eyepiece Parameter............................................................19

6-3 Subjective Parameter...........................................................19

6-4 Total Magnification ..............................................................20

7 Whole Set of Instrument ............................................................20

8 Trouble Shooting .......................................................................22

BestScope International Limited

User Notice

1. Safety Precautions

1.1 Microscope ought to be placed in a dry and clean place. Do not expose the

Microscope in the sun directly. Avoid high temperature or humidity, dust and easy

shaking environment. Make sure the stage is horizontal and firm enough. (Weight:

Main Body is 12 kg)

1.2 When moving the instrument, grip two sides of the bottom(1 and 2 point ) ofthe

microscope with your two hands.(see diagram ).

1.3 When the microscope is working, the lamp house(point 3) and nearby parts will be

very hot. Please ensure there is enough cooling space for them .

1.4 For safety, be sure the main switch is in “O”(off) position and cut off the power supply

before replacing the bulb or the fuse. If you replace the bulb during using or just after

using the microscope, allow the lamp bulb and the lamp house to cool completely before

touching.

★Halogen bulb: 12V/50W Halogen Lamp

1.5 Use the power wire correctly, Make sure the instrument is earthed, to avoid strike.

1.6 Use the exclusive electrical wire supplied by our company.

2. Maintenance and Care

2.1 The optical components should be wiped with the soft cloth gently. If cleaning the

contaminations like fingerprints and oil smudges, wiped with a piece of soft cloth which

moistened with a small amount of xylol or 3:7 mixture of natalite.

★(Note that the alcohol and ether are highly flammable, do keep them away from the fire or

potential sources of electrical sparks, use them in a drafty room as possible as you can.)

2.2 Do not attempt to use organic solvents to clean the microscope components other than

the glass components. To clean them, use a lint-free, soft cloth slightly moistened with a

diluted neutral detergent.

2.3 Cut off the electrical power supply immediately and wipe up the wet microscope when

it was splashed by the liquid.

2.4 Do not disassemble any parts of the microscope, as this will affect the function or

reduce the performance of the microscope.

2.5 After using the microscope, remember to cover it with dust cover. Do wait for the lamp

house cooling completely before cover.

3. Safety Symbols

Symbol Explanation

Indicates that the surface becomes hot, and should not be touched with bare hands

Before use, carefully read the user manual. Improper use could result in personal

injury to the user and/or damage to the equipment.

Indicates that the main switch is ON.

OIndicates that the main switch is OFF.

BestScope International Limited

1. Component Name

Fine Focus Knob

Camera Port

Lam

House Stage Center Plate Mechanical Stage

iece

Viewing Head

Objective Quintuple Nosepiece

Trinocular head

Main Switch

Coarse Focus Knob

Microscope Body

BestScope International Limited

2. Assembly

2-1 Assembly Diagram

The diagram shows the sequence of the assembly, the number in

the chart indicate the assembly step.

★Before assembly please be sure all parts are free of dust and

contamination. No scratch on any parts or the surface of the glass.

★Keep the hexagonal wrench we supplied, in case it might be used in the

future .

Chart 2

BestScope International Limited

2-2 Assembly Procedure

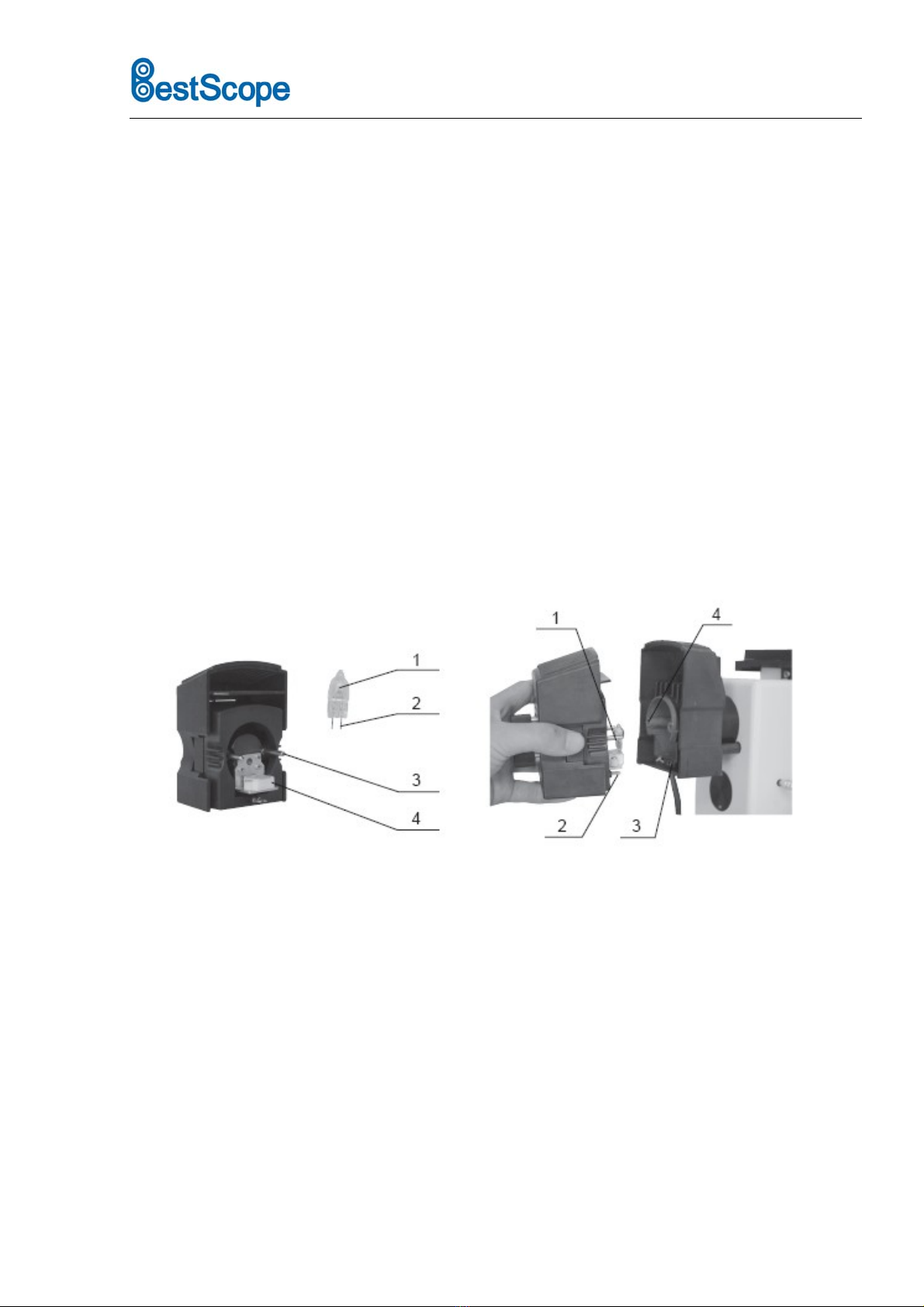

2-2-1 Installing and Replacing the Bulb (Chart 3)

★Please use the specified halogen Lamp (12V/50W) which supplied

by our company.

1. Bulb replacement during use or just after use. The bulb, the lamp house and nearby parts

will be very hot. Please set the main switch to “O” (off), disconnect the power plug,

and make sure the bulb, the lamp house and periphery are all cool. Then, you can

do your replacing.

2. Tightly hold the bulb ①with a piece of gauze or other protection materials,

insert the bulb ②pins plug straight and fully into the pin holes ④on the lamp

house.

★Please insert the bulb to the lamp house very gently, or it will be damaged by

excessive extrusion.

★Do not touch the halogen bulb with bare hands. It will shorten the

service life or cause it to burst. If you leave fingerprints on the

surface carelessly, clean it with a piece of dry soft cloth.

Chart3 Chart4

2-2-2 Install the Lamp Holder (chart 4)

Make the plug 2 and the socket 3 in alignment, same as the plug pin1 and socket

4, And then push the lamp holder into lamp unit gently until its in place.

BestScope International Limited

2-2-3 Installing the objective(Chart 5 & 6)

1. Turning the coarse focusing knob①as the figure shows till the nosepiece

gets to its lower limit.

★For ensuring the safety of the instrument during transportation, the nosepiece

is located in the lowest position and the tension adjustment collar②is adjusted to

an appropriate tension while leaving the factory.

2. Screw the lowest magnification objective on to the nosepiece from the

nearside, then turn the nosepiece clockwise, mount other objectives

according the magnification sequence from low to high. Mounting

objective in this way will make it easier to change magnification.

★The objectives can also be mounted through the opening on the stage.

★Clean the objectives periodically, for the objectives used in the inverted

microscope are susceptible to dust. Do not forget to use the dust cover when

you do not use it.

★Do cover all the unused holes 1 on the nosepiece with dust caps, to prevent

the dirt and dust from coming inside(chart 6).

★When operating, use the low magnification objective (5X or 10X)

search and

focus the specimen at first, then change to the higher magnification objectives

if necessary.

★When replacing the objective, turn the nosepiece slowly until you hear

“clicked”, that means the objective enters into the right position-centerofthe

light path.

Chart 5 Chart 6

BestScope International Limited

2-2-4 Mounting Auxiliary Stage (Chart 7)

★Attached 3 kinds of auxiliary stage for your option (chart 1)

When use the auxiliary stage 2, firstly, set the stage clips 1 aside,

Gently place the auxiliary stage 2 into the movement stage 3. The both

side of the water drop should be placed in the horizontal direction when

choose the water drop shape auxiliary stage. No strict requirement for

other optional auxiliary stage.

Chart7 Chart 8

2-2-5 Installing the Eyepiece (chart 8)

1. Remove the cap of the eyepiece tube.

2. Insert the eyepiece into eyepiece tube until they are against each other.

3. Screwing down point 3(see chart 8) with attached socket head wrench

gentle to assure the eyepiece make diopter adjustment.

2-2-6 Mounting Filters and Polarizer (chart 9)

Insert the polarizer into the bottom of the vertical lighting slot 2 just as the

chart shown, When fail to move on any more, indicate that the polarizer is in

the right place and into the light center.

BestScope International Limited

2-2-7 Mounting differential interference accessories (chart 9)

Insert the micrometer accessories3 into dovetail groove4 and push to the

bottom, When fail to move on any more, indicate that the micrometer

is in the right place and into the light source.

Chart 9 Chart 10

2-2-8 Connecting the Power Cord (chart 10,11&12)

★The cable and cords are vulnerable when bent or twisted, never

subject the power cord to excessive force.

1. Set the main switch1 to “O” (off) position before connecting the power cord.

(chart 9)

2. Insert one side of the plugs2 into the power jack3 of the microscope safely.

(chart 11)

3. Insert the other side of Plug2 into the power jack6 safely. (chart 11)

4.Insert the power cord4 into the power supply receptacle 5. Make sure the

connection is well.

★Do use the supplied power cord all the time. If lost or damaged,

please select the same standard cord.

★Connect the power cord correctly, to ensure the instrument is grounded.

BestScope International Limited

2-2-9 Replacing the Fuse (chart 10,11&12)

Do remember to set the main switch①to the state of “O” (OFF) and unplug

the power cord before replacing the fuse(chart 12). Rotate the fuse3 kits out

of the holder with the “--”type screwdriver, replace with a new fuse, then

rotate it back to the holder again.

★Fuse rating: 250V, 2A.

Chart 12

Chart 11
