BestScope BS-3030 Series Manual de usuario

BS-3030 Series

Zoom Stereo Microscope

Instruction Manual

BS-3030A BS-3030AT BS-3030B BS-3030BT BS-3030C BS-3030CT

This instruction manual is for the stereo microscope BS-3030 series. To ensure the safety and

obtain optimum performance and familiarize yourself fully with the use of this microscope, we

recommend that you read this manual thoroughly before operating the microscope. Please keep

this instruction manual in an easily accessible place near the microscope for future reference.

BestScope International Limited

CONTENT BS-3030

Before use.........................................................................1

1.Nomenclature.....................................................................2

2.Assemblage........................................................................3

3.Operation

3-1.Use the black and white work board...............................4

3-2. Adjust the degree of tightness of the focusing arm.........4

3-3.Set the specimen slide...................................................4

3-4.Adjust the specimen slide..............................................4

3-5.Adjust the interpupillary distance....................................5

3-6.Mount and remove the optional eyepiece micrometer......5

3-7.Use auxiliary objective...................................................5

3-8.Mount C type photo set and TV set.................................5

3-9.Adjust the focus of TV set..............................................5

4.USE Microscope base

(1)Nomenclature..................................................................6

(2)Operation........................................................................6

5.Technical parameter............................................................7

6.Troubleshooting..................................................................8

BestScope International Limited

BEFORE USE BS-3030

Operation

1) As microscope is a precision instrument, handle with care, avoiding impact or

abrupt movement during transportation.

2) Microscope ought to be placed in a dry and clean place. Do not expose the

microscope in the sun directly. Avoid high temperature and violent vibration.

Usually, following environment is required indoor temperature: 0°C - 40 °C, Max.

relative humidity:85%.

3) To keep the image clear, do not leave fingerprints or stains on the surfaces of

the lens.

4) Before use, please check the power supply in compliance with the microscope

power required.

5) Never turn the left and right focusing knob in the adverse direction at the same

time, otherwise the microscope will be damaged.

6) When use photo set to capture image, please ensure the stability of microscope,

make sure the main body inclined less than 3°.

7) When use camera with C-mount, the camera sensor size should be less than

2/3”, weight not more than 2.5kg.

Maintenance

1) All lenses must be kept clean. Fine dust on the surface of the lens should be

blown off with hand blower or wiped off gently with a soft lens tissue;

Fingerprints or oil marked on it should be wiped off with a tissue moistened with

a small amount of xylene or a 3:7 mixture of alcohol and ether.

2) Never use the organic solution to clean the other surface (especially the plastic

surfaces). If necessary, please choose the neutral detergent.

3) Do not take the microscope apart for fearing that it is damaged.

4) After using, cover the microscope with the dust-cover provided and store it in a

dry and clean place free from moisture to prevent rust.

BestScope International Limited

1. Nomenclature

Eyepiece

Head lock

screw

Zoom control knob

Focusing

Head

Base

Clip

Black and white work board

Lock

screw

C-mount

Focusing ring

PK-mount

BestScope International Limited

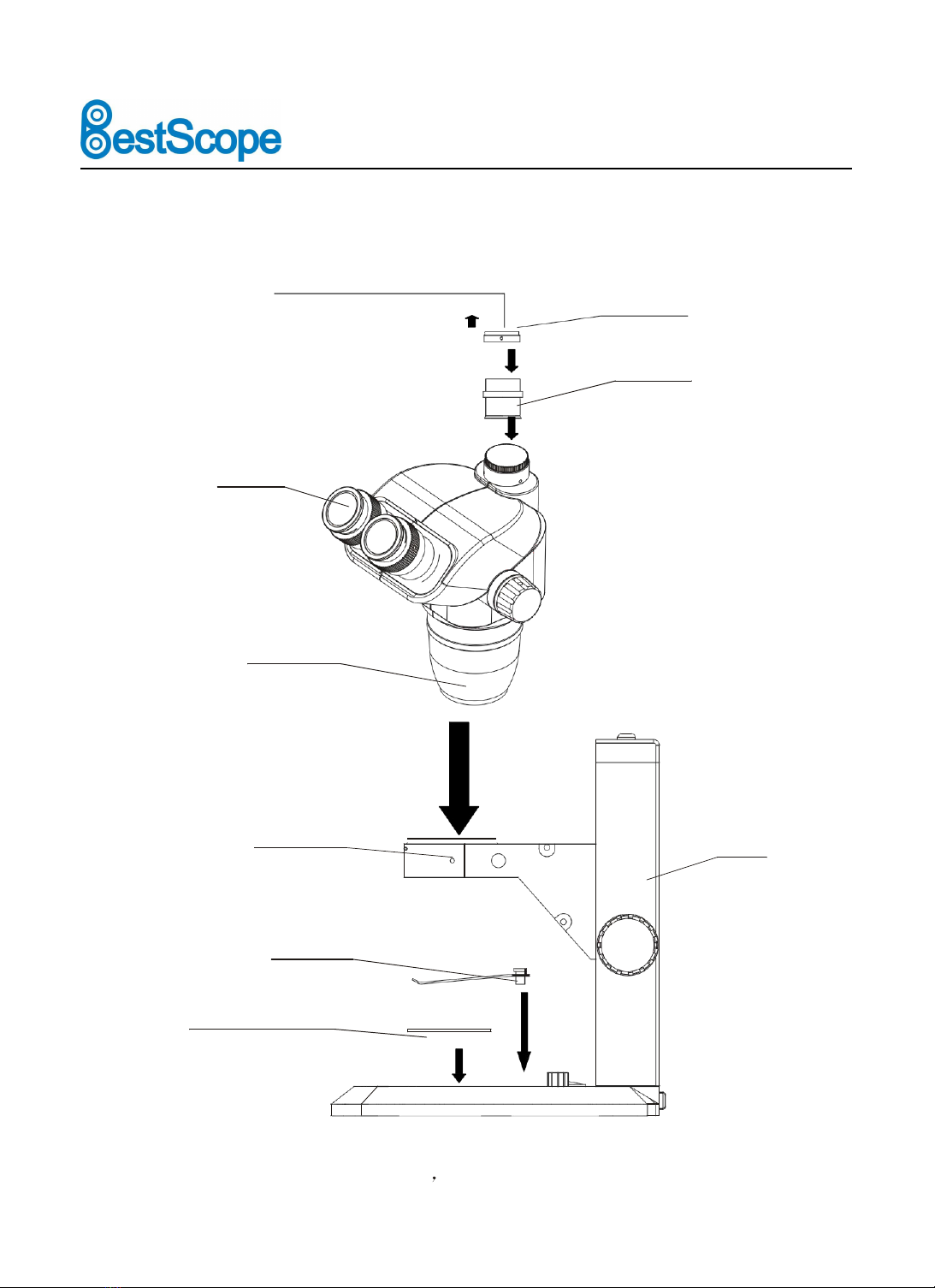

2. Assemblage

The following diagram for the installation, the number representatives the order.

Before installing, it should ensure that all connections has clean surface, the installation should

be taken to avoid the surface of the lens was dirty or scratched.

C type

camera

C type

mount

PK-mount

Eyepiece

Head

Head lock screw

Base

Clip

Black and white work

board

*1)Connect the C -mount to the camera, Then connect the camera to the PK- Mount.

Fig.3

BestScope International Limited

3. Operation

Fig.1

3.1 Use black and white work

board

(1) If the specimen is white or transparent, make the black one as

background, to enhance the contrast.

(2) Take off or change the work board, move the work board (Fig.1)

make one side down, then the other side will be up.(Fig. 1)

Adjust the degree of tightness of the focusing

arm.

Loose

Fig.2

Tension

(1) If you want to adjust tightness of the focusing arm, you can

hold one of the focusing knobs and turn another one to attain a

suitable tightness. The degree of tightness relies on the

direction to be turned. The reverse direction is tight, otherwise, is

loose.

(2)The suitable position of tightness can make the adjustment

more comfortable and prevent the focusing bracket from slipping

down by its weight during the observation. (Fig.2)

Set the specimen slide

(1) Set the specimen on the center of stage plate. If necessary,

clamp the slide with the clips.

(2)Turn on the light.

Le f t ey ep ie c e

diopter adjustabl e

loop

Righ t eyepiec e

diopter adjustabl e

loop

Fig.3

Adjust the specimen slide

(1) Turn the zoom control knob to the maximum magnification.

(2) Turn the diopter adjusting rings to the zero.

(3) Observe the specimen through the right eyepiece and make

the image clear by turning the focusing knob.

(4) Rotate the zoom control knob to the minimum magnification.

(5) Observe the specimen through the right eyepiece and make

the image clear by turning the right diopter adjusting ring.(Fig.3)

(6) Re-do the step(3)and (5) till the right adjusting ring is more precise.

(7) Do the step (4) and make the image clear which is observed

through the left eyepiece by turning the left diopter adjusting ring.

(Fig.3)

BestScope International Limited

Adjust the interpupillary

distance

(1) Adjust the prism housing along the direction of arrow of

the Fig.4 till the observation is comfortable.

Fig.4

Fig.5

Wit h scale

Screw in

Screw out

Mount and Remove the Optional Eyepiece

Micrometer

(1) Turn and remove the mounting ring from the eyepiece.(Fig.5)

(2) Clean the eyepiece micrometer and mount it to the mounting

with the inscription side downward.

(3) Gently twist the mounting ring with the eyepiece micrometer

into the eyepiece till tightening securely.

(4) To remove the eyepiece micrometer, take down the mounting

ring by twisting and take out of the micrometer, and then wrap it.

Auxiliary

objecive

Fig.6

Fig.7

Fig.8

Use Auxiliary objective

(1) Connect the Auxiliary objective to the thread at the bottom

of the microscope head.

(2) 0.5x Auxiliary objective has long working distance. When use

0.5x auxiliary objective, release the lock screw on the arm by

a 4mm Allen key, move the focus arm up and fixed in the up

screw hole.(Fig 6)

0.75x auxiliary objective no need to remove arm.

Mount PK-mount and photo set

(1) Screw the PK-mount in the head, M28 screw, tight the

mount.(Fig.7)

(2) Loosen the screw on the PK-mount , take out the mount of C

type camera .

(3) Screw the C type mount in the TV photo set.

(4) Install the TV photo set into the PK-mount and lock the screw.

Focusing the TV photo set

(1) Turn the zoom control knob to the maximum magnification,

meanwhile, observe the TV set, adjust until the image is clear.

(2) Rotate the zoom control knob to the min. magnification. If the

image is not clear enough, adjust the part until the image clear.

(3) Redo the step (1), turn the zoom control knob to the maximum

magnification to check the image is clear or not. If not clear, redo

step(1)and (2), until the image is clear in all the zoom range.



Bestscope International Limited

4. Use Microscope stand

base

BS-3030

series

Make sure the power is cut off when replace the fuse.

Make sure the earth wire is correctly connected.

Black and white stage plate, glass stage plate, diameter 95mm

4.1

Nomenclatur e

4.2 O

peratio n

Fig.10

Fig.11

Fig.9

2.1 Adjust the brightness of the bottom light or

top light

Turn the adjustable light knob , knob control

top light, knob control bottom light, along the

clockwise the brightness will be added, otherwise it

will be weakened. (Fig.10)

2.2 Replace the fuse

(1) Screw the fuse tube out with a screw driver.

(2) Then pull the fuse out of the tube .

(3) Change with new fuse and mount it in an adverse

direction.

Bestscope International Limited

echnical

arameter

5.1 Optical parameter

Zoom

magnification

Working

distance

(mm)

Eyepiece

Eyepiece (optional)

WF10X/22mm

WF15X/16mm

WF20X/12mm

magnification

Field of

view(mm)

magnification

Field of

View(mm)

magnification

Field of

view(mm)

0.67X

105

6.7X

32.8

10.05X

23.9

13.4X

17.9

0.7X

31.4

10.5X

22.86

14X

17.1

0.8X

27.5

12X

16X

10X

15X

20X

1.5X

15X

14.7

22.5X

10.7

30X

20X

30X

40X

30X

7.3

45X

5.3

60X

40X

5.5

60X

80X

4.5X

45X

4.9

67.5X

3.6

90X

2.7

5.2 Auxiliary objective

standard(optional)

Magnification

Working

distance(mm)

Magnification

Working

distance(mm)

0.3X

287

0.75X

117

0.4X

217

1.5X

0.5X

177

Working distance is fixed regardless of the magnification factor.

Total mag.= Zoom mag. X Eyepiece mag. X Auxiliary objective mag.

Diameter of field of view(mm)=

Field number of eyepiece

Zoom mag.X Auxiliary objective mag.

5.3 Photo adapter mag.= Zoom mag.(X Auxiliary objective mag.)X Eyepiece mag.

5.4 Photo set zoom mag.= Zoom mag.(XAuxiliary objective mag.) X CTV mag .X C

type photo tube mag.

BestScope International Limited

rouble shooting

The performance of the microscope can't be made fully because of unfamiliar using,

this following table will give some advice.

Trouble

Cause

Solution

1. Optical system

(1) Brightness is too bright or too dark

Brightness adjust not well

Make right adjustment

(2)Dirt appears in the field of view

Dirt on the specimen

Clean the specimen

Dirt on the surface of eyepiece

Clean the surface

Dirt on the surface of the objective

Clean the objective

Dirt on the working stage

Clean the working stage

(3)Double image

Interpupillary distance is not correct

Readjust it

Dioper adjustment is not correct

Readjust it

Magnification of each eyepiece is not

the same size

Mount the same size eyepiece

(4)Image is not clear

Dirt on the surface of the objective

Clean the objective

(5)Image is not clear while the focus

changing

Diopter adjustment is not correct

Readjust the diopter

Focus is not correct

Readjust the focus

(6)The image on the monitor is not

clear when the focusing knob is

turned

The

focus

video

is not correct

Readjust the focus of video to

a correct position

2. Electrical system

(1) Bulb does not work when the

switch is on

The bulb is not inserted correctly

Insert it correctly

Bulb is wrong

Replace bulb

Fuse is broken

Replace fuse

There is something impede the

light

Clean the working stage

(2) bulb is burned out suddenly

The voltage is too high

Use voltage regulator

Use the wrong bulb

Replace with a correct one

(3) fuse always burned out

The voltage is too high

Use voltage regulator

(4) the bulb flickers or the

Brightness is unstable

The bulb will burn out soon

Replace with a new one

The bulb was not inserted

correctly

Insert I correctly

3. Focusing

(1) the focusing knob is not smooth

The focusing knob is too tight

Loosen it to a suitable

(2)the image is obscure because

of the head slipping down by

itself during observation

The focusing knob is too loose

Tight it to a suitable position

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microscopio de BestScope

BestScope

BestScope BS-6005 Manual de usuario

BestScope

BestScope BS-2070 Manual de usuario

BestScope

BestScope BS-2081F Manual de usuario

BestScope

BestScope BS-3080 Series Manual de usuario

BestScope

BestScope BS-3012 Series Manual de usuario

BestScope

BestScope BS-2064 Series Manual de usuario

BestScope

BestScope BLM-210 Manual de usuario

BestScope

BestScope BS-3015 Series Manual de usuario

BestScope

BestScope BS-2030MH4B Manual de usuario

BestScope

BestScope BS-2036 Series Manual de usuario

BestScope

BestScope BS-2020BD(300) Manual de usuario

BestScope

BestScope BS-6022RF Manual de usuario

BestScope

BestScope BS-2080MH10 Manual de usuario

BestScope

BestScope BS-2080F(LED) Manual de usuario

BestScope

BestScope BS-2040B Manual de usuario

BestScope

BestScope BS-2094 Series Manual de usuario

BestScope

BestScope BS-6020DRF Manual de usuario

BestScope

BestScope BS-6030 Manual de usuario

BestScope

BestScope BS-6002 Series Manual de usuario

BestScope

BestScope BS-6045 Manual de usuario

BestScope

BestScope BS-2023B Manual de usuario

BestScope

BestScope BS-2044 Series Manual de usuario

BestScope

BestScope BS-6023 Series Manual de usuario

BestScope

BestScope BS-2030MH10 Manual de usuario

Manuales populares de Microscopio de otras marcas

Thermo Scientific

Thermo Scientific Nicolet iN10 Guía

National

National DC3-163 Manual de usuario

KERN Optics

KERN Optics OPE-1 Manual de usuario

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manual de usuario

Prior

Prior Lux POL Manual de usuario

Opitec

Opitec Smartscoop 115615 Manual de usuario

KERN

KERN OPO-1 Manual de usuario

Topcon

Topcon SP-1P Manual de usuario

Motic

Motic PA43 Manual de usuario

Leica

Leica DVM5000 Guía del usuario

MshOt

MshOt MZ62 Manual de usuario

KERN Optics

KERN Optics OZR-5 Manual de usuario

VWR

VWR VisiScope 384 Series Manual de usuario

Nikon

Nikon ECLIPSE E200 POL Manual de usuario

Leica

Leica DI C800 Manual

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

Olympus

Olympus SZ61 Manual de usuario
