Beok Controls TGW60 Manual de usuario

3. Power-off memory function

4. Real-time data save function

. 5 5+2 or 6+1or 7days six periods program schedule

6. Anti-freezing function

Accuracy

Floor Set Temp. Range

Sensing Element

Power Consumption

Power Supply

Current Load

External Material

Dimension

Ambient Temp.

Storage Temp.

±1℃

5-60℃

NTC

<1W

100 ~ 240V

≤3A（water heating/gas boiler)

PC+ABS (flame retardant）

86x90x14mm

0-45℃,5-95％RH(Non-condensing）

-5~55℃

Set Temp. Range 5-95℃

I. Product Summary:

II. Technical Parameter:

IV. User Interface Explanation

2. Large screen display and touch button

TGW60 WiFi Heating Thermostat is WiFi touch screen thermostat with

phone control. It is applied to temperature control of industrial,

commercial and domestic room, and start of control heating appliances,

especially floor heating systems. It can be controlled by phone. Phone

systems are optional.IOS and Android system

≤16A(electric heating)

Timing Error <1％

V. User Interface Explanation(Phone Port)

7. 3 sensor modes can be setting

1. WIFI for Android & Apple iOS

TGW60 WIFI HEATING THERMOSTAT

III.Main Functions and Characteristics

VI. Model Spec

TGW60WIFI-EP

TGW60WIFI-WP

8. Selectable 80mmx80mm European hidden box.

9. With child lock function

TGW60WIFI-WPB

16A

Controlled Objects

Week

Program

For electric heating appliances

For water heating appliances

For gas boiler

VII.Wiring Digram

TGW60WIFI-EP TGW60WIFI-WP

TGW60WIFI-WPB

VIII. Thermostat Operation Instruction

1. Setting Power on/off

Press to turn on/off the power.

2. Setting Temperature

Press to set the temperature.

3. Setting the Clock

Long press M and to set minute, hour and week.

Press for adjusting.

4. Setting the Manual Mode.

Manual mode means non-programmable mode.

will display in the screen, it is in manual mode.

Press to set the temperature.

6. Setting the Programmable Mode.

Press and hold M into programmable mode. 12345 and time will display.

12345 display in the position of week means 5+2;

Press to change the time.

Press M to do the temperature adjustment.

Press to change the temperature;

Press M to do the next period adjustment.

Press to exit and save.

If you want to make temporary adjustment in any period,

press or , then will display. When finish the setting, all will

confirm automatically.

Long press to enter into child lock mode, will display.

5. Setting the Child Lock

Long press again, the child lock will be disappeared.

Press M then

Current

Remark:

The defaulted temperature of period3 and period4 is the same as

period2. Please change it according to the request.

Period

Week

Weekend

Period Icon Defaulted Time Defaulted Temp.

6:00

8:00

11:30

12:30

17:30

22:00

8:00

23:00

20℃

16℃

22℃

16℃

Press M to switch operation between manual mode and programmable

mode.

7. Advanced Setting

In the state of power-off, press the M key and the key for 5 seconds to

enter the advanced option setting.

Press M to enter the next option, press and to adjust, and press

to exit.

Sensor error:

Please select the right sensor mode. If select the different mode or there

is error of sensor, Err will display on the LCD screen, the thermostat will

stop heating till the problem is solved.

IX. Phone Port Operation Instruction

1. Install APP on phone

For iOS system: Login in App Store, search “Tuya Smart”, you can

download it on your iphone.

For Andriod system: Login in Google Paly, search “ Tuya Smart”, you

can download it on your phone.

Or scan below code to download:

2. Register Account

When the thermostat is on, long press button for 5 seconds, and the

thermostat display will come out. Now the WIFI icon flashes, at this time,

the thermostat into the state of code.

If you do not have an APP account yet, you can choose to register or log

in via SMS verification code. Click “Creat a new account”, you will enter

the Tuya Smart Platform Privacy Policy page. After you click Agree, you

will officially enter the mobile phone registration page.

The system automatically determines the current country/region. You

can also select the country/region manually. After entering your mobile

phone number or email address, click “get verification code”. Enter the

received verification code, then enter the password, and click “Finish” to

3.Add device

(Bluetooth connection)

“Add Device” or “+” on the top right of the APP homepage

to enter the “Add Device” page. It will prompt: find the device to be added

(Figure 2) and follow the prompts.

1: Turn on the mobile phone's Bluetooth, turn the device on and enter the

Tuya APP. Click

Display Code Function Setting And Options Factory Defult

1ADJ Temp.

compensation -9.9-9.9℃-2℃

2SEN Sensor selection

IN: Internal sensor

OUT: Floor sensor

ALL: Both internal

sensor and floor sensor

3LIT Modify the temp.

limit 5-60℃35℃

4DIF Temp. difference

start 0.5-10℃1℃

5LTP Antifreeze function OFF

6PrG Weekly

programming mode

OFF：Close anti-frozen

ON：Open anti-frozen

7rLE Primary and secondary

reverse selection 00

9HlT

Restore factory

defaults

long press up button to

adjust the display “---”,

press power button to

restore the factory settings

8dLy Passive linkage

output delay time 0-5min 0

0: 7 days programmable

1: 6+1 programmable

2: 5+2 programmable

00: close the main and

auxiliary reversal

02: auxiliary reversal

Set upper temp.

limit

35-95℃

RFAC

Before the WIFI thermostat for the first time, you should set the WIFI

signal and configuration through your samrt phone or tablet to allow

communication between your connected devices.

2. “Automatic discovery”: Search for devices (Figure 3), and add widgets

as prompted on the phone page.

(WIFI connection)

When the thermostat is turned on, press and hold the button for 5

seconds, the thermostat display will show.

Now, the WIFI icon flashes (slow flashing), and the thermostat enters the

status of code matching.

Find the temperature control product (Bluetooth + WIFI model) in the

“small household appliances. In the specific network configuration mode,

click the configuration button on the page, select the WIFI that can

connect to the Internet in the working area of the device, and enter it.

WIFI password, click “Next”, click according to the page prompt (Figure 2),

“Go to Connect”, and follow the instructions to find the prompt content

(Figure 3), click “Prompt content” and return to the Tuya APP to enter the

network configuration process.

In that case, the APP for the network configuration process is show

(Figure 1), and the network configuration successfully display the

interface (Figure 2).

The device’s name with successful network configuration can be modified

and the room’s location can be selected.

If the distribution network fails, the APP will display the page shown in

the figure below. You can choose to add or view the help again.

Note: if the connection fails, please confirm whether the temperature

control device has entered the code matching state.

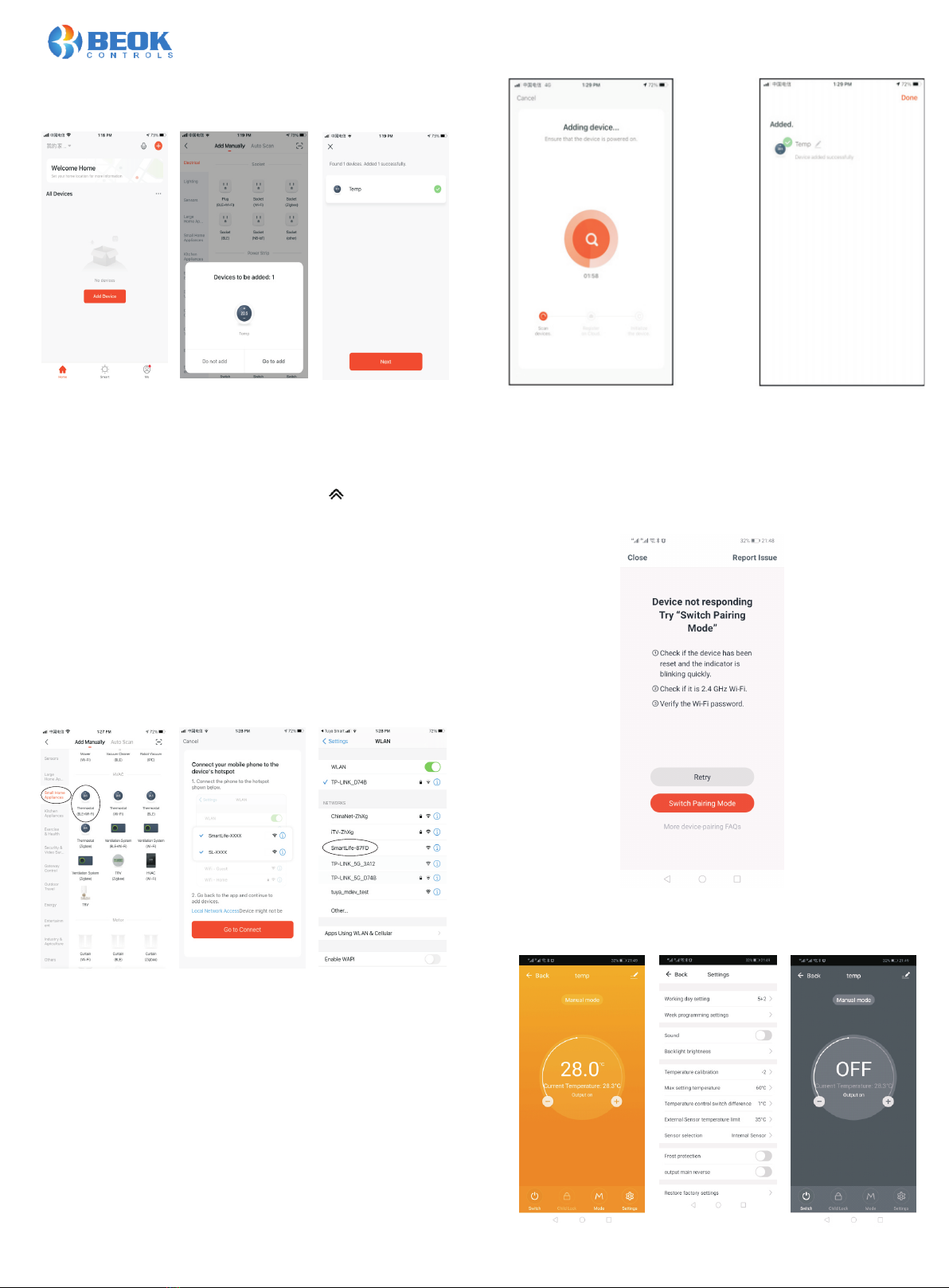

4. Thermostat APP interface display

1. Connect the power box according to the wiring diagram.

2. Separate the power supply from the control board cable.

3. Screw the power supply into the box of 86.

4. Connect the power board to the board line, and align the buckle at 30

degrees to complete the installation.

TGW60 Wifi Heating Thermostat

XI. ATT:

Thank you for buying this product!

Please read this manual for complete instructions on installing and

operating your thermostat. If you require further assistance, please

feel free to contact us.

In the box you will find:

Thermostat

External sensor

User Manual

Screws

Our Service:

We offer the warranty of 24 months from the sales day.

During the warranty, if it is belong to the quality issue, we will fix or

replace them for you by free after test them.

If it is not quality problem or beyond the warranty time, we will

charge for the after-sales service.

TGW60WIFI-EP TGW60WIFI-WP

√

Model TGW60WIFI-WPB

√

BEOK

X. Installation Instruction

This product is suitable for standard 80*80mm wall box and 60 mm

european round box.

(1) (2)

(3)

(1)

(4)
