Bentone ST 120 Especificaciones técnicas

Providing sustainable energy solutions worldwide

Installation- and maintenance instruction

ST 120

R RV LMO14

AS 47

Translation of the original instructions.

CR00118 178 172 15-1 2020-12-10

2Bentone

example Beispielexempel

Manuels dans d'autres langues.

www.bentone.com\download

ou scannez le code QR

Saisir le numéro d'article du brûleur

sur votre plaque signalétique (consultez l'illustration)

et sélectionnez la langue.

352011030141

Designation

Type

Model

Serial no.

Motor supply

Main supply

MADE IN SWEDEN BY

LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar

BF 1 KS 76-24

BF 1

BF 1 KS 76-24

1234567

1~230V 1,0A 50Hz IP 20

Man.Year 2019

Cap. Min-Max

Manualer på övriga språk

www.bentone.com\download

or scan QR-code

Enter the burner`s article number on your data plate

(see picture) and select language.

Manuals in other languages

www.bentone.com\nedladdning

eller scanna QR-koden

Skriv in brännarens artikelnummer som ﬁnns på din

typskylt (se bild) och välj ditt språk

www.bentone.com\download

oder scannen Sie den QR-Code

Geben Sie die Artikelnummer des Brenners auf Ihrem Typenschild ein

(siehe Bild) und wählen Sie die Sprache aus.

Gebrauchsanweisungen in anderen Sprachen.

3Bentone

General

Table of contents

1. General Information __________________________________ 4

2. Technical data _______________________________________ 7

2.1 Dimensions ST 120 _______________________________ 7

2.2 Dimensions, ﬂanges _______________________________ 8

2.3 Burner installation _________________________________ 8

2.5 Working ﬁeld ST 120R/RV __________________________ 9

2.4 Setting of brake plate and air ﬂow ___________________ 9

2.6 Recommended nozzles and pressures ______________ 10

2.7 Nozzle table, 8-15 bar ____________________________ 10

2.8 Description______________________________________ 11

3. General instructions _________________________________ 12

3.1 General instructions ______________________________ 12

3.2 Delivery inspection _______________________________ 13

3.3 Preparing for installation___________________________ 13

3.4 Oil distribution ___________________________________ 13

3.5 Electrical connection______________________________ 13

3.6 Burner installation ________________________________ 14

4. Basic settings ______________________________________ 15

4.1 Example of basic settings _________________________ 15

5. Burner servicing ____________________________________ 18

5.1 Servicing _______________________________________ 18

5.2 Servicing the combustion device ___________________ 18

5.3 Replacing the oil pump ___________________________ 20

5.4 Replacing the fan motor and fan wheel ______________ 21

5.5 Servicing the air intake and intake cone______________ 22

5.6 Replacing the entire electrical package ______________ 22

5.7 Replacing individual electrical package components ___ 23

6. Instructions Pump __________________________________ 24

6.1 SUNTEC AS ____________________________________ 24

7. Oil burner control ___________________________________ 30

7.1 Wiring diagram _________________________________ 30

7.2 Colour codes LMO14/24 __________________________ 32

7.3 Fault codes LMO14/24 ___________________________ 32

8. Fault Location ______________________________________ 33

8.1 Burner will not start_______________________________ 33

8.2 Burner will not start after normal use ________________ 33

8.3 Delayed ignition__________________________________ 34

8.4 Noise in pump ___________________________________ 34

8.5 Pump pressure __________________________________ 34

9. Log of ﬂue gas analysis ______________________________ 35

10. Oil burners maintenance instructions _______________ 36

4Bentone

1. General Information

This Installation and Maintenance manual:

• is to be regarded as part of the burner and must always be kept near

the installation site

• is intended for use by authorised personnel

• must be read prior to installation

• must be observed by all who work with the burner and associated

system components

• work with the burner may only be carried out by certiﬁed installers/

personnel

• Enertech AB is not liable for any typographical errors and reserves the

right to make design changes without prior notice.

• The burner may only be used for its intended purpose in accordance

with the product’s technical data.

• The burner may only be installed and operated by authorised

personnel.

• The product is packaged to prevent damage from occurring during

handling. Handle the product with care. Lifting equipment must be

used to lift larger packages.

• The products must be transported/stored on a level surface in a dry

environment, max. 80% relative humidity, no condensation.

Temperature -20 to +60 °C.

• Check that the burner is compatible with the boiler’s output range.

• The label information on the rating plate refers to the burner’s minimum

and maximum power.

• The power data on the type sign refers to the burner’s min. and max.

power.

• All components must be installed without being bent, twisted or

subjected to mechanical or thermal forces which can affect the

components.

• The burner must be installed so that it complies with local regulations

for ﬁre safety, electrical safety, and fuel distribution.

• Make sure when installing the equipment that there is enough space to

service the burner.

• Permitted ambient temperature during operation -0 to +60 °C. Max

80% relative humidity, no condensation.

• The installer must ensure that the room has adequate air supply.

• The room must comply with local regulations pertaining to its intended

use.

• The installation site must be free of chemicals.

• Burner pipes, fan wheels and air dampers may contain sharp edges.

• The surface temperature of the burner’s components can exceed 60

°C.

• Caution: The burner has moving parts, and there is risk of crushing

injuries.

165 105 01

5Bentone

• The electrical installation must be professionally carried out in

accordance with applicable high voltage regulations, as per Enertech’s

recommendations.

• Before servicing, shut off the fuel supply and turn off the power to the

burner.

• Leak checks must be performed during installation and servicing to

prevent fuel leakage.

• Care should be taken by the installer to ensure that no electrical cables

or fuel lines are crushed or otherwise damaged during installation or

servicing.

• If the boiler is equipped with an access hatch, this must be equipped

with a hatch opening switch connected to the burner's safety system.

• When in operation, the burner’s noise level can exceed 85 dBA.

Use hearing protection.

• The burner must not be put into operation without proper safety and

protection devices.

• A Class BE ﬁre extinguisher is recommended.

• It is forbidden to alter thedesign or use accessories which have not

been approved by Enertech in writing.

• Prior to operation, the following points must be checked:

-ﬁtting and installation work has been completed and approved

-electrical installation has been correctly performed

-ﬂue gas ducts and combustion air ducts are not blocked

-all actuators and control and safety devices are in working order and

correctly set

• After commissioning, if a steady red light on the burner control is

displayed, contact your installation technician.

6Bentone

Components Service life – Recommended

replacement

Service life – Recommended

replacement Operating cycles

Control system 10 years 250 000 cycles

Pressure switch 10 years 250 000 cycles

Flame guard 10 years 250 000 cycles

UV ﬂame sensor 10 000 hrs N/A

Damper motor 500 000 cycles

Contaktor 10 years 500 000 cycles

Burner 1 year 3000 hrs

Filter 1 year 3000 hrs Change

Oilhose 1 year Control/change

Nozzle 1 year Change 3000 hrs Change

Electrods 1 year Change/cleaning 3000 hrs Change/cleaning

Brake plate 1 year Change/cleaning 3000 hrs Change/cleaning

Motor 1 year 3000 hrs

Cuppling chaft 1 year Control/change 3000 hrs Control/change

Fan wheel “1 year Change when dirty /

unbalance”

“3000 hrs Change when dirty /

unbalance”

Oil ﬁlter 1 year 3000 hrs Change

Oil valve Tightness check 1 year Replacement in case of leakage

The burner and its components must be recycled according to applicable regulations.

Burner servicing schedule

Servicing must be carried out once a year or after 3000 hours of operation.

Component replacement intervals

Delivery check

• Make sure everything is delivered and the goods have not been

damaged during transit.

• If something is wrong with a delivery, report it to the supplier.

• Transport damage must be reported to the shipping company.

7Bentone

165 205 23

2. Technical data

The burner is intended for:

• Light oil, B10 heating oil/biofuel blend (as deﬁned in DIN V51603-6)

and is used for:

• Water heating generators

• Hot air generators (these require LMO 24 255 C2E)

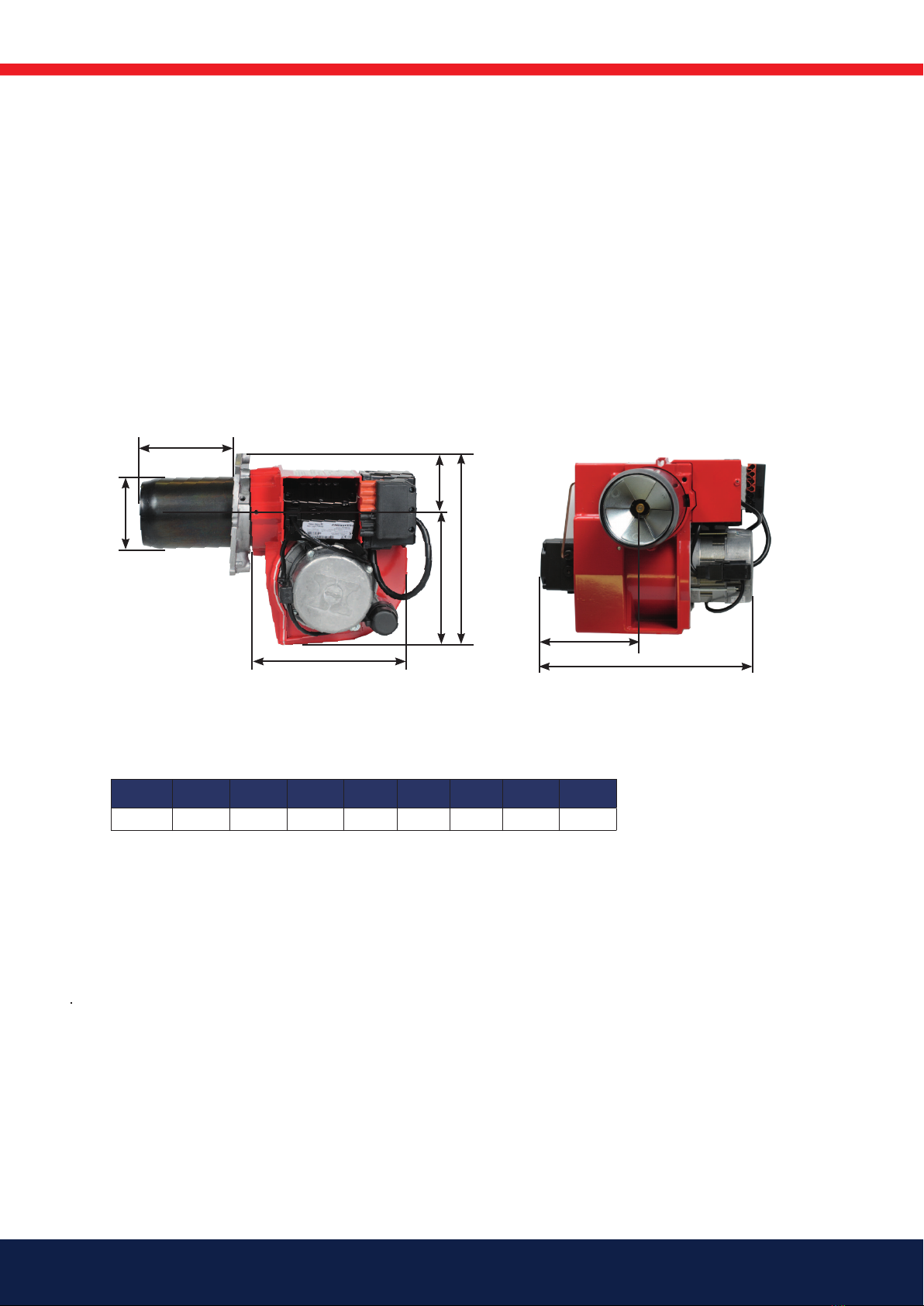

2.1 Dimensions ST 120

* Min. recommended distance to ﬂoor.

Ø B C D E F G H *I

ST120 89 194 169 54 229 148 275 200

øB

8Bentone

2.2 Dimensions, ﬂanges

Flange 2

10,3

130-150

ø89,7

125-150

10,3

ø90 5

Flange 1

Combustion

device

d1d2d3

ST 120 R,RV ø 90 M10 ø 125-150

2.3 Burner installation

2.3.1 Hole patten

Make sure the hole pattern on the boiler is designed for burner ﬂange.

Length of blast tube

Protrusion from ﬂange,

measurement A

Flange

1 2

131 113 97

9Bentone

2.4 Setting of brake plate and air ﬂow

a b c

ST 120 R, RV 8,0-9,0 2,7-3,3 0,5-1,5

2.5 Working ﬁeld ST 120R/RV

1,4-4,3 kg/h

17-51 kW

mbar

Type Motor Complete

burner

Sound

ST 120 R, RV 90W 0,75A 230V

50/60Hz 4µF

230V 0,8A

50Hz

70 dBA ± 0,5

dBA

2.5.1 Electric Speciﬁcation

Burner correspond to IP 20

0,3

0,0

0,3

0,6

0,9

1,2

1,5

1,8

2,1

2,4

15,0 20,0 25,0 30,0 35,0 40,0 45,0 50,0 55,0

!*NB It is important that

the spark does not strike

against the brake plate or

nozzle

10 Bentone

2.6 Recommended nozzles and pressures

Because of the different types of boiler in existence, with varying furnace

geometries and furnace loads, it is not possible to commit to any given spray

angle or spay pattern. Note that spray angles and spray patterns change

with pump pressures.

Nozzle 60° Solid/Hollow cone

80° Solid/Hollow conel

Pump pressure 10 bar (8–14 bar) Fuel oil 1

10 bar (7–12 bar) Kerosene

2.7 Nozzle table, 8-15 bar

Pump pressure, bar

Gph 8 9 10 11 12 13 14 15

kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW

0,40 1,33 16 1,41 17 1,49 18 1,56 18 1,63 19 1,70 20 1,76 21 1,82 21

0,50 1,66 20 1,76 21 1,86 22 1,95 23 2,04 24 2,12 25 2,20 26 2,28 27

0,60 2,00 24 2,12 25 2,23 26 2,34 28 2,45 29 2,55 30 2,64 31 2,73 32

0,65 2,16 26 2,29 27 2,42 29 2,54 30 2,65 31 2,75 33 2,86 34 2,96 35

0,75 2,49 29 2,65 31 2,79 33 2,93 35 3,08 36 3,18 38 3,30 39 3,42 40

0,85 2,83 33 3,00 36 3,16 37 3,32 39 3,47 41 3,61 43 3,74 44 3,87 46

1,00 3,33 39 3,53 42 3,72 44 3,90 46 4,08 48 4,24 50 4,40 52 4,56 54

1,10 3,66 43 3,88 46 4,09 48 4,29 51 4,48 53 4,67 55 4,84 57 5,01 59

1,20 3,99 47 4,24 50 4,47 53 4,68 55 4,89 58 5,09 60 5,29 63 5,47 65

1,25 4,16 49 4,40 52 4,65 55 4,88 58 5,10 60 5,30 63 5,51 65 5,70 68

1,35 4,49 53 4,76 56 5,02 59 5,27 62 5,50 65 5,73 68 5,95 70 6,15 73

1,50 4,98 59 5,29 63 5,58 66 5,85 69 6,11 72 6,36 75 6,60 78 6,83 81

1,65 5,49 65 5,82 69 6,14 73 6,44 76 6,73 80 7,00 83 7,27 86 7,52 89

1,75 5,82 69 6,18 73 6,51 77 6,83 81 7,14 85 7,42 88 7,71 91 7,97 94

2,00 6,65 79 7,06 84 7,45 88 7,81 93 8,18 97 8,49 101 8,81 104 9,12 108

2,25 7,49 89 7,94 94 8,38 99 8,78 104 9,18 109 9,55 113 9,91 117 10,26 122

The table applies to oils with a viscosity of 4.4 mm2/s (cSt) at a density of 830 kg/m3.

2.7.1 Burner with preheater

Allow for a reduction in oil quantity of 5–20% with preheating owing to:

• Temperature increases at the nozzle.

• Nozzle design.

• Capacity (the higher the capacity the lower the difference).

Tabla de contenidos

Otros manuales de Quemador de Bentone

Bentone

Bentone B 70-3R Especificaciones técnicas

Bentone

Bentone BG550M Especificaciones técnicas

Bentone

Bentone BF 1 FU Especificaciones técnicas

Bentone

Bentone ST 133 S Especificaciones técnicas

Bentone

Bentone B 40 A2.2 RME Especificaciones técnicas

Bentone

Bentone STG 120/1 Especificaciones técnicas

Bentone

Bentone B30A RME Manual de usuario

Bentone

Bentone RSA 60 Especificaciones técnicas

Bentone

Bentone STG 146/1 Especificaciones técnicas

Bentone

Bentone BF 1 FUV FAME/RME Especificaciones técnicas

Bentone

Bentone LMO14.113C2E Especificaciones técnicas

Bentone

Bentone B 70i-3R FAME J Manual de usuario

Bentone

Bentone B 45 A2.2 RME Especificaciones técnicas

Bentone

Bentone ST 146 KS Especificaciones técnicas

Bentone

Bentone B 30 A2.2 RME Especificaciones técnicas

Bentone

Bentone STG 120/2 Especificaciones técnicas

Bentone

Bentone BFG 1 H2 Biogas Especificaciones técnicas

Bentone

Bentone B 30A Especificaciones técnicas

Bentone

Bentone BG 550 LN Especificaciones técnicas

Bentone

Bentone BG650-2 Especificaciones técnicas

Bentone

Bentone B 45 A Especificaciones técnicas

Bentone

Bentone BG 300 M-J/K-IP40 Especificaciones técnicas

Bentone

Bentone STG 146i/2 Especificaciones técnicas

Bentone

Bentone BENTOFLEX ST 146 B30A Especificaciones técnicas

Manuales populares de Quemador de otras marcas

Riello

Riello RS 28/M Guía de inicio rápido

True Induction

True Induction TI4B Manual de usuario

Weishaupt

Weishaupt WG20 Series Manual de usuario

Carolina Cooker

Carolina Cooker M116672 Manual de usuario

Riello

Riello RX 500 S/PV Manual de instrucciones

Unigas

Unigas HTP2000 Manual de usuario

baltur

baltur BT 250 DSG 4T Manual de usuario

muenkel design

muenkel design round burner Manual de usuario

Ecoflam

Ecoflam Multicalor 170.1 Manual de usuario

baltur

baltur BT 14 DSGW Manual de usuario

artisan

artisan Art-SB1 Guía

Riello

Riello P 140 T/G Guía de inicio rápido

AESYS

AESYS TurboFire II Manual de usuario

Riello

Riello RG1RKD Guía de inicio rápido

IKEA

IKEA GRILLSKÄR Manual de usuario

RUSTA

RUSTA SAREK Manual de usuario

PROPOINT

PROPOINT 8933657 Manual de usuario

baltur

baltur TBL 1000 ME Manual de referencia
