Belkin N600 DB Manual de usuario

User Manual

F9K1102V3 8820xx01233xx Rev.A00

Wireless N+rOUTer

N600 DB

English

TABLE OF CONTENTS

Getting Started ...........................................1

What’s in the Box.............................................1

Initial Setup..................................................1

How to Set It Up .............................................2

Connect Your Wireless Devices................................20

ADDITIONAL CAPABILITIES...............................22

Adding USB Devices.........................................22

Bundled Software ...........................................25

Getting to Know Your Router ..............................33

Front Panel .................................................33

Back Panel .................................................34

Technical Details ........................................35

Technical Features ..........................................35

System Requirements........................................36

USING YOUR ROUTER....................................37

Enabling Auto Update on Your Belkin Router.....................37

Updating the Router’s Firmware via the Web Interface ............39

Resetting the Router .........................................42

Restoring Your Router to Factory Defaults.......................42

Restoring the Router to Default Settings Using the Web Interface...43

Troubleshooting, Support, and Warranty ...................45

Belkin International, Inc., Limited 2-Year Product Warranty.........53

Regulatory and safety Information.........................56

Declaration of Conformity with electromagnetic compatibility and

electromagnetic interference..................................56

Europe – EU Declaration of Conformity .........................57

General Safety Information: ...................................57

What’s in the Box

N600 DB Wireless N+ Router

Ethernet cable (attached to router)

Power supply (attached to router)

Network information card (attached to router)

Quick Setup Guide

Initial Setup

Where to Place Your Router

For the best results, place the Router next to your modem in

an open location, away from large metal objects and magnets

such as those found in speakers. Raising the Router above

floor level can improve the strength of your wireless signal.

GETTING STARTED

How to Set It Up

Connect Your N600 DB Router

Turn off your modem by disconnecting its power supply. Some

modems have a battery backup; this will need to be disconnected at

this time as well.

Connect your Router to your modem using the cable

(already attached).

Power up your modem by plugging in its power supply. If your modem

has a battery backup, it can be reconnected at this time; you may

need to hold the reset button for 10 seconds.

Power up your Router by plugging in its power supply.

GETTING STARTED

Connect to Your Router

Retrieve the network ID card from the foot of your new Belkin Router.

Can’t find the card? The default network name and

password are also printed on the foot of the Router.

Use your computer, tablet, or smartphone to connect to

the wireless network shown on the network ID card.

For information on how to connect your wireless devices, please

see the “Connect Your Wireless Devices” section on page 20.

When requested, please enter the password

(security key) provided on the card.

When your device has connected to the Router, use a browser

to visit http://router/. The router homepage will appear.

GETTING STARTED

If the page does not load, then try visiting

http://192.168.2.1 to see the router homepage.

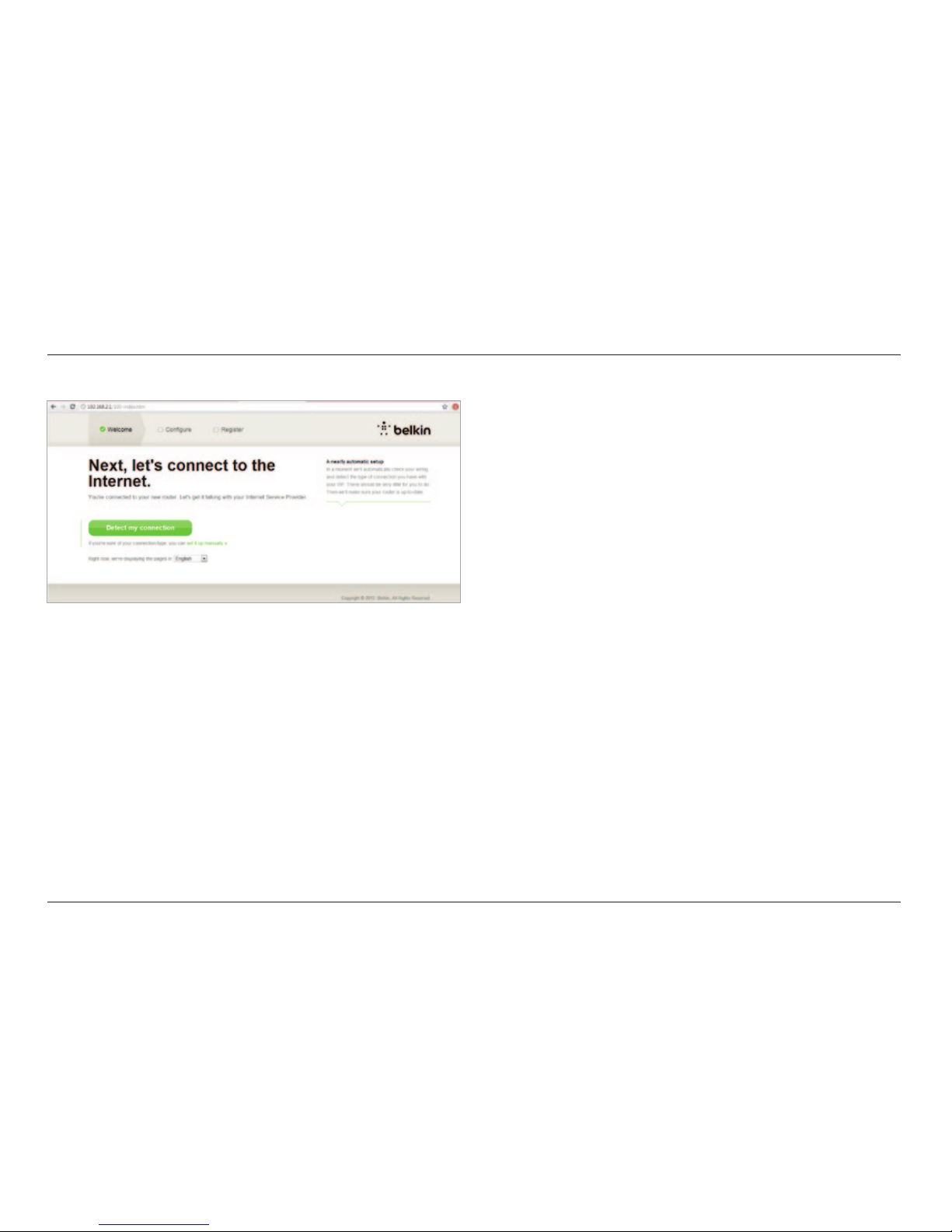

Click the “Detect my connection” button in green. (If

you would rather set up the Router manually, click the

“set it up manually” link and proceed to page 11.)

After several moments, your Router should automatically detect

your Internet connection and restart. This can take anywhere from

30 seconds to 3 minutes depending on your connection type.

If your Router is unable to establish an Internet connection

on its own, you may be asked to restart your modem or

provide a username and password if your connection requires

one. Follow the on-screen instructions provided.

GETTING STARTED

Once your Router is online, it will determine if there is a

firmware update available and offer to install it. Please

allow up to 5 minutes for the firmware to update.

GETTING STARTED

If there are no updates available, then setup will proceed.

GETTING STARTED

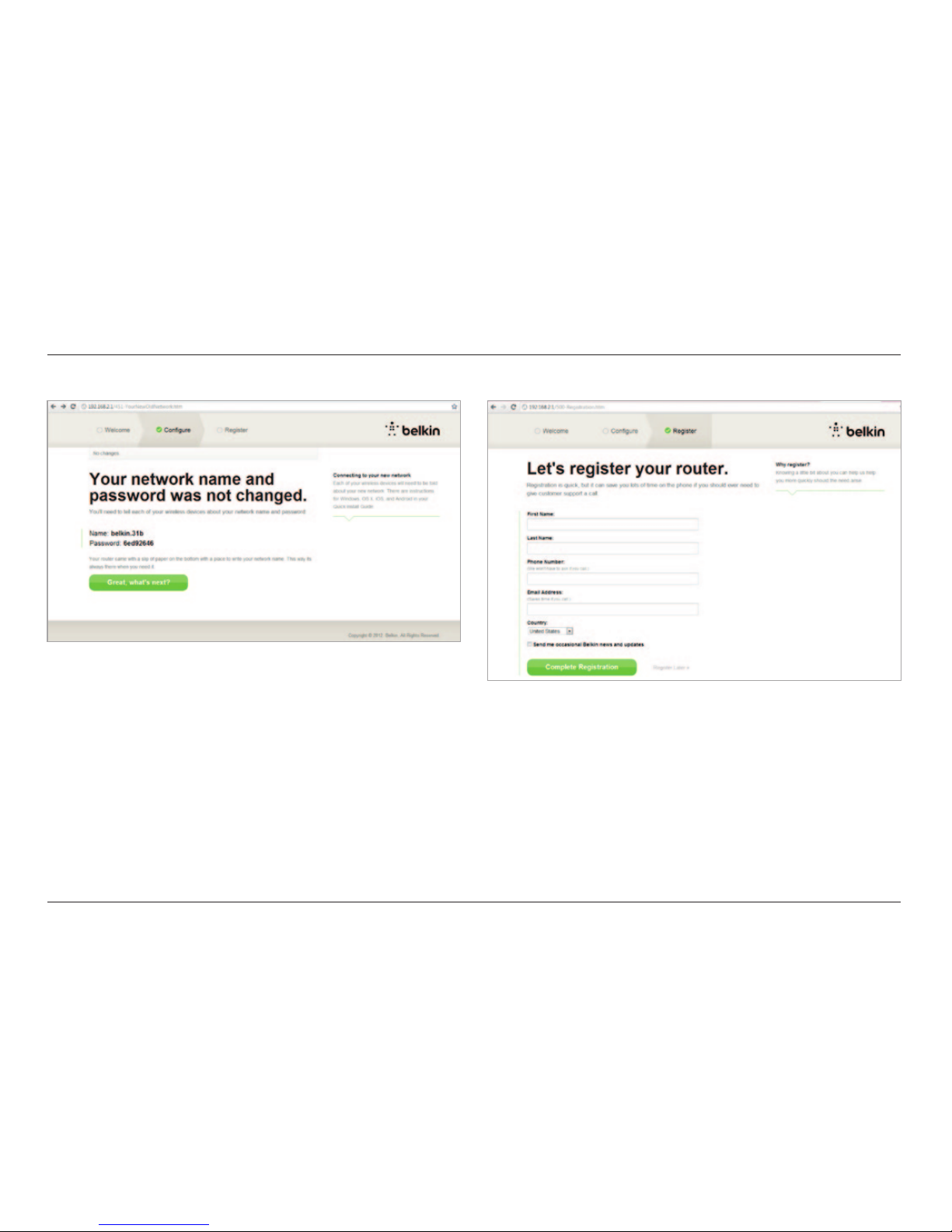

If you changed your network name and password, make note

of it on the service card located on the foot of the Router.

You will then have to connect to the new network.

At the next screen you will be invited to change your

network name and password. Re-using your previous

network name (SSID) and password makes connecting

your existing devices to the new router much easier.

If you decide to change these settings, then enter the

new values and click “Save and Continue.” (Note: The

password must be at least 8 characters long.)

GETTING STARTED

Please take this opportunity to register your Router. This will

help technical support if there is a problem with your Router. Simply complete each of the required fields and click

“Complete Registration.” If you don’t want to register

right now, click “Register Later” to proceed.
