Belkin F1PI241EGau Guía de referencia

Self Help Guide

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 1 of 11

APPLIES TO:

• F1PI241EGau

TABLE OF CONTENTS:-

Before you begin: 3

STEPS: 3

WIRELESS SECURITY INFORMATION 5

64 Bit WEP:- 6

128 Bit WEP:- 7

WPA:- 8

WPA2:- 9

Connecting to the Wireless Network using

Apple Airport 10

Before you begin you will need:

• BelkinWireless/VoIPunit

• Powercable

• Networkcable

Hardware check:

• Yourcomputerisswitchedon

• TheWireless/VoIPunitisswitchedon

(power switch at rear)

• Networkcableconnectedfromcomputerto

 theWireless/VoIPunit

Enable wireless and wireless security on your Belkin VoIP modem/router.

STEPS:

1) Open your web browser (Safari)

2) In the Address Bar, delete any text and type in 10.1.1.1 or click here to open

the page directly

3)Typeinyourcurrentpassword(defaultpassword=admin)thenclickLOGIN

4) On the left hand side of the screen click Advanced Setup

5)Youwillnowbepresentedwithmoreoptionsinthemenuontheleft.

Click Wireless then click Enable Wireless Function and click Save Settings

Wirelessisnowenabled.WestronglyrecommendthatyousetupWirelessSecurity

to help protect your wireless network against unauthorised use.

If you would like to setup Wireless Security, please follow the steps on the

following page.

F1PI241EGau

Self Help Guide

Click the type of security you wish to setup:-

• 64 Bit WEP

• 128 Bit WEP

• WPA

• WPA2

WIRELESS SECURITY INFORMATION

Encryption Type Pros Cons Recommended usage

64 Bit WEP Mostcompatible Leastsecure Oldercomputers

 formofencryption  andwirelessadapters

 Easytosetup  (Windows98/ME/2000

 andmanage  &/or802.11bWirelessCards)

   Homeusers

128 Bit WEP More secure Long network key Apple Macintosh

 than64Bit,yetstill  /Ofceuse

widely supported (26 Characters)

by wireless cards

WPA Easytosetupand Limitedsupport WindowsXP(ServicePack2)

 moresecureform  Latermodelwirelesscards

of encryption

WPA2 Easytosetupand Limitedsupport MicrosoftWPA2Patch

 mostsecureform  WindowsXP(ServicePack3)

 ofencryption  MacComputers

F1PI241EGau

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 2 of 11

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support

64 Bit WEP:-

1) Under Wireless click Security

2) Click WEP

3) Click 64 Bit for WEP Mode leave all other settings as default

4)PlaceatickinthePassphraseeld

5) In space provided in Passphrase, create a password – this can be any

combinationoflettersandnumbers

6) Click Save Settings

7) Write down the characters in Key 1 – this is now your “Network Key” or

“Encryption Key”

NB. There are ten (10) characters in total

This is the ‘key’ that will be required to be entered on your wireless MAC. When

you setup your wireless, it will ask you to type in a Password.

Clickhereforinformationonhowtoconnecttothewirelessnetwork.

Self Help Guide

F1PI241EGau

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 3 of 11

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support

Self Help Guide

128 Bit WEP:-

1) Under Wireless click Security

2) Click WEP

3) Click 128 Bit for WEP Mode leave all other settings as default

4) PlaceatickinthePassphraseeld

5) In the space provided in Passphrase, create a new password - this can be

 anycombinationoflettersandnumbers

6) Click Save Settings

7) Write down the characters in Key 1 – this is now your ‘Network Key’

or ‘Encryption Key’

NB. There are Twenty Six (26) characters in total.

This is the ‘Key’ that will be required to be entered on your wireless MAC. When

you setup your wireless, it will ask you to type in a Password.

ClickhereforinformationonhowtoconnecttotheWirelessNetwork.

F1PI241EGau

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 4 of 11

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support

Self Help Guide

WPA:-

1) Under Wireless click Security

2)ClickWPA/WPA2

3) Authentication is Pre-Shared Key – leave all other settings as default

4) InthespaceprovidedinPre-sharedKey,createapassword–minimumif

 eight(8)characters,itcanbeanycombinationofnumbersandletters

5) Click Save Settings

6) Ensure that WPA is still enabled. The Password you created earlier is now

your ‘Network Key’ or ‘Encryption Key’

This is the ‘Key’ that will be required to be entered on your Wireless MAC. When

you setup your wireless, it will ask you to type in a Password.

ClickhereforinformationonhowtoconnecttotheWirelessNetwork.

F1PI241EGau

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 5 of 11

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support

Self Help Guide

WPA2:-

1) Under Wireless click Security

2) Click WPA2

3) Authentication is Pre-Shared Key – leave all other settings as default

4) InthespaceprovidedinPre-SharedKey,createapassword–minimumofeight

(8)characters,itcanbeanycombinationofnumbersandletters.

5) Click Save Settings

6) Ensure that WPA is still enabled. The password you created earlier is now your

‘Network Key’ or ‘Encryption Key’

This is the ‘Key’ that will be required to be entered on your wireless MAC. When

you setup your wireless, it will ask for a Password.

ClickhereforinformationonhowtoconnecttotheWirelessNetwork.

F1PI241EGau

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 6 of 11

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support

Self Help Guide

Connecting to the Wireless Network using Apple Airport

Click the type of security you wish to setup:-

• 64 Bit WEP

• 128 Bit WEP

• WPA

• WPA2

WEP:-

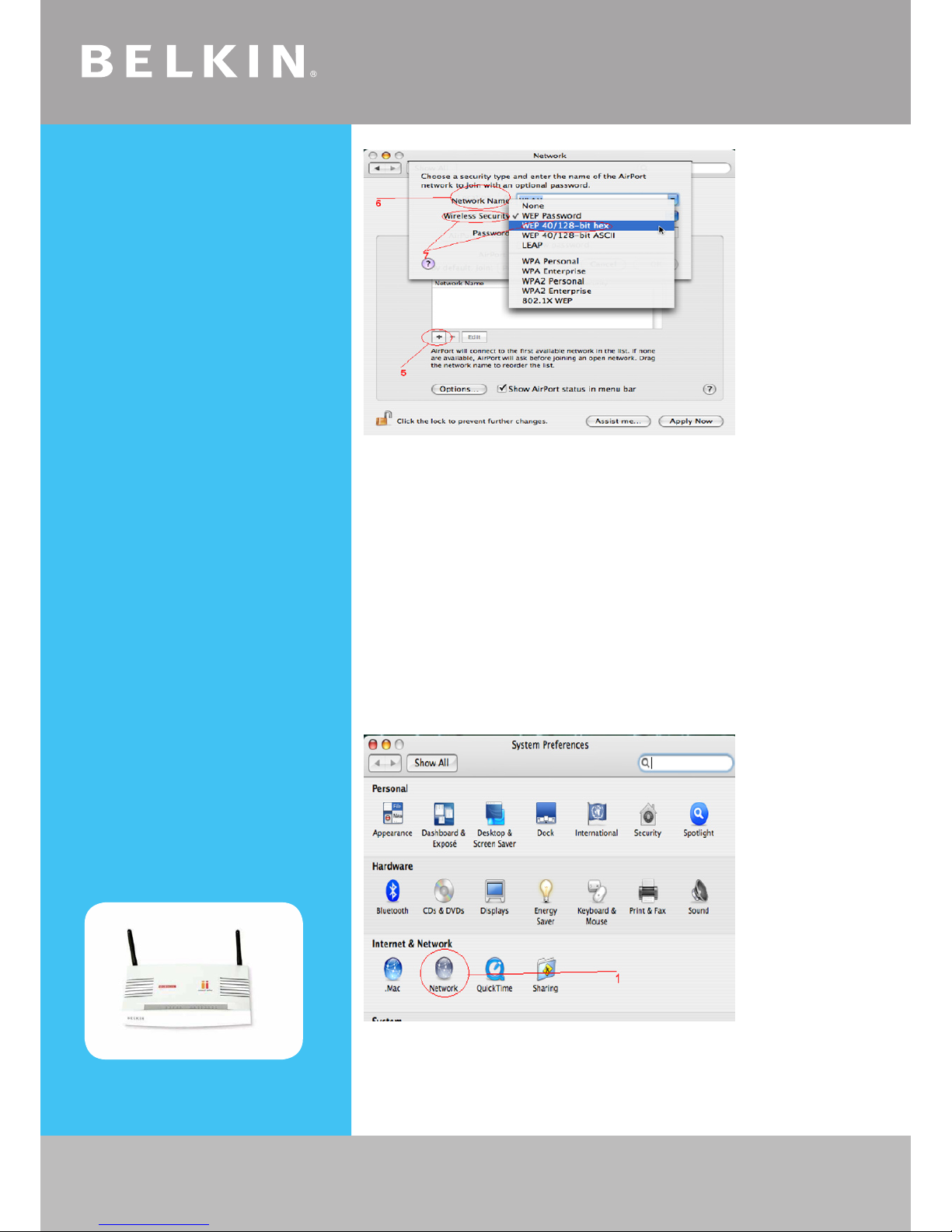

1) OpenSystemPreference,clickNetwork

2)MakesureLocationisonAutomatic

3) Make sure Show is on Airport

4) Make sure By Default Join is selected to Preferred Networks

5)ClickthePlus(+)SymbolnexttotheEditbutton.

6)NexttoNetworkNamedropthelistdownandselectyournetwork.

7) Wireless security will be Showing WEP Password, please change this to

 WEP40/128BitHex.

F1PI241EGau

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 7 of 11

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support

Self Help Guide

8) In the Password Field type in your WEP Encryption Code.

9) Press Ok

10) Press Apply Now

Your Wireless is now setup on your MAC with WEP Security.

WPA:-

1)OpenSystemPreference,clickNetwork

2)MakesureLocationisonAutomatic

3) Make sure Show is on Airport

4) Make sure By Default Join is selected to Preferred Networks

F1PI241EGau

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 8 of 11

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support

Self Help Guide

5) ClickthePlus(+)SymbolnexttotheEditbutton.

6) NexttoNetworkNamedropthelistdownandselectyournetwork.

7) Wireless Security will be showing WPA Personal.

8) Type your Encryption Code into the Password Field

9) Click Ok

10) Click Apply Now

Your Wireless is now setup on your MAC with WPA Security.

F1PI241EGau

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 9 of 11

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support

Self Help Guide

WPA2:-

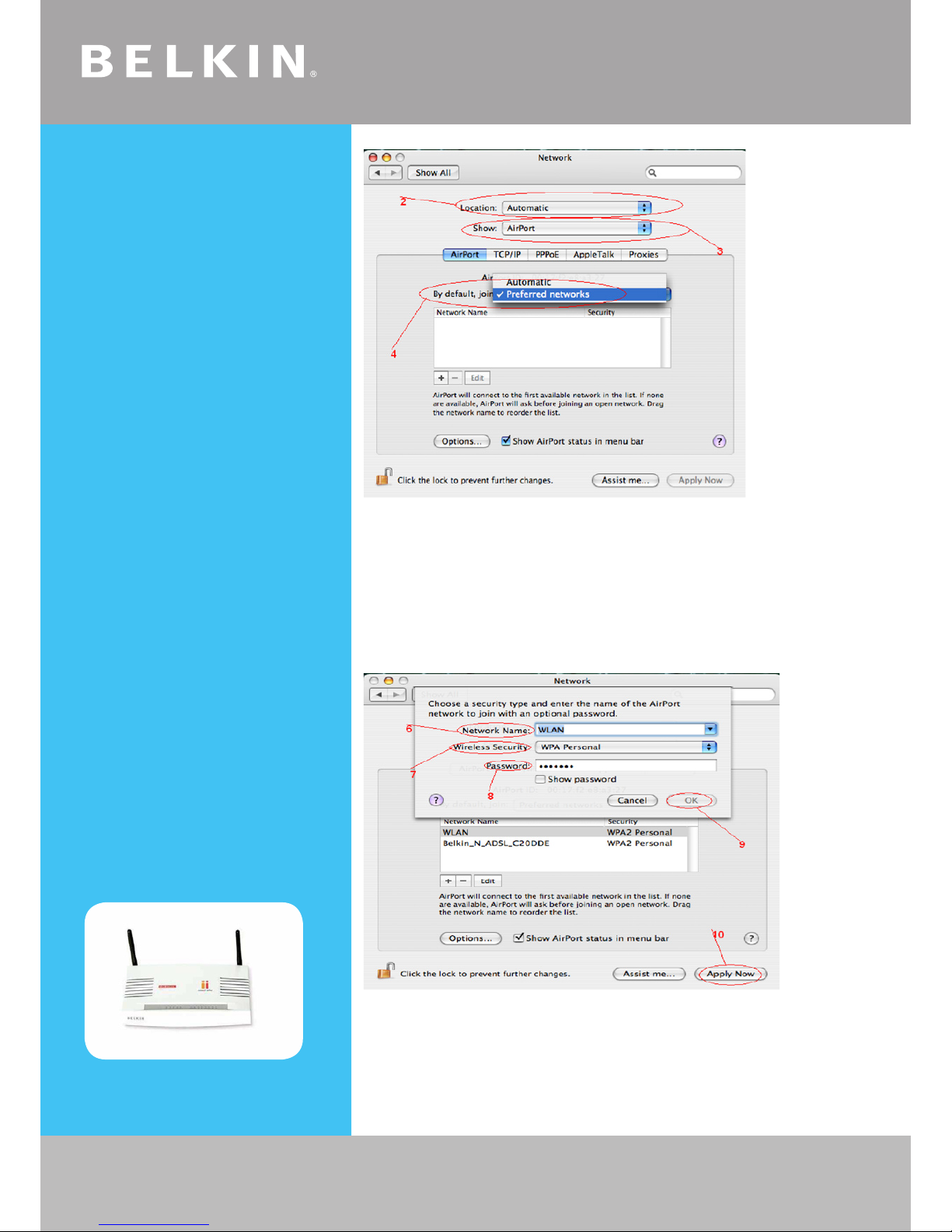

1) OpenSystemPreference,clickNetwork

2) MakesureLocationisonAutomatic

3) Make sure Show is on Airport

4) Make sure By Default Join is selected to Preferred Networks

F1PI241EGau

TSG-ANZ-VHD-7-F1PI241EGau-ENCRYPTION-10.4

Page 10 of 11

If you still require further assistance Call: 1300 55 47 80

contact Belkin Technical Support Visit: www.belkin.com.au/support
