Dual-User PRO3 KVM Switch

Control multiple USB and PS/2 servers with

two different consoles simultaneously

OmniView®Dual-User PRO3 KVM Switch

The OmniView Dual-User PRO3 USB & PS/2 KVM Switch provides easy and dependable server management by

two concurrent administrators. The Switch enables two network administrators to monitor and control up to eight,

or 16, USB- and PS/2-platform servers from two different consoles, simultaneously! No other KVM switch provides

such an impressive set of features and value price. The PRO Series KVM Switches are the industry’s most popular

KVM switches for small to medium server rooms, branch locations, and test and development labs. Designed

to grow along with your server network, the Switch can be daisy-chained together with other Dual-User PRO3

Switches to support up to 128 servers.

The Dual-User PRO3 KVM

Switch features:

• Dual-User Connectivity allows two administrators

to access the KVM Switch simultaneously and

communicate with servers connected to the Switch

• USB & PS/2 Connection offers expanded

connectivity in a mixed server environment

• On-Screen Display (OSD) simpliﬁes server

management and allows you to assign names and

switch to each connected server

• Dedicated Daisy-Chain Ports let you easily

expand your KVM conﬁguration, without sacriﬁcing

available CPU ports

• Hot Keys allow you to easily switch servers using a

sequence on your keyboard

• AutoScan lets you scan and monitor the activities

of all connected servers

• Flash-Upgradeable Firmware ensures

compatibility with the latest hardware

• 1U Design allows for desktop or rack-

mountable installation

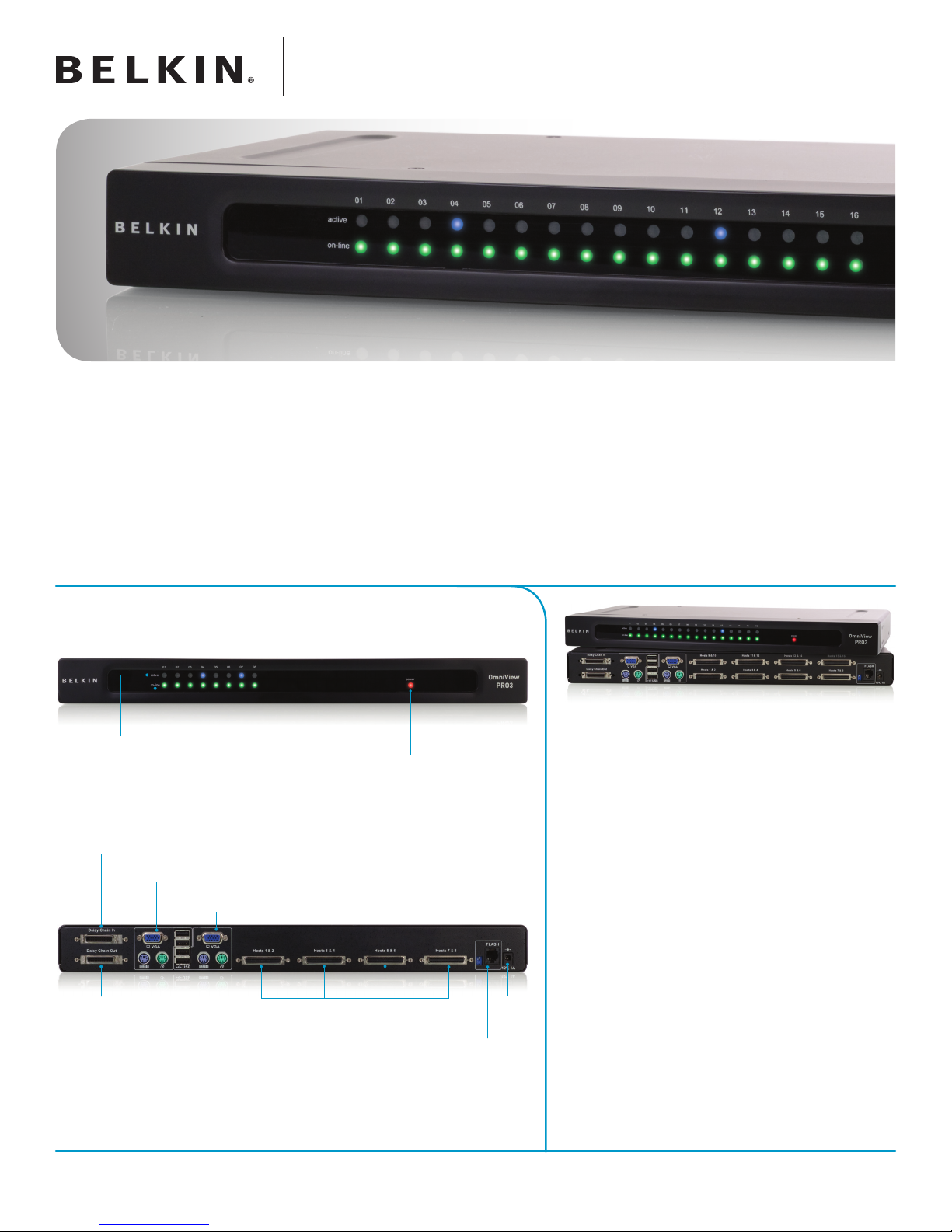

Front View

Back View

*Daisy-chain ports on Dual-User PRO3 KVM Switch only connect to other

Dual-User PRO3 KVM Switches.

Power LED

Active LED

Online LED

Daisy-chain in*

Daisy-chain out*

Console 1: VGA, USB/PS2

mouse & keyboard ports

Console 2: VGA, USB/PS2

mouse & keyboard ports

SCSI-50

dual-host ports

Flash-upgrade

port and DIP

select switch

power

jack

OmniView®Dual-User PRO3 KVM Switch

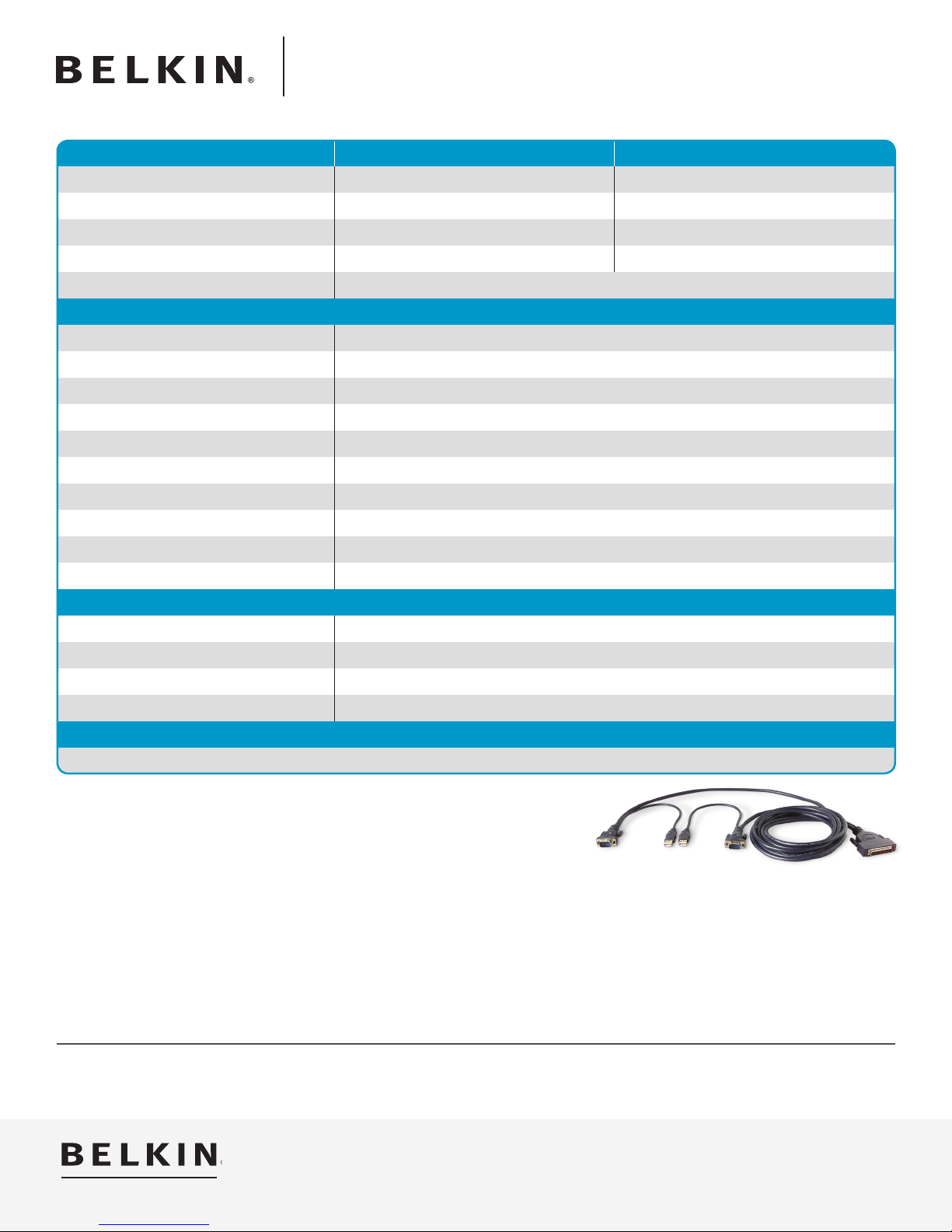

Speciﬁcations

Model No. F1DA208Z F1DA216Z

No. of Users Supported 2 2

No. of Computers Supported 8 16

Dimensions 17.25 x 3.5 x 7.5 in. (438mm x 89mm x 190mm) 17.25 x 3.5 x 7.5 in. (438mm x 89mm x 190mm)

Weight 9.2 lbs. (4.2kg.) 12.0 lbs. (5.5kg.)

Enclosure Metal with high-impact plastic faceplate

Speciﬁcations

Ports USB & PS/2

Monitor Supported VGA and SVGA MultiSync®LCD

Max Resolution Up to 1920x1440@75Hz

Keyboard/Mouse Input USB (Type A), PS/2 (miniDIN6)

Monitor Port VGA (HDDB15)

CPU Port SCSI-50

Daisy-Chain Ports SCSI-36 female

Direct-Port Selectors 8 and 16 respectively for 8- and 16-port models

Flash-Upgrade Port RJ11

KVM Cables Included No

Power/Environment

Power Requirements 12V, 1A power adapter with center pin-positive polarity

Operating Temperature 32° to 104° F (0 to 40° C)

Storage Temperature -4° to 140° F (-20 to 60° C)

Humidity 0-80% RH, non-condensing

Warranty

3 years

Note: Specifications are subject to change without notice.

Package Contents Required Cables

•OmniViewDual-UserPRO3KVMSwitch F1D9401-06 Dual-Port KVM Cable, 6 ft., USB

•Rack-MountBracketwithScrews F1D9401-12 Dual-Port KVM Cable, 12 ft., USB

•12VDC,1APowerSupply F1D9400-06 Dual-Port KVM Cable, 6 ft., PS/2

•DB9-to-RJ11SerialFlashCable F1D9400-10 Dual-Port KVM Cable, 10 ft., PS/2

•UserManualCD F1D9400-15 Dual-Port KVM Cable, 15 ft., PS/2

•QuickInstallationGuide F1D9400-25 Dual-Port KVM Cable, 25 ft., PS/2

Part Number Description UPC

F1DA208Z OmniView Dual-User PRO3 USB & PS/2 KVM Switch 7-22868-66086-7

F1DA216Z OmniView Dual-User PRO3 USB & PS/2 KVM Switch 7-22868-66087-4
