Double N+ Wireless Router

User Manual

F6D6230-4 v1

8820-00267

Ok-mk 2/6/09

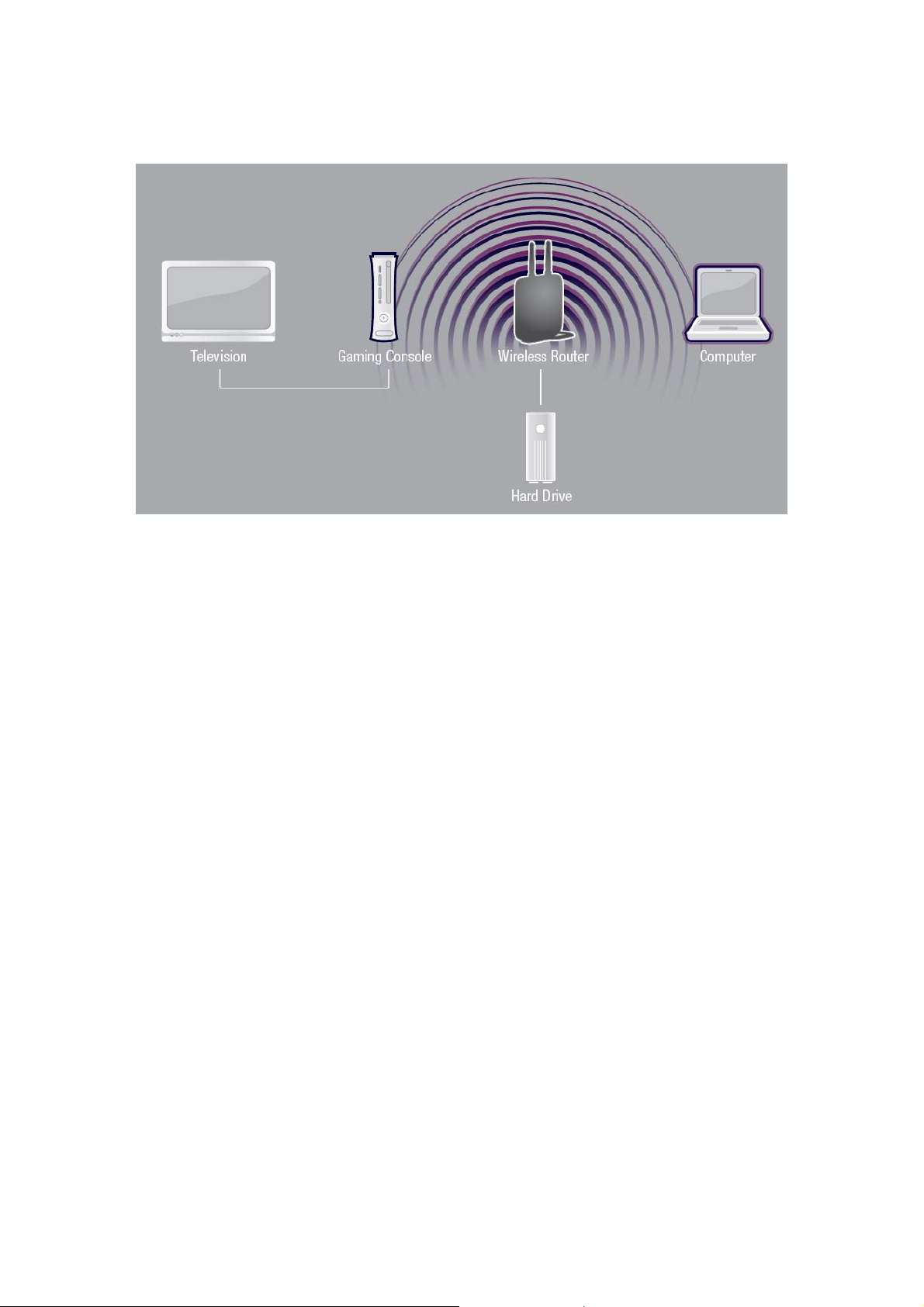

Splash Screen (*Replace with Double N+ wireless router picture)

Table of Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Advantages of Double N+ Wireless Networks…………………………..x

Placement of your Double N+ Wireless Router. . . . . . . . . . . . . .x

2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

3 Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

Setup Assistant Software System Requirements . . . . . .xx

4 Connecting and Configuring your Router . . . . . . . . . . . . . . .xx

5 Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

6 Using the Web-Based Advanced User Interface . . . . . . . . . .xx

Changing LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

Viewing the DHCP Client List Page . . . . . . . . . . . . . . . . . xx

Configuring the Wireless Network Settings . . . . . . . . . . . xx

Setting WPA Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

Setting WEP Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

Using the Access Point Mode . . . . . . . . . . . . . . . . . . . . . .xx

Access Control . . . . . . . . . . . . . . . . . . . . . .xx

Configuring the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Using Dynamic DNS……………………………………….xx

Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Restarting the Router . . . . . . . . . . . . . . . . . . . . . . . . . xx

Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . xx

7 Manually Configuring Network Settings . . . . . . .xx

8 Recommended Web Browser Settings . . . . . . . . . . . . . . . . .xx

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

10 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

Introduction

Thank you for purchasing the Belkin Double N+ Wireless Router (the Router).

Following are two short sections—the first discusses the benefits of home

networking, and the other outlines best practices that maximize your wireless

home network range and performance. Please be sure to read through this User

Manual completely, and pay special attention to the section entitled “Placement

of your Wireless Networking Hardware for Optimal Performance” on the next

page. By following our simple setup instructions you will be able to use your

Belkin Home Network to:

Share one high-speed Internet connection with all the computers in your

home

Share a USB storage device (not included) within your network

Share documents, music, video, and digital pictures

Store, retrieve, and copy files from one computer to another

Simultaneously play games online, check Internet email, and chat

Advantages of Double N+ Wireless Networks

For more bandwidth the Belkin Double N+ router broadcasts two wireless-N

signals simultaneously, one in the 2.4GHz band and the other in the 5GHz band.

Most Wi-Fi devices today can only use the 2.4GHz band but many new laptops

and media devices can run on both 2.4GHz and 5GHz bands. The 5GHz band

usually allows the device to run at higher speeds because there is less

interference in this band. For example, connect your netbook or iPhone to the

2.4GHz network to surf the net, email and simple web applications, then connect

your computer to the 5GHz network to enjoy higher speeds for gaming,

streaming videos etc. If your computer can’t use the 5GHz band, please use the

Belkin Double N+ wireless USB adapter (F6D6050).

The 5GHz band can offer higher speeds but, due to the laws of physics, it does

suffer in terms of range. If you are experiencing connection issues at range,

please connect your device to the 2.4GHz band instead.

*Insert diagram from back of packaging 8830-01905

Placement of your Double N+ Wireless Router

Important Factors for Placement and Setup

Your wireless connection will be stronger the closer your computer is to your

Router. Typical indoor operating range for wireless devices is between 100 and

200 feet.

In the same way, your wireless connection and performance will degrade

somewhat as the distance between your Router and connected devices

increases. This may or may not be noticeable to you. As you move further from

your Router, connection speed may decrease. Factors that can weaken signals

simply by getting in the way of your network’s radio waves are metal appliances

or obstructions, and walls.

If you have concerns about your network’s performance that might be related to

range or obstruction factors, try moving the computer to a position between five

and 10 feet from the Router in order to see if distance is the problem. If

difficulties persist even at close range, please contact Belkin Technical Support.

Note: While some of the items listed below can affect network performance, they

will not prohibit your wireless network from functioning; if you are concerned that

your network is not operating at its maximum effectiveness, this checklist may

help.

1. Router Placement

Place your Router, the central connection point of your network, as close as

possible to the center of your wireless network devices.

To achieve the best wireless network coverage for your “wireless clients” (i.e.,

computers enabled by Belkin Wireless Notebook Network Cards, Wireless

Desktop Network Cards, and Wireless USB Adapters):

Ensure that your Router’s networking antennas are parallel to each other,

and are positioned vertically (toward the ceiling). If your Router itself is

positioned vertically, point the antennas as much as possible in an upward

direction.

In multistory homes, place the Router on a floor that is as close to the

center of the home as possible. This may mean placing the Router on an

upper floor.

Try not to place the Router near a cordless 2.4GHz phone or

microwave.ovens.

2. Avoid Obstacles and Interference

Avoid placing your Router near devices that may emit radio “noise,” such as

microwave ovens. Dense objects that can inhibit wireless communication include:

Refrigerators

Washers and/or dryers

Metal cabinets

Large aquariums

Metallic-based UV tinted windows

Microwave ovens

If your wireless signal seems weak in some spots, make sure that objects such

as these are not blocking the signal’s path (between your computers and Router).

3. Cordless Phones

If the performance of your wireless network is impaired after attending to the

above issues, and you have a cordless phone:

Try moving cordless phones away from your Router and your wireless-

enabled computers.

Unplug and remove the battery from any cordless phone that operates on

the 2.4GHz band (check manufacturer’s information). If this fixes the

problem, your phone may be interfering.

If your phone supports channel selection, change the channel on the

phone to the farthest channel from your wireless network. For example,

change the phone to channel 1 and move your Router to channel 11. See

your phone’s user manual for detailed instructions.

If necessary, consider switching to a 900MHz or 5GHz cordless phone.

4. Choose the “Quietest” Channel for your Wireless Network

In locations where homes or offices are close together, such as apartment

buildings or office complexes, there may be wireless networks nearby that can

conflict with yours.

Use the Site Survey capabilities found in the Wireless Utility of your wireless

adapter to locate any other wireless networks that are available (see your

wireless adapter’s user manual), and move your Router and computers to a

channel as far away from other networks as possible.

Experiment with more than one of the available channels, in order to find

the clearest connection and avoid interference from neighboring cordless

phones or other wireless devices.

For Belkin wireless networking products, use the detailed Site Survey and

wireless channel information included with your wireless network card.

See your network card’s user guide for more information.

These guidelines should allow you to cover the maximum possible area with your

Router. Should you need to cover an even wider area, we suggest the Belkin

Wireless Range Extender/Access Point.

5. Secure Connections, VPNs, and AOL

Secure connections typically require a user name and password, and are used

where security is important. Secure connections include:

Virtual Private Network (VPN) connections, often used to connect

remotely to an office network

The “Bring Your Own Access” program from America Online (AOL), which

lets you use AOL through broadband provided by another cable or DSL

service

Most online banking websites

Many commercial websites that require a user name and password to

access your account

Secure connections can be interrupted by a computer’s power management

setting, which causes it to “go to sleep.” The simplest solution to avoid this is to

simply reconnect by rerunning the VPN or AOL software, or by re-logging into the

secure website.

A second alternative is to change your computer’s power management settings

so it does not go to sleep; however, this may not be appropriate for portable

computers. To change your power management setting under Windows, see the

“Power Options” item in the Control Panel.

If you continue to have difficulty with Secure Connections, VPNs, and AOL,

please review the steps above to be sure you have addressed these issues.

For more information regarding our networking products, visit our website at

www.belkin.com/networking.

Product Overview

Product Features

In minutes you will be able to share your Internet connection and network your

computers. The following is a list of features that make your new Belkin Double

N+ Wireless Router an ideal solution for your home or small office network.

Works with Both PCs and Mac®Computers

The Router supports a variety of networking environments including Mac OS®8.x,

9.x, X v10.x, Linux®, Windows®98, Me, NT®, 2000, XP, Vista™, 7, and others. All

that is needed is an Internet browser and a network adapter that supports TCP/IP

(the standard language of the Internet).

Simultaneous dual-band networks

Two separate networks with one in the 2.4GHz band and one in the 5GHz band.

Increased bandwidth allows you to connect more devices on your network with

less interference.

USB Port for External Storage Devices

The Router includes a USB port in the back panel for one storage device (flash

drive or external hard drive). You can now have network-attached storage

capabilities without having to purchase an expensive NAS.

UPnP AV MediaServer

Patent-Pending Network Status Display

Lighted LEDs on the front of the Router indicate which functions are in operation.

You’ll know at-a-glance whether your Router is connected to the Internet. This

feature eliminates the need for advanced software and status-monitoring

procedures.

Web-Based Advanced User Interface

You can set up the Router’s advanced functions easily through your web browser,

without having to install additional software onto the computer. There are no

disks to install or keep track of and, best of all, you can make changes and

perform setup functions from any computer on the network quickly and easily.

NAT IP Address Sharing

Your Router employs Network Address Translation (NAT) to share the single IP

address assigned to you by your Internet Service Provider while saving the cost

of adding additional IP addresses to your Internet service account.

SPI Firewall

Your Router is equipped with a firewall that will protect your network from a wide

array of common hacker attacks including IP Spoofing, Land Attack, Ping of

Death (PoD), Denial of Service (DoS), IP with zero length, Smurf Attack, TCP

Null Scan, SYN flood, UDP flooding, Tear Drop Attack, ICMP defect, RIP defect,

and fragment flooding.

Integrated 10/100/1000 4-Port Switch

The Router has a built-in, Gigabit Ethernet, four-port network switch to allow your

wired computers to share printers, data and MP3 files, digital photos, and much

more. The switch features automatic detection so it will adjust to the speed of

connected devices. The switch will transfer data between computers and the

Internet simultaneously without interrupting or consuming resources.

Universal Plug and Play (UPnP)

UPnP is a technology that offers seamless operation of voice messaging, video

messaging, games, and other applications that are UPnP-compliant.

Support for VPN Pass-Through

If you connect to your office network from home using a VPN connection, your

Router will allow your VPN-equipped computer to pass through the Router and to

your office network.

Built-In Dynamic Host Configuration Protocol (DHCP)

Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes for the

easiest possible connection of a network. The DHCP server will assign IP

addresses to each computer automatically so there is no need for a complicated

networking setup.

Setup Assistant

The Setup Assistant, second generation of Belkin’s renowned Easy Install

Wizard, takes the guesswork out of setting up your Router. This automatic

software determines your network settings for you and sets up the Router for

connection to your Internet Service Provider (ISP). In a matter of minutes, your

Router will be up and running on the Internet.

Note: Setup Assistant software is compatible with Windows 2000, XP, and Vista;

and Mac OS X v10.x. If you are using another operating system, the Router can

be set up using the Alternate Setup Method described in this User Manual (see

page xx) [VERIFY PAGE NUMBER].

Integrated N+ Wireless Access Point

N MIMO is an exciting new wireless technology based on the draft IEEE 802.11n

specification. It employs MIMO (Multiple Input Multiple Output) smart-antenna

technology that achieves data rates of up to 300Mbps.* Actual throughput is

typically lower than the connected data rate and will vary depending on your

networking environment.

*NOTE: The standard transmission rate—300Mbps—is the physical data rate.

Actual data throughput will be lower.

MAC Address Filtering

For added security, you can set up a list of MAC addresses (unique client

identifiers) that are allowed access to your network. Every computer has its own

MAC address. Simply enter these MAC addresses into a list using the Web-

Based Advanced User Interface and you can control access to your network.

Knowing your Router

Package Contents

Belkin Double N+ Wireless Router

Quick Installation Guide

Belkin Setup Assistant Software CD

RJ45 Ethernet Networking Cable

Power Supply

User Manual on the Setup Assistant CD

Network Status Display Guide

System Requirements

Broadband Internet connection such as a cable or DSL modem with RJ45

(Ethernet) connection

At least one computer with an installed network interface adapter

TCP/IP networking protocol installed on each computer

RJ45 Ethernet networking cable

Internet browser

Setup Assistant Software System Requirements (including Storage

Manager)

A computer running Windows® 2000, XP, or Vista®; or Mac OS® X v10.x

Minimum 1GHz processor and 128MB RAM

Internet browser

Knowing your Router

The Router has been designed to be placed on a desktop. All of the cables exit

from the rear of the Router for better organization and utility. The Network Status

Display is easily visible on the FRONT of the Router to provide you with

information about network activity and status. See the Network Status Display

Guide for more detailed information.

[Replace with “final” N+ Wireless Router Network Status Display line art with A to J line up with

LEDs]

[Note, Please update with F6D6230-4 v1 LED artwork, which has slightly different icons]

A. Broadband Download Speedometer

These lights will display a graphic representation of the current download speed

being transferred through the Internet connection. The speed will be measured

on the speedometer against the fastest speed that has been measured by the N+

since being activated.

B. Wireless Security [insert Lock Icon]

C. WPS Push Button (insert the security lock icon)

This button is set aside for the Wi-Fi Protected Setup feature. Refer to the

“Changing the Wireless Security Settings” section for more details.

D. Wireless-Computer Status [insert Laptop Icon]

Off Wireless computer is not present

Solid Blue Wireless computer is connected to the Router

Blinking

Amber Problem with wireless computer connecting properly to the Router

E. Wired-Computer Status [Computer Icon]

Off Wired computer is not present

Solid Blue Wired computer is connected to the Router

Blinking

Amber Problem with wired computer connecting properly to the Router

F. USB Port Status [USB Icon]

Off No device is plugged into the USB port

Flashing Blue Data is being read/written to the storage device

Flashing Amber Unsupported device is plugged into the USB port

Off Wireless security is off

Blinking Blue WPS handshaking in process

Solid Blue Wireless security is on

Tabla de contenidos

Otros manuales de Enrutador de red de Belkin

Belkin

Belkin F5D8233-4v3 Manual de usuario

Belkin

Belkin Next Net Series Manual de usuario

Belkin

Belkin F5D7230-4 Manual de instrucciones

Belkin

Belkin F1PI241EGau Guía de referencia

Belkin

Belkin F5D8635V2 Manual de usuario

Belkin

Belkin F9K1105V2 Manual de usuario

Belkin

Belkin N+ Manual de usuario

Belkin

Belkin F5D6230-3 Manual de usuario

Belkin

Belkin TSG-UK-1-001 Guía de referencia

Belkin

Belkin F9K1124 Manual de usuario

Belkin

Belkin F5D6230-3 Manual de usuario

Belkin

Belkin F7D3301 Manual de usuario

Belkin

Belkin F5D5230 Manual de usuario

Belkin

Belkin FILTRAGE DE MAC ADRESSE Instrucciones de montaje

Belkin

Belkin Play Max Manual de usuario

Belkin

Belkin High Speed ADSL2+ Manual de usuario

Belkin

Belkin VISION N1 Manual de usuario

Belkin

Belkin F5D9230-4 Manual de usuario

Belkin

Belkin F9K1001V1 Manual de usuario

Belkin

Belkin AC1800 DB Manual de usuario

Belkin

Belkin PARTAGE DE DOSSIER AVEC UN ROUTEUR Instrucciones de montaje

Belkin

Belkin TSG-UK-1-001 Guía de referencia

Belkin

Belkin Wireless G Router Manual de usuario

Belkin

Belkin F9K1002V5 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
