OVERVIEW

Product Features

The Bluetooth USB Printer Adapter is compliant with Bluetooth standard version 1.1

and provides:

• Compliance with Bluetooth specification v1.1 devices

• Support of USB 1.1-compliant printers*

• Operating distance of up to 100 meters

• Compact design

• Support for data rates up to 721Kbps

• Hardcopy Cable Replacement and Serial Port Profiles

*Multifunctional printers will not operate when used with this Adapter

INTRODUCTION

Congratulations and thank you for purchasing the Bluetooth USB Printer Adapter from

Belkin. This breakthrough Adapter adds Bluetooth technology to your existing USB

printer, allowing it to connect with all devices enabled with Bluetooth v1.1 technology.

Wirelessly print from your PDA, desktop, or laptop computer via Bluetooth technology.

Please be sure to review this User Manual carefully to ensure that you take advantage

of all the features and capabilities of your new Bluetooth USB Printer Adapter.

P74376ea_F8T031_man.qxd 11-11-2003 11:29 Page 2

OVERVIEW

Supported Profiles

The services supported by your Bluetooth USB Printer Adapter are defined as “Profiles”.

Available Profiles include:

• Generic Access

• Service Discovery

• Serial Port

• Hardcopy Cable Replacement

System Requirements

• PDA or PC enabled with Bluetooth technology

• Serial Port or Hardcopy Cable Replacement Profile support

• USB v1.1-compliant printer

Package Contents

• Bluetooth USB Printer Adapter

• User Manual

• Quick Installation Guide

• Registration Card

OVERVIEW

P74376ea_F8T031_man.qxd 11-11-2003 11:29 Page 4

OVERVIEW

LEDs

Bluetooth LED (Blue)

On/Blinking: Bluetooth device is connected to the Adapter

Off: No Bluetooth devices are connected to the Adapter

USB LED (Amber)

Fast Blinking: No printer detected

Slow Blinking: Printer detected

LED:

USB LED:

Bluetooth

OVERVIEW

Specifications

Bluetooth Compliance Version 1.1

Compatible to Bluetooth

SPP and HCRP Profile

Physical Interface: USB v1.1-compliant,

A-type

Operating Frequency: 2.4 to 2.4835GHz

Output Power: Class I (0-20 dBm) RF

Data Rate: 723/56Kbps

Operation Range: 100m (333 ft.) radius

indoors

Antenna: Integrated

LED: Bluetooth Activity,

USB Status

Dimensions: 81 (W) x 81 (L) x 26mm (H)

Weight: 108g

Operating Temp: 0 to 50 degrees Celsius

Storage Temp: 10 to 70 degrees Celsius

Humidity: 5~90% non-condensing

Supported Profiles: GAP, SDP, HCRP, Serial

Specifications subject to change without notice.

P74376ea_F8T031_man.qxd 11-11-2003 11:29 Page 6

HARDWARE INSTALLATION

Connecting Via Serial Port Profile

The method of connecting to the printer described below is for use of the Serial Port

Profile. For example, using the Bluetooth PC Card (part number F8T002), or the

Bluetooth USB Adapter (part number F8T001 or F8T003) from Belkin on Windows or

devices that use WIDCOMM BTW software.

1. Double-click on the Bluetooth

icon on your desktop.

2. Choose Bluetooth from the menu bar.

Click “Search for devices”. The “Belkin

USB Printer” icon should appear.

3. Double-click on the icon. You should

see “Discovering Services”. Icons will

appear symbolizing the services your

device offers.

HARDWARE INSTALLATION

Installing the USB Printer

Please do not connect any devices other than a USB printer directly to the USB port of

the Adapter.

1. With the printer powered off, connect one end of a standard USB cable to the USB

B-type connector of your USB printer and connect the other end to the USB type A

printer connector on the Adapter.

Note: You must have the printer driver installed in each computer you wish to print from

prior to use. Go to the Control Panel in Windows and open the “Printers” folder. Select

“Add a Printer” and choose a “Local Printer” (not network printer or USB printer). Then

select the “Bluetooth Port” as its’ port.

2. Connect the included power adapter into an available power outlet. Attach the barrel

plug into the power jack of the Adapter. You should see the Bluetooth and USB LED

blink rapidly for three seconds and then the USB (Amber) LED will remain blinking.

3. Power on the connected USB printer.

Your Bluetooth USB Printer Adapter is now installed and ready for use.

P74376ea_F8T031_man.qxd 11-11-2003 11:29 Page 8

7. Right-click on the printer you pre-installed and choose “Properties”.

8. Select the “Ports” tab.

9. Under the “Ports” section, select the printer

for the virtual COM port created in step 5.

You are now ready to print via Bluetooth

technology to your USB printer.

Note: Each time you would like to print via the

printer connected to the Adapter, you will have

to double-click on the “Virtual [USB Printer]”

icon first to make a connection, unless you set

the printer you created above to be your

default printer. In that case, the PC stack will

automatically send the print job via virtual

COM port.

HARDWARE INSTALLATION

4. Double-click on the “Virtual Printer” icon.

5. A connection via Serial Port Profile over

the virtual COM port will be created. This

is usually “COM3” or “COM4” but can be

configured to another port. Make note of

the COM port for your specific application.

6. Go to Control Panel in Windows and open

the “Printers” folder.

P74376ea_F8T031_man.qxd 11-11-2003 11:29 Page 10

4. Double-click on the “Hardcopy Cable

Replacement” icon.

5. You will be prompted to add a printer.

Click “OK”.

HARDWARE INSTALLATION

Connecting Via Hardcopy Replacement Profile

The method of connecting to the printer described below is for use of the Hardcopy

Replacement Profile. For example, using the Bluetooth PC Card (part number F8T002),

or the Bluetooth USB Adapter (part number F8T001 or F8T003) from Belkin on

Windows or devices that use WIDCOMM

BTW software.

1. Double-click on the Bluetooth

icon on your desktop.

2. Choose “Bluetooth” from the menu bar.

Click “Search for devices”. The “Belkin

USB Printer” icon should appear.

3. Double-click on the icon. You should

see “Discovering Services”. Icons will

appear symbolizing the services your

device offers.

HARDWARE INSTALLATION

P74376ea_F8T031_man.qxd 11-11-2003 11:29 Page 12

PDA SETUP

PrintBoy Installation Instructions for Pocket PC and Palm OS

Before you begin:

To print using a Bluetooth connection you will need:

• A Palm OS handheld with Bluetooth support (present in most handhelds running Palm

OS 4.0 or later)

• A Pocket PC device enabled with Bluetooth wireless technology running Microsoft

Pocket PC 2002 or 2003

• A USB printer

• A Bluetooth Wireless USB Printer Adapter from Belkin

HARDWARE INSTALLATION

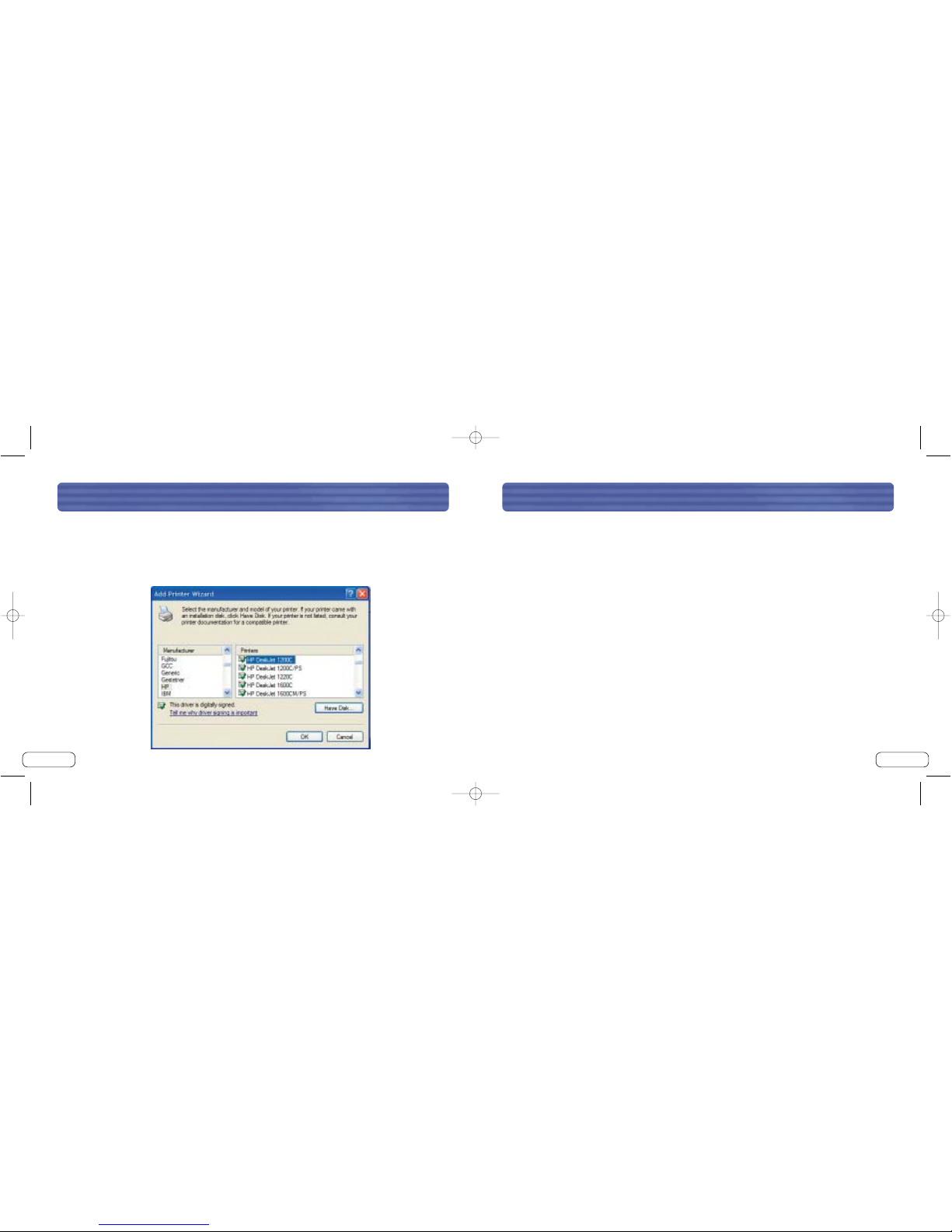

6. The “Add Printer Wizard” will appear. Select the printer from the list or browse for

the printer connected to your Adapter.

7. Follow the wizard to complete the printer installation.

P74376ea_F8T031_man.qxd 11-11-2003 11:29 Page 14
