Belkin Bluetooth USB Adapter F8T012 Manual de usuario

Bluetooth™ USB Adapter

F8T012 - F8T013

Connect your peripherals and

computing devices, without cables

User Manual

F8T012 - F8T013

Bluetooth™ USB Adapter

F8T012 - F8T013

Connect your peripherals and

computing devices, without cables

User Manual

F8T012 - F8T013

Table of Contents

Introduction ......................................................................................................... 4

Product Features .................................................................................................. 5

System Requirements ........................................................................................... 6

Package Contents ................................................................................................ 7

USB Adapter Specifications .................................................................................. 8

Software Setup .................................................................................................... 9

Hardware Setup ................................................................................................. 16

Initial Configuration Wizard ................................................................................. 19

Uninstalling the Software .................................................................................... 22

How to use the Belkin Bluetooth software ............................................................ 26

UK-5

Introduction

Thank you for purchasing the Bluetooth USB Adapter (the USB Adapter) from Belkin.

The USB Adapter features breakthrough Bluetooth wireless technology that lets you

create efficient communications between your USB desktop PC or notebook and

devices using Bluetooth wireless technology—without physical connectors or cables.

Before you install and start using your new Bluetooth USB Adapter, please take

a few minutes to review some of the terms that you will be seeing throughout the

document.

UK-4

Product Features

• Bluetooth allows you to create an adhoc network

• Higher speed access up to 3Mbps (effective throughput of 2.2 Mbps)

• Adds Bluetooth 2.0 + EDR wireless technology to your

USB desktop computer, or notebook

• Fast paring time between 3.5 to 5 sec.

• Lower power consumption

• Bit Error Rate (BER) improved performance

• Manufacturer’s Lifetime Warranty

• Offers backwards compatibility with any Bluetooth v1.1 and v1.2-compliant device

• Installs easily with Plug-and-Play convenience

• Allows you to work at distances of up to 100 metres (Class 1) and 10 metres (Class 2)**

• Supports Microsoft® Windows® 98 SE, Me, 2000, XP, and Mac OS® X v10.3 and higher*

** Range is dependent upon environment, number of users and other wireless devices within immediate proximity.

UK-5

PC System Requirements

• PC-compatible computer, CPU speed of 200MHz or above

• Memory: 64MB or above, 128MB recommended

• One available USB port, USB 1.1 or 2.0

• Windows 98 SE, Me, 2000, and XP

Mac® System Requirements

• One available USB port, USB 1.1 or 2.0

• Mac OS X v10.3 and higher*

*Mac OS X driver and software provided by Apple.

System Requirements

UK-6

Package Contents

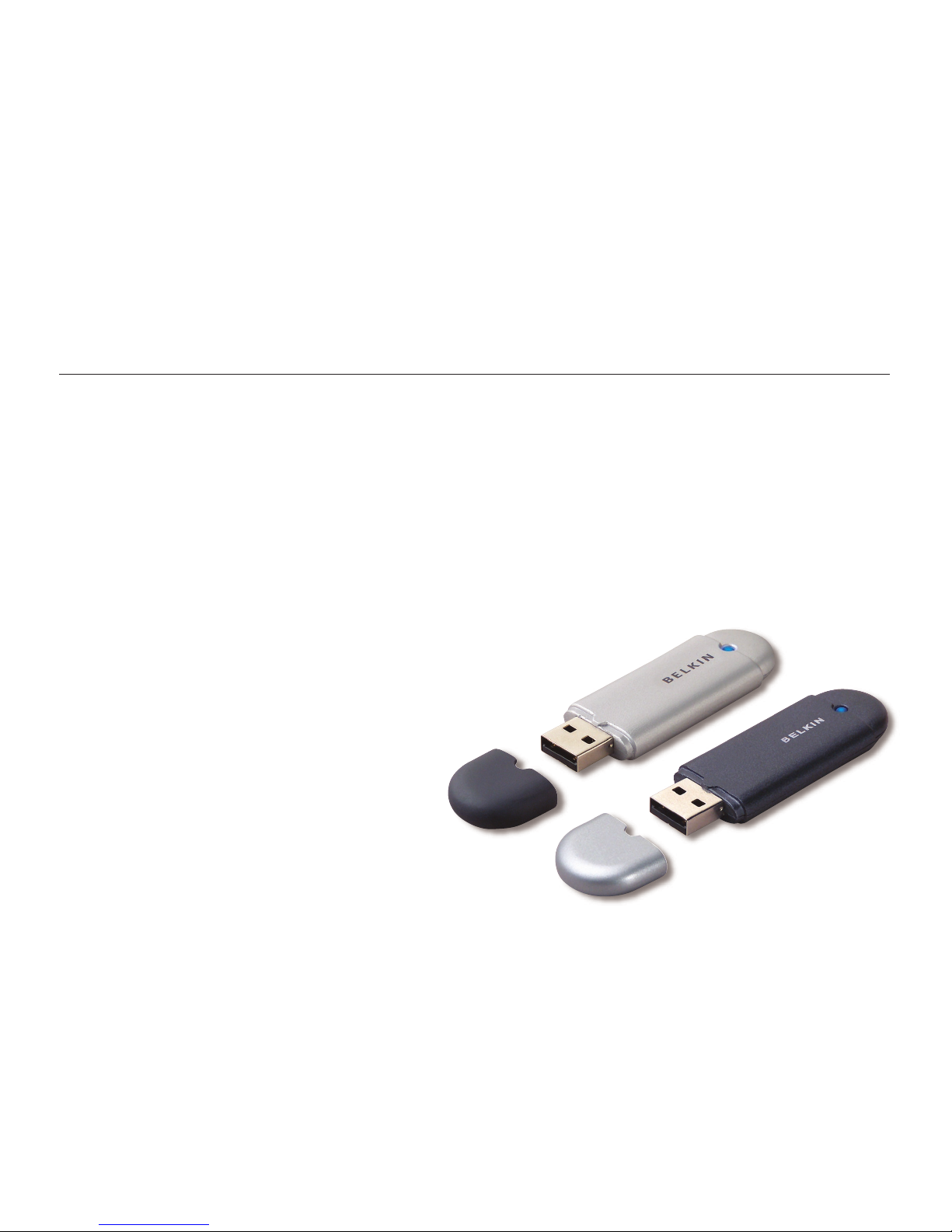

• Bluetooth USB Adapter

• CD-ROM for installation software and documentation

• User Manual on CD

• Quick Installation Guide

• Registration Card

UK-7

USB Adapter Specifications

Bluetooth Compliance: Version 2.0

Physical Interface: USB UHCI/OHCI 2.0-compliant

Operating Frequency: 2.4 to 2.4835GHz

Output Power: (F8T012) 4~20 dBm, Class I

(F8T013) -6~4 dBm, Class II

Sensitivity: <0.1% BER @ -80 dBm

Data Rate: 3Mbps (effective throughput of 2.2 Mbps)

Typical Power

Consumption: (F8T012) Tx: 150mA, Rx 80mA

(F8T013) Tx: 65mA, Rx 45mA

Operating Range: (F8T012) 100-meter radius indoors

(F8T013) 10-meter radius indoors

Network Topology: Point-to-Multipoint

Packet Support: 1/3/5 Slots Packet

Operation: Master/Slave

Frequency Stability: +/- 10PPM

LED Indicator: Power On/Data Traffic

Antenna Type: Integrated, 0 +/- 1 dBi

Dimensions: 58mm (L) x 18mm (W) x 8mm (H)

Weight: 0.2oz. (7g)

Operating Temp: 0 to 70 degrees Celsius

Storage Temp: -30 to 80 degrees Celsius

Humidity: 5-90% (non-condensing)

Supply Voltage: 5.0V DC

Nominal Current: 100mA

Spread Spectrum: FHSS (Frequency Hopping

Spread Spectrum)

Modulation: GFSK (Gussian Frequency

Shift Keying)

Certifications: FCC, CE, ICES, C-Tick,

BQB, WHQL for XP

Specifications are subject to change without notice.

UK-8
