Belkin F5U022 Manual de usuario
USB
BusPort™ Mobile
MODEL F5U022
User Manual
P73280
2
Table of Contents
Overview
Belkin BusPort™Mobile Features. . . . . . . . . . . . . . . . 4
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . 4
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Checking CardBus Host Controller on a PC . . . . . . . . . . 5
Installation for notebook PCs using Windows®98
(First Edition) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation for notebook PCs using Windows®98
(Second Edition) . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using Your BusPort™Mobile on a notebook PC
Initializing USB Devices. . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting on a notebook PC. . . . . . . . . . . . . . . 15
Installation using Macintosh®PowerBook®. . . . . . . . . . 16
Troubleshooting on a Mac®. . . . . . . . . . . . . . . . . . . . . 17
Compatibility List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3
The Belkin USB BusPort™Mobile is the perfect solution for
notebook PC or Macintosh®PowerBook®users without USB ports.
Installation is fast and easy – just slide it in your CardBus PC Card
Type II slot. The BusPort™Mobile is completely Plug-and-Play, and
is compatible with Windows®98 and Macintosh®OS 8.6 or higher.
You can instantly connect USB printers, modems, keyboards, mice,
joysticks, and hundreds of other USB devices.
The BusPort™Mobile provides two additional USB ports. When
used with USB hubs such as the Belkin BusStation™or 4 Port Hub,
you can daisy-chain up to 127 USB devices to your notebook or
PowerBook®. And because it is a Belkin product, you are assured
that it is fully compliant with current USB specifications, meets the
standard of USB OHCI specifications and comes with an
unbeatable Lifetime Warranty.
Overview
4
Features
• Adds USB capabilities to your notebook PC or Macintosh®
PowerBook® quickly and easily
• Instantly connect ANY USB device such as USB printers,
modems, speakers, digital cameras, hubs, and more
• Supports 32-bit CardBus PC Card Type II slot
• Compatible with Windows® 98 or Mac®OS 8.6 or higher
• Fully compliant with current USB OHCI specifications
• Provides 2 USB ports
• Lifetime warranty
SYSTEM REQUIREMENTS
• Notebook PC or Macintosh®PowerBook®with CardBus PC
Card Type II slot
• Windows®98 or Mac® OS 8.6 or higher
• Not for use with PowerBook®G3 1999
PACKAGE CONTENTS
• Belkin USB BusPort™ Mobile
• User Guide
5
Checking CardBus
Host Controller on a PC
Before you can connect the BusPort™Mobile, you need to confirm
if your notebook supports CardBus PCMCIA. To confirm whether
your CardBus host controller has been installed in your notebook
and works properly use the following procedures:
1. Click on Start, select Settings, then click on Control Panel. Next
click on the PC Card (PCMCIA) icon from Control Panel.
2. If the PC Card Properties show at least one empty socket, this
means PC Card support is installed properly on your notebook
PC. You can proceed to install the USB BusPort™Mobile.
6
Installation for Notebook
PCs using Windows®98
1. Insert the BusPort™Mobile on your notebook’s PCMCIA slot.
2. Connect the 7-inch dongle, included in this package, to the
BusPort™Mobile PCMCIA Card.
3. Windows® automatically detects new hardware. To install the
software device drivers for the BusPort™Mobile, please use the
following instructions:
Step 1

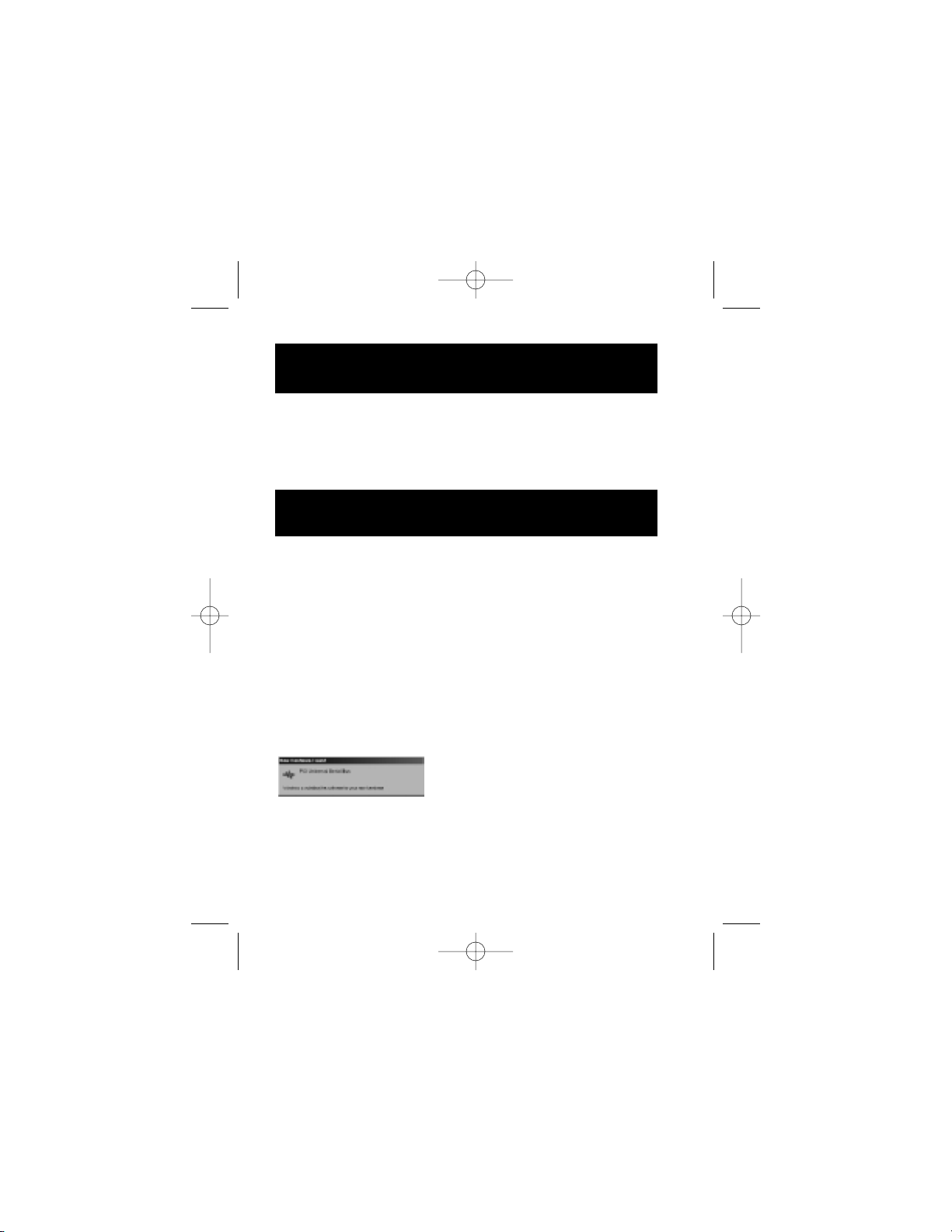

The first dialog box like the one below informs that Windows®98
has detected a new hardware, “PCI Universal Serial Bus,” and that
Windows®is installing the appropriate software.
3. If for some reason your notebook does not have PC Card
PCMCIA support, then refer to your notebook PC manual on
how to install the proper drivers or contact your notebook
computer manufacturer.
Checking CardBus
Host Controller on a PC (cont.)
7
Step 2
The following screen will prompt you that the wizard searches
for new drivers for the OPTi 82C861 PCI to USB Open Host
Controller. Click ‘Next>’.
Step 3
The next screen displays two options. Select ‘Search for the best
driver for your device’. Click ‘Next >’.
Installation for Notebook
PCs using Windows®98 (cont.)
8
Installation for Notebook
PCs using Windows®98 (cont.)
Step 4
Windows®will now prompt you for the location of the driver. Insert
the Windows® 98 CD on your CD-ROM drive. From the selection
window, select “Specify a Location” then type E:\WIN98 (On this
example E is the drive letter for CD-ROM, it may be different on
your PC). Click “Next>” to continue.
Step 5
Next, Windows®will inform you that it has found an updated driver
for this device. Under the heading “What do you want to install?”
select “The updated driver (Recommended)” then click “Next>.”
9
Installation for Notebook
PCs using Windows®98 (cont.)
Step 6
The next screen prompt informs that Windows®is ready to install
the drivers for the BusPort™Mobile. Click “Next” to install
the drivers.
Step 7
The following prompt informs that Windows®is copying the driver
files from the CD-ROM.
10
Step 8
Lastly, Windows®displays the final dialog box. Click “Finish.”
Windows will finish installing the OPTi 82C861 to USB Open Host
Controller and the USB Root Hub. There will be no more prompts.
Congratulations you now have 2 USB ports!
Installation for Notebook
PCs using Windows®98 (cont.)
Installation for Notebook PCs using
Windows®98 Second Edition
1. Insert the BusPort™Mobile in your notebook’s PCMCIA slot.
2. Connect the 7-inch dongle, included in this package to the
BusPort™Mobile PCMCIA Card.
3. Windows®automatically detects that you have installed new
hardware. To install the software device drivers for the
BusPort™Mobile, please use the following instructions:
