Belkin F5U257 Manual de usuario

User Manual

F5U257

Connect your serial devices seamlessly

through your computer’s USB port

USB-to-Serial

Adapter

Table of Contents

1. Introduction .........................................................................1

Supported Operating Systems ............................................2

2. Software Setup ....................................................................3

Windows 2000/XP Driver Installation ...................................3

Red Hat Linux Driver Installation .........................................4

3. Hardware Setup ...................................................................5

Installation Instructions (Windows Platform) ........................5

Installation Instructions (Red Hat Linux Platform) ...............6

4. Compatible Devices ..............................................................7

5. Information ..........................................................................9

Congratulations and thank you for purchasing this innovative

USB-to-Serial Adapter from Belkin. It is designed to link your

serial devices easily through your computer’s USB port. The

leader in connectivity solutions for personal computers, Belkin

designed this product to deliver outstanding performance and

convenience. Please review this User Manual carefully to ensure

that you get the most from your USB-to-Serial Adapter.

Introduction

Supported Operating Systems

The USB-to-Serial Adapter requires one of the following

operating systems:

• Microsoft® Windows® XP Professional

• Microsoft Windows XP Home

• Microsoft Windows 2000 Professional

• Linux® Red Hat® 7.3/8.0 (kernel 2.4.18) and 9.0 (kernel 2.4.20)

Windows 2000/XP Driver Installation

Important Note: You must install the F5U257 driver (software)

BEFORE connecting the Adapter to your computer.

1. Insert the included installation CD into your CD-ROM drive.

After a few moments, the main menu will automatically start.

NOTE: If the main CD does not auto-start, click the “Start”

button and select “Run”. In the “Open” field, enter “<drive>:\

Windows\setup.exe” and click “OK” (with “<drive>” being the

letter of the drive that identifies your computer’s CD-ROM

drive. For example, if the CD is in drive D, enter

“D:\Windows\setup.exe”).

2. Select “Install Windows Driver”. The software installation

wizard will appear and automatically begin to

install drivers.

3. Follow all instructions provided by the software installation

wizard then proceed to the “Hardware Installation”

section on page 5.

Software Setup

Red Hat Linux Driver Installation

1. Select “Install Red Hat Linux Driver”.

2. A folder will open containing the Red Hat Linux driver. Install

the driver according to your Red Hat Linux manual’s driver

installation instructions.

3. Proceed to the “Hardware Installation” section on the

next page.

Software Setup

Installation Instructions (Windows Platform)

IMPORTANT NOTE: Do not attach any devices to the Adapter

until you have completed the following hardware installation

procedure.

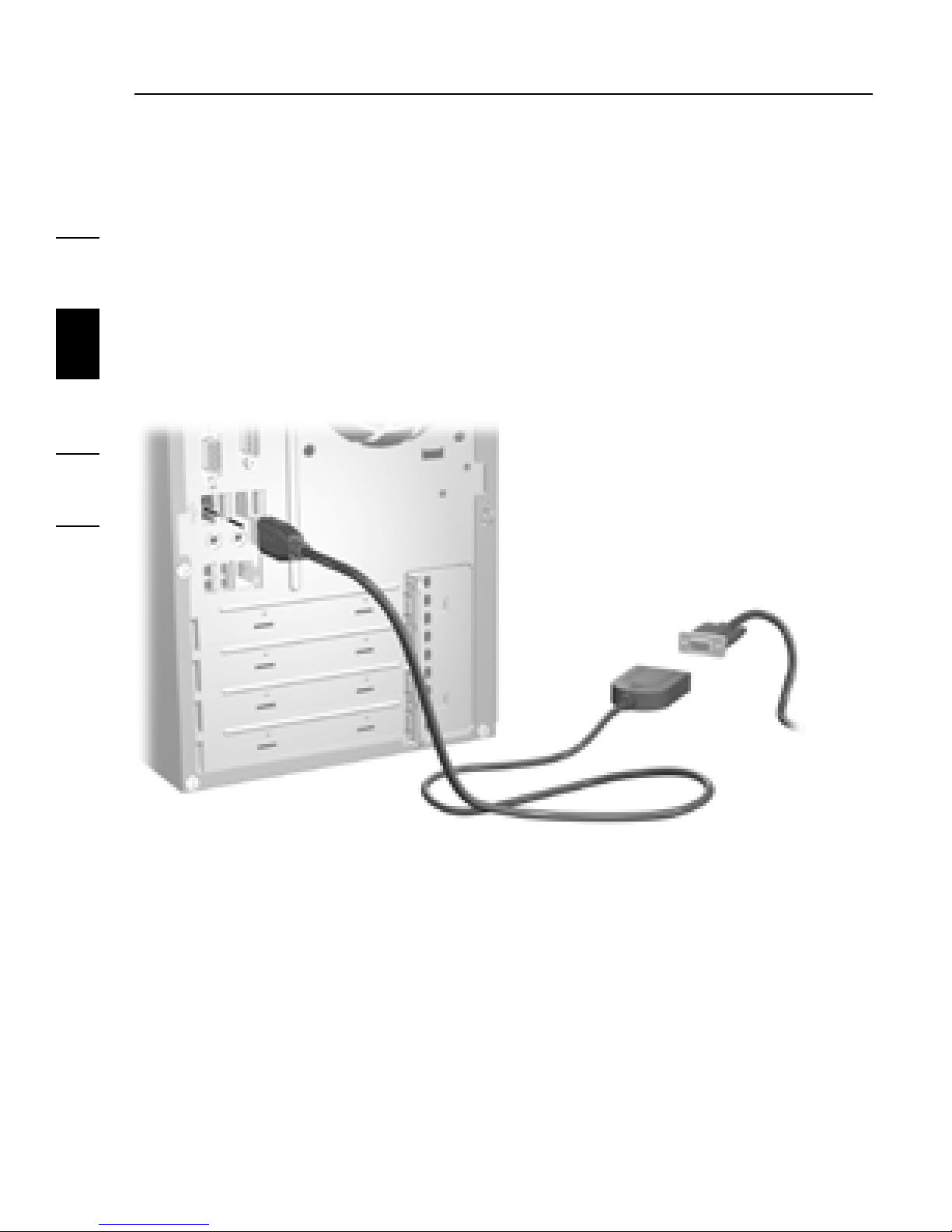

1. Connect the Adapter’s USB connector to an available USB

port on the computer.

2. The Windows “New Hardware” Wizard will now launch.

Follow the instructions provided by the “New Hardware”

Wizard to complete the installation process.

3. Restart your computer.

Hardware Installation

Installation Instructions (Red Hat Linux Platform)

IMPORTANT NOTE: Do not attach any devices to the Adapter

until you have completed the following hardware installation

procedure.

1. Connect the Adapter’s USB connector to an available USB

port on the computer.

2. Restart your computer.

The following devices have been tested and verified as

compatible with the F5U257 USB-to-Serial Adapter.

Device Company Model

Compatible Devices

Modem Acer

www.global.acer.com

AME-RT00

ZyXEL

www.zyxel.com

Omni 56K Smart

NEC

www.nec.com

FB WS-5614ES3

Digital Camera Kodak

www.kodak.com

DC210

Nikon

www.nikon.com

PIX 800

Cellular Phone Kenwood

www.kenwood.com

PDC

Sanyo

www.sanyo.com

PDC

PDA Palm

www.palm.com

m100

III

Serial Printer Fujitsu

www.fujitsu.com

XM-30T

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR

ELECTROMAGNETIC COMPATIBILITY

We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare

under our sole responsibility that the product,

F5U257

to which this declaration relates,

Complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

CE Declaration of Conformity

We, Belkin Corporation, declare under our sole responsibility that the F5U257, to which

this declaration relates, is in conformity with Generic Emissions Standard EN 55022:1998

Class B, EN50081-1 and with Generic Immunity Standard EN50082-1 1992.

Belkin Corporation Limited Lifetime Product Warranty

What this warranty covers.

Belkin Corporation warrants to the original purchaser of this Belkin product that the

product shall be free of defects in design, assembly, material, or workmanship.

What the period of coverage is.

Belkin Corporation warrants the Belkin product for the lifetime of the product.

What will we do to correct problems?

Product Warranty.

Belkin will repair or replace, at its option, any defective product free of charge (except for

shipping charges for the product).

What is not covered by this warranty?

All above warranties are null and void if the Belkin product is not provided to Belkin

Corporation for inspection upon Belkin’s request at the sole expense of the purchaser, or

if Belkin Corporation determines that the Belkin product has been improperly installed,

altered in any way, or tampered with. The Belkin Product Warranty does not protect

against acts of God (other than lightning) such as flood, earthquake, war, vandalism,

theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse, damage due

to low voltage disturbances (i.e. brownouts or sags), non-authorized program, or system

equipment modification or alteration.

Information
