Belkin F1PG200ENau Manual de usuario

iiNet ATA Telephone Adapter

Setting up for ADSL and VoIP.

For model F1PG200ENau

ATA User Manual

Please insert your installation CD now and

then follow the on screen instructions

F1PG200ENau

Table of Contents

1 Introduction .......................................1

2 Product Overview ...................................2

KeyFeatures.....................................2

3 Knowing your Phone Adapter..........................4

PackageContents ................................4

SystemRequirements..............................4

ProductSpecifications.............................5

4 Connecting and Configuring your Phone Adapter ...........8

Connecting your Phone Adapter

toaGateway/Router...............................9

5 Troubleshooting ..................................10

6 Information ......................................13

Introduction

section

Thank you for purchasing the Phone Adapter. This User Manual provides

instructions for installing and configuring the Phone Adapter. In minutes,

you will be able to place phone calls to any location in the world

using your standard phone equipment and your broadband Internet

connection.

Key Features

Voice over Internet Phone Dialing

This exciting, new technology allows you to place calls over your

existing broadband Internet connection with the same quality and

functionality as your standard telephone service.

Compatible with both PCs and Mac®Computers

The Phone Adapter supports a variety of networking environments

including Mac OS®8.x, 9.x, X v10.x, Linux®, Windows®95, 98, Me,

NT®, 2000, XP, and others. It requires an Internet browser and a

network adapter that supports TCP/IP (the standard language

of the Internet).

Front-Panel LED Display

Lighted LEDs on the front of the Phone Adapter indicate which

functions are in operation. You’ll know at-a-glance whether your

Phone Adapter is connected to the Internet. This feature eliminates

the need for advanced software and status-monitoring procedures.

Web-Based Advanced User Interface

You can set up the Phone Adapter’s advanced functions easily

through your web browser, without having to install additional

software onto the computer. There are no disks to install or store,

and you can make changes and perform setup functions from any

computer on the network quickly and easily.

NAT IP Address Sharing

Your Phone Adapter employs Network Address Translation (NAT) to

share the single IP address assigned to you by your Internet Service

Provider while saving the cost of adding IP addresses to your Internet

service account.

Universal Plug-and-Play (UPnP) Compatibility

UPnP (Universal Plug-and-Play) is a technology that offers seamless

operation of voice messaging, video messaging, games, and other

applications that are UPnP-compliant.

Product Overview

section

Product Overview

Built-In Dynamic Host Configuration Protocol (DHCP) Client

Built-In Dynamic Host Configuration Protocol (DHCP) client

on-board makes for the easiest possible connection to your router.

The DHCP server in your router will assign IP addresses to your

Phone Adapter automatically so there is no need for a complicated

networking setup.

Knowing your Phone Adapter

Package Contents

• Phone Adapter

• RJ45 Ethernet Networking Cable

• RJ11 Phone Cord

• Power Supply

• User Manual

• Quick Installation Guide

• Features Overview

System Requirements

• Broadband Internet service, such as cable or DSL

• Unused LAN port on a router

Router requirements:

• Connection to a broadband Internet service

• DHCP server support service

• One standard telephone

section

Product Specifications

Standards

IEEE 802.3u 10/100Base-Tx Fast Ethernet (WAN)

Protocols Supported

SIP, CSMA/CD, TCP/IP, UDP, DHCP (client)

Voice Compression

G.711, G.729

Management

Browser-Based User Interface

Ports

1 10/100Base-Tx auto-sensing RJ45 port, WAN

2 FXS voice ports (Line 1 and 2)

LEDs

Network: Connection to router

Voice: Line 1, Line 2

Dimensions and Weight

127mm x 119.5mm x 39mm

165g (5.82oz.)

Power

5VDC, 2.4A

The Phone Adapter is designed to be placed on a desktop next to

your telephone or mounted on a wall. All of the cables exit from the

rear of the Phone Adapter for better organization and utility. The

LED indicators are easily visible on the front of the Phone Adapter to

provide you with information about your call and network activity and

status.

Knowing your Phone Adapter

(a/b) Phone Ports

These ports are for connection to your telephone handset. Use the

RJ11 cable that was provided with the Phone Adapter to connect the

telephone to these ports.

This port is for connection to your router. Use the cable that was

provided with the Phone Adapter to connect the router to this port.

Or you may use it to connect to your existing router setup.

(d) Reset Switch

The “Reset” button is used in rare cases when the Phone Adapter

may function improperly. Resetting the Phone Adapter will restore the

Phone Adapter’s normal operation while maintaining the programmed

settings. You can also restore the factory default settings by using the

“Reset” button. Use the restore option in instances where you may

have forgotten your custom password.

1. Resetting the Phone Adapter

Push and release the “Reset” button. The lights on the

Phone Adapter will momentarily flash while the unit reboots.

2. Restoring the Factory Defaults

Press and hold the “Reset” button for at least five seconds, then

release it. The lights on the Phone Adapter will momentarily flash

while the unit reboots.

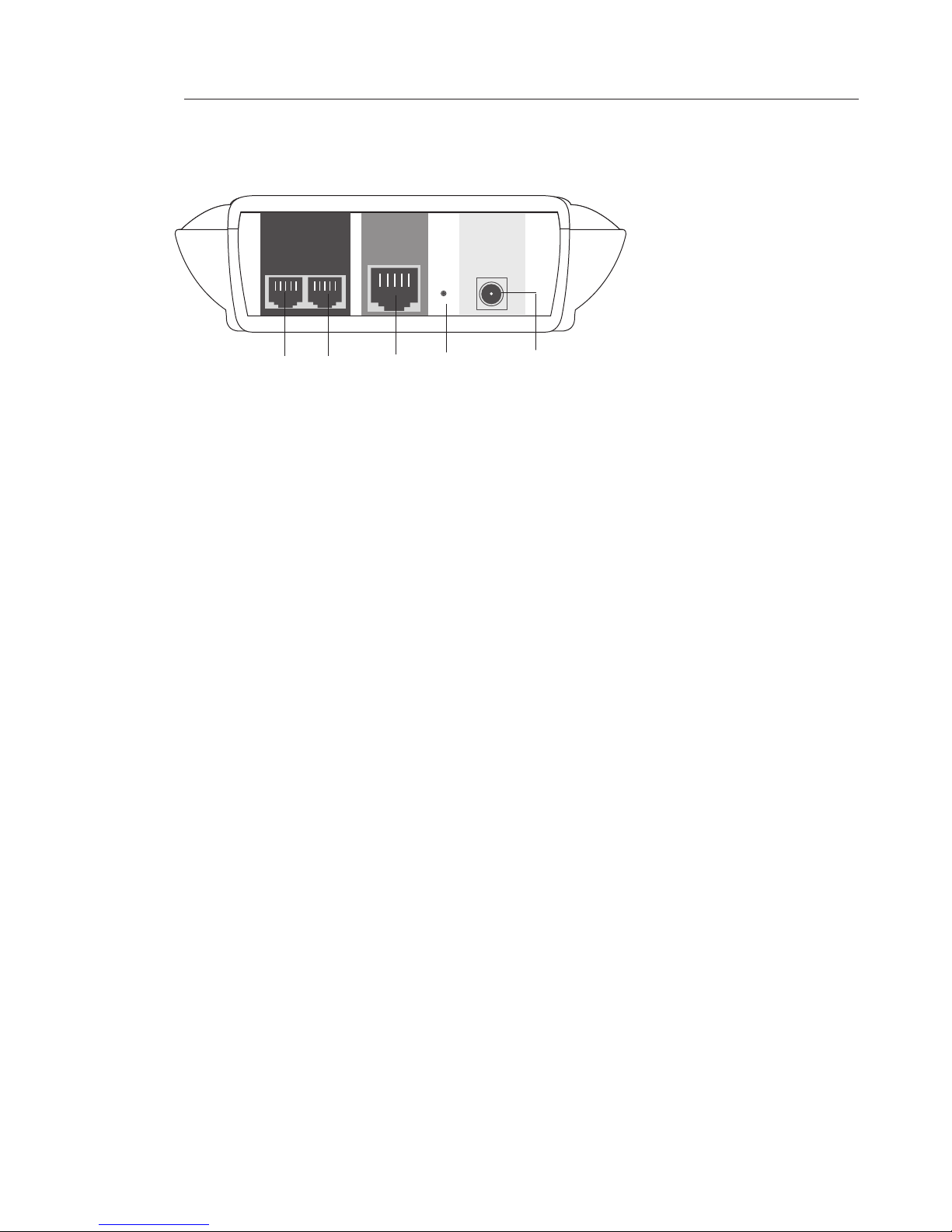

Line 2 Line 1

Connection to

Router

Reset

DC Power

5V/2.4A

[a] [c]

[b] [d] [e]

[a] Line 2

[b] Line 1

[c] Connection to Router

[d] Reset

[e] Power

Knowing your Phone Adapter

section

(e) Power Jack

Connect the included 5VDC, 2.4A power supply to this jack.

When you apply power to the Phone Adapter or restart it, a short

period of time elapses while the Phone Adapter starts up (about 30

seconds). During this time, you will see all the LEDs flash on, and

then off. When the Phone Adapter has completely started up, the

power LED will light, indicating the Phone Adapter is ready for use.

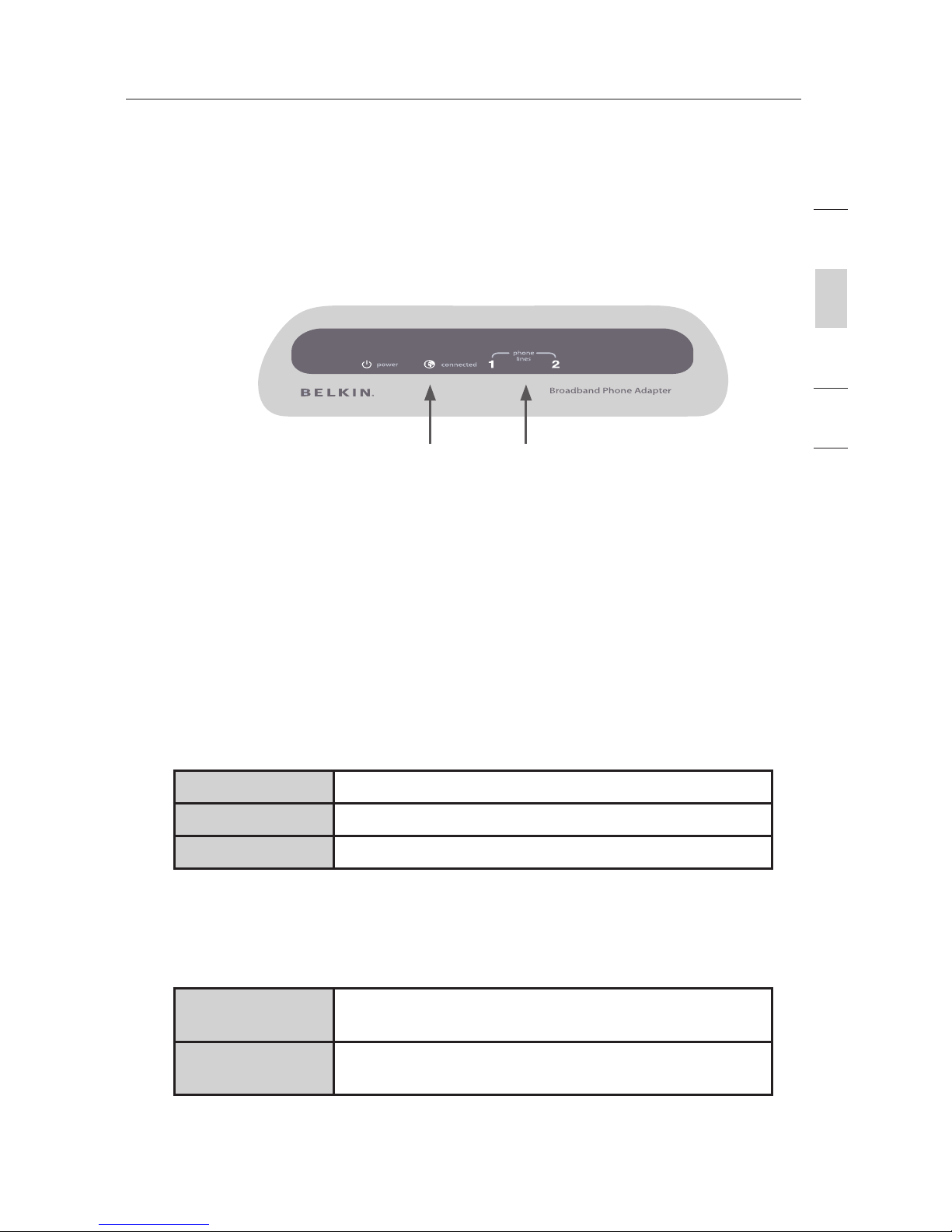

A. Connected LED

This LED lights in GREEN to indicate that your modem is

connected to the router. It blinks rapidly when information is

being sent over the port between the Phone Adapter and the

modem.

Solid Green Connected to router

Blinking Green Internet activity

Off No physical connection

B. Phone LED

These LED lights (1 and 2) illuminate in GREEN to indicate that

your Phone Adapter is ready to make or accept a call.

Solid Green Phone Adapter is ready to make or accept a

call

Off Phone Adapter did not successfully register

for service

LEDs

A B

Connecting and Configuring your

Phone Adapter

Router Requirements

Your cable or DSL router must be equipped with an RJ45 Ethernet

port. Many routers have both an RJ45 Ethernet port and a USB

connection. If you have a router with both Ethernet and USB, and you

are using the USB connection at this time, you will be instructed to

use the RJ45 Ethernet port during the installation procedure. If your

router has only a USB port, you can request a different type of router

from your ISP, or you can, in some cases, purchase a router that has

an RJ45 Ethernet port on it.

ALWAYS INSTALL YOUR NETWORK FIRST! IF YOU ARE SETTING

UP YOUR NETWORK FOR THE FIRST TIME, IT IS IMPORTANT

THAT YOUR NETWORK IS CONNECTED AND RUNNING BEFORE

ATTEMPTING TO SET UP THE PHONE ADAPTER. BE SURE THAT AT

LEAST ONE COMPUTER ON YOUR NETWORK HAS ACCESS TO THE

INTERNET BEFORE SETTING UP THE PHONE ADAPTER.

Determining your Current Network and Connection

The Phone Adapter can only function as a client in an existing

network configuration. For example, if you currently have broadband

access and a gateway/router installed in your location, you may add

the Phone Adapter as a client to your network.

This is the simplest and fastest method to install your Phone Adapter.
