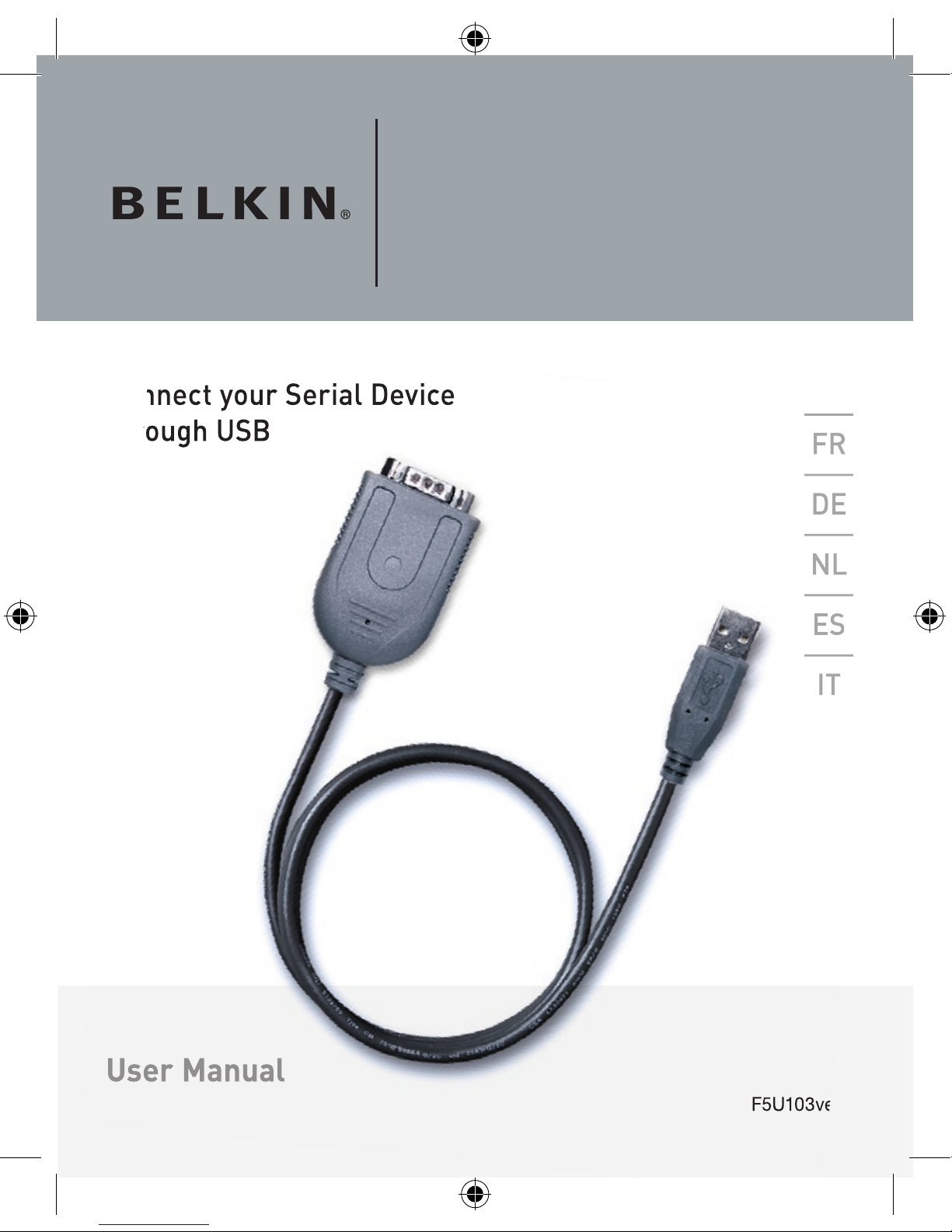

Belkin F5U103VEA Manual de usuario

USB–Serial Adapter

User Manual

Connect your Serial Device

through USB

F5U103vea

___

USB Serial Adapter

User Manual

Connect your Serial Device

through USB

F5U103vea

___

User Manual

Connect your Serial Device

through USB

F5U103vea

___

USB Serial Adapter

1. Features :

• Fully Compliant with USB Specification v1.1

• Supports RS-232 Serial Interface –

• Full-duplex transmitter and receiver (TXD and RXD)

• Six MODEM control pins (RTS, TS, DTR,

DSR, DCD, and RI) 5, 6, 7 or 8 data bits

• Odd, Even, Mark, Space, or None parity mode

• One, one and a half, or two stop bits

• Parity error, frame error, and serial break detection

• Programmable baud rate from 75 bps to 6 Mbps

• External RS-232 driver power down control

• Independent power source for serial interface

• Extensive Flow Control Mechanism

• Adjustable high/low watermark level

• Automatic flow control with CTS/RTS

• Automatic software flow control with XON/XOFF

• Inbound data buffer overflow detection

• Configurable 512-byte bi-directional data buffer:

• 256-byte outbound buffer and 256-byte inbound buffer; or

• 28-byte outbound buffer and 384-byte inbound buffer.

USB Serial Adapter

2. System Requirements:

• PC system equipped with a free USB port

• Windows 98SE operating system or higher.

3. What Comes with You F5U103vea:

• One Belkin USB Serial Adapter

• One driver disk

• One user’s manual

4. Hardware Installation:

• Plug the USB connector of the Belkin

USB Serial Adapter into your PC.

• Connect the DB9 pin female connector of your serial device

into the DB9 pin male connector of the USB Serial Adapter.

5. Driver Installation:

Your PC system will show “USB Serial Adapter”

and and will ask you to install the USB Serial

Adapter driver as soon as you connect the Belkin

Serial Adapter with the connected serial device

to the USB port of your computer or hub.

Click “ Next “ to continue. Select “ Search for the best

driver for your device (Recommended)”and click “

Next” button. Your system will automatically search

the related drivers for your USB Serial Adapter.

___

USB Serial Adapter

Choose “ CD-ROM (D)” and “Specify a location:

D:\win 98”. Click “Next”. The system will automatically

search the USB Serial Adapter driver from the CD-

ROM and copy all files into PC hard disk.

Windows will show you the device name.

Click “Next” to start copying the files

Click “ finish” to finalize the driver installation.

6. COM Port Load

Windows will automatically show the message “New

Hardware Found” when the driver installation is

finalized. Ghe system will now look for an available

COM Port and assigns it a number [i.e. USB

Communications Port (Com X) if X is the next available

Communications Port assigned by your system]

7. Installation Checking

• Go to “My computer” and click

• Go to “Control Panel” and click

• Go to “System” and click

• Click on the “Device Manager” tab.

• Click the “Ports” and check if the USB

Serial Port (COM X) exists.

• Please uninstall the existing USB Serial Converter

driver from your system if installation process

is not completed, and reinstall again.

USB Serial Adapter

8. How to uninstall:

Go to “Control Panel”

Choose “Add/Remove programs”

Click on “USB SERIAL Converter device”

Click “Add/Remove”EN

___

P75161ea

USB Serial Adapter

Belkin Ltd.

Express Business Park

Shipton Way, Rushden

NN10 6GL, United Kingdom

+44 (0) 1933 35 2000

+44 (0) 1933 31 2000 fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, Netherlands

+31 (0) 20 654 7300

+31 (0) 20 654 7349 fax

Belkin Iberia

Avda. Cerro del Aguila 3

28700 San Sebastián de los Reyes

Spain

+34 9 16 25 80 00

+34 9 02 02 00 34 fax

Belkin SAS

130 rue de Silly

92100 Boulogne-Billancourt, France

+33 (0) 1 41 03 14 40

+33 (0) 1 41 31 01 72 fax

Belkin GmbH

Hanebergstrasse 2

80637 Munich

Germany

+49 (0) 89 143405 0

+49 (0) 89 143405 100 fax

Belkin Nordic

Knarrarnäsgatan 7

164 40 Kista

Sweden

+46 (0) 8 5229 1870

+46 (0) 8 5229 1874 fax

Belkin Lifetime Product Warranty

For the life of the product, Belkin warrants that this product shall be free of

defects in design, assembly, material, and workmanship (free replacement).

Adaptateur série USB

Manuel de

l’utilisateur

Branchez votre périphérique série à

un port USB

F5U103vea

___

Manuel de

l’utilisateur

Branchez votre périphérique série à

un port USB

F5U103vea

___

Adaptateur série USB

1. Caractéristiques :

• Entièrement conforme à la spécification de l’USB 1.1

• Prise en charge de l’interface série RS-232

• Émission et réception Full-duplex (TXD et RXD)

• Six broches de contrôle MODEM (RTS, TS, DTR,

DSR, DCD et RI) 5, 6, 7 ou 8 bits de données

• Modes de parité Odd, Even, Mark, Space ou None

• Un, un et demi et deux bits d’arrêts

• Erreur de parité, erreur de trame et détection de bris série

• Débit en bauds programmable de 75 bps à 6 Mbps

• Commande externe de mise hors

tension de l’adaptateur série

• Source d’alimentation indépendante pour l’interface série

• Mécanisme de contrôle du flux

• Niveau faible/élevé ajustable

• Contrôle automatique du flux avec CTS/RTS

• Contrôle du flux logiciel automatique avec XON/XOFF

• Détection de surdébit du tampon de données entrantes

• Tampon de données bi-directionnel 512 octets configurable :

• tampon en entrée de 256 octets et tampon

en sortie de 256 octets ; ou

• tampon en entrée de 28 octets et

tampon en sortie de 384 octets.
