Technical data sheet H6..SP

Globe valve, partial pressure relief,

2-way, Flange, PN 16

• Forclosed(hightemperature)hot

waterandsteamsystemsinthenon-

critical range

• Forwater-sidemodulatingcontrolof

air-handlingandheatingsystems

Type overview

Type DN

[ ]

kvs

[ m³/h]

Stroke

[ mm]

[ ]

Svmin.

[ ]

H640SP 40 25 15 16 100

H650SP 50 40 15 16 100

H664SP 65 58 18 16 100

H679SP 80 90 18 16 100

H6100SP 100 145 30 16 100

H6125SP 125 220 40 16 100

H6150SP 150 320 40 16 100

Technical data

Functional data Media Hot water and steam ( ∆p/P1 <0.4), water with

max. 50% volume of glycol

Medium temperature 5...150°C

Medium temperature note 120°C up to 1600 kPa

150°C up to 1400 kPa

Permissible pressure ps 1600 kPa

Flow characteristic equal percentage (VDI/VDE 2173) n(gl) = 3,

optimised in the opening range

Leakage rate max. 0.05% of the kvs value

Pipe connectors Flange according to ISO 7005-2 (PN 16)

Closing point Bottom (▼)

Installation position Upright to horizontal (in relation to the stem)

Maintenance Maintenance-free

Materials Housing EN-JL1040 (GG25), with protective paint

Closing element Stainless steel

Stem Stainless steel

Stem seal PFTE V-ring

Seat Stainless steel

Safety notes

• The valve has been designed for use in stationary heating, ventilation and air-

conditioning systems and is not allowed to be used outside the specified field of

application, especially in aircraft or in any other airborne means of transport.

• Only authorised specialists may carry out installation. All applicable legal or

institutional installation regulations must be complied during installation.

• The valve does not contain any parts that can be replaced or repaired by the user.

• The valve may not be disposed of as household refuse. All locally valid regulations

and requirements must be observed.

• When determining the flow rate characteristic of controlled devices, the recognised

directives must be observed.

www.belimo.eu H6..SP • en-gb • 2014-11-27 • subject to changes 1

Mode of operation The globe valve is adjusted by a globe valve actuator. The actuators are controlled

by a commercially available modulating or 3-point control system and move the valve

cone, which acts as a mixing device, to the opening position dictated by the positioning

signal. High closing pressures are permitted with as a result of both the partial

pressure relieving stem and the overflow channels in the valve.

Flow characteristic An equal percentage flow characteristic is produced by the profile of the valve cone.

Installation notes

Recommendedinstallationpositions The globe valve may be mounted upright to horizontal. It is not permissible to mount

the globe valves with the spindle pointing downwards.

°9

0°

Waterqualityrequirements The water quality requirements specified in VDI 2035 must be adhered to.

Belimo valves are regulating devices. For the valves to function correctly in the long

term, they must be kept free from particle debris (e.g. welding beads during installation

work).

The installation of suitable strainer is recommended.

Maintenance Globe valves and globe valve actuators are maintenance-free.

Before any kind of service work is carried out on the actuator, it is essential to isolate

the globe valve actuator from the power supply (by disconnecting the electrical cables

if necessary). Any pumps in the part of the piping system concerned must also be

switched off and the appropriate shut-off valves closed (allow everything to cool down

first if necessary and reduce the system pressure to ambient pressure level).

The system must not be returned to service until the globe valve and the globe valve

actuator have been mounted properly in accordance with the instructions and the

pipes have been refilled in the proper manner.

Flow direction The direction of flow, specified by an arrow on the housing, is to be complied with,

since otherwise the valve could become damaged.

AAB

H6..SP Globe valve, partial pressure relief, 2-way, Flange, PN 16

Product features

www.belimo.eu

H6..SP • en-gb • 2014-11-27 • subject to changes

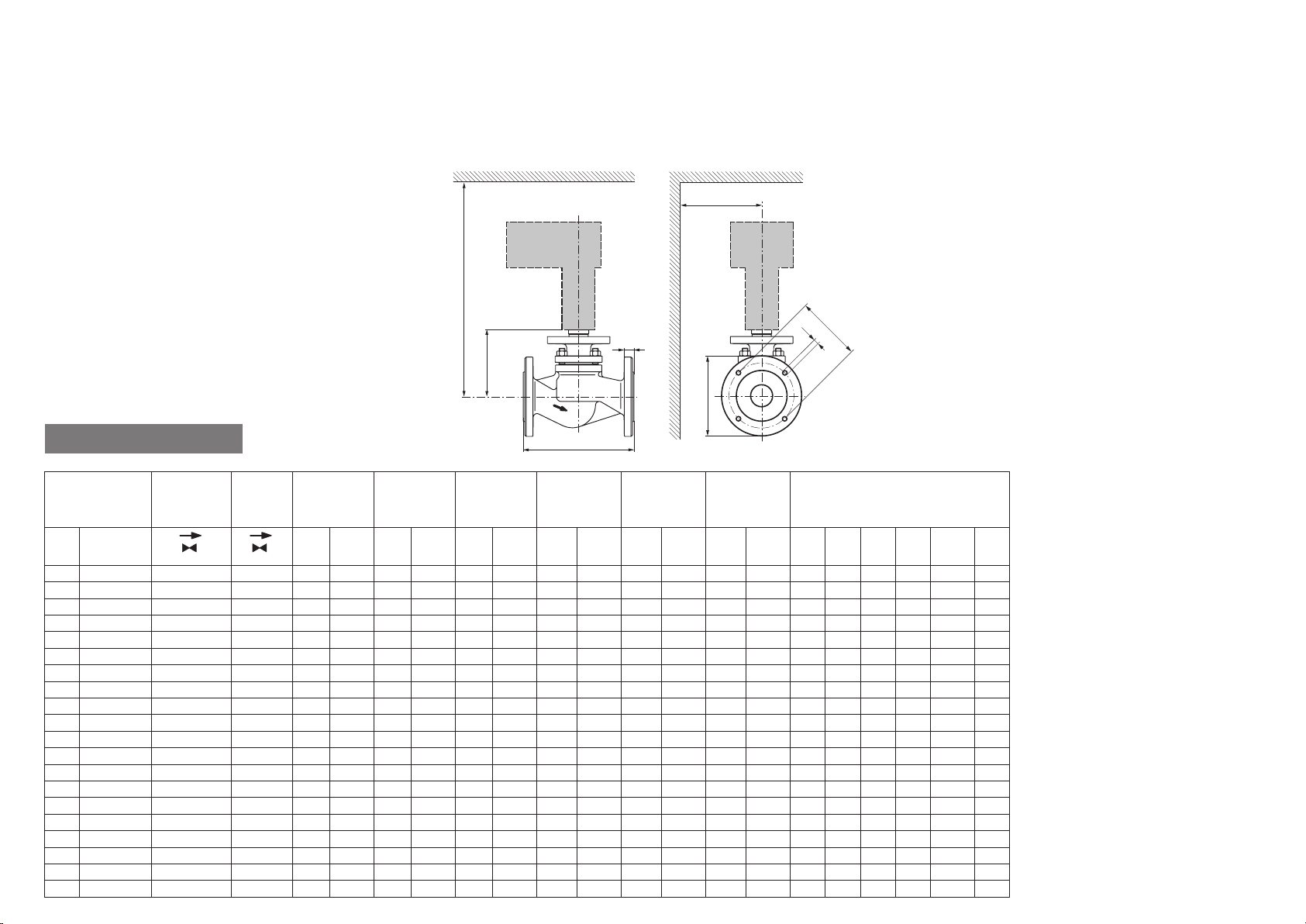

Dimensionaldrawings

min. X

min. Y

X/Y: Minimum distance with respect to the valve centre.

The actuator dimensions can be found on the respective actuator data sheet.

Type DN

[ ]

[ mm]

Weight approx.

[ kg]

H640SP 40 200 136 18 150 4 x 18 110 390 100 9.6

H650SP 50 230 142 20 165 4 x 18 125 390 100 12.3

H664SP 65 290 155 20 185 4 x 18 145 400 100 17.1

H679SP 80 310 173 22 200 8 x 18 160 420 150 23

H6100SP 100 350 193 24 220 8 x 18 180 540 150 36

H6125SP 125 400 245 26 250 8 x 18 210 600 150 47

H6150SP 150 480 306 26 285 8 x 22 240 660 150 65

Furtherdocumentation

• Overview Valve-actuator combinations

• Data sheets for globe valve actuators

• Installation instructions for valves and/or globe valve actuators

• Notes for project planning 2-way and 3-way globe valves

H6..SP Globe valve, partial pressure relief, 2-way, Flange, PN 16

Dimensions/Weight

www.belimo.eu H6..SP • en-gb • 2014-11-27 • subject to changes 3

71557-00001.A

°9

0°

AAB

H6..S(P)

ps <1600 kPa (PN16)

t= +5... +120°C

ps <1400 kPa (PN16)

t= +121... +150°C

H6..S H6..SP LV..A..

500N

NV..A..

1000N

SV..A..

1500N

AV..A..

2000N

EV..A

2500N

RV..A

4500N

DN Hub / Stroke

[mm]

AAB AAB

∆ps

[kPa]

∆pmax

[kPa]

∆ps

[kPa]

∆pmax

[kPa]

∆ps

[kPa]

∆pmax

[kPa]

∆ps

[kPa]

∆pmax

[kPa]

∆ps

[kPa]

∆pmax

[kPa]

∆ps

[kPa]

∆pmax

[kPa]

[mm]

15 15 H610S ... 11S 1600 1000 1600 1000 1600 1000 130 118 95 65 4 x 14 14

15 15 H612S ... 15S 800 800 1600 1000 1600 1000 130 118 95 65 4 x 14 14

20 15 H619S ... 20S 800 800 1600 1000 1600 1600 150 118 105 75 4 x 14 16

25 15 H624S ... 25S 450 450 1300 1000 1600 1000 160 126 115 85 4 x 14 16

32 15 H632S 300 300 950 950 1550 1000 180 126 140 100 4 x 18 18

40 15 H640S 140 140 500 500 850 850 200 133 150 110 4 x 18 18

40 15 H640SP 1600 1000 1600 1000 200 136 150 110 4 x 18 18

50 15 H650S 60 60 300 300 500 500 230 139 165 125 4 x 18 20

50 15 H650SP 1600 1000 1600 1000 230 142 165 125 4 x 18 20

65 18 H664S 130 130 250 250 290 152 185 145 4 x 18 20

65 18 H664SP 1600 1000 1600 1000 290 155 185 145 4 x 18 20

65 30 H665S 400 400 550 550 1100 1000 290 155 185 145 4 x 18 20

80 18 H679SP 1600 1000 1600 1000 310 173 200 160 8 x 18 22

80 30 H680S 250 250 350 350 700 700 310 170 200 160 8 x 18 22

100 30 H6100S 150 150 200 200 450 450 350 190 220 180 8 x 18 24

100 30 H6100SP 600 600 600 600 600 600 350 193 220 180 8 x 18 24

125 40 H6125S 110 110 250 250 400 228 250 210 8 x 18 26

125 40 H6125SP 600 600 600 600 400 245 250 210 8 x 18 26

150 40 H6150S 70 70 180 180 480 288 285 240 8 x 22 26

150 40 H6150SP 600 600 600 600 480 306 285 240 8 x 22 26

H6..S(P) L

min. X

min. Y
