User Support Bulletin
1. A digital voltmeter (with more than 4 signicant digits).
2. A Patch Cord
3. Small insulated trimmer screwdriver
4. Accurate, high-quality guitar tuner
Equipment Required
Introduction
The unit is carefully calibrated at the factory. The performance may change over time or due to environmental changes,
and the following recalibration procedures can be used to bring it back to its factory settings.
Synthesizers and Samplers
CRAVE
page 2 of 6page 2 of 6
Press “KYBD” or “STEP” key, set the keyboard octave to 3 (OCTAVE/LOCATION LED 3 will light up), then press “STEP6” key.
VCO TUNING ADJUSTMENT
OSC SCALE
Connect an accurate, high-quality tuner to the VCA/LINE OUTPUT jack.
PANEL DEFAULT SETTING (FIGURE 1)
Set the panel settings as shown in Figure 1.
Remove all unnecessary cables from the unit.
Preparation
Make sure your CRAVE has been powered on for at least 1 hour, and that it is in a place where the temperature will not
change drastically while performing the calibration.
Follow all steps in the order in which they are presented.
Calibration Procedures
Synthesizers and Samplers
CRAVE
page 3 of 6page 3 of 6
Adjust OSC OFFSET trimmer until the pitch is 440Hz (A4). Note that a pitch within 2 to 3 cents of the target frequency
should be ne. If the VCO pitch is still not correct after the adjustment is nished, you can calibrate the KB CV and
adjust it again as shown in the procedures above.
Set the keyboard octave to 6 and press “STEP6” key.
Adjust the panel OSC SCALE trimmer until the pitch is 880Hz (A5). Note that a pitch within 2 to 3 cents of the target
frequency should be ne.
Repeat steps 2 to 5 until output frequency is correct.
OSC OFFSET
Set the keyboard octave to 5 and press “STEP6” key.
Set the FREQUENCY control precisely to the center position.
Adjust the panel FREQUENCY control or OSC OFFSET trimmer until the pitch is 110Hz (A2). Note that a pitch within
2 to 3 cents of the target frequency should be ne; (OSC OFFSET trimmer and OSC SCALE trimmer location shown
in Figure 2).

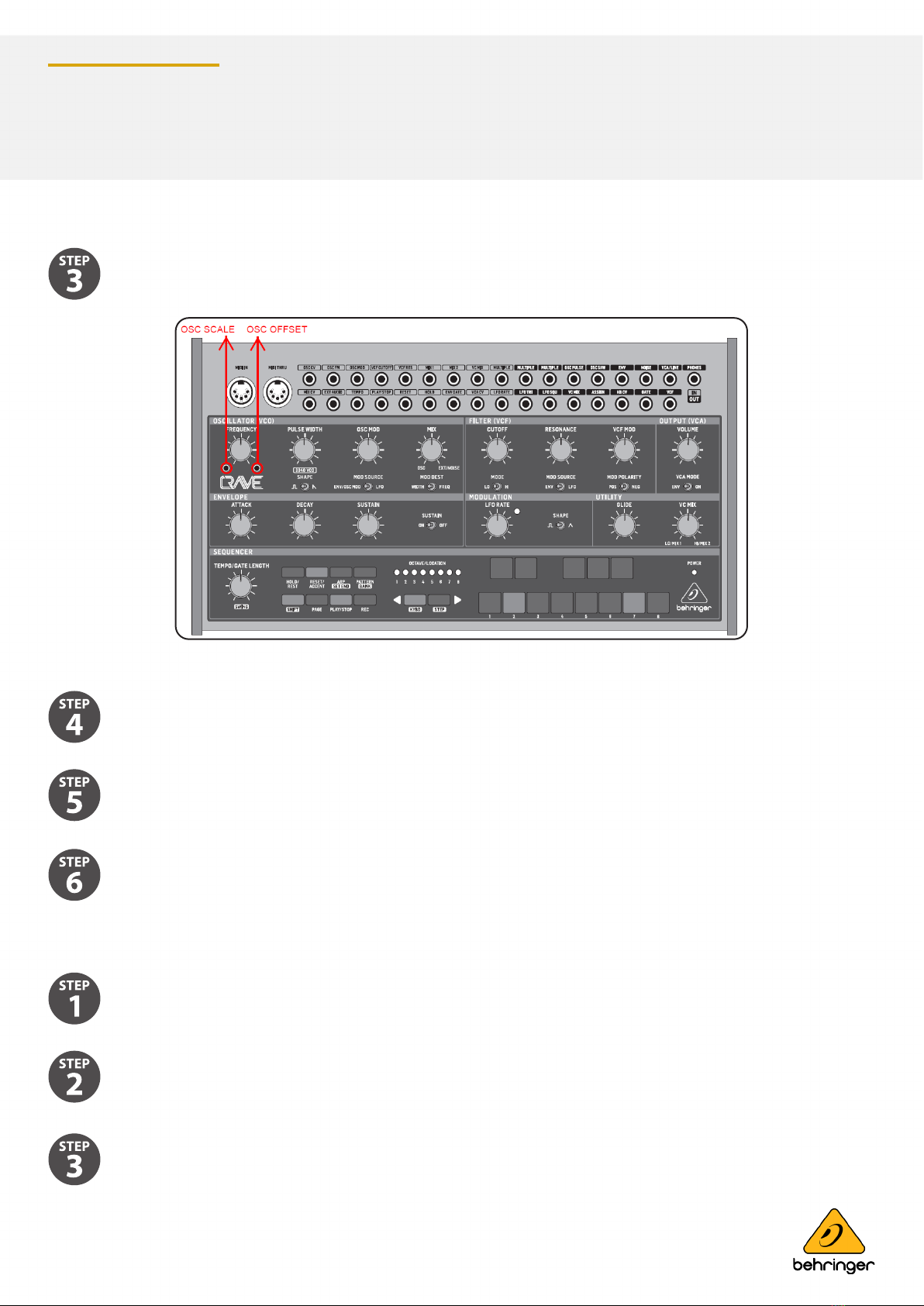

OSC SCALE trimmer and OSC OFFSET trimmer LOCATION (FIGURE 2)
Synthesizers and Samplers
CRAVE
page 4 of 6page 4 of 6
KB CV CALIBRATION
Button names and LEDs
In the user CV calibration mode, the buttons have new functions as shown in the tables below:
There are three test points A / B / C to be calibrated. Their target voltage is -5 V / 0 V / 5 V respectively.
Button Name Function
HOLD/REST Select test mode A
RESET/ACCENT Select test mode B
ARP/SETEND Select test mode C
PATTERN/BANK —
SHIFT —
PAGE —
PLAY/STOP —
REC Save
Button Name Function
STEP1 Select X1 (about ±1 mV)
STEP2 Select X2 (about ±4.5 mV)
STEP4 Select X3 (about ±9 mV)
STEP4 Select X4 (about ±45 mV)
STEP5 —
STEP6 —
STEP7 —
STEP8 —
KYBD Decrease
STEP Increase
Synthesizers and Samplers
CRAVE
page 5 of 6page 5 of 6
Press “KYBD + STEP” then power up; All the LEDs will light up in the sequencer.
Then press“SHIFT + 1” to enter user CV calibration.
Measure the output of phone jack named “KB CV”.
Synthesizers and Samplers
CRAVE
Condential, for internal use only. Not to be reproduced.
Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein.
Technical specications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik,
Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Oberheim, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global
Brands Ltd. © Music Tribe Global Brands Ltd. 2021 All rights reserved.
End of Procedure
Press “HOLD/REST” to select test mode A. You need to watch the multimeter to adjust the KBCV voltage.
You can press “KYBD”or “STEP” to adjust the value until it close to target level“-5 V”(±1 mV).
(Press “STEP1”“STEP2”“STEP3” or “STEP4” to select the speed of adjust “X1”“X2”“X3” or “X4”)
Press “RESET/ACCENT” to select test mode B.
Press “KYBD” or “STEP” to adjust the value until it close to target level “0 V” (±1 mV).
Press “ARP/SETEND” to select test mode C.
Press “KYBD” or “STEP” to adjust the value until it close to target level “5 V” (±1 mV).
Press “REC” to save and nish CV calibration.
Calibration done, power o the CRAVE.
