Behringer MIDI FOOT CONTROLLER FCB1010 Guía

Using a Behringer FCB1010 with a Korg Pa2X

Korg Pa2X Pro

Using a Behringer FCB1010 MIDI Foot Controller

Contents

Overview................................................................................................................................................2

Behringer FCB1010 MIDI Foot Controller............................................................................................3

FCB1010 Manager.................................................................................................................................4

Korg Pa2X –Remote control of the Style Elements ......................................................................10

Load SysEx Data into the FCB1010 Manager.................................................................................12

Check Global Configuration............................................................................................................15

Send SysEx Data to the FCB1010 device........................................................................................16

Set the FCB1010 in MIDI MERGE MODE........................................................................................18

Korg Pa2X PRO Setup ..........................................................................................................................19

Mode = STYLE PLAY.........................................................................................................................19

Set the Split Point on the Pa2X.......................................................................................................22

Open the STYLE MENU ...................................................................................................................26

GLOBAL SETTINGS...........................................................................................................................31

GLOBAL MIDI settings.....................................................................................................................32

Roland RD-700GX Setup .....................................................................................................................36

Connect the FCB1010 and the RD-700GX to the Pa2X .....................................................................38

Using a Behringer FCB1010 with a Korg Pa2X

Overview

This document explains how to use a Behringer FCB1010 MIDI Foot Controller with the Korg

Pa2X PRO 76-Key Arranger Keyboard.

You can control the essential Style Elements on the Pa2X remotely by using the FCB1010 device.

Additionally, you can connect a weighted 88-key Stage Piano like the Roland RD-700GX utilizing

the MIDI Merge function of the FCB1010 device.

By setting a split point on the RD-700GX you can trigger fingered chords on the Pa2X right from

your RD-700GX Keyboard Controller.

This allows complete hands free operation of the Pa2X.

Using a Behringer FCB1010 with a Korg Pa2X

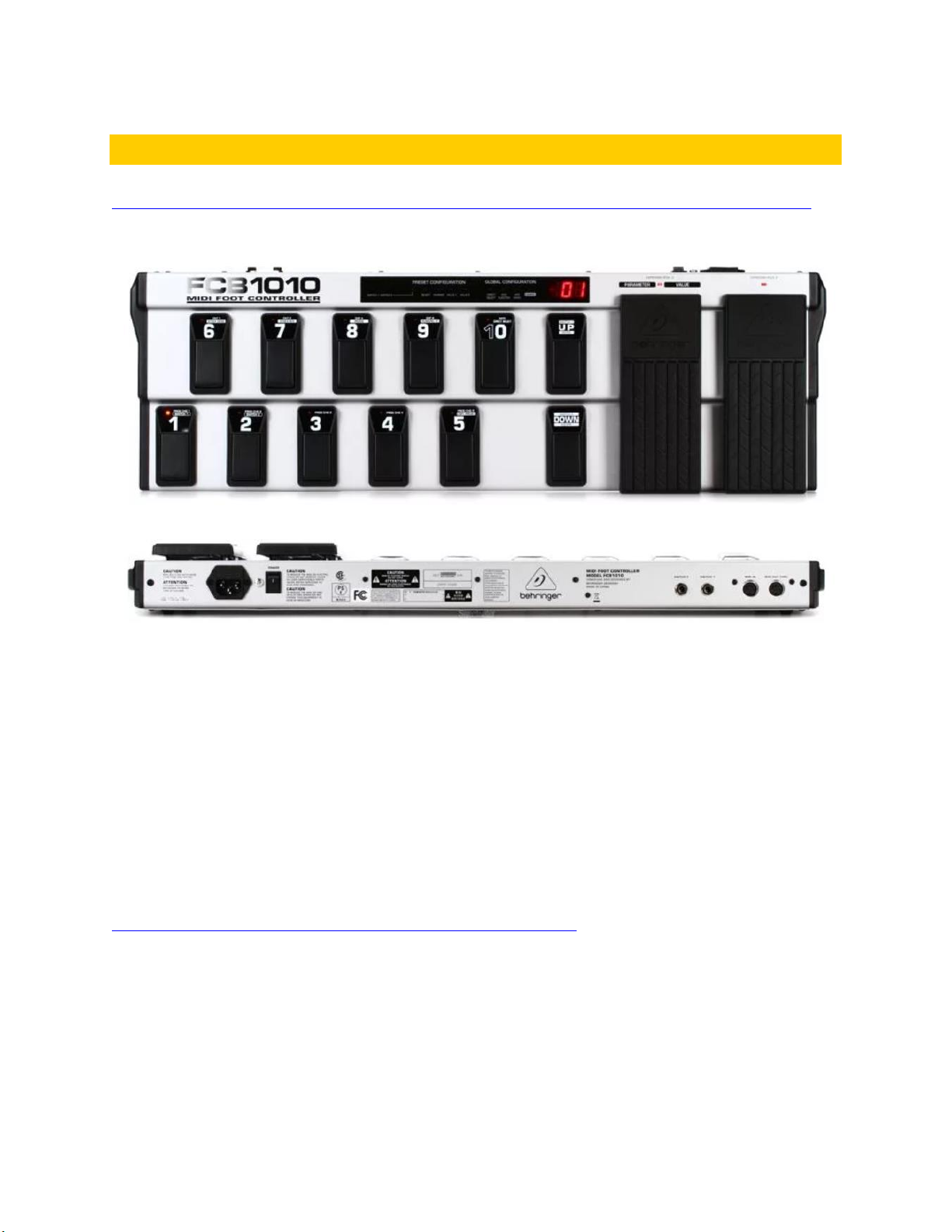

Behringer FCB1010 MIDI Foot Controller

https://www.sweetwater.com/store/detail/FCB1010--behringer-midi-foot-controller-fcb1010

There are two free Editors for this device:

FCB1010 Manager

FCB1010 PC Editor

The FCB1010 PC Editor lets you detect the EPROM version of your device without opening the

back plate.

http://www.mtnsys.com/?path=faq-fcb/PCEditorBeta.htm%3f

The latest firmware as of 5/13/2017 is 2.5.1E

You will be using the FCB1010 Manager for this tutorial.

Using a Behringer FCB1010 with a Korg Pa2X

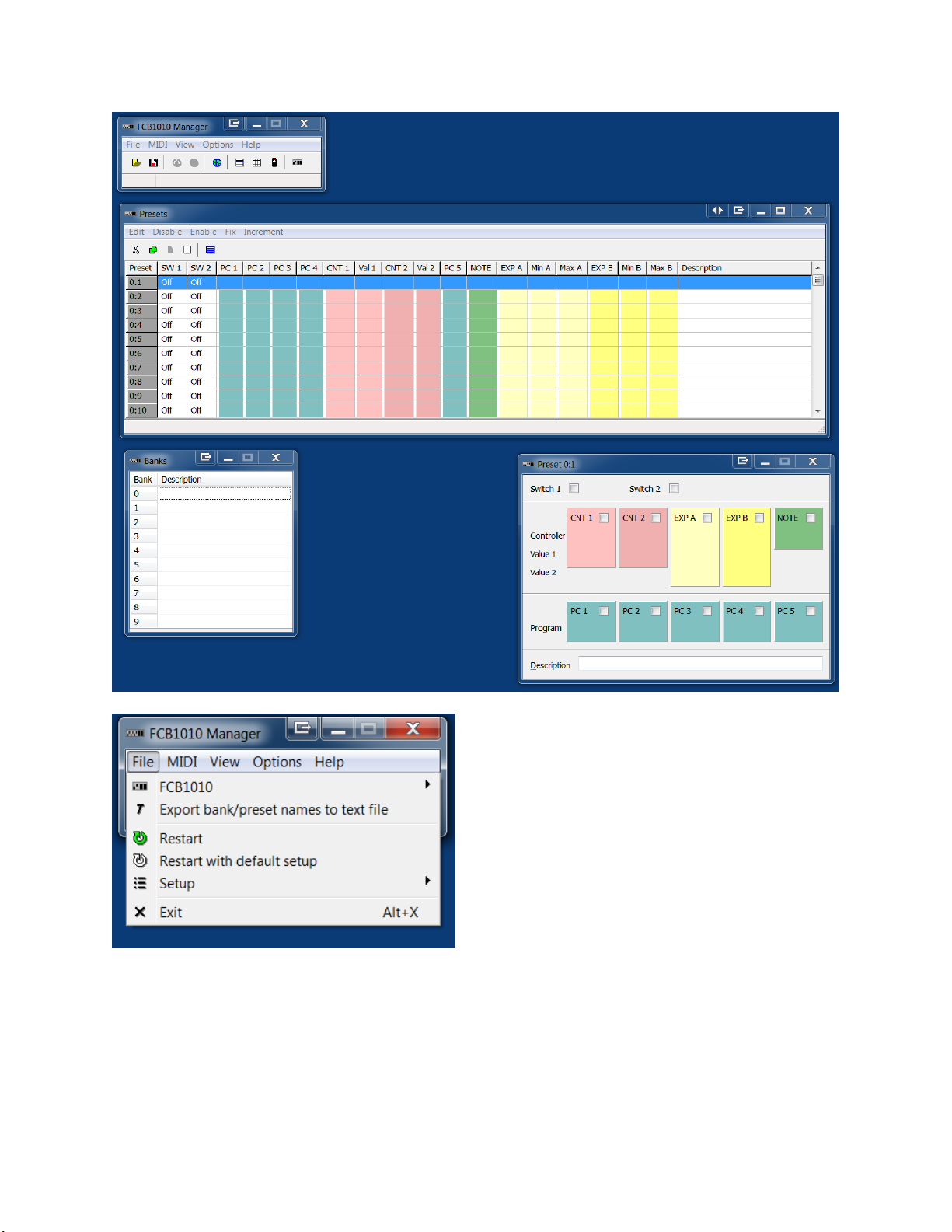

FCB1010 Manager

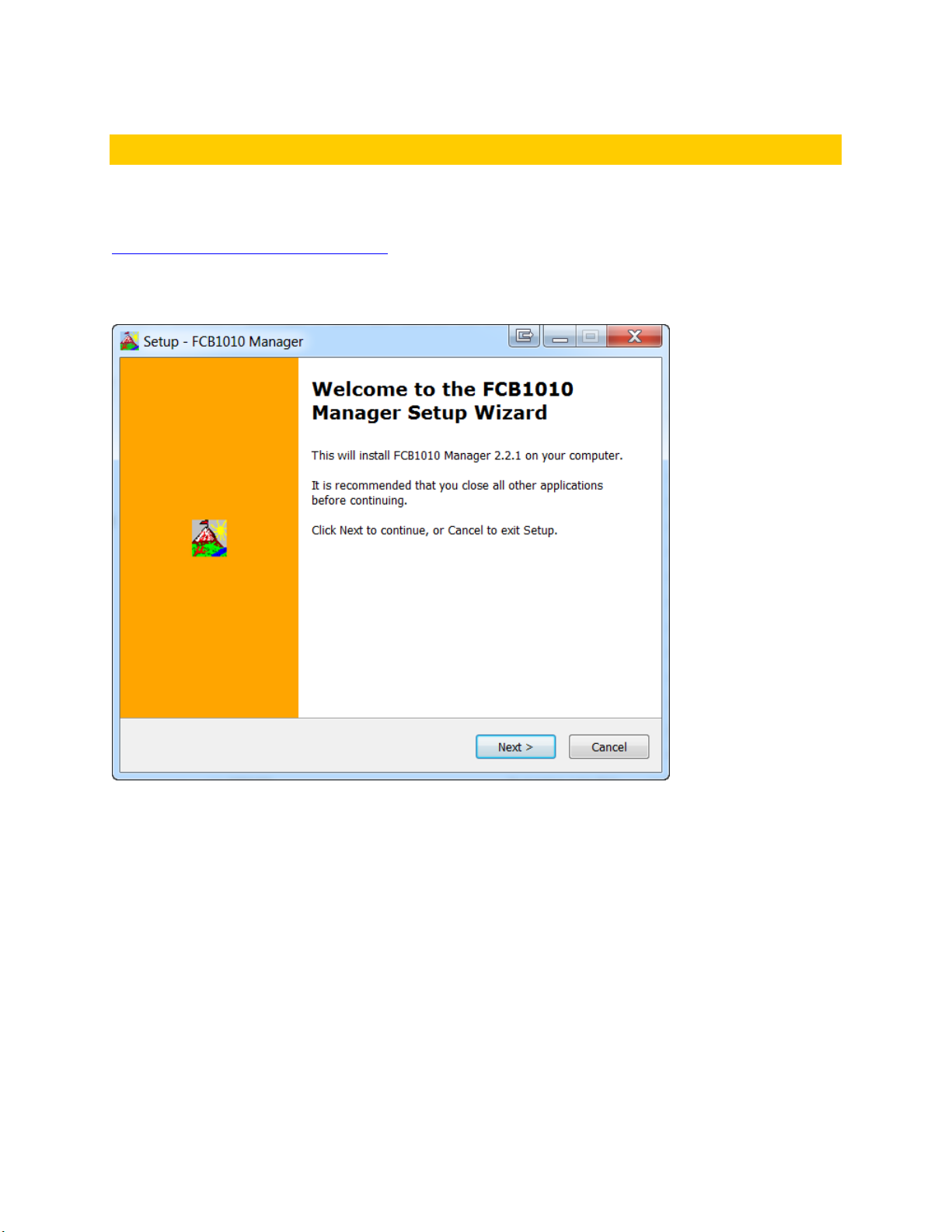

Download the FCB1010 Manager from:

https://mountainutilities.eu/fcb1010

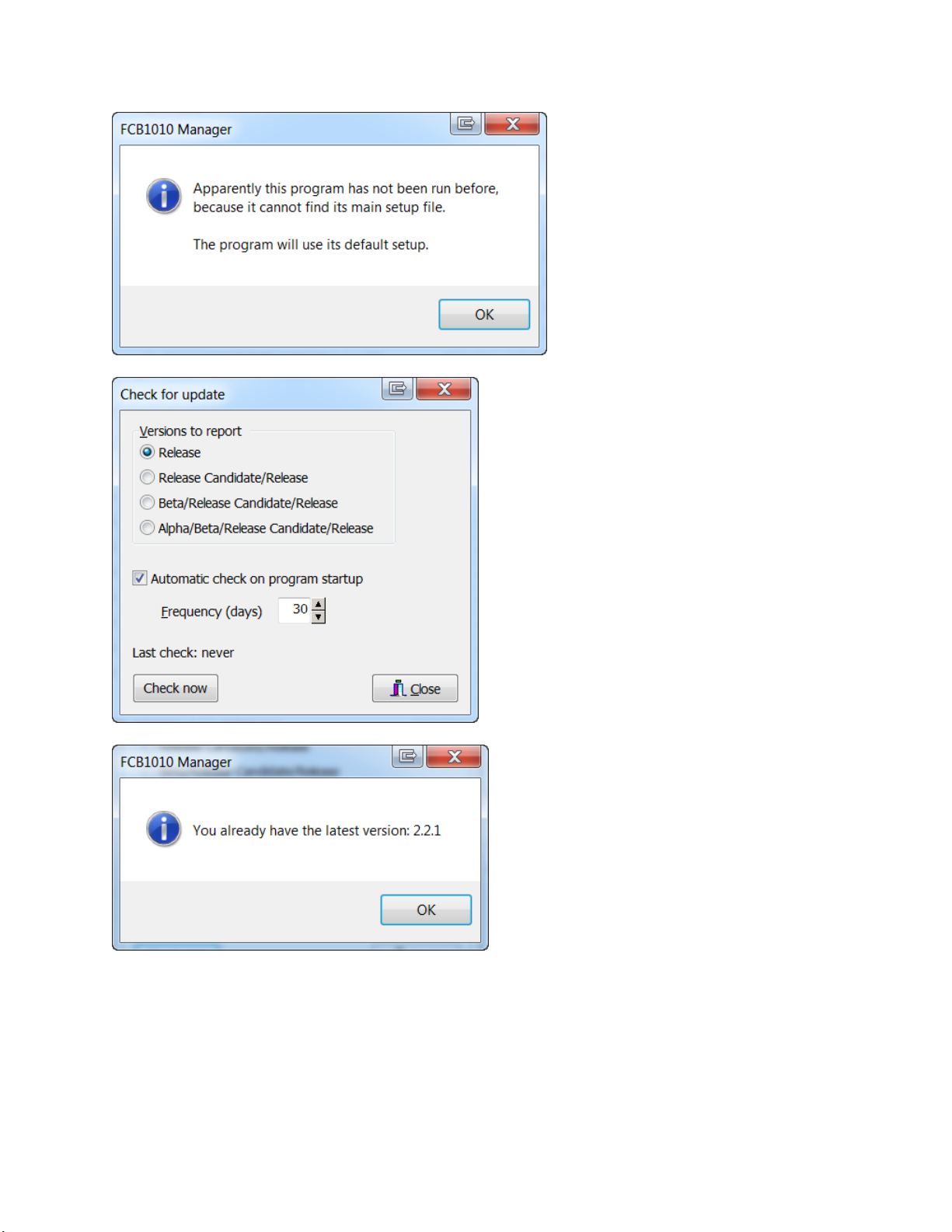

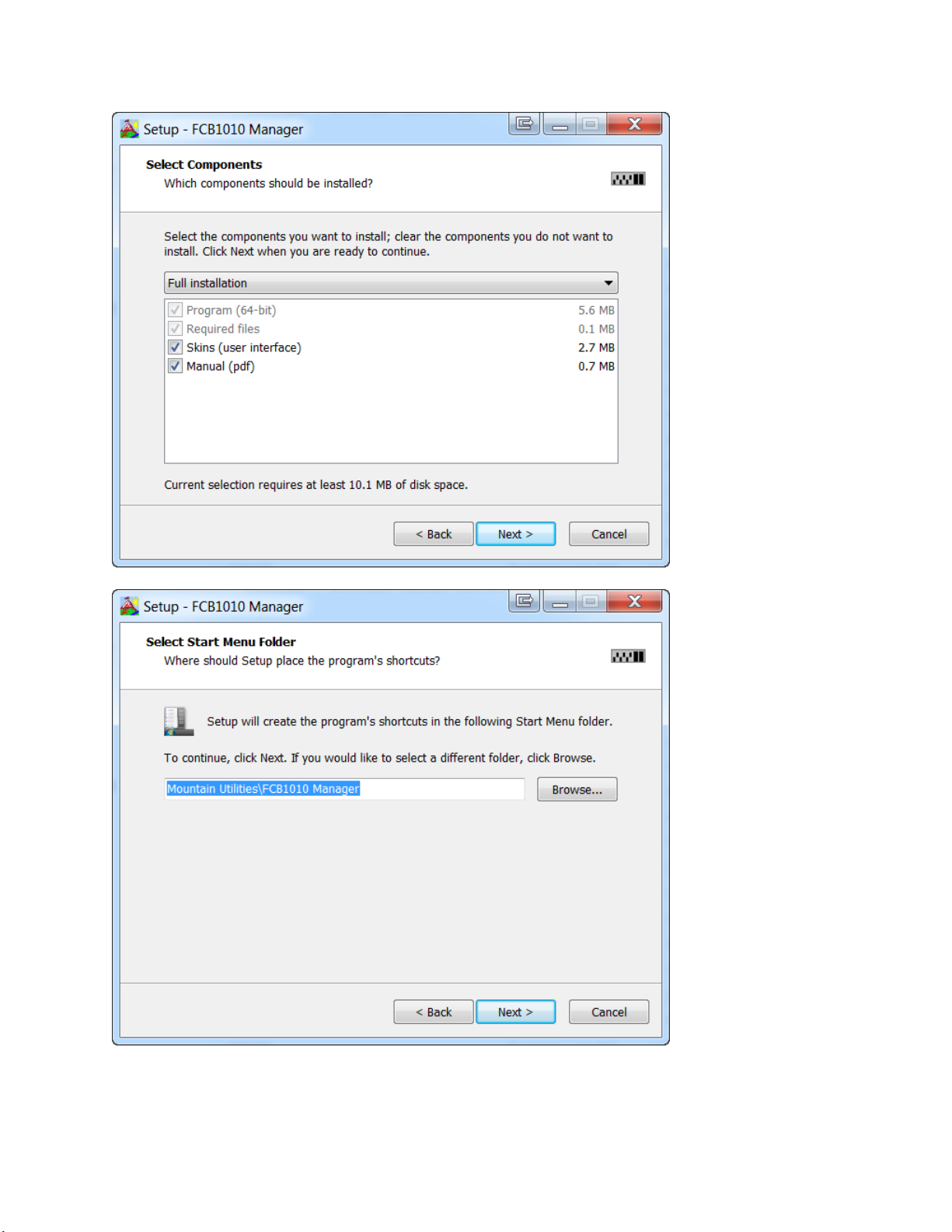

Run fcbman-2.2.1-install.exe

Using a Behringer FCB1010 with a Korg Pa2X

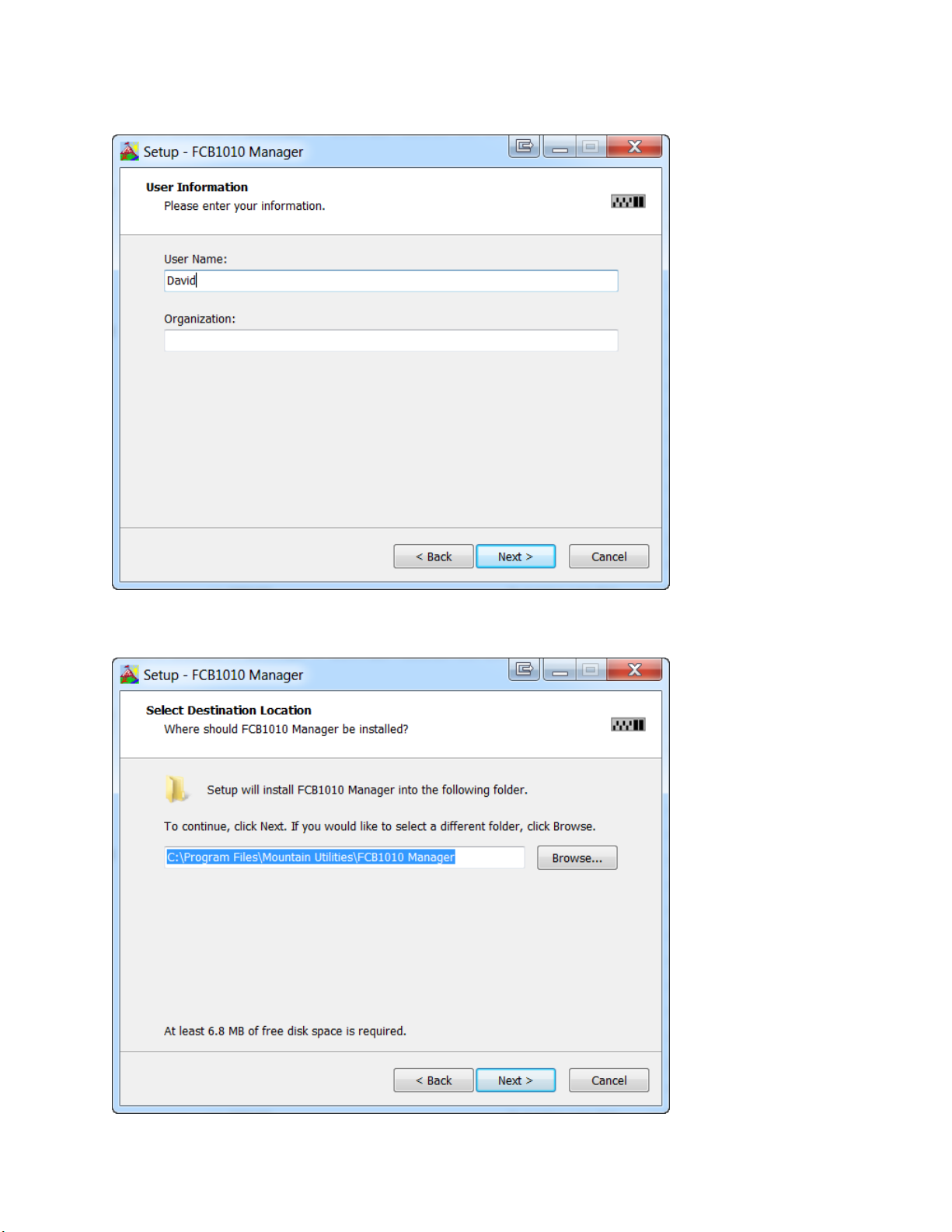

Install Folder = C:\Program Files\Mountain Utilities\FCB1010 Manager\

Using a Behringer FCB1010 with a Korg Pa2X

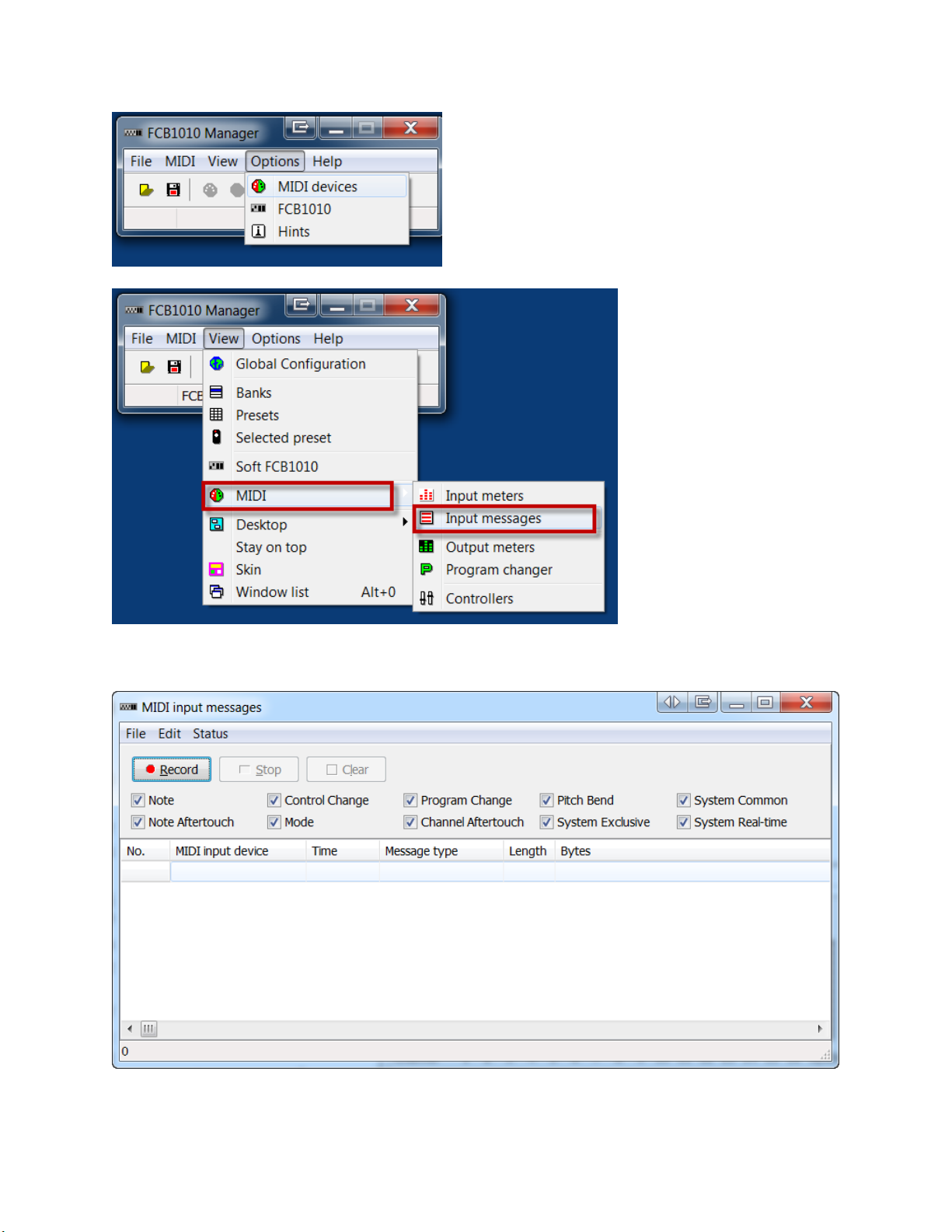

View | MIDI | Input Messages

Using a Behringer FCB1010 with a Korg Pa2X

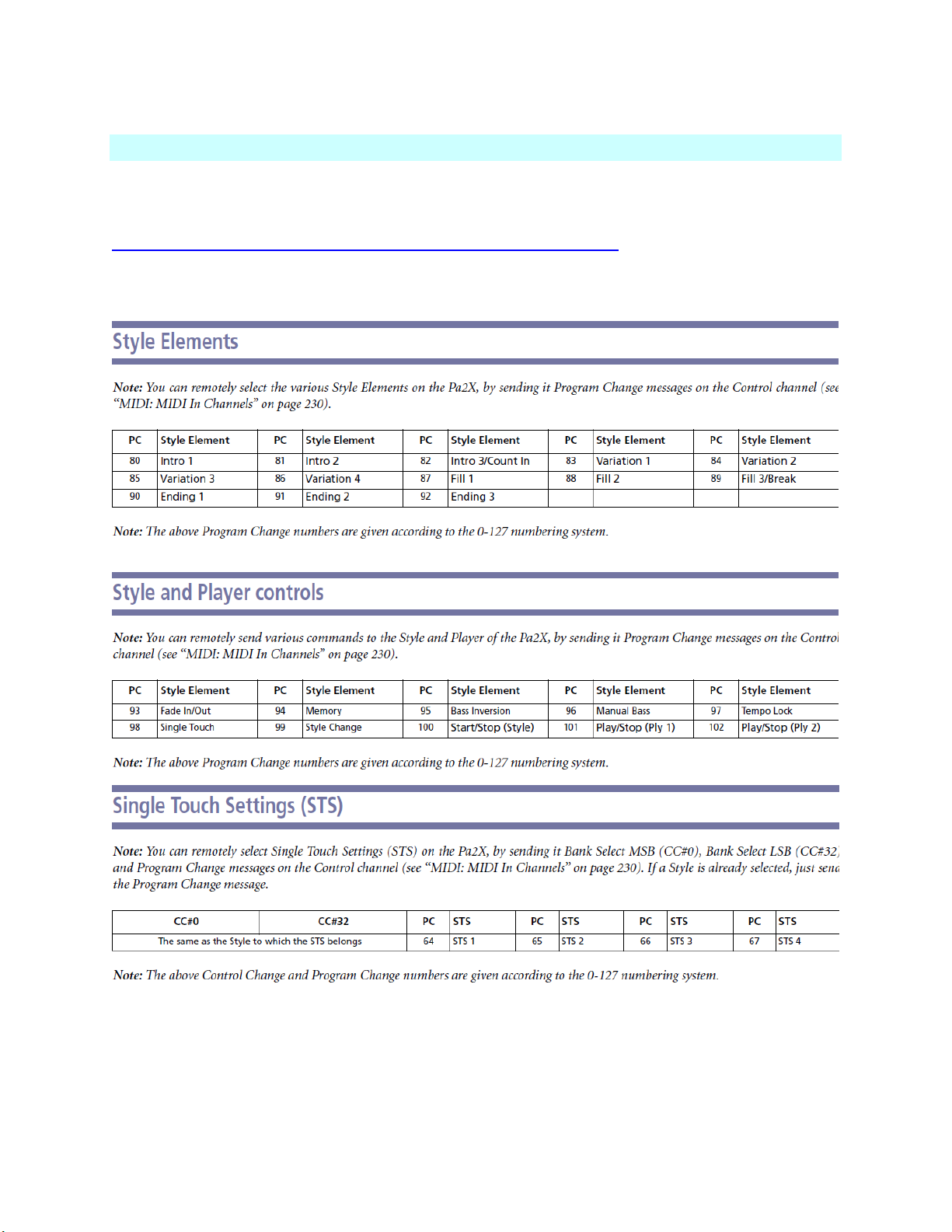

Korg Pa2X –Remote control of the Style Elements

Download the Korg Pa2X Owner’s Manual.

https://www.korg.com/us/support/download/manual/1/186/2212/

Open Page 280
