Behringer ADT1616 Manual de usuario

ADAT® INTERFACE ADT1616

Installation manual

Dear Customer!

Welcome to the team of ADT1616 users and thank you very much for expressing your confidence

inBEHRINGERproductsbypurchasingthisinterface.Althoughitisreallyeasytoinstallandoperate

the ADT1616, we would like to give you a concise introduction to the features of this ADAT®-

compatibleinterface for ourdigital mixing consoleBEHRINGER DDX3216. TheADT1616 has two

ADAT®-compliant optical inputsandoutputs (16 inputs/16outputs),whichcan beconnectedtoany

compatible device using optical cables. As this interface becomes increasingly popular, not only

“traditional” devices such as digital multi-track machines, but also keyboards, effects devices and

high-end microphone amplifiers have ADAT interfaces installed today. Thus, your ADT1616 will

open up a totally new digital dimension for you!

YourBEHRINGER ADT1616was carefullypacked in the factory andthe packagingis designedto

protect the unit from rough handling. Nevertheless, we recommend that you carefully examine the

packaging and its contents for any signs of physical damage, which may have occurred during

transit.

+If the unit is damaged, please do not return it to BEHRINGER, but notify your dealer

andtheshippingcompanyimmediately, otherwiseclaimsfor damageorreplacement

may not be granted. Shipping claims must be made by the consignee.

+Static electricity can severely damage electronic components. Before you touch

any electronic component, please be sure to discharge any static electricity by

touching the metal frame of your DDX3216. Hold the interface on its edges or the

two little handles, but never touch the components themselves!

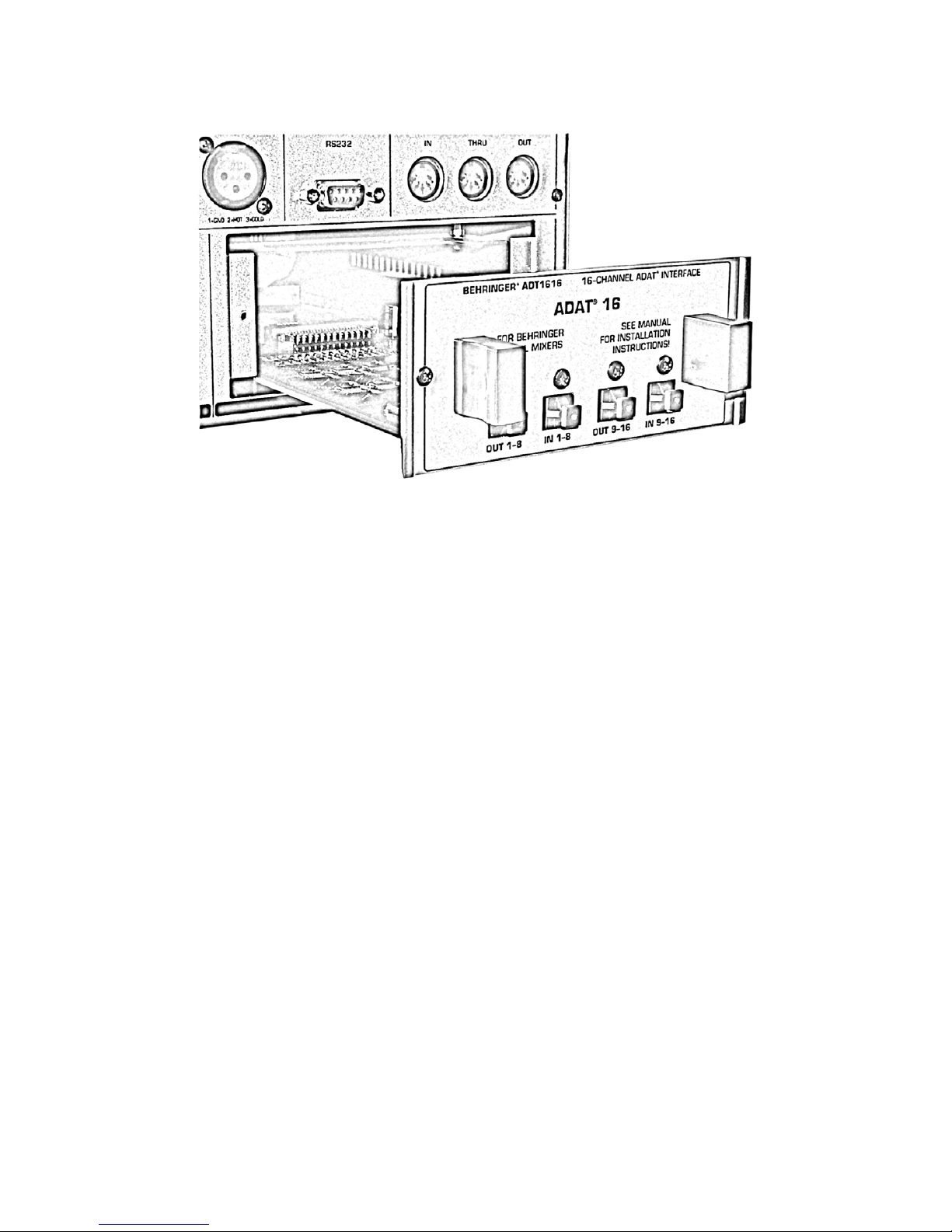

sSwitch off the mixing console.

sTo install the interface slacken the screws holding the cover over one of the two expansion

slots on your digital mixing console BEHRINGER DDX3216. Keep the cover for later re-use!

sHold the interface on its two handles of the connecting panel, and insert it completely into the

expansion slot. Then, fasten the interface with the screws that held the expansion slot cover

before.

sSwitch on the mixing console. Now, the ADT1616 is ready for operation.

+Routingissues are described inthe user’s manual accompanyingyourdigital mixing

console BEHRINGER DDX3216.

Version 1.0 April 2001

ENGLISH

www.behringer.com

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from

time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

Installing the ADT1616

Specifications:

Digital Input/Output

Type Optical

Standard ADAT®-compatible

Terms of the warranty

+For our current warranty terms, please refer to our website at

http://www.behringer.com, or send us a request via e-mail at [email protected], fax

at +49 2154 920 665, or telephone at +49 2154 920 666.
